Lubombo Solar PV Plant – Eswatini

Project Genesis
In early 2023, the Kingdom of Eswatini launched its most ambitious renewable energy initiative to date—the Lubombo Solar PV Plant. This 50MW utility-scale solar farm, located on the eastern highlands of Eswatini and integrated with a 20MW/40MWh battery energy storage system, represented the nation's first major step toward energy independence. The project was awarded to an internationally recognized EPC contractor with an aggressive eight-month construction timeline and firm commissioning deadlines.
Eswatini's energy landscape has long been constrained by geographic realities. As a landlocked country entirely surrounded by South Africa and Mozambique, the kingdom imports over seventy percent of its electricity from South Africa, relying on aging cross-border transmission infrastructure that delivers unreliable power. The Lubombo project emerged as Eswatini's strategic response to break this dependency and establish domestic clean energy capacity. However, the project site presented formidable environmental challenges: summer ground temperatures exceeding fifty degrees Celsius, intense ultraviolet radiation, concentrated seasonal rainfall, and significant risks from both rodent activity and heavy construction machinery operations. These conditions demanded cable systems with exceptional environmental resilience and mechanical protection capabilities.
By March 2023, the project faced a critical supply chain crisis. The original cable supplier failed to meet production commitments, exposing the project to substantial liquidated damages for schedule delays. Dongguan GERITEL Electrical Co., Ltd. received an urgent inquiry from the project team in mid-March 2023, requesting complete cable delivery within four weeks.
Technical Challenges and Requirements Analysis
Through intensive technical consultations with the project engineering team, GERITEL identified three fundamental challenges that would define the supply scope.
Complexity of Standards Compliance. The project encompassed five distinct voltage levels: photovoltaic DC side, battery storage system, low-voltage AC, medium-voltage transmission, and external power supply. Each level referenced specific international standards including IEC 62930, IEC 60228, and IEC 60502. Eswatini Electricity Company mandated IEC certification with third-party testing reports for all grid-connected equipment. The project owner expressed concern that inconsistent interpretation of standards across multiple suppliers could trigger delays during commissioning and acceptance procedures.
Severity of Environmental Adaptation Requirements. Site surveys revealed elevated rodent population density and continuous heavy vehicle traffic during construction. The project owner had experienced cable failures from animal damage and mechanical crushing on previous African projects, resulting in weeks of downtime. This project demanded the highest available level of mechanical protection.
Intensity of Delivery Schedule Pressure. The project financing agreement contained strict commercial operation date requirements with significant daily penalties for delays. With only ten weeks remaining until critical installation milestones, and considering standard industry lead times of eight to twelve weeks plus shipping and customs clearance, the supply chain timeline appeared mathematically impossible.
Technical Solution Design
GERITEL's engineering team developed a comprehensive cable configuration covering all voltage levels with customized specifications.
Photovoltaic DC Side employed H1Z2Z2-K 1×4mm² and H1Z2Z2-K 1×6mm² solar-rated cables. These products utilize irradiation-crosslinked polyolefin dual-layer insulation, certified to IEC 62930 standards, with an operating temperature range of minus forty to plus ninety degrees Celsius and UV resistance verified through two thousand hours of accelerated aging tests. Compared to conventional PVC-insulated alternatives, these cables demonstrate significantly reduced degradation over a twenty-five-year service life. The optimized extra-fine stranded conductor construction achieves a bending radius of four times the cable outer diameter, substantially improving field termination efficiency.
Battery Storage System Internal Connections were configured with H05V-K 1×16mm² through H05V-K 1×70mm² and H07V-K 1×16mm² through H07V-K 1×70mm² single-core flexible cables. These series comply with IEC 60228 Class 5 conductor standards, employing high-purity oxygen-free copper with ultra-fine stranding that delivers conductivity exceeding one hundred one percent IACS. The exceptional flexibility accommodates compact routing within energy storage container enclosures. H05V-K serves 450V control circuits while H07V-K is optimized for 750V power transmission, with insulation rated to 105°C to provide safety margins under high-temperature charge-discharge cycling conditions.
Low-Voltage AC Side deployed YJV 3×50mm² and YJV 3×70mm² cross-linked polyethylene insulated power cables. XLPE insulation offers superior current-carrying capacity and short-circuit withstand performance compared to PVC materials. The YJV 3×70mm² configuration delivers continuous current ratings exceeding 220 amperes at fifty degrees Celsius ambient temperature, satisfying the output requirements of 250kW-class inverters. Addressing the site's dusty conditions, the outer sheath incorporates UV stabilizers, with steel tape armored versions recommended for direct burial applications.
Medium-Voltage Transmission System supplied 11kV and 33kV XLPE insulated power cables conforming to IEC 60502-2 standards, available in single-core and three-core constructions with conductor cross-sections from 70mm² to 300mm². Triple-extrusion dry-cure manufacturing with metallic shielding layers provides effective protection against lightning-induced overvoltages. Steel wire armored versions for direct burial applications deliver compressive strength of 5000N per 100mm.
External Power Supply Circuits required critical technical decision-making. The project owner initially favored lower-cost steel tape armored cables, but GERITEL's engineering team presented revised recommendations based on site survey data: unpaved roads with continuous heavy construction traffic and documented rodent activity evidence indicated that steel tape armor offered insufficient protection against side-impact crushing and animal damage. Following technical substantiation, the project owner approved the SWA cable 4C 95mm² and SWA cable 4C 70mm² steel wire armored cable solution.

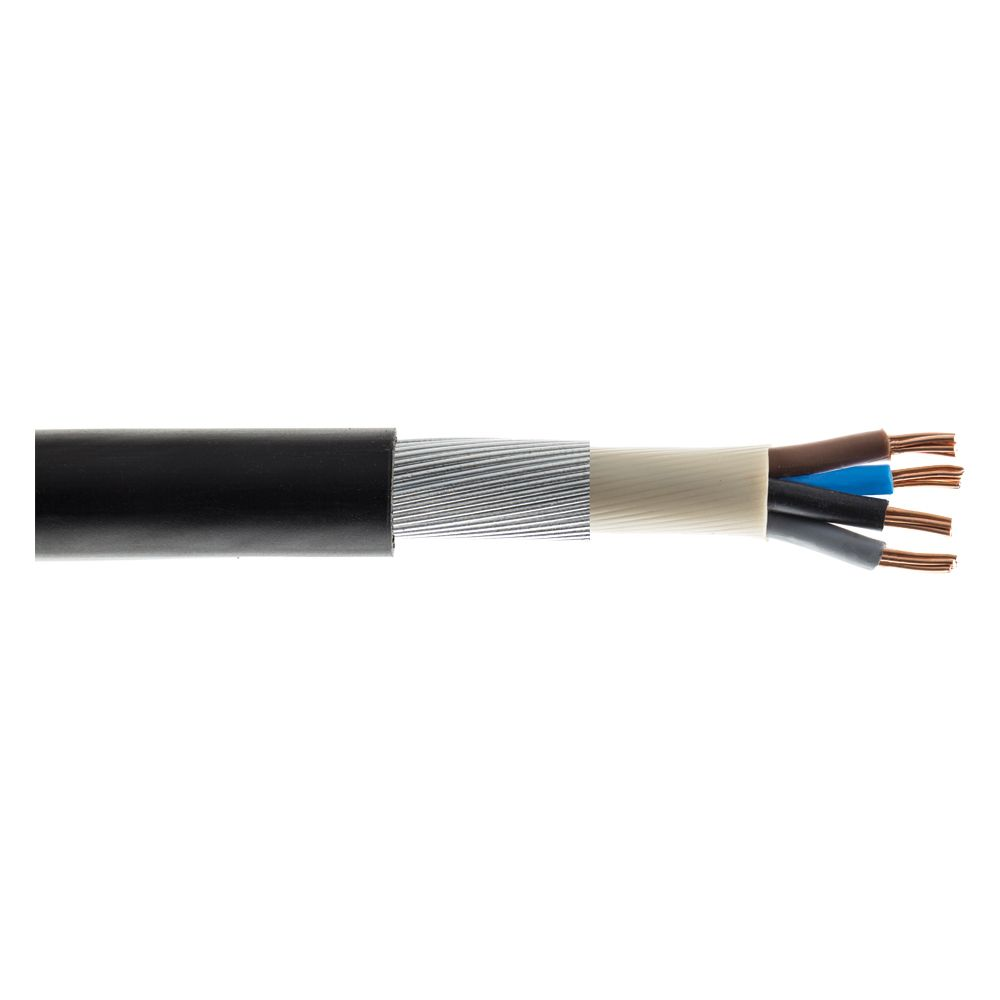

SWA cable 4C 95mm² incorporates high-tensile galvanized steel wire braided armor, delivering significantly superior compression and impact resistance compared to tape armor while providing effective protection against rodent penetration. The four-core construction (three phases plus neutral) matches three-phase four-wire distribution systems, with the 95mm² large cross-section conductor ensuring voltage drop remains within standard limits across 500-meter supply distances. This product became the critical protective barrier for external power supply to the substation and operations center.
Control Systems incorporated KVV series control cables and dedicated communication cables, with core counts ranging from four to thirty-seven. Insulation resistance exceeds 20MΩ·km, ensuring accurate signal transmission for SCADA systems, with sheaths similarly treated for UV stabilization.

Quality Assurance Framework
GERITEL's competitive foundation rests upon comprehensive international certification coverage. All products supplied to the Lubombo project held IEC standard certifications with German TÜV authoritative testing reports, encompassing IEC 62930 for photovoltaic cables, IEC 60228 for conductors, IEC 60502 for power cables, and EN 50618 for European photovoltaic cable standards. The quality management system maintains ISO 9001 certification, with full-process traceability from raw material procurement through finished goods release.
Every production batch undergoes twelve inspection procedures: conductor DC resistance testing, insulation withstand voltage testing, sheath mechanical property testing, outer diameter measurement, length verification, insulation resistance testing, tensile strength testing before and after aging, hot-set testing, low-temperature bending testing, flame retardance testing, marking durability testing, and packaging integrity inspection. All test data enters the traceability system with comprehensive English-language factory inspection reports provided with shipment to ensure single-pass acceptance.
Delivery Execution Record
Confronting the extreme four-week delivery requirement, GERITEL activated rapid response protocols.
Production operations were rescheduled with Lubombo designated highest priority, securing advance inventory of oxygen-free copper rod and XLPE insulation materials. Complex products including SWA cable 4C 95mm² operated on continuous three-shift schedules with quality inspectors stationed at production lines. Finished goods began releasing in week three with complete English testing reports submitted for client pre-review. Week four saw cargo consolidation at port, selecting Shenzhen Shekou Port's Sunday overtime sailing to ensure Monday early morning loading.
Logistics coordination with Durban Port customs clearance agents was established in advance, with certificates of origin, IEC conformity declarations, packing lists, and commercial invoices prepared one week before arrival. Following Durban Port entry, road transport crossed the border directly to the project site, completing the entire journey three weeks ahead of contractual delivery terms.
Technical support spanned the project lifecycle. Pre-shipment cable installation guides and termination process videos were provided. Post-arrival remote conference sessions guided field personnel in identifying application scenarios for different cable models, with bending radius calculation tools and pulling tension control recommendations specifically developed for large armored cables like SWA cable 4C 95mm² to prevent installation damage. Twenty-four-hour online response capability maintained throughout peak installation periods resolved construction technical issues in real time.
Project Outcomes and Operational Verification
The Lubombo Solar PV Plant achieved successful grid connection in early 2024. First-month operational data indicated system generation exceeding design expectations by 8.3 percent, partially attributable to GERITEL cable low-resistance characteristics reducing transmission losses. Infrared thermography inspection confirmed all connection points operated within standard temperature rise limits, with H1Z2Z2-K photovoltaic cable surface temperatures three to five degrees Celsius lower than competing products at midday peak conditions.
Since commissioning, the project has experienced two rainy seasons and numerous lightning events, with continuous road construction activity in surrounding areas. A forty-ton heavy truck accidentally traversed the buried SWA cable 4C 95mm² zone without causing damage. Through year-end 2024, all GERITEL-supplied cable systems maintain zero-failure operational records, validating reliability under African environmental extremes.
Partnership Value Summary
The project owner recognized three core value propositions from GERITEL. Certification authority ensured single-pass acceptance procedures, saving weeks of potential rework time. Customized environmental adaptation design, particularly the steel wire armor protection of SWA cable 4C 95mm², substantially reduced operational risk exposure. Rapid delivery capability enabled critical installation milestones to be completed before seasonal rains, avoiding weather-related cascade delays. Building upon this successful collaboration, both parties have established supply intentions for subsequent Eswatini photovoltaic developments.
GERITEL Core Competencies
Comprehensive International Certification Coverage. The product portfolio spans IEC, EN, BS, and UL mainstream international standards, holding TÜV, SGS, and BV authoritative body certifications, enabling clients to eliminate technical trade barriers and address country-specific admission requirements with confidence.
Deep African Market Experience. Cumulative exports exceeding five thousand kilometers to fifteen African countries have developed intimate knowledge of local climate characteristics and construction challenges. From UV-resistant formulations to steel wire armor construction, from anti-termite sheathing to high-flexibility conductors, product designs incorporate African operational realities.
Flexible Supply Chain and Rapid Delivery. Leveraging intelligent manufacturing capacity at the Dongguan production base, standard products deliver in two to four weeks with custom configurations available in four to six weeks. Multiple trade term options including FOB, CIF, and DAP are supported with logistics optimization assistance to safeguard project schedules.
Conclusion
The successful implementation of the Lubombo Solar PV Plant project validates GERITEL's product reliability under extreme environmental conditions and supply chain responsiveness under impossible deadlines. Within the global energy transformation momentum, dependable cable infrastructure underwrites stable operation across the full plant lifecycle. GERITEL offers comprehensive IEC-certified product ranges, technical experience from emerging market specialization, and the execution capability that transforms commitments into delivered reality.
