How to Reduce Electrical Downtime with the Right Industrial Control Cable

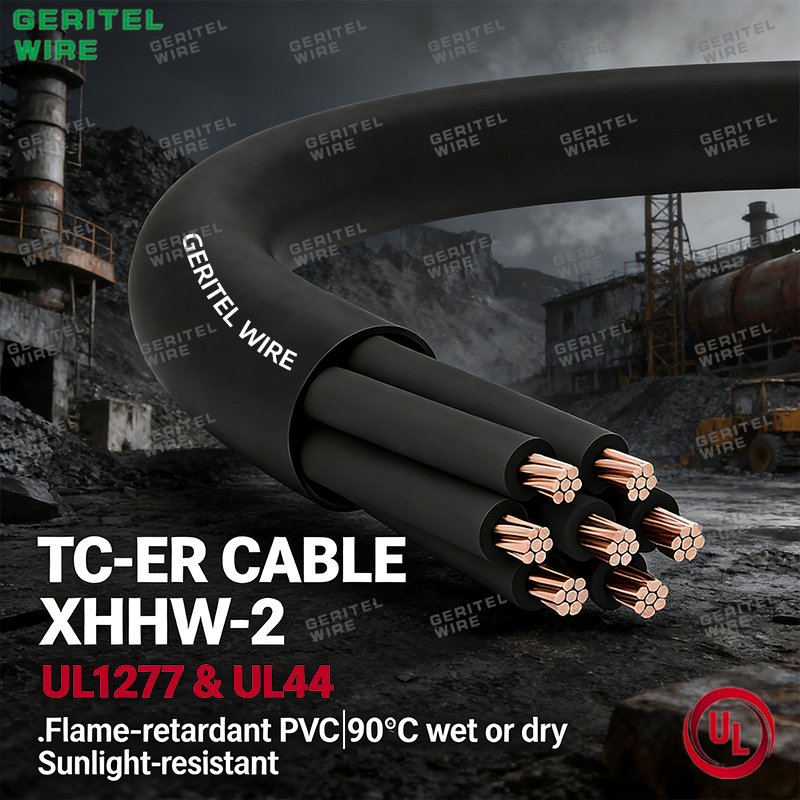

Reliability is not accidental. It is engineered. For Control Panel Wiring Cable, Automation Cable, and general Electrical Maintenance, the single biggest factor affecting lifespan is matching the cable to the real-world conditions it will face. A cable that works perfectly in a clean, dry control room will fail quickly in a wet, oily, or outdoor tray. This guide explains how TC-ER cable – a UL 1277 listed tray cable with exposed run rating – can slash unplanned downtime when selected correctly.

1. Why Cable Selection Is a Maintenance Issue, Not Just an Installation Issue

Most maintenance teams react to cable failures instead of preventing them. Three common failure modes drive repeated repair work.

Failure 1 – Insulation breakdown in wet or hot areas.
Using THHN insulation in a pump room leads to cracking within two years. The repair requires motor disconnection, cable replacement, and re-termination – hours of downtime. Switching to TC-ER cable with XHHW-2 insulation (rated 90°C wet and dry) eliminates this failure mode entirely.

Failure 2 – Electromagnetic interference from VFDs causing random trips.
An unshielded Automation Cable running next to a VFD radiates noise. The drive trips intermittently. Maintenance chases phantom faults for days. The fix is shielded TC-ER cable with foil and drain wire, grounded at one end. Once installed, the trips stop permanently.

Failure 3 – Jacket cracking from sunlight, oil, or chemicals.
Outdoor trays without UV-resistant jacket crack in three years. Oil-soaked jackets soften and swell. Both lead to moisture ingress and insulation failure. Sunlight resistant and oil resistant TC-ER cable solves both problems.

Preventing these failures is not expensive. It simply requires specifying the right Industrial Control Cable from the start.

2. Three TC-ER Cable Specifications That Improve Reliability and Reduce Maintenance

Different environments demand different cable constructions. Here are three scenarios with proven reliability records.

Scenario A – Control panel wiring in dry, indoor electrical rooms

• Recommended cable: 14 AWG 3/C Unshielded TC-ER with THHN/THWN-2 insulation
• Why it reduces maintenance: Three conductors provide power, control, and a bare ground. No shield means one less component to inspect. In this clean environment, unshielded cable will operate for 20+ years without maintenance.
• Keywords: Control Panel Wiring Cable, Electrical Maintenance

Scenario B – Automation cable for VFD-driven conveyor with sensors in the same tray

• Recommended cable: 8 AWG 4/C Shielded TC-ER with XHHW-2 insulation, oil-resistant jacket
• Why it reduces maintenance: Foil shield with drain wire blocks EMI from the VFD, preventing nuisance trips. The 4/C construction adds an insulated green ground – critical for analog sensor signals. XHHW-2 resists oil mist and temperature swings. Maintenance calls drop from weekly to never.
• Keywords: Automation Cable, Industrial Control Cable

Scenario C – Outdoor tray feeding multiple motors, exposed to sun and temperature extremes

• Recommended cable: 4 AWG 3/C Unshielded TC-ER with XHHW-2 insulation and sunlight-resistant jacket
• Why it reduces maintenance: UV-resistant jacket prevents cracking. XHHW-2 handles -40°C to 90°C. Unshielded is acceptable because no VFDs are present. Annual inspections show no degradation after five years.
• Keywords: Industrial Control Cable, Electrical Maintenance

Each of these cables is a TC-ER construction. The difference is in the details – insulation, shielding, jacket compound – matched to the application.

3. Product Advantages – Built for Long Service Life and Low Maintenance

TC-ER cable is not a generic product. Its features are specifically designed to reduce the need for replacement and repair.

• Exposed run rating (TC-ER) – No conduit required in trays. This simplifies inspection. You can see the entire cable length during routine maintenance walks, catching damage early.
• XHHW-2 insulation – Rated 90°C wet/dry. Resists heat, moisture, and chemicals. Eliminates the most common cause of cable failure.
• Sunlight resistant and oil resistant PVC jacket – Prevents UV cracking and chemical swelling. Outdoor and washdown installations last a decade or more.
• Shielded option with foil and drain wire – Blocks EMI. Once properly grounded, it never needs adjustment. No more random trips.
• UL 1277 listing – Verified flame, crush, and impact resistance. You can trust it in industrial trays.

From a maintenance perspective, these features mean fewer work orders, less emergency overtime, and longer intervals between scheduled inspections.

4. Selection Reminder – A Maintenance-Focused Checklist

From our sales team: To reduce electrical maintenance and improve reliability, answer these five questions before buying any control cable.

• Is the environment wet, dry, or oily? Wet or oily demands XHHW-2 insulation and oil-resistant jacket.
• Is the cable exposed to sunlight? Yes requires a sunlight-resistant (UV) jacket.
• Is there a VFD or other noise source nearby? Yes requires shielded TC-ER with drain wire.
• Do you need an insulated ground? For analog signals or wet areas, use 4/C. For dry digital only, 3/C may be acceptable.
• What is the maintenance access like? For hard-to-reach trays, invest in higher durability (XHHW-2, UV jacket) to avoid future replacement labor.

Critical maintenance reminder: The cheapest cable is not the most economical. A cable that fails every two years costs more in labor and downtime than a premium cable that lasts twenty years. Calculate total cost of ownership, not first cost.

5. Installation Tips That Reduce Future Maintenance

Even the best cable needs correct installation to deliver its full reliability potential.

• Support spacing – Horizontal trays: every 6 feet. Vertical risers: every 4.5 feet. Proper support prevents sagging that leads to abrasion.
• Bending radius – Shielded: 6× cable diameter minimum. Unshielded: 4×. Sharp bends damage insulation, creating future failure points.
• Shield grounding – For shielded TC-ER on VFD outputs, ground the drain wire at the drive end only. Grounding both ends creates maintenance headaches from ground loops.
• Label both ends – Clear, durable labels on every cable reduce troubleshooting time by 80% during a breakdown.
• Leave service loops – Extra cable length at panel ends allows re-termination without pulling new cable. This simple practice saves hours during future repairs.

6. UL Certifications – What the Markings Mean for Maintenance

Our TC-ER cables meet North American safety standards. Conductors with XHHW‑2 insulation comply with UL 44 for thermoset‑insulated wires. Conductors with THHN/THWN‑2 comply with UL 83 for thermoplastic‑insulated wires. The complete tray cable assembly carries UL 1277 listing for Tray Cable with Exposed Run rating. These markings are printed on the jacket. When you see UL 44 and UL 1277 on a cable, you know it has passed rigorous flame, crush, and impact tests – meaning fewer unexpected failures. For our UL file numbers, request the certificate from our technical team.

FAQ

Q1: How often should I inspect my TC-ER control cables to prevent unexpected downtime?
A: Perform a visual inspection annually. Look for jacket cracks, hardening, swelling, or discoloration. Check supports for sagging. In harsh environments (chemical, outdoor, washdown), inspect every six months.

Q2: What is the most common maintenance issue with industrial control cables?
A: Environmental mismatch – using a cable with THHN insulation in a wet area, or unshielded cable near VFDs. Both are completely preventable by selecting the correct TC-ER construction.

Q3: Can I replace a failed THHN control cable with TC-ER cable without changing the entire run?
A: Yes, but ensure the TC-ER cable has the same or higher voltage rating (600V). The gauge must match or be larger. For mixed cable types, the overall installation must still comply with NEC. Consult your inspector.

Q4: Does Greater Wire offer TC-ER cable specifically for control panel wiring and automation systems?
A: Yes. We manufacture UL 1277 TC-ER cable in 14 AWG to 500 kcmil, 3/C and 4/C, shielded or unshielded, with XHHW-2 or THHN/THWN-2 insulation, and sunlight/oil resistant jackets. Contact us with your maintenance-focused requirements.

Need a Quote for Your Industrial Control Cable Project?

Tell us your environment, whether you have VFDs, and the distance. We will recommend the right TC-ER cable – 14 AWG 3/C unshielded for control panels, 8 AWG 4/C shielded for automation, 4 AWG 3/C unshielded for outdoor motor feeders, or other gauges – and send a quote within 24 hours. Reduce your maintenance workload starting today.
