Guinea Kaleta Hydropower Supporting Facilities

During the 2022 rainy season, an urgent email arrived in our inbox. The sender was the electrical general contractor for the Guinea Kaleta Hydropower Project—a 240MW facility critical to West Africa's grid upgrade. The project was in jeopardy: cable delivery delays from their original supplier had paralyzed the supporting power distribution works.

The promised YJV 0.6/1kV 4×500mm² main feeder cables were stuck at port, with only 60 days remaining until the government-mandated grid connection deadline. Compounding the crisis, port congestion in Guinea and relentless monsoon conditions made alternative sourcing extremely challenging. Each day of delay meant tens of thousands in penalty fees and threatened power supply to millions in Conakry.

This was never a simple procurement issue. Between the lines, we read the client's real need: not just cables, but a partner who truly understood hydropower engineering and could ensure long-term reliability in tropical harsh environments.

Problem Diagnosis: Three Hidden Technical Risks

We assembled a rapid response team overnight, completing remote video surveys and local climate data cross-analysis within 48 hours. Three deeper risks emerged beyond the delivery delay:

Environmental Adaptation Deficiencies. The original swa cable selection failed to account for Guinea's dual corrosion environment—coastal salt spray and inland high humidity. Our engineers identified that standard products would develop sheath pitting within 3-5 years, creating medium-voltage insulation breakdown risks.

System Compatibility Gaps. The project involved four subsystems: building distribution, main power transmission, medium-voltage delivery, and automation control. However, the original piecemeal sourcing from multiple suppliers created mismatches in flame retardancy ratings, shielding effectiveness, and grounding methods—setting the stage for signal interference and protection malfunctions during operation.

Construction Durability Shortfalls. The station's mountainous terrain required cables to traverse rock zones, riverbeds, and dense vegetation. The original design lacked mechanical damage protection, and site reports already indicated outer sheath damage during installation.

The client's core requirement crystallized: a full-series, fully-certified, fully-adapted cable system solution delivered in extreme urgency—not fragmented product replacements.

Technical Solution: Four-Layer Cable System Architecture

Based on IEC standards and site-specific conditions, we engineered a hierarchical cable architecture with precision-matched selections for each application layer:

Building Internal Distribution System

For lighting and power distribution in the powerhouse, control building, and auxiliary facilities, we standardized on H07V-U series rigid conductor cables. Socket circuits received H07V-U 1×2.5mm² with IEC 60227-compliant flame-retardant PVC insulation to suppress fire spread in dense wiring environments. Small power branches upgraded to H07V-U 1×6mm² featuring 99.95% pure copper conductors for low-loss distribution box feeds. This standardization simplified inventory management, field identification, and reduced installation errors.

Main Power Transmission System

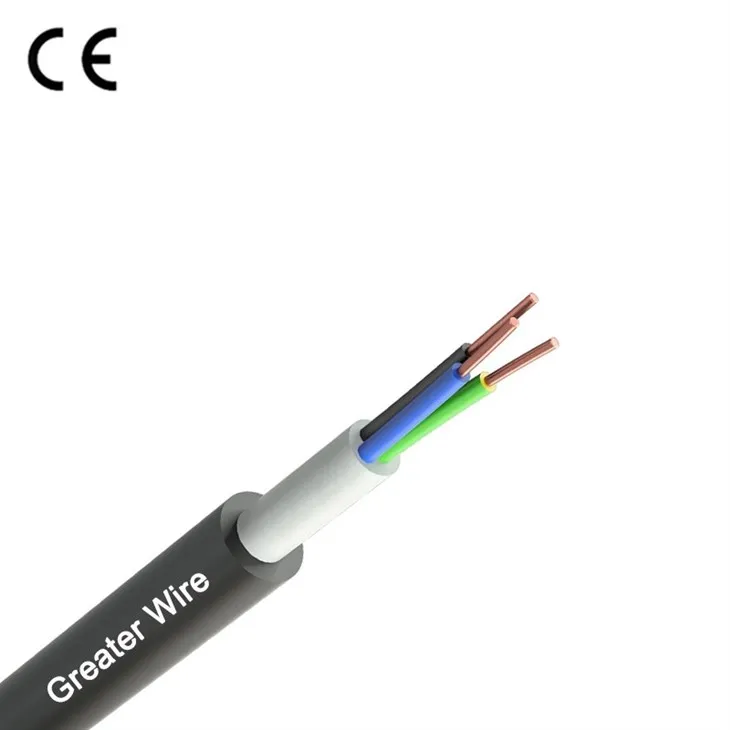

The main transformer low-voltage side to distribution system feeders formed the power core of the entire installation. We specified YJV 0.6/1kV 4×300mm² and YJV 0.6/1kV 4×500mm² cross-linked polyethylene insulated power cables.

Why insist on YJV technology? Compared to VV (PVC-insulated) cables the client initially considered, YJV's XLPE insulation jumps temperature rating from 70°C to 90°C. In Guinea's ambient temperatures exceeding 40°C, this delivers nearly 25% higher current-carrying capacity. This meant YJV 0.6/1kV 4×500mm² could replace two parallel larger-section VV cables, saving cable tray space while reducing line losses by 15%—translating to hundreds of thousands of dollars in lifecycle cost optimization for large-scale stations.

Medium-Voltage Transmission System

The generator output to substation medium-voltage links represented the project's technical pinnacle. We selected YJV32 20kV 3×120mm² for internal station ring networks and YJV32 30kV 3×185mm² for substation-to-grid transmission.

The "32" designation indicates fine steel wire armoring—our terrain-specific engineering response. Compared to steel tape armoring, wire armoring provides superior tensile strength and bending flexibility, withstanding over 5000N side pressure during rock tunnel and riverbed crossings without insulation damage. Three-core construction with copper tape shielding ensures uniform electric field distribution at 20kV/30kV levels, with partial discharge below 5pC—far exceeding IEC requirements.

Automation Control System

For PLC, SCADA, and relay protection systems, we deployed 10×1.5mm² shielded control cables. The multi-core twisted pair construction handles complex signal transmission, while aluminum-plastic composite tape plus copper wire braiding delivers dual shielding effectiveness exceeding 90dB. This effectively isolates electromagnetic interference from variable frequency drives and high-power motors, ensuring real-time monitoring data integrity and protection action accuracy.

Core Competencies: Triple Assurance System

The client's ultimate selection rested on three irreplaceable competitive advantages:

International Certification Portfolio. Full product range holds IEC 60502, IEC 60227, IEC 60228, and IEC 60332 flame retardancy certifications, compliant with EN/IEC standards systems. This satisfies Guinea's regulatory requirements as a Francophone country while future-proofing the client's participation in West African Power Pool (WAPP) cross-border grid projects.

Engineering Experience Depth. Our technical team has deep involvement in major hydropower projects across Southeast Asia and South America, with intimate knowledge of cable aging mechanisms in tropical climates. For Kaleta, we added accelerated tropical aging testing beyond standard production—simulating 10-year operational cycles at 85°C/95%RH to validate insulation degradation curves. This above-standard commitment convinced the client we understood site realities and long-term value.

Flexible Manufacturing Capability. In-house production lines cover full specifications from 1.5mm² control wires to 500mm² large-section power cables without outsourcing. Upon order receipt, we activated emergency production channels: copper rod continuous casting and rolling, triple-extrusion cross-linking, steel wire armoring braiding, and final pressure testing—completing full流程 in 45 days, 30% faster than industry standard. Vacuum moisture-proof packaging with fumigated wooden drums shipped directly to Conakry port, where our logistics coordinator managed customs clearance to ensure arrival during the rainy season window.

42-Day Turnaround

When the first cable drums arrived on site, the client's project manager confirmed in the acceptance report: 100% packaging integrity, labeling clarity exceeding expectations, and technical manuals including local language installation essentials.

Our engineers provided remote video guidance for field installation, emphasizing YJV32 series minimum bending radius (15×outer diameter) and traction force control (below 50N/mm²) to prevent steel wire armor deformation from improper handling. For substation termination work, we supplied pre-fabricated accessory kits, compressing high-voltage cable head production from traditional 4 hours to 1.5 hours—recovering critical schedule margin.

In the 2023 dry season, the Kaleta supporting power distribution system commissioned successfully in one attempt. From main transformer energization to full load operation, YJV 0.6/1kV 4×500mm² main feeder cables stabilized at temperature rises below 45K, medium-voltage partial discharge below 2pC, and control signal error rates at zero.

Operational Results: One-Year Zero-Failure Validation

One year post-commissioning, client feedback confirmed: zero cable system failures, line voltage drop controlled within 2% (30% better than design) due to optimized conductor sizing, directly improving station power output. Unified supplier sourcing simplified spare parts management, freeing maintenance teams from tedious model cross-referencing.

This project validated the core logic of B2B cable export: resolving systemic anxiety through technical professionalism, hedging uncertainty through manufacturing agility, and opening long-term markets through international standard credentials.
