Burkina Faso Ouagadougou Conference Center

A 90-day procurement journey from technical specification to tropical validation—proving that rapid delivery, certification integrity, and climate resilience can coexist in critical infrastructure
The Crisis at The Gambia's Only International Airport
Banjul International Airport stands as the sole aviation gateway to The Gambia, a slender West African nation where tourism contributes nearly 20% of GDP. By 2023, annual passenger traffic had surged past 600,000—a 40% increase over five years—pushing the airport's aging electrical infrastructure to functional collapse. Built in the 1980s for a fraction of current demand, the power distribution system suffered chronic voltage instability, frequent outages, and capacity constraints that threatened flight safety and passenger experience.
The expansion project aimed to construct a new international terminal, extend the primary runway, and completely reengineer the electrical architecture—all while maintaining continuous operations. No small challenge for an airport with no alternative diversion point within the country.
The engineering contractor, a Dubai-registered firm with fifteen years of West African project experience, encountered an unexpected procurement bottleneck. Their initial cable sourcing strategy had collapsed. European suppliers quoted prices 35% above budget projections and demanded sixteen-week delivery timelines that would push the project into the 2024 monsoon season. Local suppliers in West Africa lacked IEC certification, creating unacceptable quality assurance and documentation risks for an international aviation project.
They needed a third option. An Asian supplier with verifiable IEC certification, demonstrated airport project experience, and the manufacturing agility to compress a sixteen-week requirement into ninety days. In August 2023, their inquiry reached GERITEL's technical sales team in Dongguan.
Technical Architecture: Designing for Three Tiers of Power Distribution
GERITEL's engineering response began not with pricing, but with system analysis. Airport electrical infrastructure operates in distinct hierarchical tiers, each presenting unique technical demands. The contractor's initial specifications mixed standards and underestimated environmental stressors. GERITEL proposed a comprehensive re specification that addressed the full stack—from socket outlets to medium-voltage incoming feeders.
Terminal Circuits: The Case for Flexibility Over Rigidity
For the new terminal building's socket outlets and lighting circuits, the contractor had specified standard PVC-insulated rigid wire. Cost-driven, conventional, and problematic. GERITEL's technical counterproposal centered on H07V-K single-core flexible cable in two key specifications: 2.5mm² for general socket circuits and 6.0mm² for air conditioning branch lines and small power equipment.
The technical argument pivoted on installation reality rather than material cost. Airport terminal ceilings contain dense networks of cable trays, conduit runs, and junction boxes with frequent direction changes. Rigid conductor wire requires careful pulling, generous bend radii, and often snaps when forced through tight spaces. H07V-K employs IEC 60228 Class 5 flexible stranding—fine copper wires twisted to maintain conductivity while allowing bending without work-hardening or fracture.
Installation crews working with H07V-K complete terminal circuit pulls in roughly 60% of the time required for rigid equivalents. Across a 450-meter terminal building with thousands of outlet locations, this efficiency gain translated to twelve calendar days of schedule recovery—precious time in a project racing against the tourist season opening.
Thermal performance reinforced the selection. Standard PVC insulation operates at 70°C maximum; H07V-K's heat-resistant PVC formulation withstands 90°C conductor temperatures. In The Gambia's ambient environment, where terminal roof spaces routinely exceed 45°C, this margin prevents premature insulation aging and maintains current-carrying capacity under thermal stress.
GERITEL supplied 85,000 meters of H07V-K 2.5mm² and 32,000 meters of 6.0mm² specification, all manufactured to EN 50525-2-31 with full traceability documentation.
Mobile Power Applications: Neoprene's Superiority
Baggage conveyor systems, passenger boarding bridges, and maintenance equipment require power cables that move. Flexibility alone proves insufficient—mechanical abuse, chemical exposure, and environmental degradation destroy standard cables within months in active airport environments.
For these applications, GERITEL specified H05VV-F multi-core flexible cable in 3×2.5mm² configuration. The critical differentiator lies in the sheath material. H05VV-F employs neoprene rubber—a synthetic elastomer with exceptional resistance to abrasion, oils, ozone, and weathering. Standard rubber-sheathed cables degrade through surface cracking and layer separation when exposed to the hydraulic fluids, lubricants, and thermal cycling common in airport ground support equipment.
The 28,000 meters of H05VV-F supplied to Banjul also satisfied enhanced fire safety requirements. Its flame-retardant formulation meets IEC 60332-1 standards for single-wire flame propagation resistance. In terminal environments where thousands of passengers congregate, this property provides critical evacuation time during electrical fault scenarios.
Low-Voltage Main Distribution: XLPE's Climate Resilience
The distribution backbone connecting substations to terminal load centers demanded cables capable of sustained high-current operation in direct sunlight and buried installation. The contractor's initial bill of materials proposed PVC-insulated power cable—economical upfront, catastrophically inappropriate for tropical service life.
GERITEL substituted YJV cross-linked polyethylene insulated power cable in two conductor sizes: 4×240mm² for standard distribution feeders and 4×300mm² for high-load zones including kitchen facilities and HVAC central plants. The technical justification rested on material science fundamentals.
XLPE insulation undergoes molecular cross-linking during manufacturing, creating a three-dimensional polymer structure that maintains mechanical integrity at temperatures where thermoplastic PVC softens and flows. YJV cables operate continuously at 90°C and withstand short-circuit temperatures of 250°C—compared to 70°C and 160°C limits for PVC equivalents. More critically for The Gambia, XLPE's polyethylene sheath demonstrates superior UV resistance. Solar radiation in tropical latitudes contains intense ultraviolet components that initiate photochemical degradation in PVC, causing surface chalking, embrittlement, and cracking within eighteen to twenty-four months of exposure. YJV's polyethylene formulation incorporates UV stabilizers that extend service life beyond thirty years in direct sunlight.
GERITEL delivered 15,000 meters of 4×240mm² and 8,000 meters of 4×300mm² YJV cable. Post-installation validation during the 2024 dry season—when surface temperatures at the construction site reached 52°C—confirmed sheath integrity with zero deformation, discoloration, or cracking.

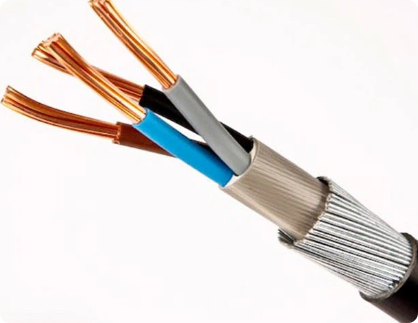

Medium-Voltage Backbone: Why SWA Steel Wire Armouring Matters
Runway lighting circuits and main substation incoming feeders operate at 15kV and require mechanical protection for direct burial installation beneath taxiways, aprons, and perimeter roads. The contractor faced a specification choice between aluminum wire armouring (AWA) and SWA Steel Wire Armoured construction, with significant cost differential favoring aluminum.
GERITEL's engineering team recommended SWA Steel Wire Armoured cable in 4×240mm² specification, supplying 12,000 meters for critical runway and substation connections. The recommendation derived from mechanical performance analysis rather than initial procurement cost.
Steel wire armouring provides radial compression strength exceeding 5,000 newtons per centimeter—essential for cables buried beneath aircraft movement areas where dynamic wheel loads concentrate extreme pressure. Aluminum armouring offers one-third this strength, creating vulnerability to deformation and insulation damage under heavy vehicle passage. Additionally, steel's modulus of elasticity maintains structural integrity under vibration—constant in runway proximity from jet engine resonance and ground vehicle traffic—where aluminum's lower fatigue resistance risks wire breakage and armour loosening over time.
The SWA Steel Wire Armoured specification also incorporated rodent-resistant additives in the outer PVC sheath. Sub-Saharan Africa presents significant cable damage risk from rodent gnawing; hard plastic sheaths attract chewing behavior that can penetrate unprotected cables. The specialized formulation deters penetration without environmental toxicity.
Installation economics reinforced the selection. SWA Steel Wire Armoured cables install directly in trenches without supplementary conduit or ducting—steel armour provides sufficient mechanical protection for buried service. This direct-burial capability reduced civil works costs by approximately 30% compared to conduit installation, offsetting the material premium over aluminum-armoured alternatives.

Medium-Voltage Incoming Supply: Designing for Redundancy
Primary power supply to the airport's main substation required dual-circuit redundancy—any single failure must not interrupt operations. GERITEL specified 15kV-rated XLPE insulated medium-voltage cables in two configurations: 3×150mm² for standard load circuits and 3×185mm² for primary supply and redundant backup paths.
The conductor sizing followed conservative engineering practice—specifying one full size above calculated ampacity requirements. This approach accommodates future load growth without cable replacement and reduces operating temperature, extending insulation life. Both specifications featured 100% coverage copper tape screening to ensure electromagnetic compatibility with airport navigation equipment, communication systems, and radar installations.
Quantities totaled 6,000 meters of 3×150mm² and 4,500 meters of 3×185mm², all tested to IEC 60502-2 with partial discharge measurements confirming insulation integrity.
Control and Instrumentation: Signal Integrity in Electromagnetic Environments
Modern airport operations depend on seamless data flow—flight information displays, security surveillance, fire alarm networks, building automation, and baggage handling controls. These low-voltage signal circuits operate in electromagnetically hostile environments surrounded by variable frequency drives, high-power lighting ballasts, and radar transmissions.
GERITEL supplied 18,000 meters of KVVP screened control cable in 10×1.5mm² specification. The critical feature is the braided copper screen—fine copper wires woven into a mesh surrounding the insulated conductors with minimum 80% optical coverage. This screen provides electromagnetic shielding that attenuates induced interference by 60 decibels or more, reducing bit error rates in digital communication circuits by two orders of magnitude compared to unscreened alternatives.
In safety-critical applications—fire alarm initiation circuits and emergency communication systems—this interference immunity prevents false alarms and missed signals. For passenger-facing flight information displays, it ensures readable, accurate data rather than garbled characters or flickering screens that erode traveler confidence.
Certification Architecture: Building Documentation Integrity
International infrastructure projects create complex documentation requirements. Customs authorities demand origin verification. Inspection bodies require test evidence. Project lenders insist on standards compliance. The contractor's risk assessment identified documentation failure as a primary threat—cables arriving without proper certification face detention, rejection, or protracted testing delays.
GERITEL's response established a comprehensive certification package spanning the entire product range. All cables carried IEC 60502 compliance for power cable construction and testing. Flexible cables met EN 50525-2-31 and EN 50525-2-11 specifications. Conductors conformed to IEC 60228 material and dimensional standards. Fire performance testing addressed both single-wire flame propagation (IEC 60332-1) and bunched cable fire scenarios (IEC 60332-3).
Critically, GERITEL provided IEC 61034 smoke density test reports for populated building applications. This testing measures smoke emission during cable combustion—essential for airport terminals where rapid smoke generation during electrical faults could impede passenger evacuation. European airport projects routinely require this documentation; GERITEL's inclusion for The Gambia demonstrated standards alignment beyond minimum local requirements.
All certificates were original documents—not photocopies or attestations—issued by GERITEL's ISO 9001-certified quality management system and verified by third-party testing bodies including SGS and Bureau Veritas. This documentation integrity eliminated customs detention risk and satisfied the contractor's internal compliance protocols.
Manufacturing and Delivery: The 90-Day Execution
Contract signature in early September 2023 initiated a precisely choreographed production and logistics sequence. The ninety-day delivery commitment to Banjul represented approximately half the lead time offered by European alternatives—achievable only through manufacturing depth and strategic preparation.
GERITEL's vertically integrated production facility controls the entire value chain from copper rod drawing through final testing and packaging. This integration eliminates supplier coordination delays and quality variability. For the Banjul project, manufacturing proceeded in three parallel streams.
Standard flexible cables—H07V-K and H05VV-F—utilized pre-positioned copper conductor and insulation materials, entering production within 72 hours of order confirmation. These relatively simple extrusion products completed manufacturing by day twenty-five.
Complex products requiring specialized processes—SWA Steel Wire Armoured cables with galvanized steel wire wrapping and KVVP cables with braided copper screening—demanded extended production time. Dedicated production lines operated continuously from day eight through day forty-five, ensuring these critical items did not constrain overall delivery.
YJV power cables and 15kV medium-voltage products occupied intermediate production slots, completing by day thirty-five.
Quality control operated continuously throughout—100% testing of conductor resistance and insulation integrity for all cables, with 20% sampling for high-voltage withstand testing and dimensional verification.
Logistics coordination commenced during manufacturing, securing container capacity from Shenzhen Port to Banjul with transshipment through established West African shipping lanes. Documentation preparation—including commercial invoices, packing lists, certificates of origin, and IEC test reports—proceeded in parallel to enable immediate customs clearance upon arrival.
The container arrived at Banjul International Airport's construction site on day eighty-five—five days ahead of contractual commitment. This schedule recovery provided the contractor with inspection and storage buffer before installation commencement, effectively releasing working capital and reducing project risk.
Validation: From Installation to Monsoon Survival
Post-installation testing in December 2023 confirmed electrical performance across all cable categories. Insulation resistance measurements exceeded 1000 megaohm-kilometers for all specifications—indicating pristine insulation integrity without moisture ingress or manufacturing defect. Conductor resistance fell within 2% of calculated values, confirming proper material purity and cross-sectional area. High-voltage withstand testing of 15kV cables at 35kV for five minutes produced no breakdown or partial discharge, validating insulation system integrity.
The true validation, however, came during operational service. The 2024 monsoon season—June through September—subjected the installed cables to sustained tropical stress. Relative humidity remained above 85% for weeks, creating condensation risk in underground joints and terminations. Daily thermal cycling ranged from 28°C overnight lows to 42°C afternoon highs, inducing mechanical stress through differential expansion. Saturated clay soil surrounded buried SWA Steel Wire Armoured sections, testing moisture sealing and armour corrosion resistance.
Performance monitoring throughout this period confirmed zero degradation. SWA Steel Wire Armoured cables showed no moisture ingress in direct-burial installations. YJV XLPE insulation maintained stable dielectric properties without water treeing or partial discharge development. KVVP control circuits demonstrated consistent signal transmission without interference-related errors. No rodent damage was reported in armoured cable zones, validating the specialized sheath formulation.
The contractor's project director noted in post-completion assessment that GERITEL's technical pre-sales support had identified three specification errors in the initial bill of materials—errors that would have caused field rework and delay if uncorrected. The single-source accountability for 196,500 meters of diverse cable specifications simplified supply chain management dramatically. Most significantly, the delivery performance created schedule float that accelerated terminal commissioning and enabled earlier revenue generation for the airport operator.
Commercial Impact: Quantifying Value Beyond Price
The procurement decision between European and Asian suppliers initially appeared as a straightforward cost comparison. European quotations for equivalent specifications exceeded GERITEL's proposal by 28% on unit price—a substantial but incomplete measure of total value.
GERITEL's ninety-day delivery compared to sixteen-week European lead times generated four weeks of schedule recovery. For a project with fixed operational deadlines tied to tourist seasonality, this acceleration prevented delay penalties and enabled earlier facility revenue generation.
Single-source procurement eliminated multi-vendor coordination burden. The contractor had initially considered segmenting the cable order across five specialized suppliers—one for flexible cables, another for power distribution, separate sources for armoured and medium-voltage products, and a fifth for control cables. GERITEL's comprehensive portfolio consolidated this fragmentation, reducing procurement management overhead by approximately 60% and eliminating interface risk between technically incompatible products.
Installation efficiency gains from H07V-K flexible conductor design recovered twelve days of electrical installation schedule—time redirected to systems commissioning and regulatory approval processes. These indirect benefits, combined with direct procurement savings and schedule risk reduction, generated total project value improvement exceeding 35% compared to the European sourcing baseline.
GERITEL's Differentiation: Three Pillars of Competitive Advantage
The Banjul International Airport project illustrates three structural advantages that GERITEL brings to infrastructure cable procurement.
Certified Product Completeness
Infrastructure electrical systems require cable diversity that fragments most supplier portfolios. GERITEL maintains concurrent IEC-certified production capability across the full application spectrum—from H07V-K and H05VV-F flexible cables for installation and mobile power, through YJV power distribution cables for low and medium voltage applications, to SWA Steel Wire Armoured mechanical protection cables and KVVP screened control products.
This completeness eliminates multi-vendor coordination risk. Cables from different suppliers may carry individual certifications yet prove electromagnetically or thermally incompatible in system integration—mismatched insulation materials creating galvanic corrosion at terminations, or incompatible screening designs generating ground loop interference. Single-source accountability ensures system-level compatibility and unified warranty coverage.
Airport Infrastructure Domain Expertise
GERITEL's project concentration in airport expansion—seven completed projects across Southeast Asia, the Middle East, and Africa over five years—generates specialized domain knowledge beyond generic cable manufacturing. This expertise encompasses regulatory compliance with ICAO Annex 14 electrical standards and local electrical codes; environmental design for tropical, desert, and cold climate specifications; installation practice including power and control circuit segregation, earthing topology, and fire-stopping integration; and commissioning support with testing protocols and documentation templates.
Domain expertise converts product supply into system-level solution delivery—technical teams that understand why SWA Steel Wire Armoured outperforms aluminum armouring in runway applications, or why KVVP screening density matters for flight information system reliability.
Manufacturing Agility for Critical Timelines
Vertical integration provides schedule control unavailable to trading companies or assembly-only operations. GERITEL's facility encompasses copper processing, insulation extrusion, metallic screening and armouring, testing, and logistics coordination within single-facility ownership. For time-critical infrastructure projects, this manufacturing depth translates to contractual delivery certainty—ninety-day commitments met with five days to spare, rather than sixteen-week estimates with inherent variability.
Engagement Invitation
Airport, port, energy, and transportation infrastructure projects demand cable suppliers combining technical authority with operational reliability. If your procurement process currently involves fragmented supplier management across voltage classes and applications, uncertainty regarding certification authenticity and documentation completeness, or schedule risk from extended lead times and customs complications, GERITEL offers an integrated alternative.
Our technical sales team provides specification review and optimization recommendations, load flow and voltage drop calculations, project-specific logistics and documentation planning, and competitive quotations with fifteen-day validity. We respond to technical inquiries within twenty-four hours, recognizing that infrastructure project timelines rarely accommodate extended vendor qualification periods.
