Choosing the Right Low Voltage Power Cable for Commercial and Industrial Projects

Electricians and project buyers face a common challenge: one project is a retail store with clean, dry conduit runs; the next is a manufacturing plant with oil mist, vibration, and open cable trays. Using the same cable for both leads to premature failures or unnecessary expense. TC-ER cable offers a flexible platform – with options for insulation (XHHW‑2 vs THHN/THWN‑2), shielding, and jacketing – that can be tailored to either environment. This article helps you match Commercial Electrical Cable and Industrial Power Cable needs to the right TC-ER construction.

1. Commercial vs Industrial: Two Different Sets of Demands

Commercial projects (offices, retail, schools, hospitals) typically have:

• Indoor, dry, climate‑controlled spaces.
• Power run inside conduit or enclosed cable trays.
• Minimal exposure to oil, chemicals, or extreme temperatures.
• Lower priority on flexible stranding or heavy shielding.

Industrial projects (factories, warehouses, processing plants) often have:

• Wet, oily, or dusty environments.
• Exposed runs in open cable trays (no conduit).
• VFDs, motors, and welding equipment that generate EMI.
• Temperature swings from freezing to 90°C.
• Vibration and occasional mechanical impact.

A single TC-ER cable construction can work for both, but the specifications must be adjusted.

2. Key TC-ER Cable Features for Commercial and Industrial Use

Insulation – XHHW‑2 vs THHN/THWN‑2

• For commercial dry locations, THHN/THWN‑2 (90°C dry / 75°C wet) is cost‑effective.
• For industrial wet, hot, or oily areas, XHHW‑2 (90°C wet/dry) provides longer life.

Jacket – Sunlight resistant and oil resistant

• Commercial indoor: standard PVC jacket is fine.
• Industrial outdoor or washdown: must specify sunlight resistant and oil resistant marking.

Shielding – Unshielded vs shielded

• Commercial power runs without nearby sensitive electronics: unshielded saves cost.
• Industrial runs near VFDs or instrumentation: shielded TC-ER with foil + drain wire is required.

Exposed run (ER) rating

• Conduit is typical in commercial. For industrial cable trays, TC-ER rating allows no‑conduit installation, saving labor.

3. Three TC-ER Cable Specifications for Common Scenarios

Scenario 1 – Commercial retail store (dry, indoor, conduit)

• Recommended cable: 10 AWG 4/C Unshielded TC-ER with THHN/THWN‑2 insulation
• Why: 10 AWG handles 30A branch circuits. 4/C provides three phases plus an insulated ground. Unshielded saves cost. THHN/THWN‑2 is sufficient for dry areas.
• Typical use: Lighting panels, point‑of‑sale circuits, HVAC feeders.

Scenario 2 – Industrial manufacturing plant with oil mist and VFDs

• Recommended cable: 2 AWG 3/C Shielded TC-ER with XHHW‑2 insulation and oil‑resistant, sunlight‑resistant jacket
• Why: 2 AWG carries 115–130A for moderate motor loads. Shield blocks EMI from VFDs. XHHW‑2 and oil‑resistant jacket survive coolant and lubricant exposure.
• Typical use: Motor feeders, control panel mains, assembly line power.

Scenario 3 – Outdoor industrial yard with cable tray and UV exposure

• Recommended cable: 1/0 AWG 4/C Unshielded TC-ER with XHHW‑2 insulation and sunlight‑resistant jacket
• Why: 1/0 AWG handles higher current (150‑170A) for longer feeders. Unshielded is fine if no VFDs. Sunlight‑resistant jacket prevents UV cracking. 4/C gives insulated ground for safety.
• Typical use: Feeder to outdoor equipment, substation to building, solar combiner boxes.

These three examples show how adjusting insulation, shielding, and jacket lets you use TC-ER cable across vastly different projects.

4. Product Advantages That Matter for Both Commercial and Industrial

Oil resistance – Our TC-ER cable uses a specially compounded PVC jacket that resists swelling and softening from industrial lubricants, hydraulic fluids, and coolants. For commercial kitchens or automotive shops, this extends cable life significantly.

Sunlight resistance – UV stabilizers prevent the jacket from cracking after years of outdoor exposure. Any commercial or industrial project with rooftop trays or exterior runs should specify this.

Shielding effectiveness – The combination of 100% foil coverage and a tinned copper drain wire provides reliable EMI suppression. Ground the drain wire at one end only to avoid ground loops.

Exposed run (TC-ER) rating – Eliminates conduit in cable trays, reducing labor by 40‑50% compared to pipe‑and‑wire methods. This benefit applies equally to commercial expansions and industrial retrofits.

UL 1277 listing – Validates flame retardance, crush resistance, and impact resistance. This single certification is accepted by inspectors for both commercial and industrial tray installations.

5. Selection Reminder – Commercial vs Industrial Checklist

From our project support team: Before ordering, walk through this quick checklist.

• Is the environment dry (commercial) or wet/oily (industrial)? Dry → THHN/THWN‑2 saves cost. Wet/oily → XHHW‑2 and oil‑resistant jacket.
• Will the cable be exposed to sunlight? Yes → sunlight‑resistant jacket required.
• Are there VFDs or sensitive electronics nearby? Yes → shielded TC-ER with drain wire.
• Will the cable run be in conduit or open tray? Open tray → must have TC-ER marking on jacket.
• Do you need an insulated ground? For analog signals or wet locations → use 4/C. For dry power only → 3/C is sufficient.

Critical reminder for buyers: Many contractors try to use one cable for everything. A commercial‑grade THHN/THWN‑2 unshielded cable installed in an industrial tray will fail early – typically within two years. Spending slightly more on the correct TC-ER construction (XHHW‑2, shielding, oil‑resistant jacket) prevents downtime and rework costs.

6. UL Certifications – What the Markings Mean

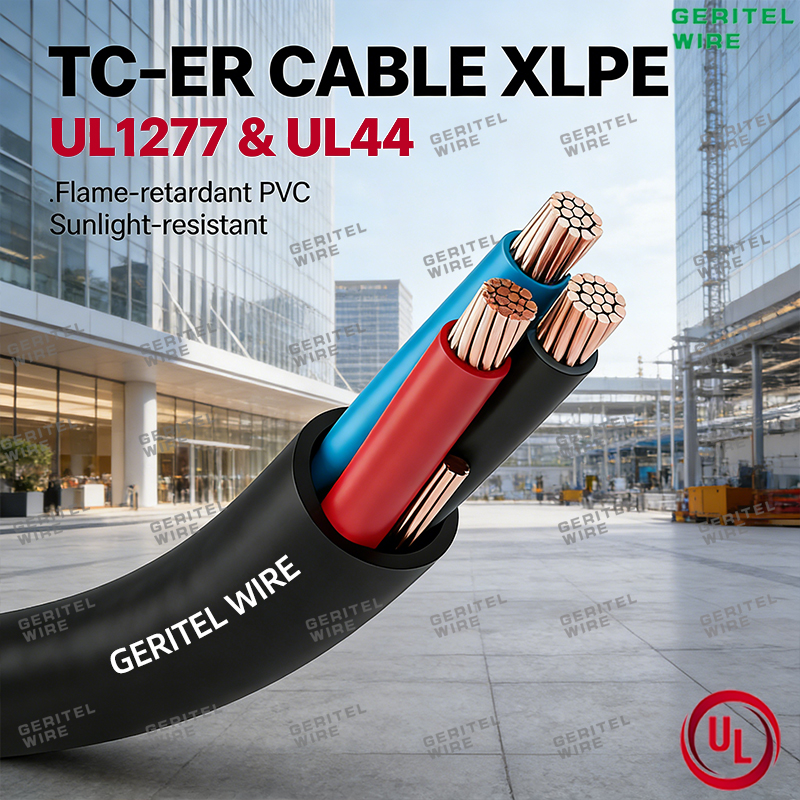

Our TC-ER cables are UL 1277 listed for Tray Cable with Exposed Run rating. Conductors with XHHW‑2 insulation comply with UL 44 for thermoset‑insulated wires. Conductors with THHN/THWN‑2 comply with UL 83 for thermoplastic‑insulated wires. The UL markings are printed on the jacket at regular intervals. These certifications ensure the cable has passed flame, crush, and impact tests required for both commercial and industrial tray installations. For our UL file numbers, request the certificate from our technical team.

FAQ

Q1: Can I use the same TC-ER cable for both commercial and industrial projects?
A: Yes, but you must select the correct construction. For commercial dry areas, THHN/THWN‑2 and unshielded works. For industrial wet/oily areas, choose XHHW‑2, shielded, and oil‑resistant jacket. The same part number cannot serve both extremes.

Q2: What is the difference between 3/C and 4/C TC-ER cable for low voltage power?
A: 3/C has three phase conductors and no insulated ground – the ground is separate or via tray. 4/C adds an insulated green ground wire. For wet locations or when an isolated ground is required, use 4/C.

Q3: Is TC-ER cable rated for direct burial?
A: Only if the jacket is additionally marked “DIR BUR” or “Direct Burial”. Standard TC-ER is not rated for direct earth contact. Check the jacket markings or use conduit underground.

Q4: Does Greater Wire offer custom lengths and packaging for large commercial or industrial projects?
A: Yes. We can supply TC-ER cable in custom cut lengths, non‑returnable reels, or specialized put‑ups. Contact our project desk with your bill of materials.

Need a Quote for Your Commercial or Industrial Power Project?

Tell us your project type (commercial or industrial), environment (dry, wet, oily, outdoor), voltage and current, distance, and whether you need conduit or exposed run. We will recommend the right Low Voltage Power Cable – 10 AWG 4/C, 2 AWG 3/C, 1/0 AWG 4/C, or other gauges – and send a quote within 24 hours.
