XHHW-2 vs THHN/THWN-2: Comparing XLPE and PVC Insulation

In electrical wiring projects, selecting the proper insulation material plays a critical role in overall performance and safety. XHHW-2 and THHN/THWN-2 stand as two of the most popular wiring options available, each delivering unique advantages tailored to specific applications. Recognizing the core differences between XLPE insulation and PVC insulation is vital for professionals and DIYers alike who value safety, efficiency, and reliable durability.

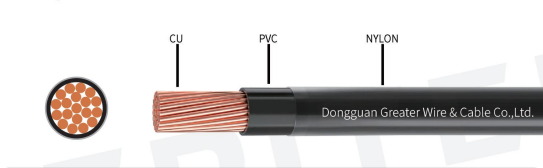

XHHW-2 XLPE insulated building wire XHHW-2 cable for industrial wiring

Understanding XHHW-2 and THHN/THWN-2

XHHW-2, short for “Cross-Linked High Heat Wire, Revision 2,” is known for its superior XLPE insulation. This insulation type offers excellent heat resistance, high dielectric strength, and long-term reliability. On the other hand, THHN/THWN-2 wires are versatile and widely used in residential and commercial settings, featuring PVC insulation with a nylon jacket for added protection.

From a professional standpoint, choosing wires that meet certified industry standards is critical. Our XHHW-2 and THHN/THWN-2 wires are UL-certified, ensuring compliance with safety regulations and consistent performance under demanding conditions.

XLPE vs PVC: Insulation Comparison

The primary difference between these two wire types lies in the insulation material. XLPE (Cross-Linked Polyethylene) is thermoset, meaning it can withstand high temperatures without deforming. This makes XHHW-2 wires ideal for industrial applications, high-current loads, or environments with elevated ambient temperatures—perfect for XHHW-2 cable industrial application and heavy-duty infrastructure setups.

PVC (Polyvinyl Chloride), used in THHN/THWN-2 wires, is flexible and flame-retardant. While PVC performs well in moderate temperature ranges, it may soften or degrade under prolonged high heat exposure. However, PVC insulation still provides excellent resistance to moisture, abrasion, and many chemicals, making THHN/THWN-2 wires a practical choice for residential and commercial wiring projects.

Electrical Performance and Temperature Ratings

XHHW-2 wires with XLPE insulation are rated for up to 90°C in wet and dry conditions, providing superior performance in hot or challenging environments. THHN/THWN-2 wires, insulated with PVC, are rated for 75°C in wet conditions and 90°C in dry conditions. These ratings directly impact the wire's current-carrying capacity and long-term reliability.

For contractors who demand professional-grade, certified wires, choosing XHHW-2 ensures that even in high-temperature applications, the insulation maintains its integrity, reducing the risk of failure and downtime.

Mechanical Durability and Chemical Resistance

XLPE insulation is known for its exceptional mechanical strength, resistance to cracking, and excellent chemical resistance. This makes XHHW-2 wires suitable for industrial plants, outdoor installations, and areas with harsh chemical exposure.

PVC insulation, while slightly less robust, still offers good durability and is easier to handle due to its flexibility. THHN/THWN-2 wires remain popular in scenarios where installation speed and ease of routing through conduits are priorities, complementing XHHW-2 building wire power cable in commercial and residential buildings.

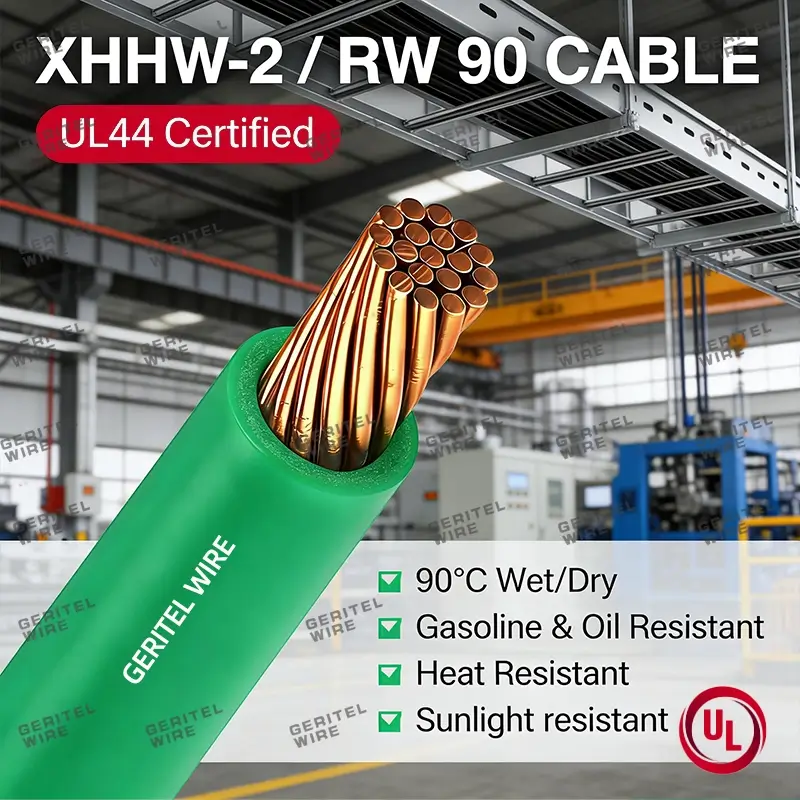

XHHW electric power cable 600V rated

Applications: Residential, Commercial, and Industrial

Residential Wiring: THHN/THWN-2 wires are widely used in homes for outlets, lighting, and general electrical circuits due to their ease of installation and cost-effectiveness.
Commercial Buildings: Both XHHW-2 and THHN/THWN-2 can be applied, but XHHW-2 shines in high-rise buildings where higher temperature resistance and longer lifespan are critical.
Industrial Facilities: XHHW-2 with XLPE insulation dominates here, especially in environments with high voltage, chemical exposure, or heavy mechanical stress.

Using certified, professional-grade wires guarantees not only safety but also compliance with local electrical codes and insurance requirements, which is essential for contractors aiming to protect both clients and reputation.

Installation Considerations and Flexibility

XHHW-2 wires are slightly stiffer due to the cross-linked insulation, which may require more effort when pulling through conduits. However, their dimensional stability reduces the chance of insulation damage during installation. THHN/THWN-2 wires, being more flexible, allow for easier bends and routing in tight spaces, making them suitable for retrofit projects or complex residential circuits.

Cost-Effectiveness and Long-Term Reliability

While XHHW-2 wires may have a slightly higher upfront cost than THHN/THWN-2, their long-term reliability, reduced maintenance needs, and superior heat resistance often offset initial expenses—particularly for XHHW electric cable for infrastructure and XHHW-2 cable industrial application, where downtime is costly. PVC-insulated THHN/THWN-2 wires remain an economical solution for moderate environments, especially when paired with certified professional suppliers who guarantee consistent quality and compliance.

XHHW-2 XLPE electric wire 600V cable

Choosing the Right Wire for Your Project

When deciding between XHHW-2 and THHN/THWN-2, consider the following factors:

Temperature exposure: High-temperature areas favor XHHW-2.
Mechanical stress: Industrial environments benefit from XLPE insulation.
Flexibility requirements: THHN/THWN-2 excels in complex installations.
Chemical or moisture exposure: XLPE offers superior resistance.
Certification and safety: Always select wires from certified professional suppliers.

By assessing these factors, electricians and contractors can ensure safe, efficient, and code-compliant installations, while also benefiting from professional-grade, certified wires that meet or exceed industry standards.

Conclusion

In summary, both XHHW-2 and THHN/THWN-2 wires have their strengths depending on the application. XLPE-insulated XHHW-2 wires excel in high-temperature, industrial, and chemically demanding environments, while PVC-insulated THHN/THWN-2 wires are versatile and cost-effective for residential and commercial projects.
