Why Choose PVC Jacketed Metal Clad Cable for Wet and Outdoor Locations?

For electrical professionals working on wet location and outdoor commercial projects, selecting the right cable is not just a matter of performance—it is a matter of safety and compliance. Many contractors still make the costly mistake of using unjacketed bare-armor MC cable in these harsh environments, leading to rapid corrosion, insulation failure, electrical hazards and failed inspections. UL Type MC cable with PVC jacket is the only reliable solution designed specifically for these demanding applications. This article explains why it is the superior choice and provides practical guidance for selecting the correct specification.

1. The Hidden Safety & Compliance Risks of Unjacketed MC in Harsh Environments

· Why Bare-Armor MC Fails Prematurely in Wet & Outdoor Settings？

Unjacketed MC cable features exposed aluminum interlocked armor or galvanized steel armor with no outer protective layer. While this design works well in dry indoor environments, it is completely unsuitable for wet or outdoor locations. Even when run through conduit, internal condensation will inevitably form inside the pipe over time, directly contacting the bare metal armor.

This moisture causes gradual but irreversible corrosion, which weakens the armor structure and eventually penetrates to the internal insulation. The result is hidden electrical faults, ground connection failures and even the risk of electrical fires. In outdoor locations, additional exposure to UV radiation accelerates the degradation process, leading to complete cable failure in as little as 2-3 years.

· The True Cost of Non-Compliance: Failed Inspections & Safety Hazards:

Beyond the risk of electrical failure, using unjacketed MC cable in wet locations is a compliance violation that will almost certainly result in failed inspections. Many contractors are unaware that only wet location MC cable with proper certification is approved for these applications. The cost of rework to replace non-compliant cable can be 3-5 times the original material cost, not to mention project delays and damage to your reputation.

2. How UL Type MC Cable with PVC Jacket Solves These Problems

· The Sealed PVC Jacket: A Complete Environmental Barrier

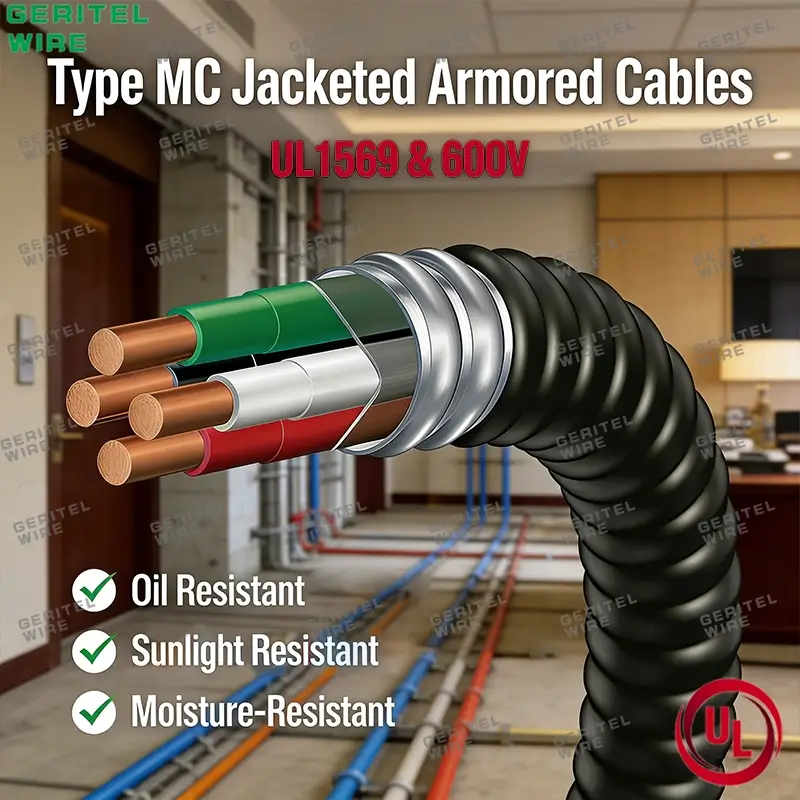

The primary difference between standard MC cable and UL Type MC cable with PVC jacket is the addition of a seamless, UV-stabilized PVC outer jacket that completely encloses the metal armor. This jacket creates an impenetrable barrier against moisture, corrosive chemicals and ultraviolet radiation.

Unlike bare armor, the PVC jacket prevents any contact between the metal armor and the external environment. This eliminates the corrosion problem entirely, extending the service life of the cable to 25+ years even in harsh wet and outdoor conditions. Additionally, the PVC jacket provides extra mechanical protection during installation, reducing the risk of damage to the internal conductors. And because it is a self-contained system, it can be installed without additional conduit in many applications, significantly reducing installation time and labor costs.

· UL 1569 Type MC Cable: The Gold Standard for Wet Location Compliance

All reliable wet location MC cable sold in the United States must be certified to UL 1569 Type MC cable standards. This certification ensures that the cable has been rigorously tested and proven to perform safely in wet locations. UL 1569 compliant cables are clearly marked with both "UL 1569" and "Wet Location" on the jacket, making them easy to identify during inspection.

Using UL 1569 certified cable not only ensures compliance with electrical codes but also provides peace of mind that your installation will be safe and reliable for years to come. It is the only type of MC cable that inspectors will approve for wet and outdoor applications.

3. Matching the Right Specification to Your Wet/Outdoor Project

· 10/2 PVC Jacketed MC Cable: For Higher-Load Outdoor Applications

10/2 PVC jacketed MC cable is designed for higher-load outdoor applications where greater current carrying capacity is required. It is commonly used for powering outdoor equipment such as air conditioning units, large lighting fixtures and commercial grade pumps. This 600V rated cable is available with both bare ground and insulated green ground conductors to meet different project requirements.

· 14/3 Series: The Workhorse for General Wet Location Wiring

For general-purpose wet location wiring, the 14/3 series is the industry workhorse. Three common specifications cover the majority of applications:

14/3 THHN/THWN-2 PVC jacketed MC cable: The most popular option for general lighting and power circuits in wet locations.

14 AWG 3 conductor PVC jacketed MC cable: A versatile specification suitable for a wide range of commercial applications.

14/3 MC cable with PVC jacket and ground: Ideal for three-way switch circuits and other applications that require an additional conductor.

All three specifications are UL 1569 certified and approved for wet location use, making them reliable choices for basements, crawl spaces, car washes and outdoor commercial facilities.

4. Non-Negotiable Selection Reminder for All Projects

Before purchasing any wet location MC cable, you must verify two things: first, that the cable is clearly marked with "UL 1569" certification; and second, that it has the "Wet Location" marking on the jacket. Never accept a cable that lacks either of these markings, as it will not be compliant and will fail inspection. Additionally, always match the cable gauge and number of conductors to the specific load requirements of your project.

5. Frequently Asked Questions

Q: Can I use unjacketed MC cable in wet locations if I run it through conduit?

A: No. Condensation will always form inside conduit over time, leading to corrosion of the bare armor. Only UL 1569 certified wet location MC cable is approved for these applications.

Q: What is the difference between THHN/THWN-2 and XHHW-2 insulation in PVC jacketed MC cable?

A: THHN/THWN-2 is suitable for most general wet location applications, while XHHW-2 offers better heat resistance for higher temperature environments.

Q: Can PVC jacketed MC cable be used outdoors?

A: Yes, UL 1569 Type MC cable with UV-stabilized PVC jacket is approved for outdoor use and provides excellent resistance to UV radiation.

Q: Do I need to use conduit with PVC jacketed MC cable?

A: In many applications, PVC jacketed MC cable can be installed without additional conduit, but you should always verify the specific requirements of your local electrical code.

6. Get UL 1569 Compliant Wet Location MC Cable

Selecting the correct cable for wet and outdoor locations is critical to ensuring the safety, compliance and long-term reliability of your electrical installations. At Dongguan Greater Wire & Cable Co., Ltd., we supply a full range of UL Type MC cable with PVC jacket that meets all UL 1569 standards for wet location use.

Our product line includes all the specifications mentioned in this article, from 10/2 PVC jacketed MC cable to the complete 14/3 series. We work closely with electrical contractors, distributors and project buyers to deliver high-quality, code-compliant cable products on time and on budget.
