What Does XHHW Mean in Electrical Wire? Full Breakdown

When selecting building wires for power distribution, understanding insulation types and ratings is essential for both safety and performance. Among the most widely specified options, XHHW wire is known for its durability, heat resistance, and adaptability in demanding environments. But what exactly does XHHW mean, and why is it so commonly used across residential, commercial, and industrial projects?

This article provides a complete, practical breakdown of XHHW wire, helping you understand its structure, certification, performance, and how to choose the right type for your application.

1. What Does XHHW Stand For?

The term XHHW is an industry-standard designation that describes the insulation type and environmental suitability of the wire:

• X = Cross-linked polyethylene (XLPE insulated wire)
• HH = High heat resistance (rated up to 90°C)
• W = Suitable for wet locations

In simple terms, XHHW power cable is a thermoset, XLPE insulated wire designed to withstand high temperatures and operate reliably as an electrical wire for wet locations.

It is primarily used as a building wire in conduit systems for low-voltage power distribution, offering a balance of safety, flexibility, and long service life.

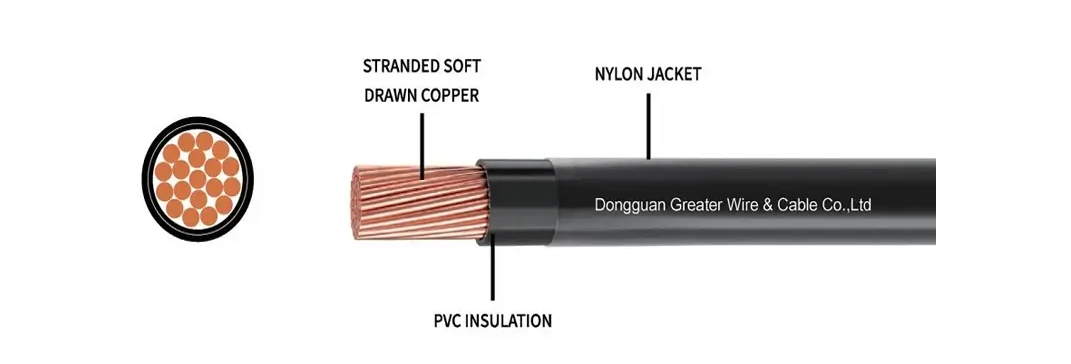

2. Product Structure: How XHHW Wire Is Built

The performance of XHHW wire comes from its carefully engineered layered structure, where each component contributes to durability and safety.

2. 1 Conductor

• Available in copper or aluminum
• Copper provides excellent conductivity and flexibility
• Aluminum offers a lightweight and cost-effective alternative for large installations

2. 2 Insulation (Core Layer)

• Made of cross-linked polyethylene (XLPE)
• A thermoset material known for:

1. High thermal stability
2. Moisture resistance
3. Strong dielectric properties

2. 3 Outer Jacket (Optional)

• Some XHHW variants include an additional jacket layer
• Enhances:

1. Mechanical protection
2. Abrasion resistance
3. Environmental durability

2. 4 Layered Design Advantages

• Stable electrical insulation under load
• Resistance to deformation at high temperatures
• Long-term performance in both dry and wet environments

3. UL Certification: Why UL 44 Is Critical

When evaluating cable quality, UL certification—especially compliance with the UL 44 standard—is a key benchmark for thermoset insulated wires like XHHW feeder cable.

Why UL Listed XHHW Matters:

• Verified Safety Performance: Tested for heat resistance, flame retardancy, and insulation integrity
• Code Compliance: Meets requirements of the National Electrical Code (NEC)
• Consistent Manufacturing Quality: Ensures strict control of materials and production processes
• Global Market Acceptance: Trusted by engineers, contractors, and inspectors

Choosing UL listed XHHW is not just about compliance—it is about ensuring that your electrical system meets recognized safety standards and performs reliably over time.

4. Key Performance Parameters of XHHW Wire

Understanding technical specifications helps ensure proper selection and safe application.

4. 1 Temperature Rating

• 90°C in dry conditions
• 75°C in wet conditions (standard XHHW)
• XHHW-2: 90°C in both wet and dry environments

4. 2 Voltage Rating

• Typically rated at 600 volts
• Suitable for low-voltage distribution systems

4. 3 Moisture Resistance

• Specifically designed as an electrical wire for wet locations
• Performs reliably in humid, damp, or underground conduit systems

4. 4 Chemical & Mechanical Resistance

• XLPE insulation resists:

1. Oils and chemicals
2. Abrasion and physical stress

• Ideal for industrial and heavy-duty environments

5. Typical Applications of XHHW Wire

Due to its versatility and reliability, XHHW wire is widely used across multiple sectors:

• Commercial buildings such as offices, malls, and hospitals
• Industrial facilities including factories and processing plants
• Residential wiring, especially in conduit installations
• Underground conduit systems
• Wet or damp environments, such as basements or outdoor installations

Its adaptability makes it a preferred solution for projects requiring both durability and compliance.

6. XHHW vs XHHW-2: What’s the Difference?

While both types share similar construction, their performance differs in wet conditions:

Practical Selection Tip:

• Use XHHW for standard installations with occasional moisture exposure
• Choose XHHW-2 for high-temperature or continuously wet environments, where higher safety margins are required

7. How to Choose the Right XHHW Wire

Selecting the correct XHHW wire ensures both performance and compliance. Consider the following:

• Environment: Dry, wet, or mixed conditions
• Temperature requirements: Standard vs high-heat applications
• Conductor type: Copper for performance, aluminum for cost efficiency
• Certification: Always prioritize UL listed XHHW products
• Installation method: Ensure compatibility with conduit systems

A well-informed selection helps reduce installation risks and long-term maintenance costs.

8. Final Thoughts: Reliable Wire for Reliable Projects

As a widely trusted XLPE insulated wire, XHHW combines thermal stability, moisture resistance, and certified safety performance under UL 44 standards. Its ability to function as a dependable electrical wire for wet locations makes it an essential component in modern electrical systems.

For contractors, engineers, and project buyers, choosing high-quality, UL listed XHHW wire is not just a technical decision—it is a commitment to safety, compliance, and long-term reliability.

When sourcing for your next project, working with a reliable manufacturer that ensures consistent quality, proper certification, and stable supply can significantly improve project outcomes and reduce risk. Subtle differences in material quality and production standards can have a major impact over time, so choosing the right partner is just as important as choosing the right wire.
