THHN/THWN-2 Cable Models and Specifications Explained

When it comes to electrical wiring, understanding the right type of cable is crucial for both safety and efficiency. Among the most commonly used options are THHN and THWN-2 cables, known for their versatility, durability, and compliance with industry standards. In this guide, we’ll explore the various THHN cable models, THWN-2 specifications, and practical applications, while highlighting why sourcing from a certified professional supplier can make a significant difference.


What is THHN Cable?

THHN stands for Thermoplastic High Heat-resistant Nylon-coated. It is a single-conductor wire designed primarily for use in dry and wet locations. THHN cables are widely recognized in residential, commercial, and industrial applications due to their high temperature rating of up to 90°C and resistance to abrasion. They are UL listed and compliant with the National Electrical Code (NEC), ensuring safety and reliability. For home wiring needs, THHN cable for residential wiring is a top choice, offering ease of installation and consistent performance.

THHN cables are commonly used in conduit or cable trays for branch circuit wiring. They are UL listed and compliant with the National Electrical Code (NEC), ensuring safety and reliability. Our THHN cables come with complete certification, making them a trustworthy choice for any project.

What is THWN-2 Cable?

THWN-2 stands for Thermoplastic Heat and Water-resistant Nylon-coated. Similar to THHN, these cables are designed for high-temperature and wet environments, but the “-2” designation indicates that they can handle up to 90°C in both wet and dry conditions. THWN-2 cables are perfect for outdoor or industrial installations where moisture resistance is critical.

As a professional supplier, we provide UL certified THWN-2 cables that meet stringent industry standards, giving clients peace of mind in both safety and performance.

Key Differences Between THHN and THWN-2

While both THHN and THWN-2 cables share similarities, there are subtle differences:

• Environmental Suitability: THHN is mainly used in dry locations, while THWN-2 is suitable for both dry and wet areas.
• Temperature Ratings: Both can withstand high temperatures, but THWN-2 provides additional versatility in wet conditions.
• Application Scope: THHN is often chosen for indoor electrical wiring, whereas THWN-2 is ideal for outdoor conduits, industrial plants, and commercial projects.

Choosing the right cable depends on the specific project requirements. By selecting cables from a certified and professional supplier, you not only ensure compliance but also guarantee durability and long-term reliability.

Common THHN/THWN-2 Cable Models

Our range of THHN and THWN-2 cables includes a variety of wire gauges and configurations to suit different projects:

• Single-Conductor Wires: Ideal for branch circuits, control panels, and conduit wiring.
• Multi-Conductor Cables: Provide organized and efficient wiring solutions for commercial and industrial installations.
• Flexible Cables: Designed for applications where flexibility and bend radius are critical.

All models are UL certified and meet NEC standards, ensuring compliance and safety. The THHN copper wire high temp rating remains a consistent feature across all THHN models, making them reliable for high-heat indoor applications.

Specifications You Need to Know

Understanding cable specifications is essential for selecting the correct type. Here are the key parameters for THHN and THWN-2 cables:

• Voltage Rating: Typically 600V, suitable for residential, commercial, and industrial power distribution.
• Temperature Rating: Up to 90°C for both dry and wet locations (THWN-2), ensuring performance in extreme conditions.
• Conductor Material: High-quality copper or aluminum, offering excellent conductivity and minimal energy loss.

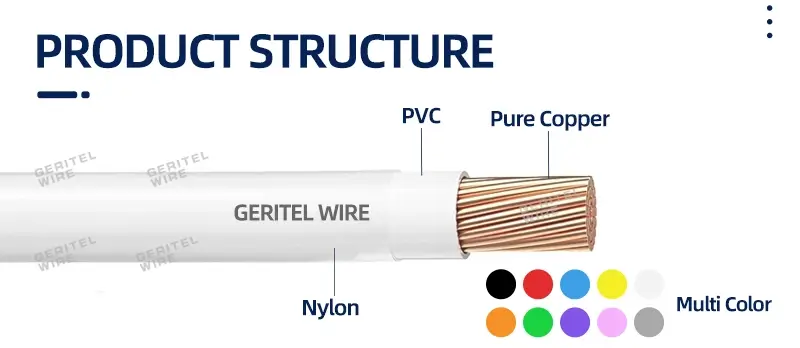

• Insulation and Jacket: Thermoplastic insulation with nylon coating, providing mechanical protection and chemical resistance.

Selecting a UL certified cable from a professional supplier guarantees that these specifications are met consistently, reducing the risk of electrical hazards.

Applications of THHN and THWN-2 Cables

Both THHN and THWN-2 cables are versatile and can be used in a variety of scenarios:

• Residential Wiring: Power distribution, lighting circuits, and appliance connections.
• Commercial Installations: Office buildings, retail spaces, and large-scale electrical systems.

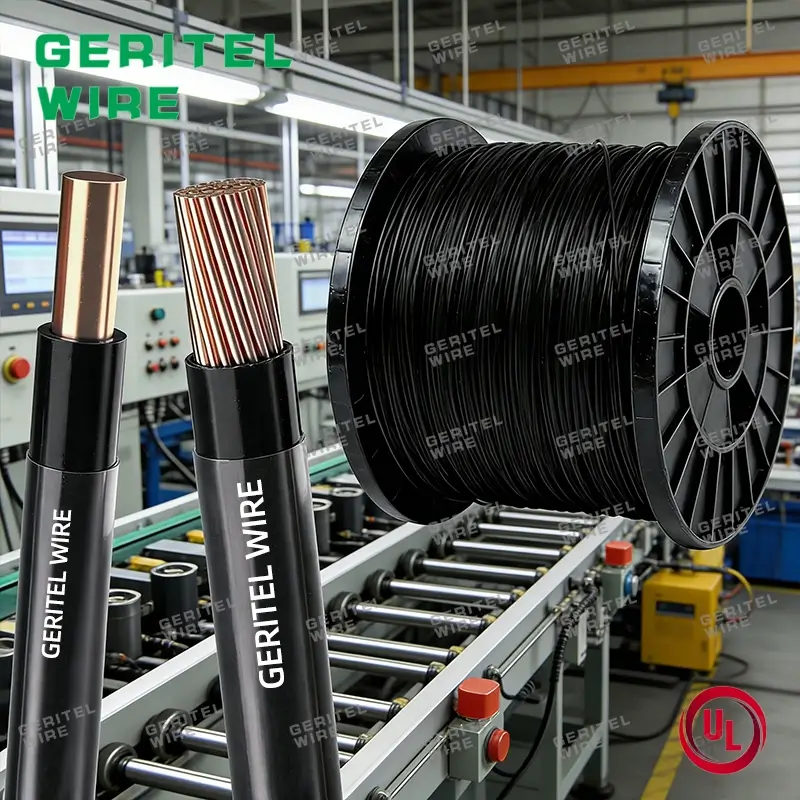

• Industrial Projects: Manufacturing plants, outdoor wiring, and machinery connections.
• Outdoor Conduits: THWN-2 cables offer excellent performance in moisture-prone environments.

Choosing cables from a certified professional supplier ensures that each installation meets safety codes and operational standards, preventing downtime and costly maintenance.

Conclusion

Understanding THHN and THWN-2 cables is essential for any electrical project, whether residential, commercial, or industrial. By knowing their specifications, differences, and applications, you can make informed decisions that maximize safety and efficiency. Choosing a UL certified, professional supplier ensures access to high-quality cables, expert advice, and reliable service, providing peace of mind for every installation.

Whether you are wiring a new building, upgrading industrial systems, or managing outdoor electrical infrastructure, our certified THHN and THWN-2 cables offer the performance, safety, and reliability your projects demand.
