Salima Solar PV Project (60MW, Malawi, Commissioned 2021)

I. The Invisible Threshold: Financing Structures That Shape Hardware Decisions

In 2021, Salima District, Malawi—an inland nation in southeastern Africa—saw the grid connection of a 60MW solar PV installation. This was no ordinary EPC contract. Backed by World Bank and InfraCo Africa financing, every component down to the last meter of cable faced rigorous compliance scrutiny.
With 1,400+ inverters requiring precise interconnection across DC, AC, and medium-voltage collection systems, the central challenge emerged: how to balance extremely sensitive CAPEX constraints against rigid TÜV/IEC certification requirements?
This dilemma defines many African solar projects: banks care more about certification than owners do, yet owners care more about cost than banks do. Tip either scale, and you risk frozen financing or construction delays.
II. Cable Selection Logic: Why Not "Just Any PV Wire"
DC Side: The Lifespan Gamble Under Scorching Sun
Salima sits in tropical savanna climate—over 2,800 annual sun hours, ground temperatures regularly exceeding 60°C. The DC side deployed H1Z2Z2-K 1500V DC photovoltaic cable, in 4mm², 6mm², and 10mm² configurations.
Why H1Z2Z2-K instead of standard PV cable?
This wasn't mere specification inflation—it was materials science necessity. The model employs XLPO (cross-linked polyolefin) insulation and sheathing, delivering three decisive advantages over conventional XLPE or PVC:
• Thermal rating: Continuous operation at 120°C, withstanding 250°C during short-circuit events
• UV resistance: Passes 720-hour accelerated weathering tests, directly confronting African solar intensity
• Halogen-free flame retardance: Meets IEC 60332-1-2 standards, mitigating fire propagation risks
For financed projects, this isn't merely technical preference—it's risk hedging. Any cable degradation leading to downtime triggers cascading insurance and lending covenant consequences.
AC Side: Stability Trials for High Current
From inverters to step-up transformers, the project utilized YJV 0.6/1kV XLPE insulated power cable, primarily in 3×240mm² and 3×300mm² sizes.
Copper conductors paired with cross-linked polyethylene insulation demonstrated lower impedance stability and extended thermal cycling life amid Malawi's fluctuating grid conditions. Compared to aluminum alternatives, initial costs rose roughly 15%, but oxidation risks at connection points diminished—critical for remote sites where maintenance access proves difficult.

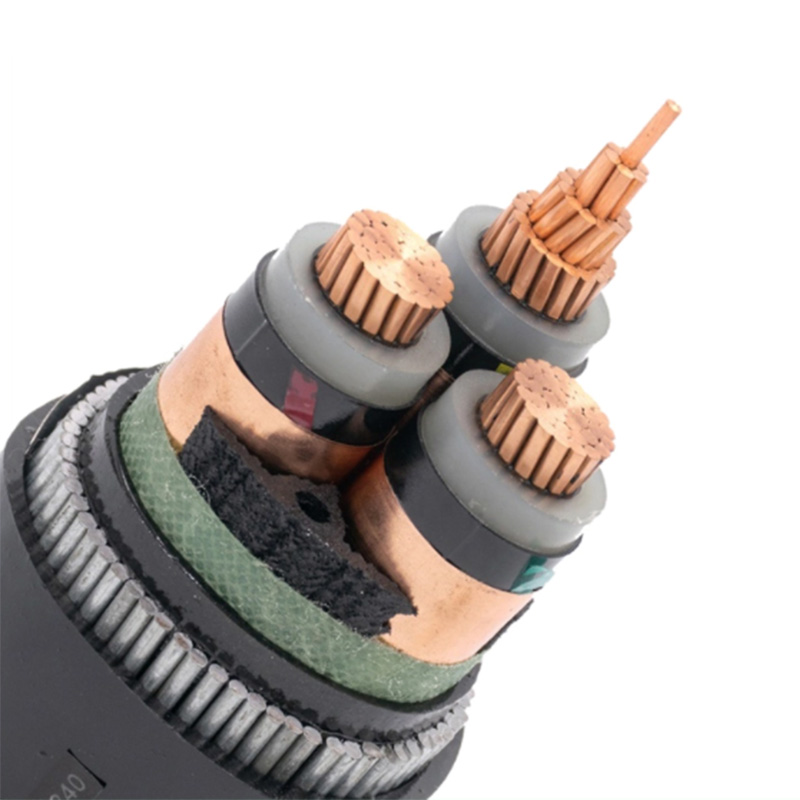

Medium-Voltage Collection: Survival Rules for Direct Burial
The project employed 11kV/33kV medium-voltage armored cable, sized at 3×150mm² and 3×185mm², structured as XLPE insulation plus copper/aluminum conductors with steel wire armor (SWA).
African ground-mounted plants predominantly use direct burial, requiring cables to independently withstand:
• Mechanical excavation damage during construction
• Rodent gnawing during operation
• Soil acidity variations during rainy seasons
Armor here isn't "optional upgrade"—it's physical insurance for project sustainability.

III. Flexible Intelligence Inside Inverters: Details Often Overlooked
Within the 1,400+ inverter combiner boxes and distribution panels, H07V-K flexible copper cable (16mm² and 25mm²) was specified.
This choice is frequently underestimated, yet reflects engineering refinement:
• Flexible construction: Multi-strand fine copper wire, achieving 4D bending radius in cramped enclosures
• PVC insulation: Cost-optimized for short-distance, low-mechanical-stress applications
• Plug-and-play compatibility: Reduced on-site crimping, lowering human error probability
For schedule-compressed projects, such "minor details" often determine overall commissioning timelines.
IV. Our Role: Balancing the Triangle of Certification, Cost, and Delivery
Certification Assets: Passports for Financed Projects
GERITEL supplied photovoltaic cables carrying:
• TÜV Certification: Certificate No. B 126326 0001 Rev.00
• UL 4703 Certification: UL File No. E552397
• MV Cable UL 1072 Certification plus comprehensive US-standard qualifications
These numbers aren't decorative—they're checklist items for bank disbursement reviews. We've witnessed competitors lose 45 days on letter of credit delays due to incomplete certification chains. In Africa, time is generation, and generation is revenue.
Cost Strategy: No Brand Premium, Only Compliance Baseline
We understand African market price sensitivity. Our approach doesn't stack premium series, but delivers TÜV-compliant cost optimization:
• Raw material direct sourcing, eliminating intermediary layers
• Standardized 10MW/20MW/50MW solution templates, compressing design cycles
• Batch pre-production mechanisms, locking in copper price volatility risks
Delivery Assurance: The Trust Currency More Critical Than Price
African port efficiency and inland transport uncertainties make "arriving on time" a core competitive advantage. For Salima, we activated:
• Pre-positioned warehousing at main ports (Beira/Dar es Salaam)
• Phased arrival scheduling matched to construction milestones
• Emergency air freight channels for critical material shortages
V. Project Echoes: When the Storage Wave Arrives
Salima's successful delivery validated our service model for African solar markets. Yet markets evolve—storage-integrated projects like Golomoti already signal trends, with rising demand for battery cables and control cables.
We've prepared accordingly: from DC 1500V to AC 35kV, from photovoltaic-dedicated to energy storage systems, GERITEL's certification portfolio and delivery network continue expanding.
VI. From Salima to Your Site: Cable Selection Isn't the Finish Line—It's the Starting Block
Behind every successfully grid-connected solar plant lie countless decisions about whether each meter of cable merits trust. In Malawi, we proved that compliance certification and cost control can coexist, that rapid delivery and quality assurance aren't mutually exclusive.
Your project may sit at different coordinates, facing distinct soil conditions and financing structures, but the central question remains: how to make every link in power transmission withstand scrutiny from time, climate, and banking institutions?
We don't aim to be another option in your vendor list. We seek to become the fixed parameter in your technical calculations.
