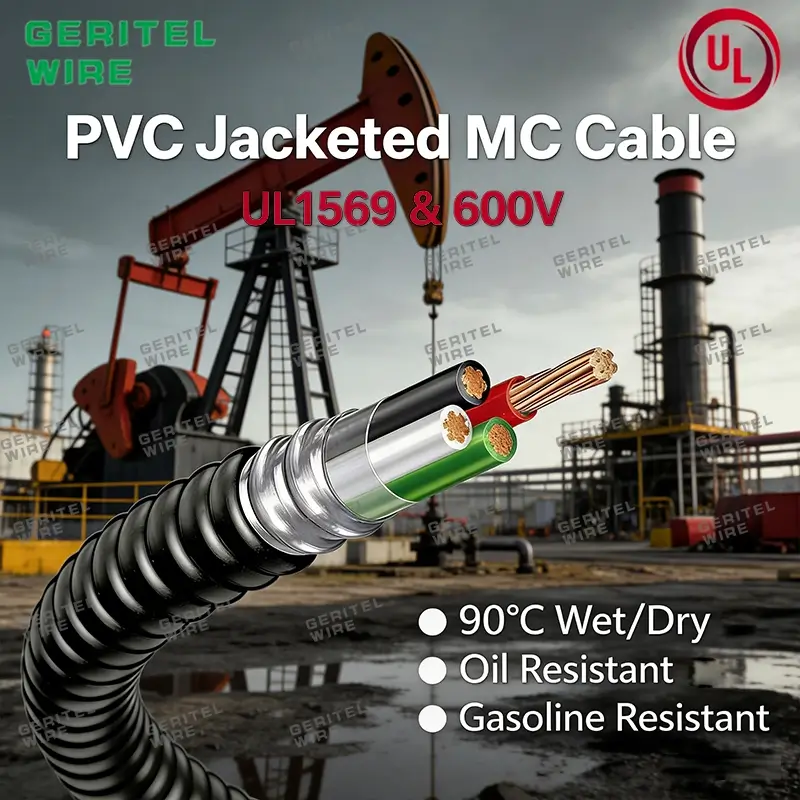

PVC Jacketed MC Cable with XHHW-2 Conductors for Wet Location Installations

For electrical contractors working in wet or corrosive environments, few problems are more frustrating than premature cable failure. We regularly see projects where standard THHN/THWN-2 MC cables installed just 2-3 years ago are already showing signs of corrosion, insulation breakdown, and electrical leakage. These failures lead to costly repairs, unplanned downtime, and serious safety hazards. This is exactly why Type MC XHHW-2 cable with PVC jacket has become the industry standard for demanding wet location installations.

Unlike standard MC cables that rely solely on metal armor for protection, this specialized design features a dual-barrier protection system that is engineered from the inside out to withstand moisture, chemicals, and corrosion. For contractors and project managers, this means longer service life, fewer callbacks, and greater confidence in the reliability of your electrical systems.

1. Why Standard MC Cables Fail in Wet and Corrosive Conditions

The biggest pain point we hear from our clients is that standard MC cables simply do not hold up in wet environments. While THHN/THWN-2 conductors are rated for wet locations, their nylon outer jacket is porous and can absorb moisture over time. This moisture eventually reaches the copper conductor, causing corrosion and increasing electrical resistance. In corrosive environments, chemicals can penetrate the armor and attack the conductors even faster.

Standard unjacketed MC cables are particularly vulnerable. The aluminum interlocked armor provides excellent mechanical protection, but it offers no resistance to corrosion. Once moisture or chemicals reach the armor, it will begin to corrode, eventually compromising the entire cable structure.

2. The Dual-Barrier Protection System: XHHW-2 + PVC Jacket

MC cable with XHHW-2 conductors PVC jacket solves these problems with a two-layer protection system that addresses both moisture penetration and chemical corrosion.

· First Barrier: XHHW-2 Cross-Linked Polyethylene Insulation

XHHW-2 conductors use cross-linked polyethylene (XLPE) insulation instead of the PVC/nylon combination used in THHN/THWN-2 conductors. XLPE is a thermoset material that is inherently non-porous and highly resistant to moisture absorption. Unlike nylon, it will not break down or become brittle when exposed to prolonged moisture or chemicals.

This makes XHHW-2 conductors significantly more reliable in wet locations. They maintain their insulating properties even after years of exposure to humidity, condensation, and occasional water immersion.

· Second Barrier: PVC Outer Jacket for Corrosion Resistance

The thick PVC outer jacket provides a second layer of protection that seals the entire cable against moisture and corrosive elements. It acts as a barrier between the metal armor and the environment, preventing chemicals and moisture from reaching the armor and conductors.

This combination of XHHW-2 insulation and PVC jacket creates a synergistic effect that provides far better protection than either layer alone. Even if the PVC jacket is accidentally punctured, the XHHW-2 insulation will still protect the conductors from moisture damage.

· Why This Combination Outperforms Single-Layer Protection

Many contractors mistakenly believe that either XHHW-2 conductors or a PVC jacket alone is sufficient for wet locations. However, our 30+ years of experience has shown that the combination is necessary for long-term reliability. XHHW-2 conductors alone are still vulnerable to chemical corrosion, while a PVC jacket alone cannot protect against moisture that penetrates the cable ends or connections.

3. Non-Negotiable Applications for This Cable

· Theater and Performing Arts Center Installations

Theaters present a unique combination of challenges for electrical wiring. They have high-humidity areas such as basements, backstage areas, and under-stage spaces, as well as strict safety requirements for public assembly. PVC jacketed MC cable for theaters is the ideal choice because it provides the necessary moisture resistance and mechanical protection to withstand the rigors of theater operations.

· Industrial Corrosive Environments

Corrosion resistant MC cable is essential for industrial facilities such as chemical plants, food processing plants, and wastewater treatment facilities. These environments are exposed to a wide range of corrosive chemicals, gases, and moisture that can quickly destroy standard wiring. The PVC jacket on this cable provides excellent resistance to most common industrial chemicals.

· Commercial High-Humidity Facilities

This cable is also the standard for commercial facilities with high humidity levels, such as swimming pools, spas, laundromats, and greenhouses. In these environments, standard MC cables will corrode and fail within a few years, while XHHW-2 PVC jacketed MC cable will provide reliable service for decades.

4. The Non-Negotiable Selection Checklist

· How to Verify XHHW-2 Conductors On-Site

The most important selection rule is to always confirm that the cable actually uses XHHW-2 conductors. Unfortunately, some suppliers will mislabel THHN/THWN-2 conductors as XHHW-2 to save money. To verify on-site:

· Check the printing on the cable jacket – it should clearly state "XHHW-2"

· Remove a small section of the insulation – XHHW-2 insulation is thicker and more rigid than THHN/THWN-2

· Request a copy of the UL certification – our cables are UL certified under file number E544860, which you can verify directly on the official UL database

· Confirm Project-Specific Protection Requirements

Always review the project specifications carefully to confirm the required level of moisture and corrosion protection. For extremely harsh environments, XHHW-2 MC cable direct burial PVC jacket may be required.

· Select the Appropriate Ground Configuration

This cable is available with either bare ground or insulated green ground conductors. Insulated green ground is preferred in wet and corrosive environments because it provides an extra layer of protection for the ground conductor.

5. Critical Installation Best Practices to Preserve Protection

To ensure the long-term reliability of your installation:

· Always use approved wet-location MC cable connectors that provide a watertight seal

· Maintain the proper bending radius to avoid damaging the PVC jacket and insulation

· Seal all cable ends immediately after cutting to prevent moisture from entering the cable

· Avoid running the cable in areas where it will be exposed to direct sunlight unless it is specifically rated for sunlight resistance

6. Costly Mistakes to Avoid

· Using THHN/THWN-2 conductors in wet locations: While they are technically rated for wet locations, they will not provide the same long-term reliability as XHHW-2 conductors.

· Skipping the PVC jacket in corrosive environments: The small upfront cost savings will be completely erased by the cost of replacing corroded cables in just a few years.

· Using standard connectors in wet locations: Standard MC cable connectors are not watertight and will allow moisture to enter the cable, leading to premature failure.

7. FAQ

· What is the difference between XHHW-2 and THHN/THWN-2 conductors in wet locations?

XHHW-2 conductors use cross-linked polyethylene insulation that is non-porous and highly resistant to moisture absorption, while THHN/THWN-2 conductors use a porous nylon jacket that can absorb moisture over time. This makes XHHW-2 significantly more reliable for long-term wet location use.

· Can this cable be used in hazardous locations?

Yes, it is suitable for use in hazardous locations where additional mechanical protection is required. All our cables are UL certified under file number E544860 and meet international safety standards including TUV, SAA, PSE, EU CPR, CE, and ROHS.

· What is the voltage rating of this cable?

This cable is rated for 600 volts, making it suitable for most commercial and industrial applications.

· Do I need conduit for this cable?

No, the aluminum interlocked armor provides the necessary mechanical protection, so conduit is not required for most indoor installations. This significantly reduces installation time and labor costs.

8. Request Free Samples & a Custom Project Quote

With more than 30 years of production experience, Greater Wire is a trusted supplier of high-quality PVC jacketed MC cable for corrosive environments and wet location installations. All our cables are manufactured to strict industry standards and undergo rigorous testing to ensure reliable performance in even the most demanding environments.

We offer quick online quotes and free samples so you can test our products before placing your order. If you are working on a wet location or corrosive environment project and need help specifying the right cable, contact our team today. We will review your project requirements and provide a customized solution that meets your needs and budget.
