PVC Covered MC Cable for Industrial Maintenance and Retrofit Projects

For project managers and procurement teams handling industrial plant maintenance, production line retrofit, and facility upgrade projects, cable selection is never a one-size-fits-all decision. These existing facilities feature tight shutdown windows, crowded equipment layouts, aging infrastructure, and zero tolerance for unplanned downtime. Unlike new construction, retrofit wiring demands cables that install fast, survive harsh existing environments, and can be removed or replaced years later without demolition. As a professional PVC jacketed MC cable supplier, we break down practical, field-verified selection logic based on real downtime pain points, core specification matching, and B2B lifecycle cost thinking – focusing on 600V THHN/THWN-2 constructions and configurations proven for industrial maintenance and retrofit work.

1. Unique Retrofit Demands: Downtime, Replaceability, and Harsh Existing Conditions

Industrial maintenance and retrofit projects face three distinct wiring challenges that standard MC cable often fails to address.

First, scheduled downtime is expensive and short. A production line may be shut for only 8 or 12 hours. Every extra hour of cable installation pushes back restart. Ordinary MC cable without a PVC jacket requires careful handling to avoid armor damage, and if conduit is needed, installation time doubles. PVC covered MC cable runs in open trays or along existing structures – no conduit bending, no threading, no waiting.

Second, future upgrades must be easy – not a demolition project. In a retrofit, what you install today will likely be replaced again in five or ten years. Standard MC cable exposed to plant humidity, oil mist, or incidental moisture corrodes at the armor interlock points. When you try to pull it out later, it’s frozen or fused. You end up cutting holes in walls or abandoning it. PVC covered MC cable keeps the armor clean and dry. Years later, you disconnect it, attach a pull rope, and slide it out cleanly. That’s replaceability by design.

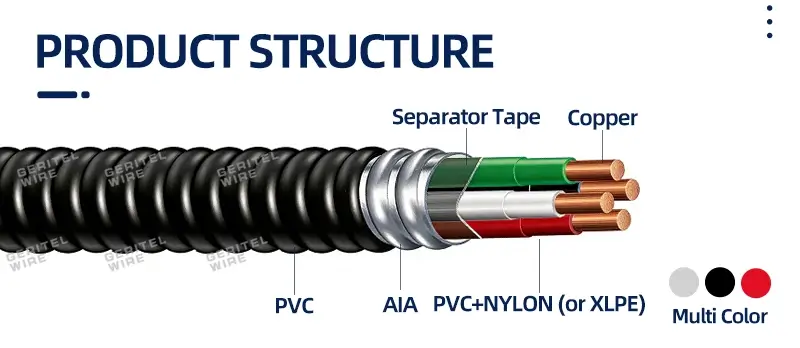

Third, existing industrial environments are punishing. Old plants have oil leaks, chemical residues, temperature swings, and abrasive dust. Standard MC cable without a jacket can fail within two years. PVC covered MC cable adds a tough polymeric jacket over the interlocked armor – sealing out contaminants, preventing corrosion, and avoiding unplanned shutdowns.

2. Field-Proven Specification & Scenario Matching for Downtime Reduction

All industrial-grade PVC covered MC cables recommended here use universal 600V THHN/THWN-2 conductors. This dual-rated insulation supports both dry and damp indoor conditions, delivers reliable heat resistance, and fits most low-voltage power distribution in existing plants. Below is the precise one-to-one matching of core configurations and retrofit application scenarios for B2B engineering selection.

14/2 & 12/2 Configurations: Lighting and Small Control Retrofits

14/2 and 12/2 two-conductor plus ground MC cables are ideal for replacing old lighting circuits, convenience outlets, and small control panels in industrial maintenance. In production floor lighting retrofits, these lightweight cables can be pulled quickly through existing ceiling trays or strapped along beams. The PVC jacket protects against dust and humidity from washdowns. Lightweight aluminum armor allows one person to handle a coil – reducing labor fatigue and speeding up the job.

12/4 & 10/4 Configurations: Motor Circuits and Feeder Replacements

12/4 and 10/4 four-conductor cables are the workhorses for three-phase motor retrofits and sub-panel feeders. One cable gives you three phases + neutral + ground. Instead of pulling four individual wires through conduit (which may not exist), you pull one flexible assembly. For a typical conveyor motor replacement, this cuts installation time by half. The PVC jacket prevents the armor from corroding due to oil mist or condensation, ensuring reliable operation and easy removal later.

8/3 & 6/3 Configurations: Heavy-Duty Power Upgrades

For high-amperage equipment – large compressors, HVAC units, or welding stations – 8/3 and 6/3 cables provide robust conductor cross-sections. In plant power distribution retrofits, these heavy-gauge PVC covered MC cables replace aging feeder lines without requiring new rigid conduit. The interlocked aluminum armor bends around existing obstacles, and the PVC jacket withstands industrial contaminants.

3. Bare Ground vs. Insulated Green Ground: Choose for Future Reliability

The grounding conductor type directly affects long-term system reliability and the ease of future troubleshooting. In industrial retrofits, this choice is not trivial.

MC cables with bare ground are cost-effective and suitable for dry, clean, accessible areas – such as above-ceiling lighting retrofits in offices attached to a plant, or control panels in climate-controlled electrical rooms. Bare ground works fine when corrosion risk is low.

MC cables with insulated green ground are strongly preferred for harsh or concealed retrofit environments. Consider these scenarios:

• Under raised floors in plant control rooms or data aggregation points – dust and humidity can cause bare ground to corrode over time, increasing ground resistance.
• In cable trays above production lines where oil mist or steam is present – insulation protects the ground conductor from chemical attack.
• Any retrofit where the cable will be left untouched for years – an insulated ground ensures a clean, low-resistance fault path when you eventually need to add or modify circuits.

For project managers who want to minimize future nuisance trips and simplify future upgrades, the small extra cost of insulated ground pays back quickly.

4. Core B2B Procurement & Engineering Selection Considerations

For procurement and engineering teams working on industrial maintenance and retrofits, cable selection should focus on three dimensions: installation speed, future replaceability, and lifecycle cost – not just first price.

First, match configurations to functional zones by downtime risk.

• High-power equipment (compressors, large fans): 8/3 or 6/3 with insulated ground.
• Motor circuits and feeders: 12/4 or 10/4 with aluminum armor.
• Lighting and small controls: 14/2 or 12/2, bare ground acceptable if dry.
• Any concealed or harsh area: insulated green ground, regardless of conductor count.

Second, prioritize PVC jacket over bare armor.
The PVC jacket is not an extra frill – it is a downtime prevention device. It keeps the armor corrosion-free, which means the cable can be removed intact years later. Projects without PVC jacket often turn into demolition jobs at the next upgrade cycle.

Third, verify two things only – don’t overcomplicate.

• Conductor insulation: THHN/THWN-2 covers 95% of industrial indoor retrofits. Use XHHW-2 if high heat or chemicals are present.
• Grounding: insulated green for harsh/wet/concealed; bare for clean/dry/accessible.

Do not assume direct burial, UL listing, or hazardous location ratings unless you have verified the specific cable datasheet. For above-ground industrial maintenance and retrofit, the configurations above are field-proven.

5. Reliable PVC Covered MC Cable Bulk Supply for Industrial Maintenance & Retrofit Projects

Whether you need to replace motor circuits in a packaging plant, upgrade lighting in an automotive assembly hall, or re-feed conveyors in a chemical facility, we provide full-spec 600V THHN/THWN-2 PVC covered MC cables. Our product line includes 14/2, 12/2, 12/4, 10/4, 8/3, 6/3 configurations with aluminum interlocked armor, and both bare ground and insulated green ground options. All cables feature the PVC jacket that protects against corrosion, speeds installation, and preserves future replaceability.

We support project-based bulk supply, fast delivery, and configuration guidance. Our team helps engineering and procurement teams select the right cable for each functional zone – reducing installed cost, minimizing downtime, and ensuring the next retrofit won’t require a jackhammer.
