PVC Coated MC Cable: Construction, Ratings, and Typical Uses

For North American electrical contractors, distributors, and power project buyers designing outdoor power distribution systems and wiring within approved raceways, choosing reliable metal clad cable directly impacts project longevity and operational safety. A pervasive industry pain point is clear: unjacketed MC cables suffer from corrosion and insulation failure when used in outdoor and raceway‑based wiring projects, leading to premature outages and expensive rework. PVC jacketed metal clad cable solves these critical flaws by adding a protective outer layer, making it the preferred choice for moisture‑prone outdoor and confined raceway environments. This technical guide breaks down its construction, performance ratings, and targeted real‑world applications, with spec‑focused insights for 14 AWG 4 conductor PVC jacketed MC cable, 14/4 aluminum armor MC cable PVC jacket, and heavy‑duty 750 KCMIL PVC jacketed MC cable variants.

1. Core Construction Differences Between PVC‑Jacketed and Unjacketed MC Cable for Outdoor & Raceway Use

The biggest advantage of outdoor MC cable PVC jacket variants lies in structural design that addresses environmental risks unjacketed MC cable cannot withstand. The PVC outer jacket provides moisture‑proof, corrosion‑resistant protection, improving long‑term stability for outdoor and raceway applications by blocking humidity, dust, and abrasive debris that damage exposed armor and insulation. Two key construction elements define performance for your projects: armor type and conductor‑grounding design.

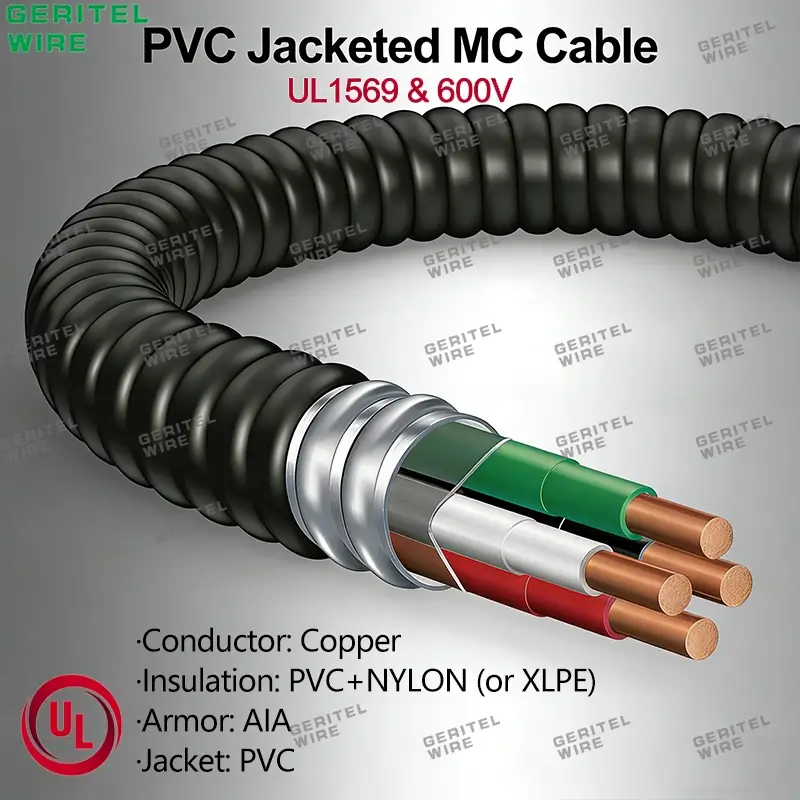

· Armor Type Breakdown: Aluminum Interlocked vs Galvanized Steel Armor

Two primary armor styles are paired with PVC jackets for North American power projects. Galvanized steel armor delivers superior mechanical impact resistance, ideal for heavy‑duty raceway wiring and rugged outdoor power distribution runs. Aluminum interlocked armor, featured in 14/4 aluminum armor MC cable PVC jacket, offers lighter weight for easier installation in tight raceways, with the PVC jacket preventing aluminum oxidation in damp outdoor air. Without this PVC coating, both armor types corrode rapidly in humid outdoor and enclosed raceway spaces.

· Conductor & Grounding Structures: 14 AWG 4‑Conductor, Bare Ground vs Insulated Green Ground

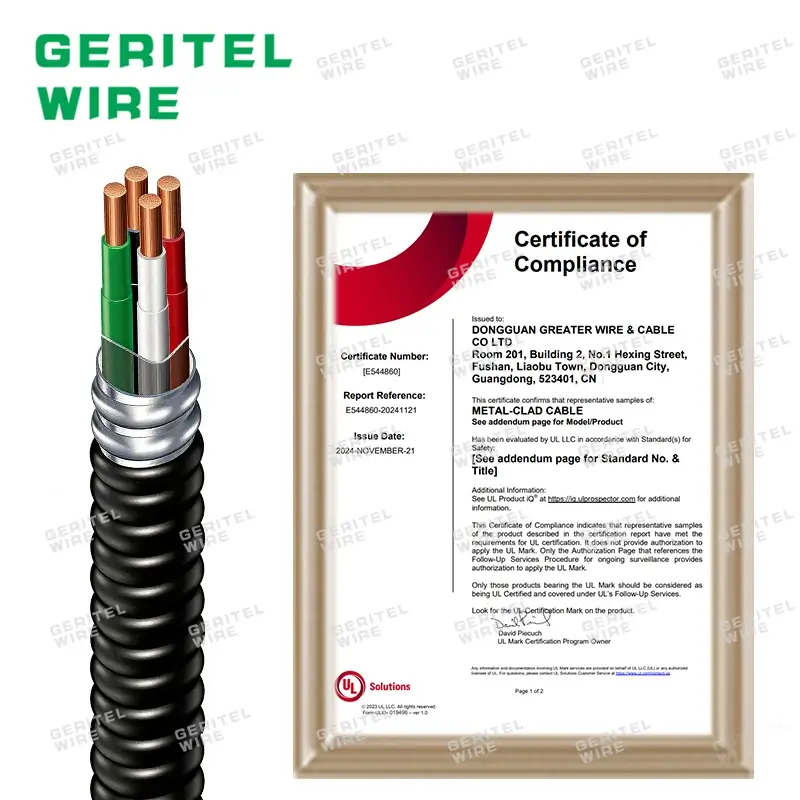

4‑conductor configurations dominate mid‑size commercial power builds, such as the widely specified 14 AWG 4 conductor PVC jacketed MC cable and 14/4 MC cable with PVC jacket and ground. Two grounding options apply: bare ground and insulated green ground. For outdoor and raceway wiring, insulated green ground is highly recommended, as its separate insulation layer avoids ground‑conductor corrosion that plagues bare ground wiring in moisture‑trapped raceways. Standard 3/C and 4/C setups follow North American AWG sizing for branch and feeder power circuits.

2. Key Electrical Ratings That Matter for Outdoor Power Distribution & Approved Raceways

Not all PVC‑coated MC cable ratings are relevant for outdoor power distribution and MC cable for approved raceways. Below are the non‑negotiable ratings contractors and distributors must verify before purchasing.

·Voltage & Insulation Ratings: 600V, THHN/THWN‑2, XHHW‑2 for Raceway Compliance

600V is the universal standard voltage rating for all PVC‑jacketed MC cable covered in this guide, matching requirements for most North American commercial power raceways. Two insulation types dominate project selections:

THHN/THWN‑2: Found in 14/4 MC cable with PVC jacket and ground, suited for branch circuit wiring in both outdoor distribution and enclosed raceways.

XHHW‑2: Optimized for feeder‑level power distribution, ideal for long‑run outdoor power distribution systems housed in approved raceways.

· Gauge‑Specific Performance: From 14/4 Variants to Heavy‑Duty 750 KCMIL PVC Jacketed MC Cable

Gauge selection directly aligns with project load requirements. 14 AWG variants like 14/4 aluminum armor MC cable PVC jacket handle standard commercial branch circuits, perfect for small‑scale outdoor power distribution and compact raceway runs. For large‑capacity industrial and municipal outdoor power distribution systems, 750 KCMIL PVC jacketed MC cable delivers high‑current carrying capacity, engineered for heavy‑load feeder applications within large‑scale approved raceway networks.

3. Spec‑Driven Typical Uses for PVC‑Jacketed MC Cable (Outdoor & Approved Raceways Only)

This cable is purpose‑built for two core North American power project scenarios, with strict spec matching required for each use case.

· Outdoor Power Distribution System Deployments

Outdoor power distribution systems, including commercial campus power runs, utility‑connected feeder lines, and open‑air site wiring, rely on PVC‑jacketed MC cable for its corrosion resistance. 750 KCMIL PVC jacketed MC cable serves main high‑load feeders, while 14 AWG 4 conductor PVC jacketed MC cable handles secondary branch power distribution for outdoor lighting and auxiliary power.

· Wiring Inside Approved Raceways: Matching 14/4 Aluminum Armor MC Cable PVC Jacket Specs

Confined raceway spaces trap humidity and debris, accelerating unjacketed cable degradation. 14/4 aluminum armor MC cable PVC jacket is a top choice for raceway wiring, as its lightweight armor eases pulling in tight spaces, while the PVC jacket prevents moisture buildup‑related corrosion. It is commonly used for multi‑circuit commercial power wiring within NEC‑approved conduit and raceway systems.

4. Critical Buying & Selection Reminders to Avoid Project Failures

To eliminate costly specification errors for your outdoor or raceway project, follow this key selection reminder: Need to confirm conductor gauge, armor type, voltage ratings and raceway approval standards before finalizing orders. Cross‑reference your project’s power load requirements, local raceway compliance rules, and environmental exposure levels to match armor style, insulation type, and conductor size. Always prioritize PVC‑jacketed variants over unjacketed alternatives for any damp or enclosed power wiring application.

5. Frequently Asked Questions for North American PVC Coated MC Cable Buyers

· Which armor type works best for raceway wiring?

Aluminum interlocked armor with a PVC jacket is preferred for standard raceway installations due to easier pulling; galvanized steel armor suits high‑impact industrial raceway applications.

· Is insulated green ground required for raceway‑housed PVC‑jacketed MC cable?

While regional standards vary, insulated green ground is strongly recommended to prevent ground‑wire corrosion in humidity‑trapped raceway environments.

· When should I select 750 KCMIL PVC jacketed MC cable over 14 AWG variants?

750 KCMIL cable is for heavy‑duty main feeder outdoor power distribution; 14 AWG models are for standard commercial branch circuits.
