Chad N’Djamena Central Business Complex

In early 2022, we received an inquiry from N'Djamena, the capital of Chad. The client was developing the N'Djamena Central Business Complex, one of the largest commercial projects in the country in recent years, spanning over 80,000 square meters across three Grade-A office towers, an international conference center, and supporting retail facilities.

As a rare mega-commercial complex in Sub-Saharan Africa, this project presented formidable electrical infrastructure challenges:

Environmental Challenges: N'Djamena experiences a tropical savanna climate with dry season temperatures regularly exceeding 45°C. Intense UV radiation and significant day-night temperature differentials demanded exceptional aging resistance from cable materials. Additionally, Chad's rainy season brings severe dust storms, requiring outdoor cables to maintain superior protection ratings.

Technical Challenges: The project needed to simultaneously power office lighting, central air conditioning, data centers, and conference equipment, with a total installed capacity reaching 12MVA. Power distribution distances from the main substation to individual buildings extended beyond 300 meters, making voltage drop control and ampacity calculations critical technical metrics.

Compliance Challenges: As a former French colony, Chad enforces strict NF C and IEC standard systems for electrical works. All cables required complete CE certification and IEC test reports, with suppliers obligated to provide proven track records on similar-scale projects.

During preliminary research, the client discovered that European suppliers typically required 14-16 weeks for delivery, while the project's civil construction had already advanced ahead of schedule, leaving an extremely tight window for electrical installation. More importantly, they needed not merely cable products, but a comprehensive solution spanning from high-voltage distribution to terminal equipment.

Client Needs Analysis: Evolving from Fragmented Procurement to System Integration

Through three rounds of video conferences and on-site technical coordination, we mapped the evolution of the client's core requirements:

Initial Phase: The client favored segmented procurement—sourcing high-voltage cables from European brands, low-voltage cables from local traders, and control cables separately. This approach stemmed from concerns about single-supplier capabilities, but introduced multiple risks including interface coordination, liability delineation, and schedule management.

Deepening Phase: The client recognized that N'Djamena's limited electrical installation resources meant technical disputes between multiple suppliers would be difficult to resolve quickly on-site. They began seeking an integrated supplier capable of delivering full-category cables + technical support + rapid delivery.

Decision Phase: The client's pain points concentrated on three dimensions: certification compliance (must satisfy IEC 60502, IEC 60227, IEC 60245 standards), delivery certainty (required completion of all shipments within 10 weeks), and site adaptability (needed supplier guidance for installation teams working in Africa's unique environmental conditions).

Our technical team addressed these pain points with a phased response strategy, ultimately winning the client's trust.

Solution Design: Full-Spectrum Cable Selection and Customized Configuration

Based on load calculations and Chad's power environment characteristics, we configured a cable matrix covering all scenarios:

High-Voltage Distribution Backbone: Strategic Deployment of 4×240mm² with Armored Protection

From the main substation to individual building distribution rooms, we selected 4×240mm² for indoor cable trench installation. This specification was chosen based on precise ampacity calculations: under N'Djamena's 45°C ambient temperature, the cross-linked polyethylene insulated SWA cable 4×240mm² delivers continuous current capacity of 430A, fully satisfying single-circuit supply for 2500kVA transformers while reserving 20% expansion margin.

For the outdoor section crossing the project boundary to connect with the municipal grid, we upgraded to 4×300mm² steel wire armored cable. The SWA (Steel Wire Armoured) structure provides radial compression resistance exceeding 3000N/10cm, effectively protecting against accidental mechanical damage from local construction equipment and rodent gnawing. For direct-buried sections, we recommended a secondary protection scheme of fine sand bedding plus concrete cover slabs—a detail that later became a construction reference standard for the local power company.

Floor Distribution and Power Circuits: Multi-Specification YJV Precision Configuration

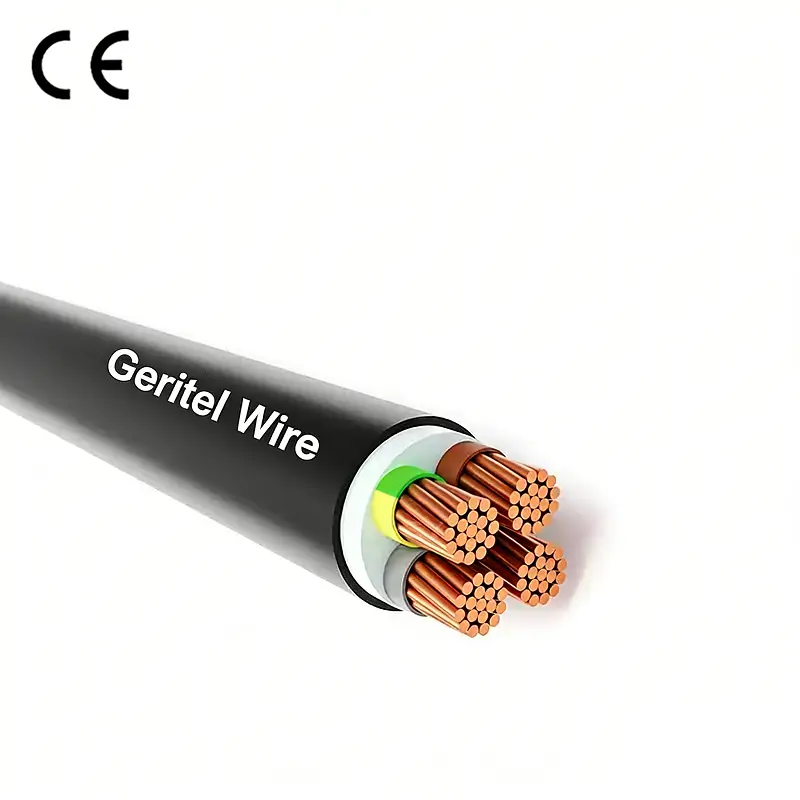

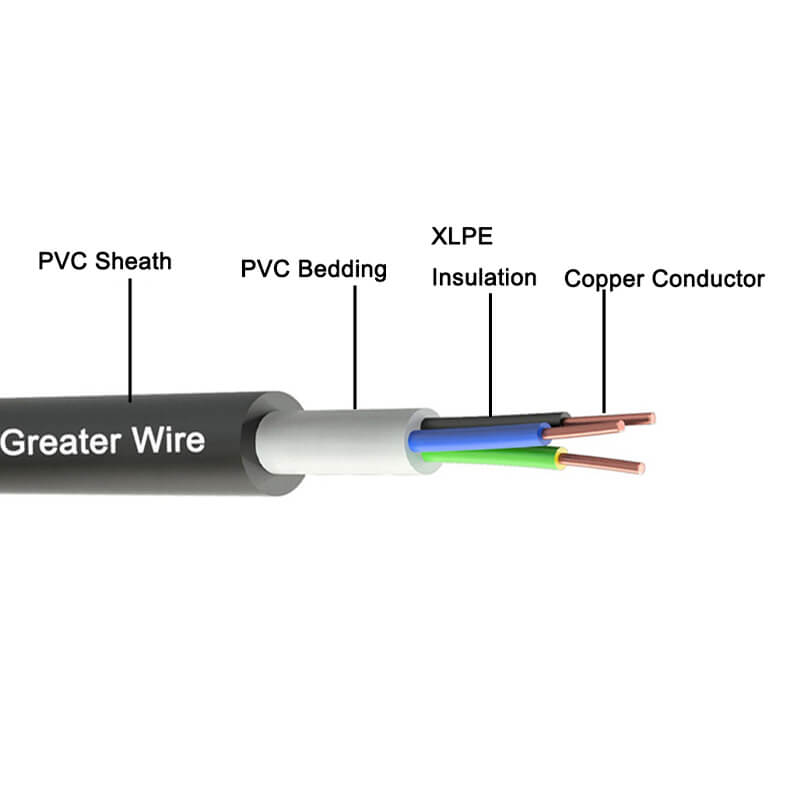

For vertical risers and horizontal distribution within buildings, we implemented a tiered configuration based on load classification: YJV 4×185mm² for air conditioning, YJV 4×95mm² for fresh air handling units, and YJV 5×50mm² (with dedicated grounding core) for elevator dedicated circuits. This differentiated approach helped the client optimize approximately 15% of cable procurement costs while meeting technical specifications.

Terminal Equipment Connections: Complete Coverage from Fixed Wiring to Flexible Applications

Addressing the diversity of end-use electrical equipment, we provided three-tier solutions:

Fixed Installation Scenarios utilized H07V-U rigid single-core wire, with 1.5mm² for lighting circuit switching lines, 2.5mm² for general socket circuits, and 4mm² and 6mm² for primary wiring inside small distribution boxes. PVC insulation maintains stable electrical performance across -15°C to +70°C, ideally suited for Chad's climate conditions.

Scenarios Requiring Bending employed H07V-K flexible single-core wire, covering the full range from 1.5mm² to 25mm². Inside distribution cabinets and at cable tray bends, this Class 5 flexible conductor structure permits minimum bending radius of just 4 times the cable outer diameter, significantly reducing installation complexity. The project extensively used 10mm² and 16mm² specifications specifically for connecting circuit breaker outgoing terminals in distribution cabinets.

Main Circuits or Heavy Load Equipment adopted H07V-R multi-strand rigid conductor single-core wire. Its Class 2 conductor structure provides better anti-creep performance than Class 5 while maintaining moderate flexibility, particularly suitable for connecting vibrating equipment such as air conditioning units and generators.

Mobile Equipment or Frequent Bending Scenarios utilized H03VV-F and H05VV-F multi-core flexible cables. 2×1.5mm² served office area floor fans and portable lighting, 3×2.5mm² connected split air conditioner indoor/outdoor units, and 5×6mm² powered conference room electric partition walls and stage lighting systems. These cables feature special anti-UV formulations in their sheaths, maintaining over two years' service life even during temporary outdoor use.

Safety Assurance: Comprehensive Certification and Quality Control Penetration

The client's initial concerns about non-European brands were resolved through our complete certification matrix:

Foundation Compliance Layer: All products hold CE certification, complying with EU Low Voltage Directive (LVD) 2014/35/EU and RoHS 2.0 environmental directives. We provided TÜV SÜD-issued test reports for IEC 60502-2 (power cables), IEC 60227 (PVC insulated cables), and IEC 60245 (rubber insulated cables), covering all 12 model specifications procured by the client.

Project Adaptation Layer: Addressing Chad Power Company's special requirements, we supplemented flame retardancy tests (IEC 60332-1-2 single vertical flame) and smoke density tests (IEC 61034), demonstrating product safety in fire scenarios. For backbone cables including YJV cable 4×240mm², we additionally provided thermal cycling test reports (<5% insulation resistance variation after 100 cycles), verifying long-term reliability under N'Djamena's day-night temperature differentials.

Process Control Layer: The client appointed a third-party inspection agency (Bureau Veritas) for factory supervision. We opened real-time inspection access to critical processes including conductor stranding, insulation extrusion, cabling lay length, and sheath extrusion, with all inspection data simultaneously uploaded to cloud platforms for remote client review. This transparency significantly shortened the client's decision cycle.

Delivery Execution: 10-Week Rapid Response and Logistics Risk Management

Following contract signature, we initiated dedicated delivery assurance mechanisms:

Production Scheduling: The project order entered VIP green channel priority, with high-voltage cables including YJV cable 4×240mm² scheduled first on cross-linking production lines, and low-voltage wire products operating on double shifts. Through raw material pre-reservation (copper rod, XLPE compound, PVC compound locked in advance), we compressed standard delivery from 8 weeks to 5 weeks.

Quality Inspection: Pre-shipment completion of 100% conductor DC resistance testing, insulation withstand voltage testing (3.5kV/5min without breakdown), and mechanical property sampling of sheaths. Considering potential high-salinity environments during ocean shipping, all cable drums received triple protection of moisture-proof stretch film + desiccant + wooden crates, with moisture barriers laid inside containers.

Logistics Solution: Considering Chad's landlocked status, we designed a multimodal "Chinese port—Douala, Cameroon port—road transport" solution. Partnering with freight forwarders experienced in African inland transport, we pre-arranged ECTN (Electronic Cargo Tracking Note) and BESC (Bordereau Électronique de Suivi des Cargaisons) customs clearance documents. Customs clearance at Douala port was controlled within 72 hours, and the 2000-kilometer road transport to N'Djamena featured GPS tracking and armed escort. All cargo was delivered in week 9, seven days ahead of contractual deadline.

Project Outcomes: Evolving from Cable Supplier to Technical Partner

Following project commissioning in 2023, we conducted six months of operational tracking:

Performance Verification: During the extreme heat period of April 2023 (seven consecutive days with maximum temperatures exceeding 43°C), YJV cable 4×240mm² backbone lines maintained conductor temperatures below 68°C (design allowance 90°C), with measured voltage drop of 2.1% (design allowance 5%), all parameters outperforming design expectations.

Installation Feedback: Local construction teams particularly praised the operability of H07V-K flexible single-core wire inside distribution cabinets—compared to European brand equivalents previously used, our cables featured more precise outer diameter tolerance control (±0.1mm), improving wiring efficiency in confined spaces by approximately 30%.

Maintenance Convenience: The client's electrical engineers noted that the unified cable identification system (heat-shrink number tubes and color bands provided free by us) reduced later-stage troubleshooting time by over 50%. Cable color coding across different systems followed IEC 60446 standards, preventing misoperations caused by identification confusion.

Partnership Value: Dimensions Beyond Transactional Relationships

Reviewing this project, we believe true value creation manifested in three dimensions:

Technical Enablement Value: We provided not merely products, but through detailed cable selection calculation documents, installation guidance manuals, and on-site technical training, helped the Chadian team establish standardized procedures for large commercial complex electrical construction. These knowledge assets continue generating returns in the client's subsequent projects.

Supply Chain Resilience Value: Against the backdrop of violent copper price fluctuations and shipping congestion in 2022, our early price-locking strategy and alternative logistics solutions helped the client avoid approximately $120,000 in potential cost increases. This risk-sharing mindset established the foundation for long-term cooperation.

Localization Service Value: Following project delivery, we established a spare parts inventory center in N'Djamena, maintaining fast-replenishment stock of commonly used specifications including H07V-U and H07V-K, with a 48-hour emergency response commitment. This "heavy asset" investment represents a barrier that trading-type competitors cannot easily replicate.

Client Feedback and Industry Insights

The client's project director expressed several key acknowledgments in the summary evaluation: first, our standards interpretation capability—clearly explaining technical differences between IEC and NF C standards and providing solutions meeting dual requirements; second, response speed—from initial contact to contract signature in just 23 days, far faster than European suppliers' conventional processes; third, site adaptability—our technical team made two trips to N'Djamena to optimize cable head manufacturing processes for local construction conditions, a level of hands-on service rarely seen in comparable projects.

This case validated our market judgment: against the acceleration of African infrastructure construction, clients no longer need single-product low-price competition, but rather full-category coverage + standards compliance + rapid delivery + on-site support as systematic capabilities. The successful delivery of the N'Djamena Central Business Complex opened the door to Central African markets for us, subsequently leading to cable supply involvement in projects including the Yaoundé Conference Center in Cameroon and the Bangui Hospital in the Central African Republic.

Conclusion: Your Next Project Deserves a More Professional Cable Partner

Whether you are planning commercial complexes, industrial facilities, or infrastructure projects, cable system selection will directly impact project safety, economics, and maintainability. We understand that choosing a distant supplier requires trust—precisely why we insist on transparent production, fully traceable logistics, and localized service networks.

Dongguan GERITEL Electrical Co., Ltd. specializes in R&D and manufacturing of IEC-standard cables, covering comprehensive product lines of low-voltage power cables, control cables, and building wiring, holding complete CE certification and IEC test reports, with service networks spanning over 50 countries and regions across Africa, the Middle East, and Southeast Asia.

If you are seeking:

Full-category cable solutions compliant with EN/IEC standards

Delivery assurance within 10 weeks

Technical support from selection calculation to on-site installation

A reliable partner with proven large-project execution experience
