600V THHN Electrical Wire Installation Guide

600V THHN electrical wire is a staple for dry indoor electrical installations, widely used in residential, commercial, and light industrial projects. Its 90°C temperature rating, nylon jacket, and 600V capacity make it ideal for lighting, outlets, and control panels— but proper installation is critical for safety and code compliance. This guide simplifies the installation process, highlights key safety measures, and shares common pitfalls to avoid, using our UL83-certified THHN copper building wire 600V for reliable results.

First, note the basics: 600V THHN wire is designed for dry indoor use only (not wet/damp areas). It features annealed copper conductors (solid or stranded) with PVC insulation and a nylon outer jacket, built for heat resistance and easy pull-through in conduits, making it a top choice for THHN cable for construction wiring. Always confirm it meets UL83 standards before installation.

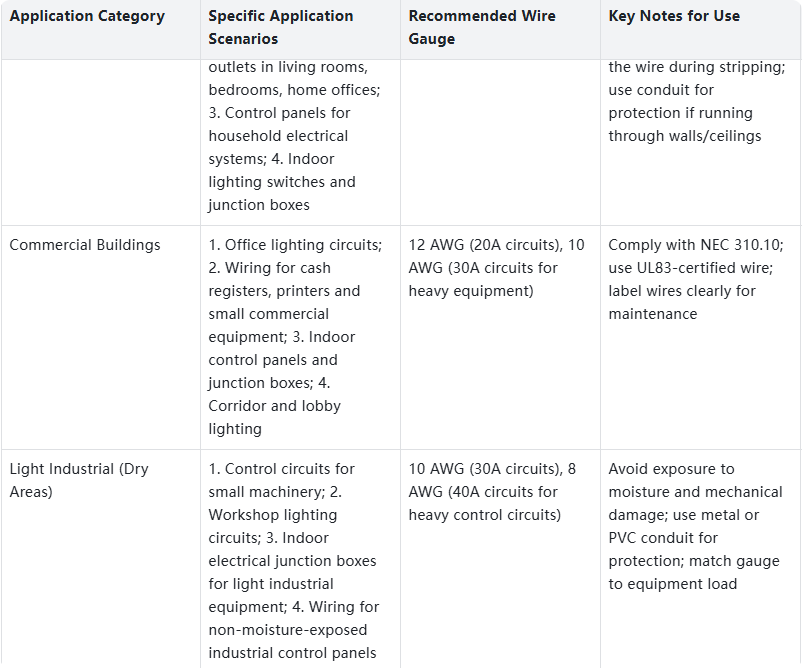

Application

Step-by-Step 600V THHN Installation Guide

Follow these simple, compliant steps for a successful installation:

1. Plan & Prepare

- Assess the installation area: Ensure it’s dry (no moisture, condensation, or water exposure).

- Calculate load & select gauge: Match wire gauge to ampacity (14 AWG = 15A, 12 AWG = 20A, 10 AWG = 30A; larger gauges for heavy loads).

- Gather tools: Wire strippers, conduit benders, screwdrivers, voltage tester, and wire pullers.

- Use UL83-certified 600V THHN wire to ensure compliance.

2. Run Conduit (If Required)

THHN wire is typically installed in conduit (PVC, metal, or EMT) for protection.

- Cut conduit to length, deburr ends to avoid damaging the wire’s nylon jacket.

- Bend conduit smoothly (use a bender) for tight corners—avoid sharp bends that could snag the wire.

- Secure conduit to walls/joists with clips, keeping it level and accessible.

3. Pull THHN Wire Through Conduit

- Cut wire to length (add 6–12 inches extra at each end for connections).

- Attach a pull string to one end of the wire (use electrical tape to secure it tightly).

- Pull the wire through the conduit slowly—avoid tugging to prevent jacket damage.

- For long runs, use a wire puller to reduce friction and protect the wire.

4. Strip & Connect Wires

- Use wire strippers to remove ½–¾ inch of insulation (avoid nicking the copper conductor).

- Connect wires to outlets, switches, or panels: Twist conductors tightly, then secure with wire nuts or terminal screws.

- Ensure connections are tight—loose wires cause overheating and fire risks.

- Label wires (e.g., “hot,” “neutral”) for future maintenance.

5. Test & Inspect

- Use a voltage tester to confirm no power is present before testing.

- Check for loose connections, damaged insulation, or exposed copper.

- Verify compliance with UL (dry location rating, gauge vs. ampacity).

- Pass inspection before restoring power.

For professional settings, THHN cable industrial wiring use requires the same strict adherence to installation steps to ensure safety and code compliance.

Critical Safety & Compliance Tips

• Never use 600V THHN in wet/damp areas (use THWN-2 instead) — this violates NEC and causes short circuits.

• Do not overload circuits: Match wire gauge to the circuit breaker (e.g., 14 AWG with 15A breaker).

• Avoid damaging the nylon jacket during installation—damaged insulation leads to hazards.

• Always turn off power at the breaker before starting work.

• Use only UL83-certified THHN wire to meet safety standards.

Common Installation Mistakes to Avoid

1. Using THHN in wet areas: Leads to code violations and safety risks.

2. Under-sizing wire gauge: Causes overheating and circuit failure.

3. Nicking copper conductors while stripping: Weakens the wire and risks short circuits.

4. Loose connections: Creates arcing and fire hazards.

5. Skipping conduit: Exposes wire to damage and violates NEC.

Final Thought

600V THHN installation is straightforward when following these steps and safety rules. Our UL83-certified 600V THHN wire ensures durability, heat resistance, and compliance, making your installation safe and long-lasting. By planning carefully, using the right tools, and avoiding common mistakes, you’ll complete the job efficiently and pass inspection with ease.
