XHHW vs XHHW-2 Wire: The Ultimate Guide to Key Differences & Selection

In modern electrical installations, choosing the right wire is more than a technical decision—it ensures safety, reliability, and compliance. Two commonly used wires, XHHW and XHHW-2, often create confusion among electricians, contractors, and project managers. In this guide, we’ll break down their differences, uses, and selection tips while introducing our certified, high-quality wire solutions for professional applications.

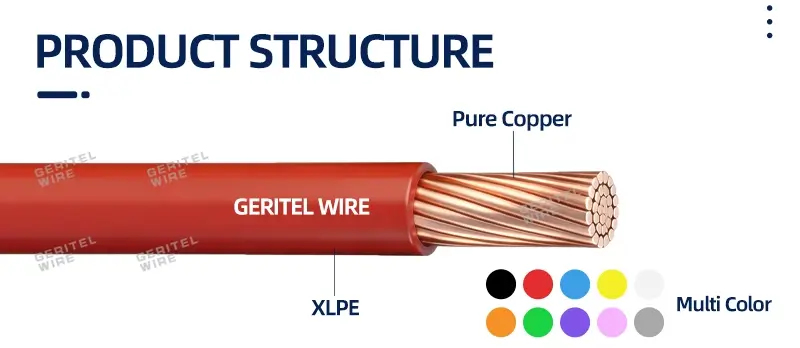

XLPE cable

Understanding XHHW and XHHW-2 Wire

XHHW stands for Cross-linked High Heat-resistant Water-resistant wire. Its design makes it suitable for high-temperature environments and areas with moisture exposure. Traditionally, XHHW wire has been a staple for residential, commercial, and industrial wiring.

XHHW-2, on the other hand, is an upgraded version of XHHW wire. The "-2" designation indicates improved thermal rating and insulation performance. Specifically, XHHW-2 is rated for 90°C in both wet and dry locations, XHHW-2 cable for industrial wiring, whereas original XHHW is rated for 75°C in wet locations and 90°C in dry locations. This seemingly small improvement has significant implications for durability and electrical safety.

Feature	Temperature Rating (Wet)	Temperature Rating (Dry)	Voltage Rating	Conductor Material	Insulation Type	Moisture Resistance	Applications
XHHW	75°C	90°C	600V	Copper or Aluminum	Cross-linked PE	Good	Residential, commercial
XHHW-2	90°C	90°C	600V	Copper or Aluminum	Cross-linked PE	Excellent	Residential, commercial, industrial

Key Differences You Need to Know

Thermal Performance

XHHW-2 outperforms XHHW in wet conditions, offering enhanced heat resistance, XHHW electric cable for substations. For installations in areas with high moisture or elevated temperatures, XHHW-2 is the safer choice.

Flexibility & Handling

XHHW-2 wire generally has improved flexibility due to refined cross-linking technology. This makes it easier for electricians to pull through conduits without damaging insulation.

Compliance & Certifications

XHHW-2 often meets the latest NEC (National Electrical Code) requirements more comprehensively, ensuring safer and code-compliant installations.

Applications: Where Each Wire Excels

XHHW: Ideal for standard residential wiring and commercial buildings where moisture exposure is minimal.

XHHW-2: Perfect for industrial plants, outdoor installations, or any high-moisture environment requiring superior thermal performance.

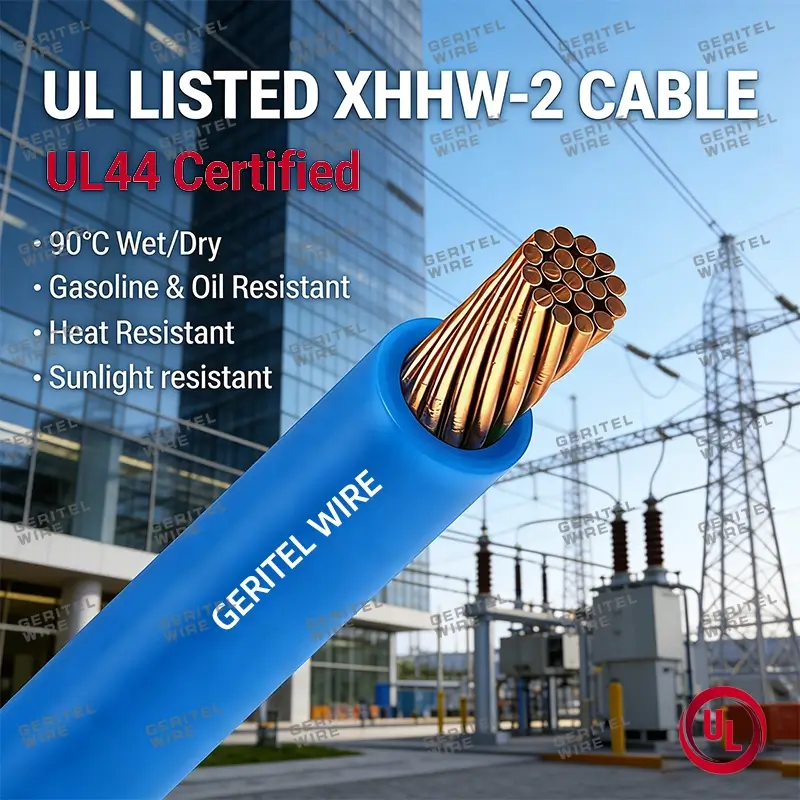

500 kcmil XHHW-2

How to Choose Between XHHW and XHHW-2

Selecting the right wire depends on several factors:

Installation Environment

Dry indoor areas → XHHW is sufficient

Wet or industrial environments → XHHW-2 is preferred

Budget Considerations

While XHHW-2 is slightly higher in cost, its enhanced durability often reduces long-term maintenance costs.

Code Compliance

Always verify the local electrical code. Many regions now recommend or require XHHW-2 for new installations due to its superior thermal and moisture ratings.

2 AWG XHHW wire

Why Choose Our Certified Wires?

We provide certified, professional-grade XHHW and XHHW-2 wires. Here’s why electricians and contractors trust us:

Certified Quality: UL certifications guarantee that our wires meet international safety and quality standards.

Professional Support: Our technical team offers guidance for optimal wire selection, installation advice, and troubleshooting.

Durability & Reliability: High-grade copper and advanced insulation ensure long-lasting performance, even in demanding environments.

Competitive Pricing: Premium quality wires at prices that suit both large projects and small-scale installations.

Installation Tips for Optimal Performance

Proper Conduit Selection: Ensure conduits match wire size to reduce pull resistance and prevent insulation damage.

Avoid Sharp Bends: Especially important for XHHW-2 to maintain insulation integrity.

Temperature Awareness: Even though XHHW-2 withstands 90°C, avoid prolonged exposure to higher temperatures to extend wire life.

Regular Inspection: Periodic checks prevent moisture-related failures and ensure electrical safety.

Conclusion

Choosing between XHHW and XHHW-2 wire isn’t just about technical specs—it’s about safety, compliance, and long-term reliability. While XHHW remains suitable for standard conditions, XHHW-2 is the ultimate choice for high-temperature, wet, or industrial environments.

Partnering with a certified, professional supplier ensures your projects meet safety standards, reduce downtime, and enjoy dependable performance. With our expertise and premium wires, you can confidently tackle any electrical project.
