What Is Copper THHN/T90 Nylon Cable and How Is It Used?

In modern electrical installations, safety, durability, and performance are critical considerations. One of the most reliable solutions for residential, commercial, and industrial wiring is the COPPER THHN/T90 NYLON CABLE. Known for its robust construction and versatility, this cable is widely used by electricians and contractors worldwide.

THHN electrical wires, also referred to as THHN/THWN-2 or TFN/TFFN/THHN/THWN/THWN-2 nylon electric cable building wire, are thermoplastic high-heat wires with a durable nylon sheath. The nylon coating provides excellent protection against abrasion, oil, gasoline, moisture, and chemicals, making these cables ideal for a wide range of applications.

1.Construction and Features

The typical COPPER THHN/T90 NYLON CABLE consists of three main components:

Bare Copper Conductor – Provides high conductivity and efficient power transmission. Sizes follow AWG standards for easy compatibility with electrical systems.
PVC Insulation – Offers thermal protection and flame retardancy to maintain safety in high-temperature environments.
Nylon Jacket – Enhances mechanical durability and protects the wire from external damage during installation.

Thanks to this structure, THHN electrical wires can withstand harsh conditions and remain reliable for many years. They are rated for 600 volts and can operate at temperatures up to 90°C in dry locations. Many products are dual-rated as THHN/THWN-2, allowing safe use in both dry and wet environments.

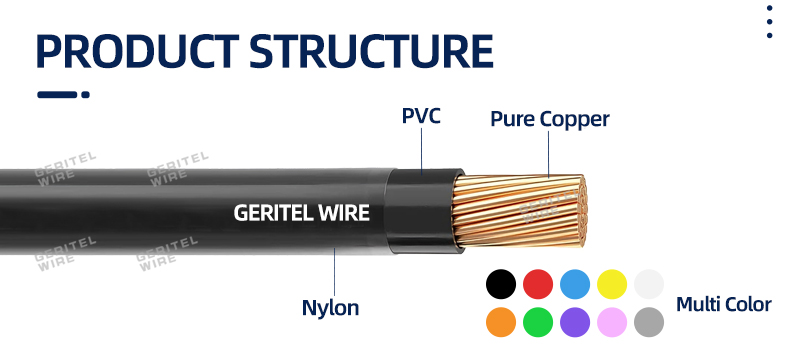

COPPER THHN/T90 NYLON CABLE

2.Applications of Copper THHN/T90 Nylon Cable

The versatility of COPPER THHN/T90 NYLON CABLE makes it suitable for a wide variety of installations:

Residential wiring: lighting circuits, outlets, and HVAC systems
Commercial buildings: power distribution, control panels, and branch circuits
Industrial facilities: machinery, equipment wiring, and safety circuits
Conduit installations: metallic or non-metallic conduits for indoor and outdoor use

For larger gauge sizes (4 AWG and above), THHN/THWN-2 cables are sunlight-resistant, making them ideal for outdoor conduits and exposed locations. Contractors often prefer these cables for their ease of installation, durability, and compliance with NEC standards.

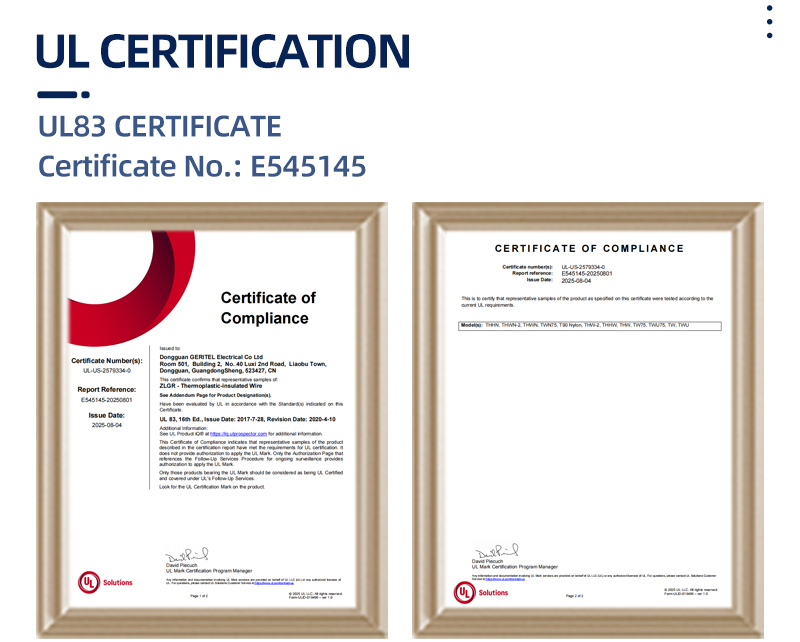

UL83 Certificate

3.Advantages of Using THHN Electrical Wires

Using COPPER THHN/T90 NYLON CABLE offers multiple advantages:

High heat resistance: safely handles up to 90°C in dry environments
Chemical and moisture resistance: suitable for industrial and residential applications
Mechanical protection: nylon jacket resists abrasion, cuts, and pulling stress
Flexible installation: smooth pulling through conduits reduces labor time
UL83 certified: ensures safety and compliance with North American standards

These advantages make THHN electrical wires a cost-effective choice, providing long service life and minimal maintenance requirements.

4.Installation Guidelines

To ensure long-term reliability, follow proper installation practices for TFN/TFFN/THHN/THWN/THWN-2 nylon electric cable building wire:

Use approved metallic or non-metallic conduits
Maintain a bending radius of at least 8 times the overall cable diameter
Adhere to local electrical codes and NEC installation standards
Utilize color-coded insulation for easy circuit identification

Following these guidelines guarantees safe operation and optimal performance of COPPER THHN/T90 NYLON CABLE in all environments.

nylon electric cable building wire

5.Conclusion

The COPPER THHN/T90 NYLON CABLE is an essential solution for modern electrical wiring, offering high durability, safety, and versatility. Its construction, featuring bare copper conductors, PVC insulation, and a nylon sheath, ensures reliable performance in residential, commercial, and industrial applications.

Whether installed indoors or outdoors, in dry or wet environments, THHN electrical wires and THHN/THWN-2 cables remain a trusted choice for contractors and engineers. By choosing these TFN/TFFN/THHN/THWN/THWN-2 nylon electric cable building wires, you ensure compliance with industry standards, long-term reliability, and enhanced electrical safety across all projects.
