6 AWG XHHW/XHHW-2 WIRE STRANDED COPPER CONDUCTOR 90°C WET AND DRY
Conductor：
Copper Single Conductor
Insulation：
Cross-Linked Polyethylene (XLPE)
Rated Voltage：
600V/1000V/2000V
Standard：
UL 44
Dry Locations Temperature Rating：
90°C
Wet Locations Temperature Rating：
90°C
：
：
Description
Download
Copper Conductor
Solid or Stranded Copper Conductors
Insulation
XLPE Insulation
No. of Conductor
Single Core
Temperature Rating
-40 °C to 90°C

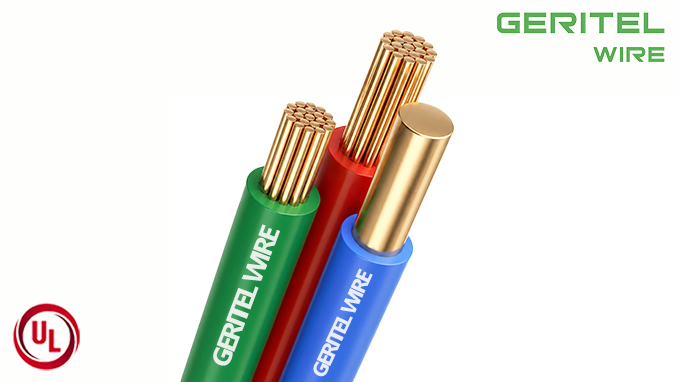

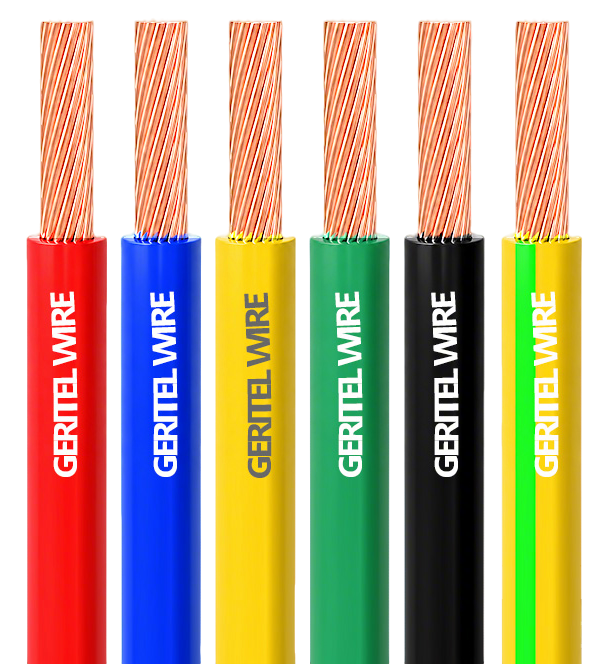

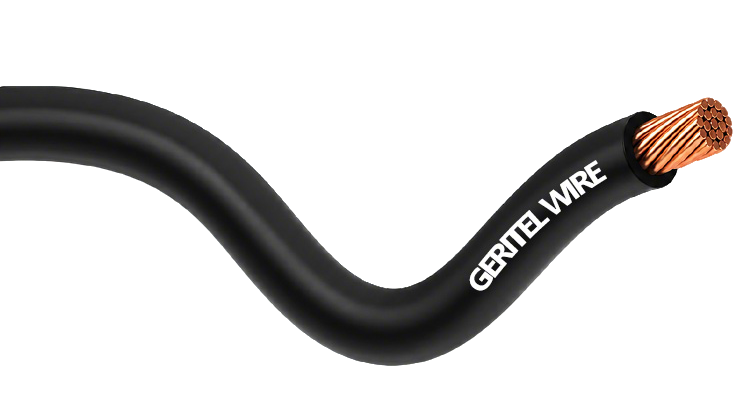

6 AWG XHHW/XHHW-2 Wire Stranded Copper Conductor 90°C Wet and Dry
This 6 AWG UL 44 Copper XHHW/XHHW-2 Wire is rated 600V with stranded copper conductor and XLPE insulation, suitable for 90°C wet and dry locations. It is designed for XHHW/XHHW-2 Copper Wire for main distribution panel to XHHW/XHHW-2 Copper Wire for subpanel feeder connections, with stranded construction ensuring smooth pulling through XHHW/XHHW-2 Copper Wire for underground conduit systems. The insulation provides moisture resistant and heat resistant performance for long-term reliability.
XHHW / XHHW-2 wire is primarily used for installation in conduits, cable trays, or other approved raceway systems, and is suitable for power service entrances, feeders, and branch circuit wiring, meeting the installation requirements of relevant electrical codes.
Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1kV
XLPE Insulated
UL 44 Standards
Sunlight Resistant
Temperature range -40 °C to 90°C
Advantages of XHHW cable
XLPE insulation and stranded copper conductor deliver superior moisture resistant, heat resistant, and sunlight resistant performance, ensuring long-term reliability in both 90°C wet and dry environments. The thermoset insulation provides higher ampacity and better overload protection compared to PVC cables, while the stranded design facilitates easy installation through conduit and cable tray systems.
| Size (AWG/KCMIL) | Strands No./OD. (mm) | XLPE Insulation Average Thickness (mm) |
Approx. O.D. (mm) |
Max. DC Resistance (20℃，Ω/KM) (Tinned Copper) |
Approx. Weight (kg/km) |
|
|---|---|---|---|---|---|---|
| 6 | 7/1.56 | 1.14 | 7.08 | 1.35 | 1.40 | 142.51 |
Certification
This cable is UL 44 listed, CT rated, and complies with NEC requirements for 600V applications. It meets rigorous standards for wet location, dry location, and sunlight-resistant performance, ensuring safe and code-compliant installations across all project types.
Heat Resistance
Abrasion Resistant
Oil and Gasoline Resistant
UL Certified
APPLICATIONS
Ideal for XHHW-2 Copper Wire for main distribution panel to XHHW-2 Copper Wire for subpanel feeder connections, as well as XHHW-2 Copper Wire for underground conduit and XHHW-2 Copper Wire for cable tray systems. Widely used in XHHW-2 Copper Wire for commercial electrical room, XHHW-2 Copper Wire for factory electrical installation, XHHW-2 Copper Wire for warehouse power distribution, XHHW-2 Copper Wire for high-rise building wiring, and XHHW-2 Copper Wire for manufacturing plant feeder wiring.
Industrial Plant
XHHW wire is used as a feeder cable to transmit power from transformers or main distribution boards to distribution cabinets for various production lines in the workshop, capable of withstanding the heat and electrical loads generated by equipment operation.
Commercial Building
XHHW wire is commonly used to run from the building's main distribution board (MDB) to floor distribution boxes, routed through metal conduits or cable trays, ensuring stable transmission of three-phase power and suitable for long-term full-load operation.
Cable Tray
In commercial or industrial buildings, XHHW wire is centrally routed in cable trays to connect multiple distribution circuits, facilitating unified wiring, maintenance, and future system expansion.
Hospitals
XHHW wire is commonly used in the power distribution systems of hospitals, schools, and other public buildings, providing a stable power supply for lighting, air conditioning, and basic power systems, meeting high requirements for safety and reliability.
Customer Photos
Our XHHW cable has been installed in commercial electrical rooms, manufacturing plants, and high-rise building projects across North America. Project photos and case studies are available upon request.
plant equipment
Our factory operates advanced extrusion and stranding lines with automated spark testers and continuous quality monitoring systems. Every production batch is tested to ensure consistent insulation thickness and conductor precision meeting UL 44 Copper XHHW-2 Wire specification.
Packaging Information
Available in standard reels, wooden spools, or steel reels with custom length options to meet project requirements. Each reel is clearly labeled with gauge, length, and certification marks, and wrapped with protective packaging to prevent damage during transit.
Small Wooden Reel
Large Wooden Reel
Box Packaging
Global Certification
In addition to UL 44 and CSA certification, our XHHW cable complies with international standards including IEC 60502 and RoHS requirements. All products are manufactured under ISO 9001 quality management systems for consistent reliability across every shipment.
