350 kcmil AA8000 Aluminum XHHW-2, 90°C Wet Dry XLPE Insulation UL44 Wire
Conductor：
Aluminum Conductor
Insulation：
Cross-Linked Polyethylene (XLPE)
Rated Voltage：
600v/1000v/2000v
Standard：
UL 44
Dry Locations Temperature Rating：
90°C
Wet Locations Temperature Rating：
75°C
Description
Download
Aluminum Conductor
Solid or Stranded Aluminum Conductors
Insulation
XLPE Insulation
No. of Conductor
Single Core
Temperature Rating
-40 °C to 90°C

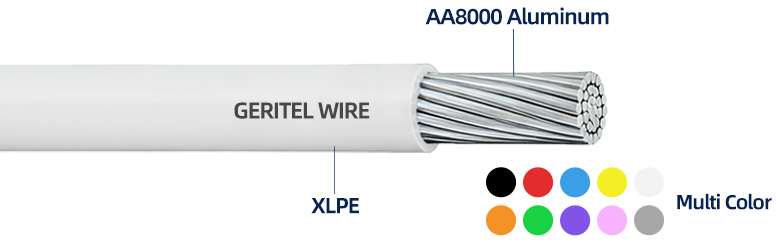

350 kcmil AA8000 Aluminum XHHW-2, 90°C Wet Dry XLPE Insulation UL44 Wire
Our 350 kcmil aluminum XHHW/XHHW-2 building wire is UL44 listed, constructed with premium AA8000 compact stranded aluminum conductor and cross linked polyethylene (XLPE) insulation. Rated 600V/1000V, it supports continuous 90°C operation in both wet and dry environments, fully compliant with North American NEC, NEMA and ASTM standards. Designed for heavy-load service entrance feeders, underground conduit wiring and large industrial power transmission, it balances stable electrical performance and cost efficiency compared with copper alternatives.
XHHW wire
XHHW / XHHW-2 wire is primarily used for installation in conduits, cable trays, or other approved raceway systems, and is suitable for power service entrances, feeders, and branch circuit wiring, meeting the installation requirements of relevant electrical codes.
Aluminum Conductors
Rated Voltage Uo/U (Um) 0.6/2kV
XLPE Insulated
UL 44 Standards
Sunlight Resistant
Temperature range -40 °C to 90°C
Advantages
Adopts electrical-grade AA8000 aluminum alloy with compact stranding. It effectively resists creep and oxidation under continuous heavy loads, maintaining stable conductivity long-term. Lighter weight than copper wire greatly reduces raw material and installation costs for large-cross-section long-distance feeders.
|
Size (AWG/ kcmil) |
Strands No./OD. (mm)a |
XLPE Insulation Average Thickness (mm) |
Approx. O.D. (mm) |
Max.DC Resistance (20°C,Ω/km) |
Approx. Weight (kg/km) |
| 8 | 7/1.28 | 1.14 | 5.79 | 3.52 | 39.07 |
| 6 | 7/1.62 | 1.14 | 6.69 | 2.21 | 55.60 |
| 4 | 7/2.02 | 1.14 | 7.79 | 1.39 | 80.87 |
| 2 | 7/2.58 | 1.14 | 9.19 | 0.875 | 119.36 |
| 1 | 18/1.82 | 1.40 | 10.49 | 0.693 | 154.03 |
| 1/0 | 18/2.02 | 1.40 | 11.54 | 0.550 | 188.61 |
| 2/0 | 18/2.32 | 1.40 | 12.49 | 0.436 | 230.30 |
| 3/0 | 18/2.58 | 1.40 | 13.64 | 0.346 | 282.87 |
| 4/0 | 18/2.83 | 1.40 | 15.04 | 0.276 | 348.40 |
| 250 | 36/2.22 | 1.65 | 16.67 | 0.232 | 419.95 |
| 300 | 36/2.42 | 1.65 | 17.92 | 0.194 | 493.90 |
| 350 | 36/2.58 | 1.65 | 19.07 | 0.166 | 567.33 |
| 500 | 36/3.10 | 1.65 | 22.07 | 0.116 | 788.01 |
| 600 | 58/2.65 | 2.03 | 24.56 | 0.0967 | 963.32 |
| 750 | 58/2.98 | 2.03 | 27.16 | 0.0774 | 1185.04 |
Certification
AA8000 aluminum alloy conductor strictly complies with ASTM B800 and B801 standards for electrical aluminum conductors, guaranteeing anti-creep, anti-oxidation and stable conductivity under long-term heavy loads.
Heat Resistance
Abrasion Resistant
Oil and Gasoline Resistant
UL Certified
APPLICATIONS
XHHW wire is primarily used for service entrance, feeder, and branch circuit wiring in building electrical systems, and is widely used in commercial buildings, industrial facilities, and large residential projects.
Branch Circuit Wiring
XHHW/XHHW-2 wire is widely used in branch circuit wiring, providing reliable power distribution from panelboards to lighting, receptacles, and small equipment loads. Its flexible insulation and multiple color options simplify circuit identification and termination in commercial and residential applications.
Cable Tray & Raceway Systems
For cable tray and raceway installations, XHHW/XHHW-2 wire offers exceptional performance with its durable XLPE insulation that resists mechanical stress and environmental exposure. The wire's versatility allows for neat, organized routing in open tray systems, making it a preferred choice for industrial and commercial power distribution projects.
Conduit Wiring
XHHW/XHHW-2 wire is ideally suited for conduit wiring applications, pulling smoothly through EMT, rigid metal, and PVC conduits. Its abrasion-resistant insulation and stranded conductor options ensure reliable performance and long service life in both new construction and retrofit installations.
Feeder Circuit Wiring
For feeder circuits, XHHW/XHHW-2 wire delivers dependable power transmission from service equipment to distribution panels and sub-panels. Its high temperature rating and moisture resistance make it an excellent choice for handling substantial continuous loads in commercial buildings and industrial facilities.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire manufacturer. we consistently use international standards as the core basis for our technology and quality. We have strict requirements for materials and manufacturing processes. Through systematic production control and continuous quality audits, every cable we produce meets the high standards of compliance and safety demanded by the market.
Packaging Information
XHHW/XHHW-2 wire is typically supplied in three packaging forms: Roll, Small Wooden Reel, and Large Wooden Reel, to meet the needs of different project scales.
Roll
Small Wooden Reel
Large Wooden Reel
Global Certification
Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
VDE
UL
SAA
TUV
ISO
What are people saying about us
Our customers have consistently shared positive feedback about our cables and services. Here’s what they say about US:
Luis Fernando Pérez - Venezuela - Office Building Project
The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.
Thomas Baker - USA - Factory construction
GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.
Ricardo José Herrera - Dominican - Hotel Project
Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.
