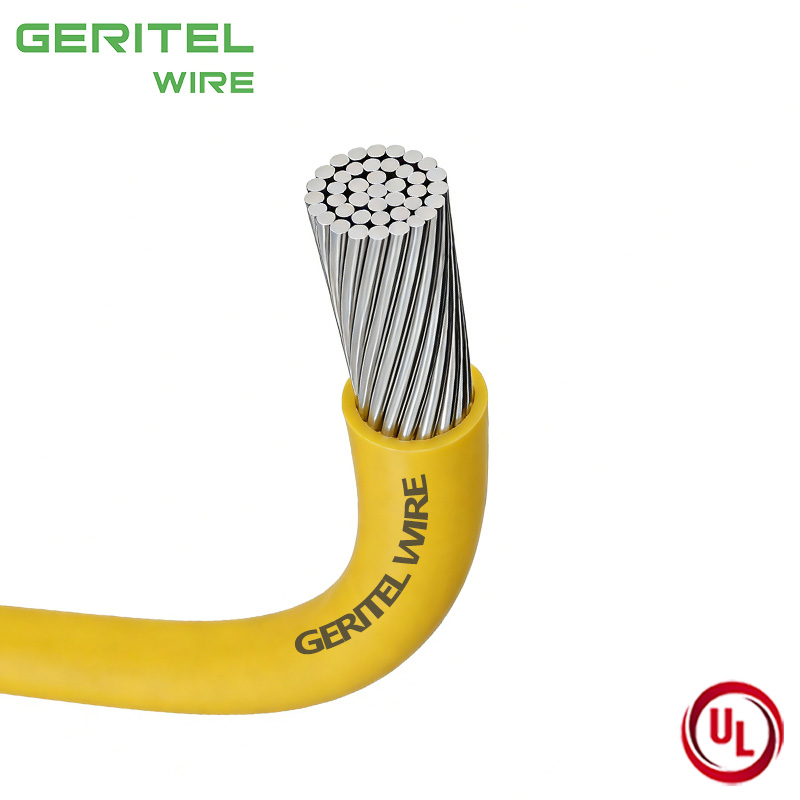

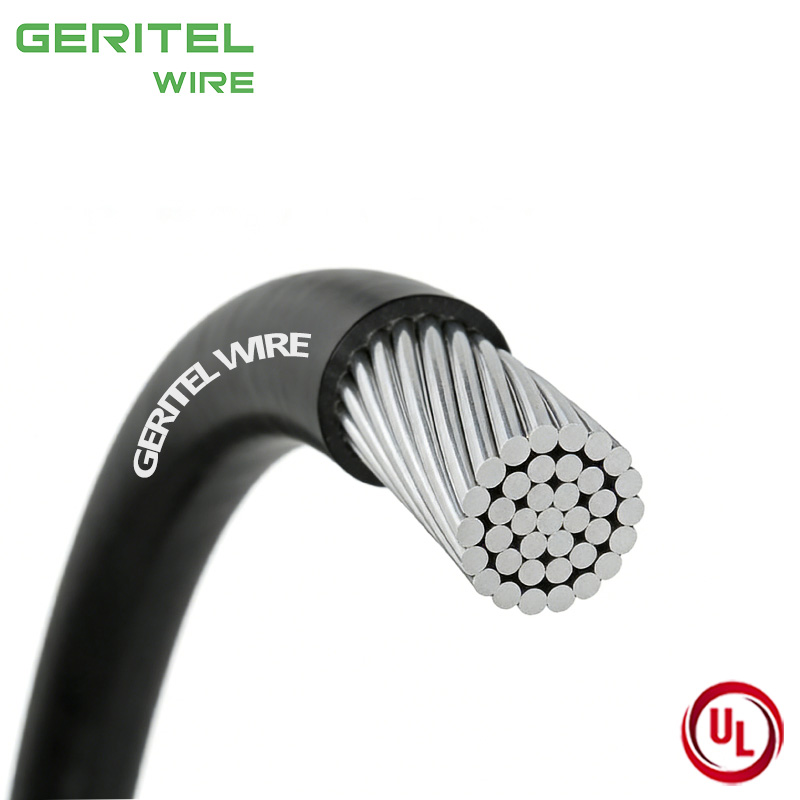

AA8000 Aluminum XHHW-2 Wire for Switchgear

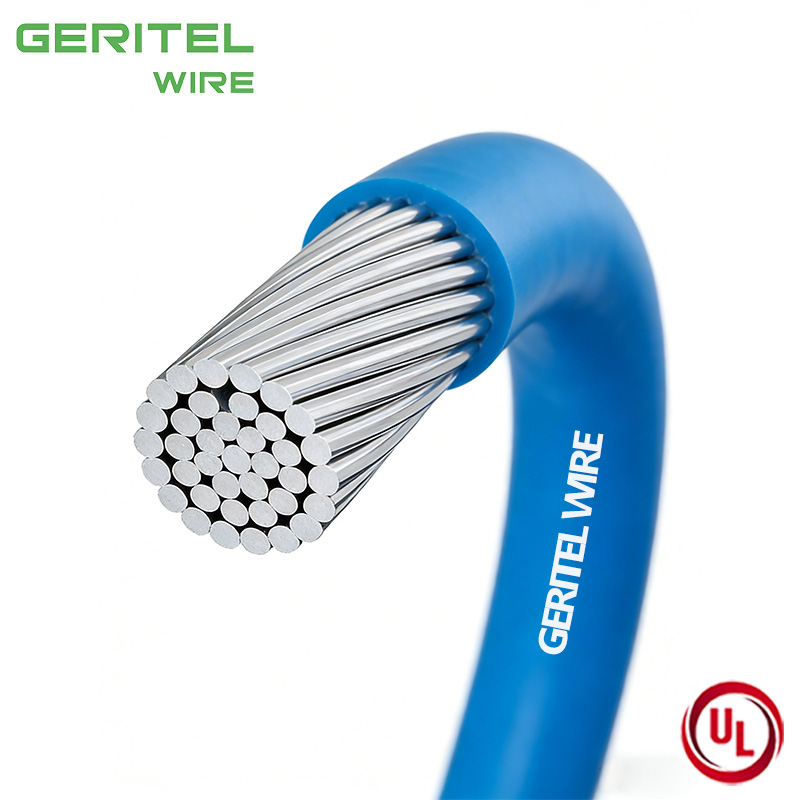

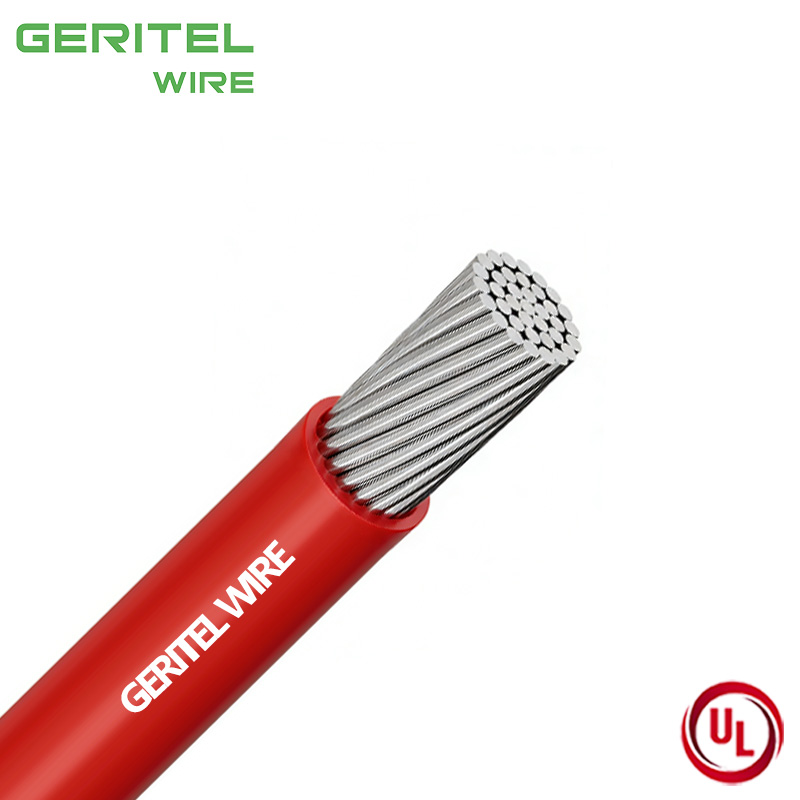

AA8000 Aluminum XHHW-2 Wire for Panel Wiring

1 AWG AA8000 Aluminum XHHW/XHHW-2 RED BUILDING WIRE FOR MAIN PANELS

We are a professional factory specializing in AA8000 aluminum building wires, with complete production equipment, global certifications and stable supply for global electrical distributors.

Conductor：

Aluminum Conductor

Insulation：

Cross-Linked Polyethylene (XLPE)

Rated Voltage：

600V/1000V/2000V

Standard：

UL 44

Dry Locations Temperature Rating：

90°C

Wet Locations Temperature Rating：

90°C

：

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

1 AWG Aluminum XHHW-2 Wire

Copper Conductor

Solid or Stranded Copper Conductors

Insulation

XLPE Insulation

No. of Conductor

Single Core

Temperature Rating

-40 °C to 90°C

1 AWG AA8000 XHHW/XHHW-2 Red Building Wire for Main Panels

This 1 AWG AA8000 Aluminum XHHW-2 wire adopts high-performance AA8000 aluminum alloy conductor with optional red insulation, rated 600V and 90℃ for both dry and wet locations, ideal wiring solution for main panels. Our professional Aluminum XHHW-2 Wire Weight Chart contains accurate outer diameter, per-foot weight and stranding data for construction engineers. UL44 certified, this red AA8000 aluminum XHHW-2 wire fits conduits, cable trays and underground burial, widely used in commercial, industrial and solar power distribution projects for branch circuits and service feeders.

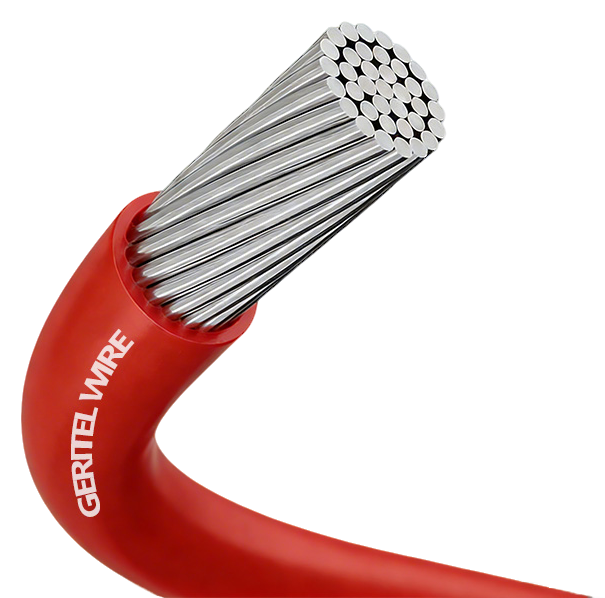

1 AWG Aluminum XHHW-2 Wire

XHHW wire

XHHW / XHHW-2 wire is primarily used for installation in conduits, cable trays, or other approved raceway systems, and is suitable for power service entrances, feeders, and branch circuit wiring, meeting the installation requirements of relevant electrical codes.

Copper Conductors

Rated Voltage Uo/U (Um) 0.6/1kV

XLPE Insulated

UL 44 Standards

Sunlight Resistant

Temperature range -40 °C to 90°C

Advantages

Made of lightweight AA8000 aluminum alloy with durable XLPE insulation, this 1 AWG XHHW-2 wire delivers stable conductivity and outstanding resistance to high temperature, moisture and sunlight while cutting overall project cost.

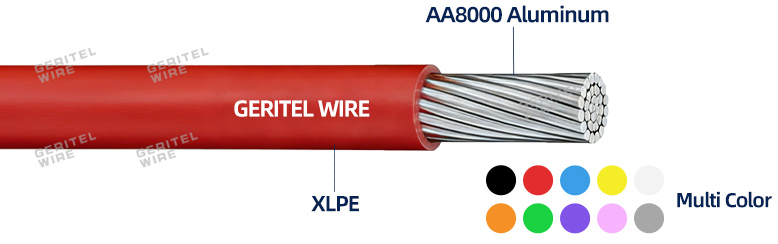

1 AWG AA8000 Aluminum XHHW-2 Wire

Size (AWG/ kcmil)	Strands No./OD. (mm)^a	XLPE Insulation Average Thickness (mm)	Approx. O.D.(mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight （kg/km）
8	7/1.28	1.14	5.79	3.52	39.07
6	7/1.62	1.14	6.69	2.21	55.60
4	7/2.02	1.14	7.79	1.39	80.87
2	7/2.58	1.14	9.19	0.875	119.36
1	18/1.82	1.40	10.49	0.693	154.03
1/0	18/2.02	1.40	11.54	0.550	188.61
2/0	18/2.32	1.40	12.49	0.436	230.30
3/0	18/2.58	1.40	13.64	0.346	282.87
4/0	18/2.83	1.40	15.04	0.274	348.40
250	36/2.22	1.65	16.67	0.232	419.95
300	36/2.42	1.65	17.92	0.194	493.90
350	36/2.58	1.65	19.07	0.166	567.33
500	36/3.10	1.65	22.07	0.116	788.01
600	58/2.65	2.03	24.56	0.0967	963.32
750	58/2.98	2.03	27.16	0.0774	1185.04

Certification

Our red AA8000 Aluminum XHHW-2 wire strictly complies with UL44 and relevant industry standards to guarantee safe and reliable electrical performance for all wiring projects.

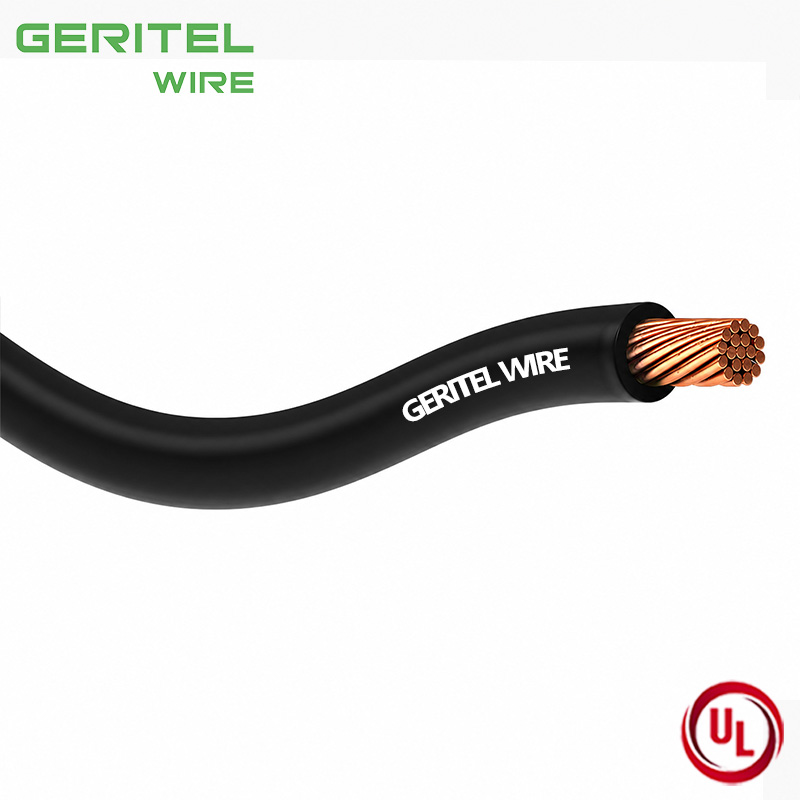

Copper XHHW-2 Wire supplier

Heat Resistance

Abrasion Resistant

Oil and Gasoline Resistant

UL Certified

UL 44 Copper XHHW-2 Wire

Copper XHHW-2 Wire UL 44

APPLICATIONS

Perfectly suited for main panels, branch circuits, service feeders, conduits, cable trays and underground burial in commercial buildings, industrial factories and solar power systems.

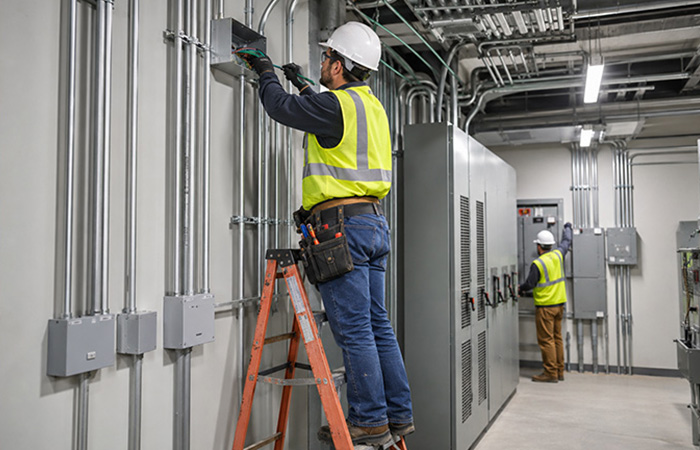

UL 44 Copper XHHW-2 Wire manufacturer

Conduit Wiring

XHHW/XHHW-2 wire is ideally suited for conduit wiring applications, pulling smoothly through EMT, rigid metal, and PVC conduits. Its abrasion-resistant insulation and stranded conductor options ensure reliable performance and long service life in both new construction and retrofit installations.

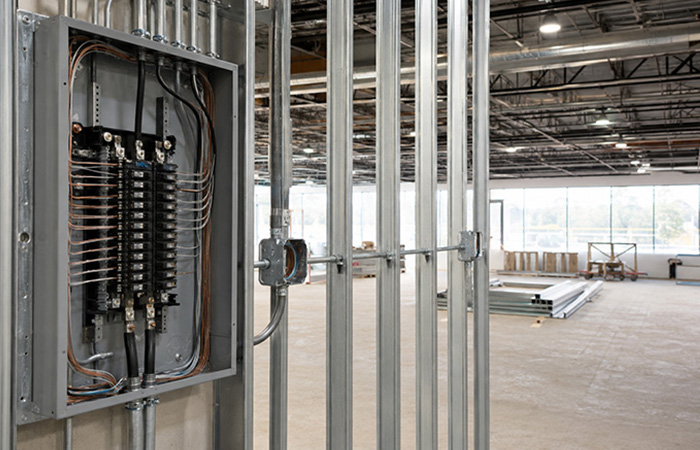

AA8000 Aluminum XHHW-2 Wire for Data Centers

Branch Circuit Wiring

XHHW/XHHW-2 wire is widely used in branch circuit wiring, providing reliable power distribution from panelboards to lighting, receptacles, and small equipment loads. Its flexible insulation and multiple color options simplify circuit identification and termination in commercial and residential applications.

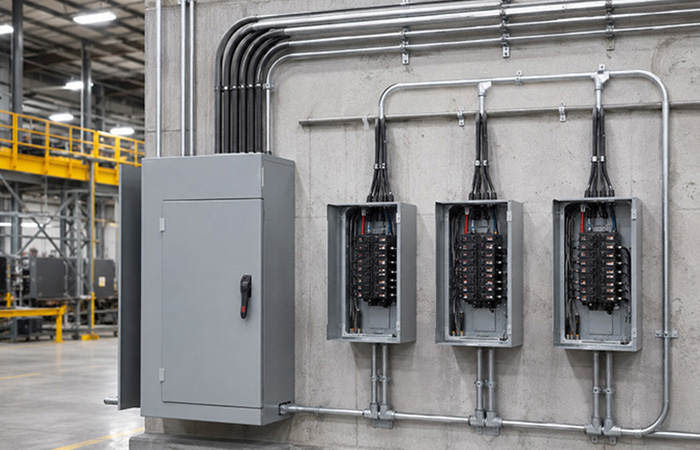

AA8000 Aluminum XHHW-2 Wire for Healthcare Facilities

Feeder Circuit Wiring

For feeder circuits, XHHW/XHHW-2 wire delivers dependable power transmission from service equipment to distribution panels and sub-panels. Its high temperature rating and moisture resistance make it an excellent choice for handling substantial continuous loads in commercial buildings and industrial facilities.

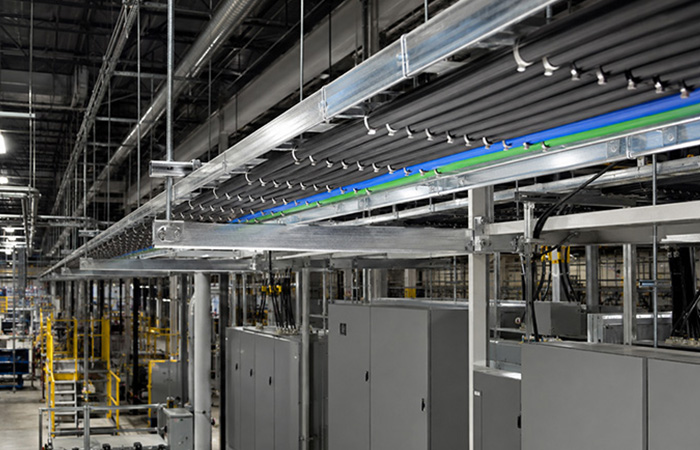

Aluminum XHHW-2 Wire for Healthcare Facilities

Cable Tray & Raceway Systems

For cable tray and raceway installations, XHHW/XHHW-2 wire offers exceptional performance with its durable XLPE insulation that resists mechanical stress and environmental exposure. The wire's versatility allows for neat, organized routing in open tray systems, making it a preferred choice for industrial and commercial power distribution projects.

Customer Photos

Real on-site installation photos shared by global clients display our AA8000 XHHW-2 wire applied in various power distribution engineering projects intuitively.

AA8000 Aluminum XHHW-2 Wire for Electrical Contractors

plant equipment

We adopt fully automated production equipment to precisely manufacture AA8000 aluminum conductors and XLPE insulation, ensuring consistent wire specifications and stable product quality.

Aluminum XHHW-2 Wire for Warehouses

AA8000 Aluminum XHHW-2 Wire for Warehouses

Aluminum XHHW-2 Wire for Shopping Malls

AA8000 Aluminum XHHW-2 Wire for Shopping Malls

Aluminum XHHW-2 Wire for Office Buildings

AA8000 Aluminum XHHW-2 Wire for Office Buildings

Packaging Information

Multiple standard reel and coil packaging options are available for the 1 AWG Aluminum XHHW-2 wire to meet different bulk shipment and on-site construction demands.

Aluminum XHHW-2 Wire for Schools

Small Wooden Reel

AA8000 Aluminum XHHW-2 Wire for Schools

Large Wooden Reel

Aluminum XHHW-2 Wire for Factories

Box Packaging

Global Certification

Apart from North American UL certification, we hold a complete set of international electrical approvals to support smooth export to markets worldwide.

Aluminum XHHW-2 Wire for Electrical Contractors

VDE

AA8000 Aluminum XHHW-2 Wire for Factories

UL

Aluminum XHHW-2 Wire for Airports

SAA

12 AWG Aluminum XHHW-2 Wire

TUV

AA8000 Aluminum XHHW-2 Wire for Airports

ISO

What are people saying about us

Massive positive feedback from overseas electricians, contractors and distributors recognizes our reliable wire quality, accurate weight chart data and responsive after-sales service.

AA8000 Aluminum XHHW-2 Wire for Construction Projects

Luis Fernando Pérez - Venezuela - Office Building Project

The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.

Aluminum XHHW-2 Wire for Construction Projects

Thomas Baker - USA - Factory construction

GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.

AA8000 Aluminum XHHW-2 Wire for Underground Conduit

Ricardo José Herrera - Dominican - Hotel Project

Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.
