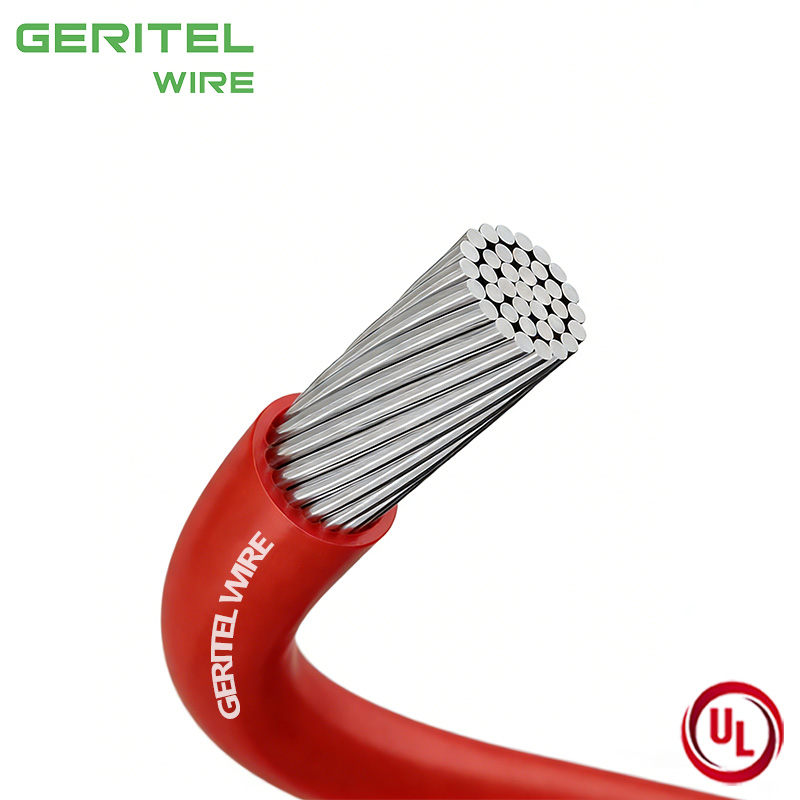

ALUMINUM XHHW/XHHW-2 Diameter & OD Chart，2 AWG WIRE SUITABLE FOR UNDERGROUND CONDUIT

We are a professional manufacturer specializing in full-gauge AA8000 aluminum XHHW-2 wires, supplying accurate diameter & OD parameter charts, complete global certifications and steady bulk supply for worldwide purchasers.

Conductor：

Aluminum Conductor

Insulation：

Cross-Linked Polyethylene (XLPE)

Rated Voltage：

600V/1000V/2000V

Standard：

UL 44

Dry Locations Temperature Rating：

90°C

Wet Locations Temperature Rating：

90°C

：

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

1 AWG Aluminum XHHW-2 Wire

Copper Conductor

Solid or Stranded Copper Conductors

Insulation

XLPE Insulation

No. of Conductor

Single Core

Temperature Rating

-40 °C to 90°C

Aluminum XHHW/XHHW-2 2 AWG Wire suitable for underground conduit

Our 2 AWG AA8000 Aluminum XHHW-2 Wire is a single-conductor building wire constructed with high-purity compact stranded AA8000 aluminum alloy, paired with heat-resistant XLPE insulation rated 600V and 90°C for both dry and damp underground environments. We supply complete official reference charts that record accurate wire diameter and outer diameter (OD) values, which greatly help electricians and engineers calculate conduit fill ratios, design wiring layouts and estimate project materials in advance. With excellent anti-aging, sun-proof and moisture-proof performance, this aluminum XHHW-2 wire is specially engineered for underground conduit burial while also compatible with cable trays and service feeder wiring. Strict dimensional control guarantees uniform OD for every batch, eliminating installation mismatches and improving construction efficiency for commercial, industrial and solar power projects.

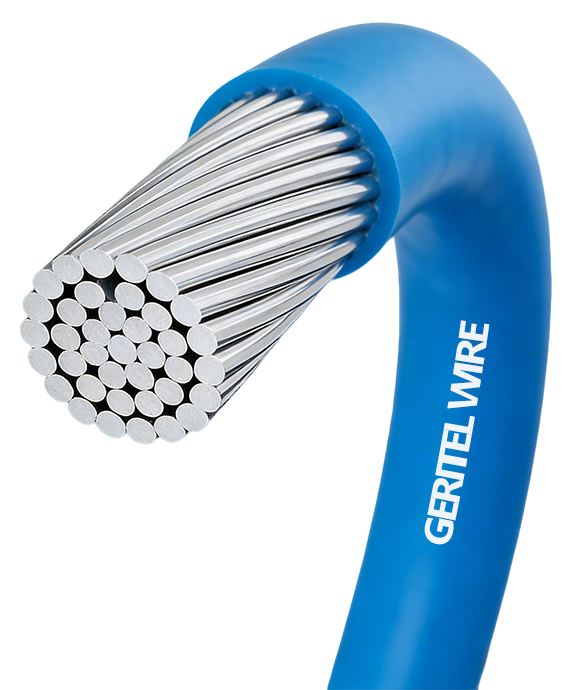

AA8000 Aluminum XHHW-2 Wire OD

XHHW wire

XHHW / XHHW-2 wire is primarily used for installation in conduits, cable trays, or other approved raceway systems, and is suitable for power service entrances, feeders, and branch circuit wiring, meeting the installation requirements of relevant electrical codes.

Copper Conductors

Rated Voltage Uo/U (Um) 0.6/1kV

XLPE Insulated

UL 44 Standards

Sunlight Resistant

Temperature range -40 °C to 90°C

Advantages

Lightweight AA8000 aluminum alloy effectively lowers overall project expenditure, robust XLPE insulation withstands underground humidity and UV exposure, and standardized diameter & OD reference charts greatly simplify engineering design work.

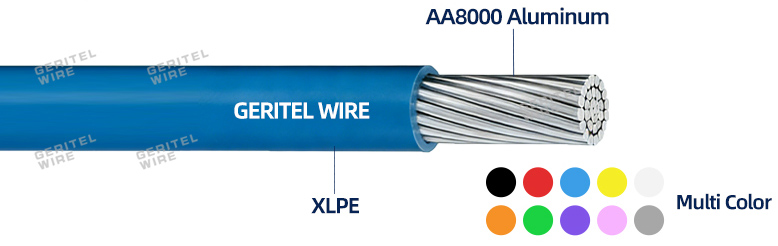

Aluminum XHHW-2 Wire Outside Diameter

Size (AWG/ kcmil)	Strands No./OD. (mm)^a	XLPE Insulation Average Thickness (mm)	Approx. O.D.(mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight （kg/km）
8	7/1.28	1.14	5.79	3.52	39.07
6	7/1.62	1.14	6.69	2.21	55.60
4	7/2.02	1.14	7.79	1.39	80.87
2	7/2.58	1.14	9.19	0.875	119.36
1	18/1.82	1.40	10.49	0.693	154.03
1/0	18/2.02	1.40	11.54	0.550	188.61
2/0	18/2.32	1.40	12.49	0.436	230.30
3/0	18/2.58	1.40	13.64	0.346	282.87
4/0	18/2.83	1.40	15.04	0.274	348.40
250	36/2.22	1.65	16.67	0.232	419.95
300	36/2.42	1.65	17.92	0.194	493.90
350	36/2.58	1.65	19.07	0.166	567.33
500	36/3.10	1.65	22.07	0.116	788.01
600	58/2.65	2.03	24.56	0.0967	963.32
750	58/2.98	2.03	27.16	0.0774	1185.04

Certification

This 2 AWG AA8000 aluminum XHHW-2 wire fully complies with UL44 specifications, with all conductor sizes, outer diameters and electrical indicators tested and verified to meet North American wiring codes.

Copper XHHW-2 Wire supplier

Heat Resistance

Abrasion Resistant

Oil and Gasoline Resistant

UL Certified

Aluminum XHHW-2 Wire for Main Panels

Thermoset Aluminum XHHW-2 Wire

APPLICATIONS

Primarily designed for underground conduit installation, it also works for cable trays, building main panels, industrial branch feeders and power distribution circuits of photovoltaic systems.

AA8000 Aluminum XHHW-2 Wire Outside Diameter

Branch Circuit Wiring

2 AWG AA8000 Aluminum XHHW-2 wire serves as a trusted conductor for branch circuit wiring, stably transmitting power from main panelboards to lighting fixtures, power outlets and low-power equipment. Premium XLPE insulation brings great flexibility, and diverse color choices enable quick circuit marking, perfectly fitting wiring demands of commercial and residential construction projects.

Aluminum XHHW-2 Wire Insulation Thickness

Conduit Wiring

This 2 AWG AA8000 XHHW-2 aluminum cable is optimized for all conduit wiring scenarios and glides effortlessly through EMT, rigid metal and PVC conduits. The abrasion-resistant XLPE outer layer paired with compact stranded AA8000 aluminum conductor delivers consistent performance and extended service lifespan for new building construction and renovation wiring work alike.

AA8000 Aluminum XHHW-2 Wire Insulation Thickness

Feeder Circuit Wiring

As an ideal pick for feeder circuit wiring, our 2 AWG AA8000 Aluminum XHHW-2 wire efficiently transfers heavy power loads from service equipment to distribution panels and secondary sub-panels. Featuring a 90℃ high-temperature tolerance and outstanding moisture-proof property, it reliably bears long-duration heavy loads in large commercial complexes and industrial plants.

Aluminum XHHW-2 Wire for Healthcare Facilities

Cable Tray & Raceway Systems

Engineered for cable tray and enclosed raceway layout, 2 AWG AA8000 Aluminum XHHW-2 wire features rugged XLPE insulation that resists mechanical friction, outdoor UV damage and harsh ambient exposure. Featuring compact stranded structure for easy arrangement, this aluminum wire supports tidy, standardized cable routing, becoming a top-grade wiring solution for large-scale commercial and industrial power distribution projects.

Customer Photos

Real on-site installation photos shared by global clients display our AA8000 XHHW-2 wire applied in various power distribution engineering projects intuitively.

Aluminum XHHW-2 Wire Current Rating

plant equipment

We adopt fully automated production equipment to precisely manufacture AA8000 aluminum conductors and XLPE insulation, ensuring consistent wire specifications and stable product quality.

AA8000 Aluminum XHHW-2 Wire Current Rating

Aluminum XHHW-2 Wire Voltage Rating

AA8000 Aluminum XHHW-2 Wire Voltage Rating

AA8000 Aluminum XHHW-2 Wire Temperature Rating

AA8000 Aluminum XHHW-2 Wire Installation Guide

Is Aluminum XHHW-2 Wire UL Listed

Packaging Information

Multiple standard reel and coil packaging options are available for the 1 AWG Aluminum XHHW-2 wire to meet different bulk shipment and on-site construction demands.

Can Aluminum XHHW-2 Wire Be Used in Cable Tray

Small Wooden Reel

Can Aluminum XHHW-2 Wire Be Used Underground

Large Wooden Reel

Can Aluminum XHHW-2 Wire Be Used in Conduit

Box Packaging

Global Certification

Apart from North American UL certification, we hold a complete set of international electrical approvals to support smooth export to markets worldwide.

Is Aluminum XHHW-2 Wire Suitable for Wet Locations

VDE

What is the Voltage Rating of Aluminum XHHW-2 Wire

UL

Does Aluminum XHHW-2 Wire Have 2000V Rating

SAA

What is the Temperature Rating of XHHW-2 Aluminum Wire

TUV

What is AA-8000 Aluminum Alloy Conductor

ISO

What are people saying about us

Massive positive feedback from overseas electricians, contractors and distributors recognizes our reliable wire quality, accurate weight chart data and responsive after-sales service.

Why Use AA8000 Aluminum Building Wire

Luis Fernando Pérez - Venezuela - Office Building Project

The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.

How to Choose Aluminum XHHW-2 Wire Size

Thomas Baker - USA - Factory construction

GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.

How to Install Aluminum XHHW-2 Wire in Conduit

Ricardo José Herrera - Dominican - Hotel Project

Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.
