AA8000 XHHW-2 4 AWG COMPARE 1000V & 2000V ALLOY CONDUCTORS AMPACITY CHART

We are a professional aluminum building wire manufacturer, supplying full-gauge AA8000 XHHW-2 wires, official ampacity datasheets, global certifications and customized packaging for worldwide electrical contractors.

Conductor：

Aluminum Conductor

Insulation：

Cross-Linked Polyethylene (XLPE)

Rated Voltage：

600V/1000V/2000V

Standard：

UL 44

Dry Locations Temperature Rating：

90°C

Wet Locations Temperature Rating：

90°C

：

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

1 AWG Aluminum XHHW-2 Wire

Copper Conductor

Solid or Stranded Copper Conductors

Insulation

XLPE Insulation

No. of Conductor

Single Core

Temperature Rating

-40 °C to 90°C

AA8000 XHHW-2 4 AWG Compare 1000V & 2000V Alloy Conductors

Our 4 AWG AA8000 Aluminum XHHW-2 Wire is single-stranded building wire built with compact AA8000 aluminum alloy conductor and high-performance cross-linked polyethylene insulation. We provide a full professional ampacity chart specifically for 4 AWG AA8000 XHHW-2 cable, listing accurate current carrying capacity under dry, wet, high-temperature and crowded conduit installation environments to help engineers calculate load limits rapidly. We also supply both 1000V and 2000V rated XHHW-2 aluminum wires with clear parameter comparison tables, allowing customers to select proper voltage grades based on project voltage demands. The insulation features strong anti-UV, moisture and abrasion resistance, suitable for conduit, cable tray, feeder and branch circuit wiring in residential, commercial buildings and industrial plants. Strict production standards guarantee stable electrical conductivity and long service life for long-term power distribution projects.

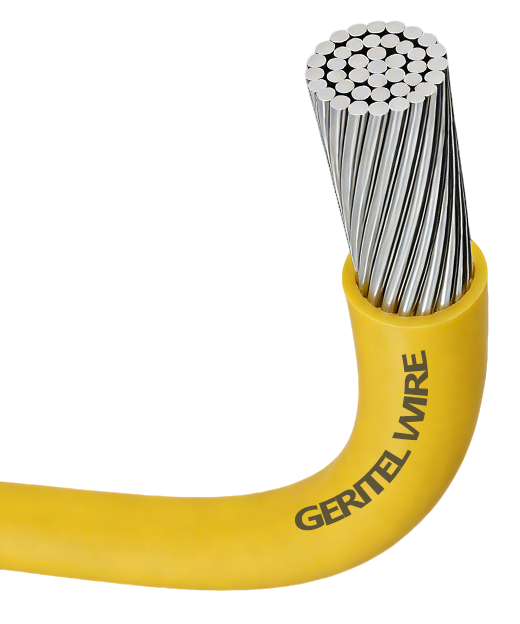

Where is Aluminum XHHW-2 Wire Commonly Used

XHHW wire

XHHW / XHHW-2 wire is primarily used for installation in conduits, cable trays, or other approved raceway systems, and is suitable for power service entrances, feeders, and branch circuit wiring, meeting the installation requirements of relevant electrical codes.

Copper Conductors

Rated Voltage Uo/U (Um) 0.6/1kV

XLPE Insulated

UL 44 Standards

Sunlight Resistant

Temperature range -40 °C to 90°C

Advantages

Lightweight AA8000 aluminum alloy reduces overall project cost, complete ampacity chart simplifies load calculation, and optional 1000V & 2000V voltage ratings meet diverse high and low voltage wiring requirements.

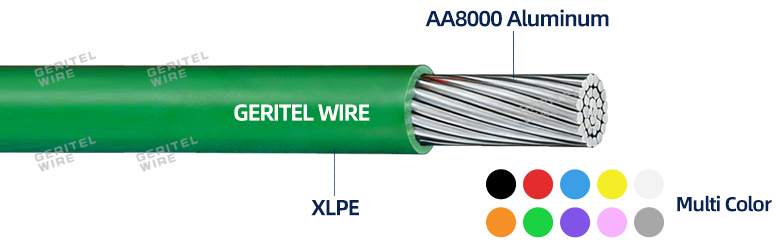

What Standards Apply to Aluminum XHHW-2 Wire

Size (AWG/ kcmil)	Strands No./OD. (mm)^a	XLPE Insulation Average Thickness (mm)	Approx. O.D.(mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight （kg/km）
8	7/1.28	1.14	5.79	3.52	39.07
6	7/1.62	1.14	6.69	2.21	55.60
4	7/2.02	1.14	7.79	1.39	80.87
2	7/2.58	1.14	9.19	0.875	119.36
1	18/1.82	1.40	10.49	0.693	154.03
1/0	18/2.02	1.40	11.54	0.550	188.61
2/0	18/2.32	1.40	12.49	0.436	230.30
3/0	18/2.58	1.40	13.64	0.346	282.87
4/0	18/2.83	1.40	15.04	0.274	348.40
250	36/2.22	1.65	16.67	0.232	419.95
300	36/2.42	1.65	17.92	0.194	493.90
350	36/2.58	1.65	19.07	0.166	567.33
500	36/3.10	1.65	22.07	0.116	788.01
600	58/2.65	2.03	24.56	0.0967	963.32
750	58/2.98	2.03	27.16	0.0774	1185.04

Certification

This 4 AWG AA8000 Aluminum XHHW-2 wire complies with UL44 standards, all ampacity values and voltage resistance indicators pass strict laboratory testing to match North American electrical codes.

Is Aluminum XHHW-2 Wire Better Than Copper

Heat Resistance

Abrasion Resistant

Oil and Gasoline Resistant

UL Certified

What is XLPE Insulated Aluminum XHHW-2 Wire

How Much Does Aluminum XHHW-2 Wire Cost

APPLICATIONS

4 AWG AA8000 Aluminum XHHW-2 wire provides stable power supply for branch circuits, delivering power from panelboards to sockets, lighting equipment and medium-power machinery. Flexible XLPE insulation and multiple color options simplify circuit classification and wiring termination for commercial and residential construction.

Yellow AA8000 Aluminum XHHW-2 Wire

Underground Consuit Installation

4 AWG AA8000 Aluminum XHHW-2 wire is a top pick for underground conduit burial. Its moisture-resistant XLPE insulation blocks soil humidity and chemical erosion, maintaining stable power transmission in buried wiring systems for commercial and municipal power service lines.

Brown Aluminum XHHW-2 Wire

Feeder Circuit Wiring

It is widely used as feeder cable to transmit large power loads from service equipment to main distribution panels and subpanels. Its high temperature and waterproof properties support continuous heavy-load operation in commercial complexes and factories.

Brown AA8000 Aluminum XHHW-2 Wire

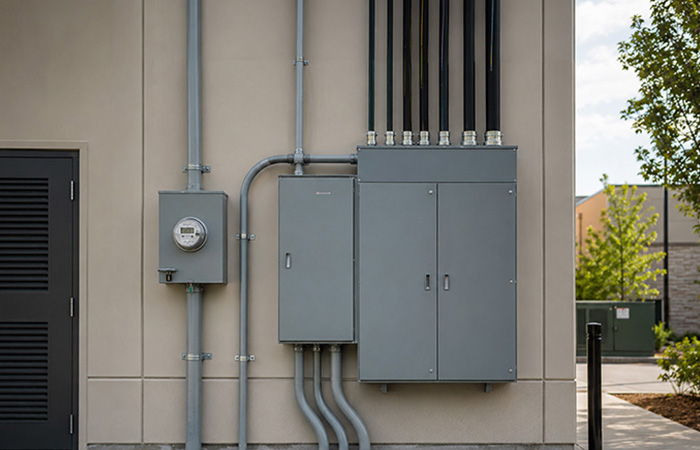

Service Entrance Wiring

Specially engineered for exterior building service entrance wiring, this 4 AWG aluminum XHHW-2 wire safely transfers grid power from utility meters to building main distribution panels. Its weatherproof, soil-resistant and high-load performance meets national electrical codes for outdoor overhead and ground service entrance power supply.

Blue Aluminum XHHW-2 Wire

Cable Tray & Raceway Systems

Fit for open cable tray and enclosed raceway layout, tough XLPE insulation withstands daily mechanical scratch and outdoor environmental exposure. The standardized wire size supports neat, classified cable arrangement for large industrial and commercial centralized power distribution systems.

Customer Photos

Verified onsite installation photos from global clients cover service entrance wiring, underground conduit burial, cable tray and indoor panel wiring scenarios of our 4 AWG AA8000 XHHW-2 aluminum wire.

Blue AA8000 Aluminum XHHW-2 Wire

plant equipment

Equipped with full-automatic stranding, insulation extrusion and size testing machines, we precisely control conductor structure, insulation thickness and finished wire specs to guarantee standard ampacity and voltage resistance for every batch wire.

Green AA8000 Aluminum XHHW-2 Wire

Orange Aluminum XHHW-2 Wire

White AA8000 Aluminum XHHW-2 Wire

Orange AA8000 Aluminum XHHW-2 Wire

Black Aluminum XHHW-2 Wire

Black AA8000 Aluminum XHHW-2 Wire

Packaging Information

Standard export wooden reels and anti-moisture plastic coil packages are available, with reinforced outer packing to avoid damage during long-distance shipping for underground and service entrance construction projects.
