600V AA-8000 XHHW-2 8AWG ALUMINUM CABLE FOR OUTDOOR INDUSTRIAL WIRING

Name: 600V AA-8000 XHHW-2 8AWG ALUMINUM CABLE FOR OUTDOOR INDUSTRIAL WIRING
Brand: GERITEL

We are a professional aluminum building wire manufacturer, supplying full-gauge AA8000 Aluminum XHHW Wire, AA8000 Aluminum XHHW-2 Wire and dual-rated XHHW/XHHW-2 wire with full global certifications for worldwide clients.

Conductor：

Aluminum Conductor

Insulation：

Cross-Linked Polyethylene (XLPE)

Rated Voltage：

600V/1000V/2000V

Standard：

UL 44

Dry Locations Temperature Rating：

90°C

Wet Locations Temperature Rating：

90°C

：

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

AA8000 Aluminum XHHW-2 Cable for main power distribution

Copper Conductor

Solid or Stranded Copper Conductors

Insulation

XLPE Insulation

No. of Conductor

Single Core

Temperature Rating

-40 °C to 90°C

600V AA-8000 XHHW-2 8AWG Aluminum Cable for Outdoor Industrial Wiring

Featured with ultra-flexible stranded structure, 8 AWG AA8000 Aluminum XHHW-2 Wire is equivalent to standard 21.2mm2 AA8000 Aluminum XHHW-2 Cable, upgraded 600V AA-8000 Type XHHW-2 LS RoHS SR Cable suitable for residential, commercial and industrial scenarios. Our full series covers standard AA8000 Aluminum XHHW Wire, upgraded AA8000 Aluminum XHHW-2 Wire and dual-rated AA8000 Aluminum XHHW/XHHW-2 Wire, fully compliant with UL44, NEC codes and RoHS environmental standards. This low-smoke LS, sunlight-resistant SR aluminum cable adopts eco-friendly flame-retardant XLPE insulation, rated 600V and 90℃ dry/wet dual use, featuring bendable outer jacket, anti-stick surface and lightweight AA8000 alloy core, greatly lowering labor pulling effort for electricians. Professionally customized as AA8000 Aluminum XHHW-2 Cable for industrial lighting circuits, it also fits residential service entrance, shallow underground conduit, indoor branch circuits, regular conduit routing, light feeder wiring and indoor cable tray arrangement. This budget-friendly eco aluminum wire cuts material costs by nearly half compared to copper wire, requires no special construction tools, and delivers long-term anti-aging, UV-resistant performance for household, villa, small commercial and factory industrial lighting distribution projects.

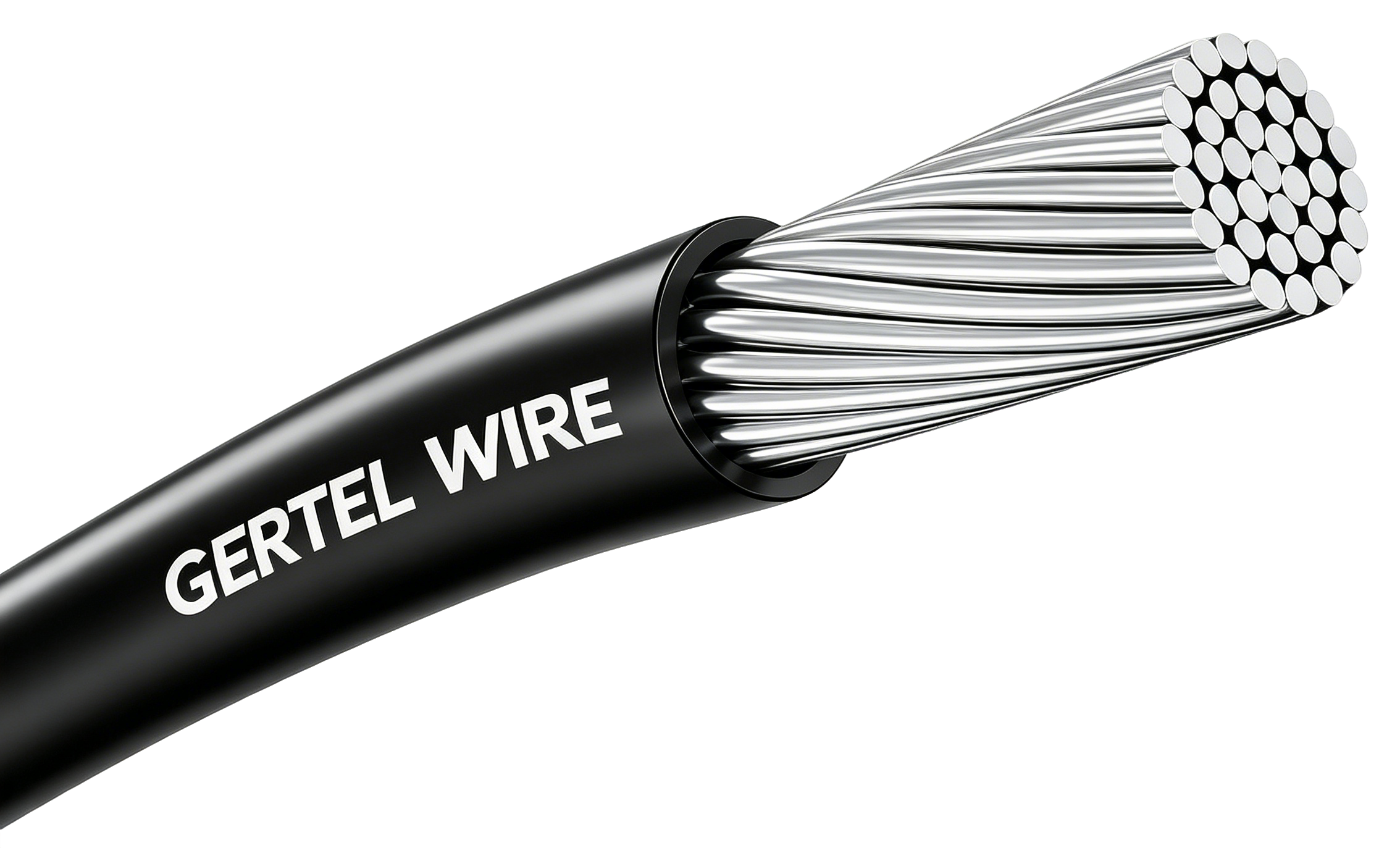

AA8000 Aluminum XHHW/XHHW-2 Wire for main power distribution

XHHW wire

XHHW / XHHW-2 wire is primarily used for installation in conduits, cable trays, or other approved raceway systems, and is suitable for power service entrances, feeders, and branch circuit wiring, meeting the installation requirements of relevant electrical codes.

Copper Conductors

Rated Voltage Uo/U (Um) 0.6/1kV

XLPE Insulated

UL 44 Standards

Sunlight Resistant

Temperature range -40 °C to 90°C

Advantages

Standard 13.3mm² industrial conductor size meets North American industrial wiring specs; LS low-smoke flame retardant for factory fire safety; RoHS eco-friendly material for industrial environmental audit; SR UV-resistant jacket for long-term outdoor industrial use; 600V high voltage endurance for industrial power load; smooth low-friction jacket for fast industrial conduit pulling, stable batch quality for large industrial project procurement.

AA8000 Aluminum XHHW-2 Cable for backup power connections

Size (AWG/ kcmil)	Strands No./OD. (mm)^a	XLPE Insulation Average Thickness (mm)	Approx. O.D.(mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight （kg/km）
8	7/1.28	1.14	5.79	3.52	39.07
6	7/1.62	1.14	6.69	2.21	55.60
4	7/2.02	1.14	7.79	1.39	80.87
2	7/2.58	1.14	9.19	0.875	119.36
1	18/1.82	1.40	10.49	0.693	154.03
1/0	18/2.02	1.40	11.54	0.550	188.61
2/0	18/2.32	1.40	12.49	0.436	230.30
3/0	18/2.58	1.40	13.64	0.346	282.87
4/0	18/2.83	1.40	15.04	0.274	348.40
250	36/2.22	1.65	16.67	0.232	419.95
300	36/2.42	1.65	17.92	0.194	493.90
350	36/2.58	1.65	19.07	0.166	567.33
500	36/3.10	1.65	22.07	0.116	788.01
600	58/2.65	2.03	24.56	0.0967	963.32
750	58/2.98	2.03	27.16	0.0774	1185.04

Certification

The 600V AA-8000 Type XHHW-2 LS RoHS SR Cable, 13.3mm2 AA8000 Aluminum XHHW-2 Cable, AA8000 Aluminum XHHW Wire and dual-rated AA8000 Aluminum XHHW/XHHW-2 Wire obtain UL44, RoHS and NEC industrial certifications, fully approved for all industrial outdoor and indoor wiring construction.

AA8000 Aluminum XHHW/XHHW-2 Wire for backup power connections

Heat Resistance

Abrasion Resistant

Oil and Gasoline Resistant

UL Certified

AA8000 Aluminum XHHW/XHHW-2 Wire for EV charging station wiring

AA8000 Aluminum XHHW/XHHW-2 Wire for solar power connections

APPLICATIONS

8 AWG AA8000 Aluminum XHHW-2 wire provides stable power supply for branch circuits, delivering power from panelboards to sockets, lighting equipment and medium-power machinery. Flexible XLPE insulation and multiple color options simplify circuit classification and wiring termination for commercial and residential construction.

Compact Aluminum Alloy Conductor XHHW-2 Type Cable

Conduit Wiring

Heavy-Duty Industrial Conduit Wiring: This AA8000 Aluminum XHHW/XHHW-2 Wire fits thick-wall metal, EMT and heavy-duty PVC industrial conduits. Wear-resistant outer jacket avoids scratch damage during mass pulling, ideal for new factory construction and old industrial circuit renovation projects.

Electrical Grade AA8000 Aluminum XHHW-2 Cable

Service Entrance Wiring

Industrial Service Entrance Wiring: Designed for factory exterior industrial service entrance wiring, this 8 AWG AA8000 Aluminum XHHW-2 Cable transmits grid power to factory main distribution boards. Its SR sunlight-resistant and weatherproof jacket withstands industrial wind, rain and temperature change, compliant with industrial exterior power supply codes for plants and warehouses.

Slick XLPE AA8000 Aluminum XHHW-2 Wire

Cable Tray & Raceway Systems

Industrial Cable Tray & Raceway Systems: The RoHS compliant 600V AA-8000 Type XHHW-2 LS RoHS SR Cable fits large-scale industrial cable trays and closed metal raceways. Low-smoke property guarantees factory fire safety, neat cable arrangement for centralized industrial lighting and power distribution systems.

Polyester Separator Tape AA8000 Aluminum XHHW-2 Cable

Feeder Circuit Wiring

Industrial Feeder Circuit Wiring: Used as industrial feeder cable to transfer continuous power from industrial service equipment to workshop sub-panels and distribution cabinets. High temperature and damp resistance adapt humid workshop, mechanical room and outdoor industrial feeder operating environment.

Customer Photos

On-site industrial installation photos from global industrial contractors show our 600V AA-8000 Type XHHW-2 LS RoHS SR Cable and 13.3mm2 AA8000 Aluminum XHHW-2 Cable deployed in factory lighting, industrial service entrance and industrial underground conduit projects.

AA8000 Aluminum XHHW-2 Cable for residential high-rise buildings

plant equipment

We equip industrial-grade automated stranding and extrusion machines to produce 600V AA-8000 Type XHHW-2 LS RoHS SR Cable and 13.3mm2 AA8000 Aluminum XHHW-2 Cable, ensuring unified conductor size, industrial insulation thickness and stable load-bearing performance for industrial engineering use.

AA8000 Aluminum XHHW/XHHW-2 Wire for residential high-rise buildings

AA8000 Aluminum XHHW-2 Cable for commercial high-rise buildings

AA8000 Aluminum XHHW/XHHW-2 Wire for industrial lighting circuits

AA8000 Aluminum XHHW/XHHW-2 Wire for commercial high-rise buildings

AA8000 Aluminum XHHW-2 Cable for general purpose wiring

Packaging Information

Anti-moisture plastic coils and export-grade wooden reels are available for 8AWG AA8000 aluminum wires, with reinforced packaging to prevent insulation damage during long-distance international sea and land transportation.

AA8000 Aluminum XHHW/XHHW-2 Wire for general purpose wiring

Small Wooden Reel

AA8000 Aluminum XHHW-2 Cable for lighting and power circuits

Large Wooden Reel

AA8000 Aluminum XHHW/XHHW-2 Wire for lighting and power circuits

Box Packaging

Global Certification

Equipped with North American UL certification and a full set of international electrical approvals, we support bulk export of AA8000 Aluminum XHHW/XHHW-2 Wire to global construction and electrical markets.

AA8000 Aluminum XHHW-2 Cable for building service feeders

UL

AA8000 Aluminum XHHW/XHHW-2 Wire for building service feeders

SAA

AA8000 Aluminum XHHW-2 Cable for underground feeder ducts

TUV

AA8000 Aluminum XHHW/XHHW-2 Wire for underground feeder ducts

ISO

What are people saying about us

Global industrial contractors and factory procurement managers approve our 13.3mm2 AA8000 Aluminum XHHW-2 Cable, industrial 600V AA-8000 Type XHHW-2 LS RoHS SR Cable, for reliable industrial lighting performance, fire-resistant low-smoke property and qualified industrial project certification.

AA8000 Aluminum XHHW-2 Cable for plastic duct installation

Luis Fernando Pérez - Venezuela - Office Building Project

The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.

AA8000 Aluminum XHHW/XHHW-2 Wire for plastic duct installation

Thomas Baker - USA - Factory construction

GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.

AA8000 Aluminum XHHW-2 Cable for metallic duct installation

Ricardo José Herrera - Dominican - Hotel Project

Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.
