600V 1000V RW90 XHHW-2 2/0 AWG CLASS B COMPACT ALUMINUM ALLOY BUILDING WIRE

Name: 600V 1000V RW90 XHHW-2 2/0 AWG CLASS B COMPACT ALUMINUM ALLOY BUILDING WIRE
Brand: GERITEL

We are a specialized industrial AA8000 aluminum cable factory, supplying full-gauge AA8000 Aluminum XHHW Wire, AA8000 Aluminum XHHW-2 Wire and dual-rated XHHW/XHHW-2 cable with full industrial global certifications.

Conductor：

Aluminum Conductor

Insulation：

Cross-Linked Polyethylene (XLPE)

Rated Voltage：

600V/1000V/2000V

Standard：

UL 44

Dry Locations Temperature Rating：

90°C

Wet Locations Temperature Rating：

90°C

：

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

Aluminum XHHW/XHHW-2 Serie 8000 Cable

Copper Conductor

Solid or Stranded Copper Conductors

Insulation

XLPE Insulation

No. of Conductor

Single Core

Temperature Rating

-40 °C to 90°C

600V 1000V RW90 XHHW-2 2/0 AWG Class B Compact Aluminum Alloy Building Wire

2/0 AWG AA8000 Aluminum XHHW-2 Wire is ultra heavy Class B compact stranded trunk power cable with standard 67.4mm2 conductor area, certified UL 44 CSA RW90 AA8000 Aluminum XHHW-2 Wire, available in 600V and 1000V dual voltage AA-8000 Type XHHW-2 LS CT-SR RoHS Cable. Covering full-grade Series AA8000 Aluminum XHHW-2 Cable, AA8000 AL XHHW-2 Wire and ACM AA-8000 Aluminum XHHW-2 Cable, this XHHW-2/RW90 AA8000 Aluminum Cable meets United States UL44 and Canadian CSA electrical standards. Adopting annealed AA-8000 aluminum alloy with excellent creep resistant performance, matched with low friction easy glide XLP cross linked insulation, it owns 90C heat resistance, CT-SR tracking & sun resistance, LS zero-halogen flame retardant and RoHS environmental compliance. Rated for permanent wet locations and dry locations, this AA8000 Aluminum RW90 Cable for Feeders is optimized for industrial main service entrance, long-distance underground trunk conduit, heavy equipment feeder circuit and enclosed raceway power distribution for large manufacturing plants.

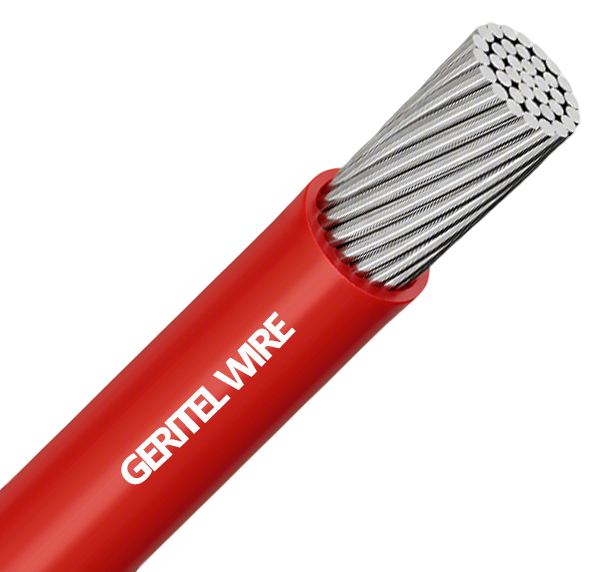

XLP XHHW-2 LS CT-SR RoHS Aluminum AA8000 Cable

XHHW wire

XHHW / XHHW-2 wire is primarily used for installation in conduits, cable trays, or other approved raceway systems, and is suitable for power service entrances, feeders, and branch circuit wiring, meeting the installation requirements of relevant electrical codes.

Copper Conductors

Rated Voltage Uo/U (Um) 0.6/1kV

XLPE Insulated

UL 44 Standards

Sunlight Resistant

Temperature range -40 °C to 90°C

Advantages

67.4mm2 large compact conductor for higher industrial ampacity; creep resistant AA8000 alloy avoids long-term stress deformation; XLP low friction easy glide jacket cuts pulling labor cost; CT-SR anti-tracking anti-sun performance for outdoor exposed laying; dual 600V/1000V voltage selection; UL+CSA dual RW90 certification; RoHS LS eco flame retardant for enclosed industrial buildings.

85mm2 600V AA8000 Aluminum XHHW-2 Cable

Size (AWG/ kcmil)	Strands No./OD. (mm)^a	XLPE Insulation Average Thickness (mm)	Approx. O.D.(mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight （kg/km）
8	7/1.28	1.14	5.79	3.52	39.07
6	7/1.62	1.14	6.69	2.21	55.60
4	7/2.02	1.14	7.79	1.39	80.87
2	7/2.58	1.14	9.19	0.875	119.36
1	18/1.82	1.40	10.49	0.693	154.03
1/0	18/2.02	1.40	11.54	0.550	188.61
2/0	18/2.32	1.40	12.49	0.436	230.30
3/0	18/2.58	1.40	13.64	0.346	282.87
4/0	18/2.83	1.40	15.04	0.274	348.40
250	36/2.22	1.65	16.67	0.232	419.95
300	36/2.42	1.65	17.92	0.194	493.90
350	36/2.58	1.65	19.07	0.166	567.33
500	36/3.10	1.65	22.07	0.116	788.01
600	58/2.65	2.03	24.56	0.0967	963.32
750	58/2.98	2.03	27.16	0.0774	1185.04

Certification

2/0 AWG 600V/1000V AA-8000 Aluminum XHHW-2 Cable, CT Rated RW90 AA8000 Wire obtain UL44, CSA RW90 and RoHS certificate, standard Canadian RW90 AA8000 Aluminum Building Wire for cross-border industrial heavy projects.

AA8000 Aluminum XHHW-2 Cable for large conductor feeders

Heat Resistance

Abrasion Resistant

Oil and Gasoline Resistant

UL Certified

2/0 AWG Wet Dry AA8000 Aluminum XHHW-2 Cable

2/0 AWG Low Friction AA8000 Aluminum XHHW-2 Cable

APPLICATIONS

Critical Industrial Service Entrance Wiring: Designed for large factory main service entrance power supply, this 2/0AWG aluminum cable stably transmits grid trunk power to central distribution rooms. All-weather insulation resists extreme outdoor temperature, rain and industrial dust erosion.

AA8000 Aluminum XHHW/XHHW-2 Wire for service equipment wiring

Cable Tray & Raceway Systems

Large-Scale Industrial Cable Tray Layout: LS low-smoke property fits enclosed underground industrial raceways and overhead fire-proof cable trays, ensuring safe power distribution for high-standard industrial buildings.

AA8000 Aluminum XHHW-2 Cable for utility service wiring

Conduit Wiring

Heavy Industrial Conduit Wiring: Smooth reinforced jacket fits large-size EMT, rigid metal and buried industrial conduits, reducing pulling friction during large-scale industrial wiring construction and renovation.

AA8000 Aluminum XHHW-2 Cable for service equipment wiring

Service Entrance Wiring

AA8000 Aluminum XHHW/XHHW-2 Wire for panel feeder wiring

Branch Circuit Wiring

Heavy Equipment Branch Wiring: Powers large industrial production machines, transformers, central workshop power units and heavy electrical facilities. Multi-color jacket realizes fast circuit identification for industrial electricians.

Customer Photos

Global EPC client site photos display 2/0AWG AA8000 Aluminum XHHW-2 Cable applied in industrial trunk conduit, main service entrance and factory overhead cable tray power projects.

RoHS AA8000 Aluminum Alloy XHHW-2 Cable

plant equipment

Imported large-size stranding and insulation extrusion machines produce 67.4mm2 2/0AWG AA8000 cables, ensuring consistent ampacity, insulation thickness and anti-corrosion performance for trunk industrial usage.

SR Rated AA8000 Aluminum XHHW-2 Cable

CT-SR AA8000 Aluminum XHHW-2 Cable

Annealed Compact Stranded AA8000 Aluminum XHHW-2 Cable

Annealed AA-8000 Aluminum Alloy XHHW-2 Wire

Class B Compact AA8000 Aluminum XHHW-2 Cable

Packaging Information

Custom heavy-duty export wooden reels and moisture-proof wrapped coils are adopted for 1/0AWG heavy aluminum cable, anti-crush packaging for cross-ocean industrial bulk shipment.

Class C Compact AA8000 Aluminum XHHW-2 Cable

Small Wooden Reel

Black Cross Linked Polyethylene AA8000 Aluminum XHHW-2 Cable

Large Wooden Reel

Low Coefficient of Friction AA8000 XHHW-2 Wire

Box Packaging

Global Certification

Possess UL industrial certification, RoHS environmental certificate and global regional electrical approvals, supporting bulk export of heavy-duty AA8000 XHHW/XHHW-2 cable for global industrial parks.
