3/0 AWG 1000V AA8000 Aluminum XHHW-2 Cable

3/0 AWG 600V AA-8000 Aluminum XHHW-2 Cable

3/0 AWG CT Rated AA8000 Aluminum XHHW-2 Cable

600V 1000V RW90 3/0 AWG ALUMINUM XHHW-2 WIRE AA8000 ALLOY FEEDER CABLE

Name: 600V 1000V RW90 3/0 AWG ALUMINUM XHHW-2 WIRE AA8000 ALLOY FEEDER CABLE
Brand: GERITEL

We are professional ACM grade AA8000 aluminum cable manufacturer, supplying full-gauge Series AA8000 Aluminum XHHW-2 Cable, CSA UL44 RW90 building wire, LS CT-SR RoHS SR aluminum cables for North American industrial contractors.

Conductor：

Aluminum Conductor

Insulation：

Cross-Linked Polyethylene (XLPE)

Rated Voltage：

600V/1000V/2000V

Standard：

UL 44

Dry Locations Temperature Rating：

90°C

Wet Locations Temperature Rating：

90°C

：

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

Canadian RW90 AA8000 Aluminum Building Wire

Copper Conductor

Solid or Stranded Copper Conductors

Insulation

XLPE Insulation

No. of Conductor

Single Core

Temperature Rating

-40 °C to 90°C

600V 1000V 3/0 AWG Aluminum XHHW-2 Wire

3/0 AWG AA8000 Aluminum XHHW-2 Wire is top-grade ultra heavy-duty industrial main feeder cable with standard 85.0mm2 conductor cross-section, classified Class B Compact Annealed AA8000 Aluminum XHHW-2 Cable, certified UL 44 CSA RW90 AA8000 Aluminum XHHW-2 Wire. Available in 600V and 1000V two voltage grades, this AA-8000 Type XHHW-2 LS CT-SR RoHS SR Cable belongs to premium XHHW-2/RW90 AA8000 Aluminum Cable series, including AA 8000 Aluminum Alloy XHHW-2 Cable and AA8000 AL XHHW-2 Wire. Manufactured with creep resistant annealed compact stranded AA8000 aluminum alloy conductor and black XLP cross linked polyethylene jacket, it features low coefficient of friction easy glide surface, 90℃ high temperature resistance, CT-SR tracking sunlight resistance, LS low-smoke zero halogen and full RoHS compliance. Exclusively designed for ultra heavy industrial power feeders, it meets AA8000 Aluminum RW90 Wire for Wet Locations and Dry Locations standards, perfectly used for large plant main service entrance, ultra heavy underground conduit burial, main trunk feeder, heavy machinery branch wiring and fire-proof cable tray centralized power distribution for petrochemical and industrial park key projects.

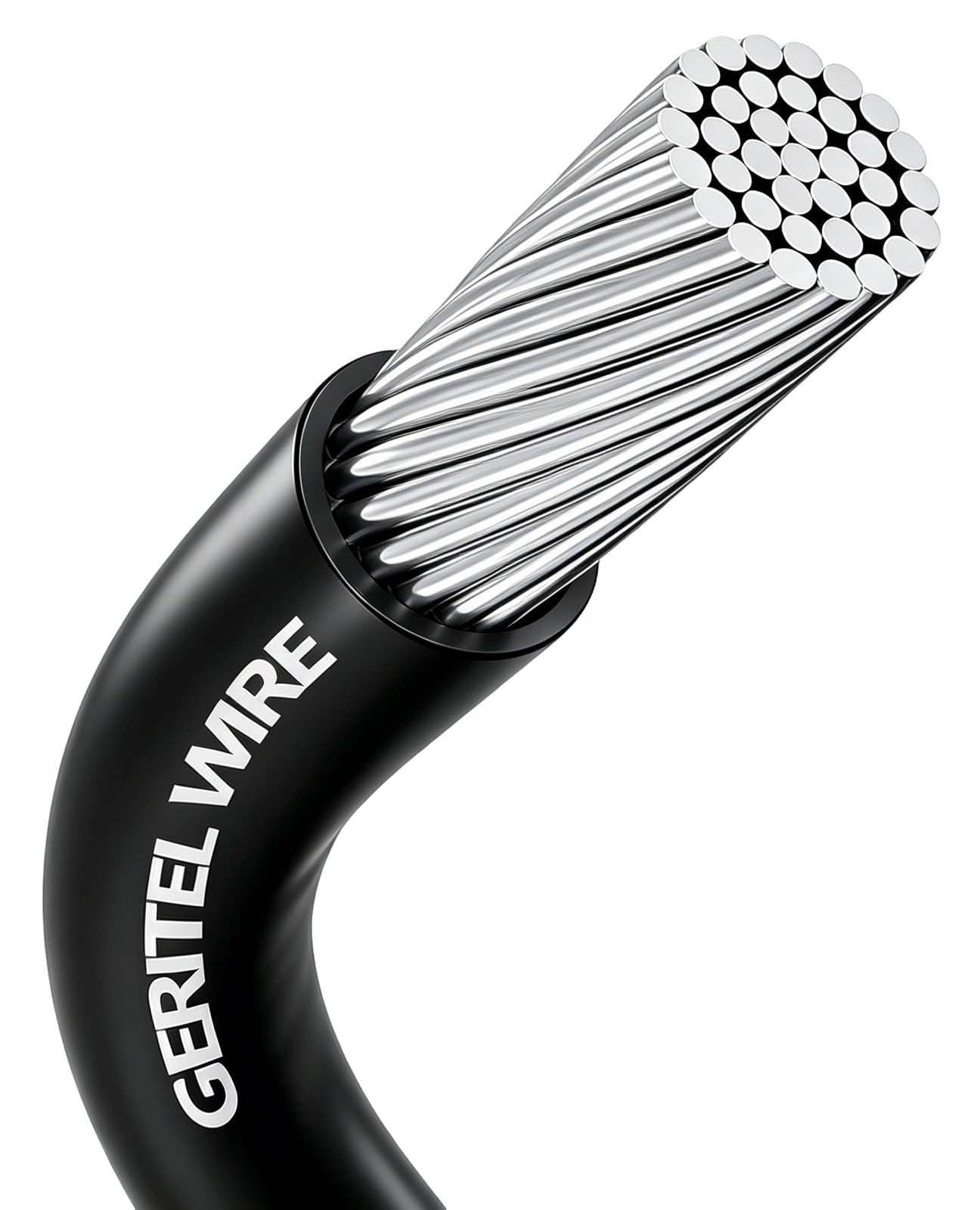

AA8000 Aluminum XHHW-2 LS CT-SR RoHS Cable

XHHW wire

XHHW / XHHW-2 wire is primarily used for installation in conduits, cable trays, or other approved raceway systems, and is suitable for power service entrances, feeders, and branch circuit wiring, meeting the installation requirements of relevant electrical codes.

Copper Conductors

Rated Voltage Uo/U (Um) 0.6/1kV

XLPE Insulated

UL 44 Standards

Sunlight Resistant

Temperature range -40 °C to 90°C

Advantages

85.0mm2 oversized compact conductor for maximum industrial ampacity; high creep resistant AA8000 alloy for long-term buried overload use; easy glide low friction outer jacket for effortless heavy cable pulling; integrated CT-SR/LS/RoHS/SR multi performance; 600V&1000V optional voltage; UL44 + CSA dual approved RW90 credential; full wet dry location adaptability for all industrial laying conditions.

85mm2 600V AA8000 Aluminum XHHW-2 Cable

Size (AWG/ kcmil)	Strands No./OD. (mm)^a	XLPE Insulation Average Thickness (mm)	Approx. O.D.(mm)	Max.DC Resistance (20°C,Ω/km)	Approx. Weight （kg/km）
8	7/1.28	1.14	5.79	3.52	39.07
6	7/1.62	1.14	6.69	2.21	55.60
4	7/2.02	1.14	7.79	1.39	80.87
2	7/2.58	1.14	9.19	0.875	119.36
1	18/1.82	1.40	10.49	0.693	154.03
1/0	18/2.02	1.40	11.54	0.550	188.61
2/0	18/2.32	1.40	12.49	0.436	230.30
3/0	18/2.58	1.40	13.64	0.346	282.87
4/0	18/2.83	1.40	15.04	0.274	348.40
250	36/2.22	1.65	16.67	0.232	419.95
300	36/2.42	1.65	17.92	0.194	493.90
350	36/2.58	1.65	19.07	0.166	567.33
500	36/3.10	1.65	22.07	0.116	788.01
600	58/2.65	2.03	24.56	0.0967	963.32
750	58/2.98	2.03	27.16	0.0774	1185.04

Certification

3/0 AWG 600V/1000V AA-8000 Aluminum XHHW-2 Cable, CT Rated RW90 AA8000 Aluminum Wire pass UL44, CSA RW90, RoHS testing, qualified Canadian RW90 AA8000 Aluminum Building Wire for ultra heavy industrial engineering.

AA8000 Aluminum XHHW-2 Cable for large conductor feeders

Heat Resistance

Abrasion Resistant

Oil and Gasoline Resistant

UL Certified

AA8000 AL XHHW-2 Wire

ACM AA-8000 Aluminum XHHW-2 Cable

APPLICATIONS

Critical Industrial Service Entrance Wiring: Designed for large factory main service entrance power supply, this 2/0AWG aluminum cable stably transmits grid trunk power to central distribution rooms. All-weather insulation resists extreme outdoor temperature, rain and industrial dust erosion.

AA8000 Aluminum RW90 Wire for Dry Locations

Feeder Circuit Wiring

Ultra Heavy Main Feeder Wiring: Core AA8000 Aluminum RW90 Cable for Feeders, transferring continuous ultra-high load power between utility equipment and main distribution cabinets, stable under 24h high-temperature industrial operation.

UL 44 CSA RW90 AA8000 Aluminum XHHW-2 Wire

Branch Circuit Wiring

Ultra Heavy Equipment Branch Wiring: Supplies sustained power for large transformers, production assembly lines and central industrial power units. Color-coded XLP jacket simplifies high-capacity circuit classification for professional electricians.

XHHW/XHHW-2 AL Serie 8000 Building Wire

Cable Tray & Raceway Systems

Fire-Safe Industrial Cable Tray Layout: LS low-smoke feature fits enclosed fire-rated raceways and overhead large cable trays, complying with factory fire code, ideal for centralized main power layout of high-standard industrial facilities.

600V RW90 AA8000 Aluminum XHHW-2 Wire

Conduit Wiring

Heavy-Gauge Industrial Conduit Wiring: Low friction easy glide property reduces pulling abrasion during large-size conduit threading, compatible with heavy-wall metal, EMT and buried industrial conduit for new build and renovation projects.

Customer Photos

Global large EPC project onsite photos show 3/0 AWG AA8000 Aluminum XHHW-2 Cable applied in industrial main trunk feeder, heavy service entrance and backbone underground conduit construction worldwide.

1000V XHHW-2 RW90 AA8000 Aluminum Wire

plant equipment

Imported ultra-large compact stranding and XLP extrusion lines manufacture Class B annealed 3/0AWG AA8000 cables, guarantee unified conductor roundness, low-friction jacket thickness and stable CT-SR insulation performance.

AA8000 Aluminum RW90 Cable for Feeders

Aluminum Conductor Material XHHW/XHHW-2 AA8000 Wire

AA-8000 AL XHHW-2 Cable

AA 8000 Aluminum XHHW-2 Wire

AA 8000 Aluminum Alloy XHHW-2 Cable

Packaging Information

Custom reinforced anti-crush heavy wooden export reels with double-layer waterproof wrapping, specially customized for ultra-heavy 3/0AWG aluminum cable long-distance overseas bulk shipment.

Series AA8000 Aluminum XHHW-2 Cable

Small Wooden Reel

XHHW-2/RW90 AA8000 Aluminum Cable

Large Wooden Reel

AA8000 Aluminum RW90 Wire for Wet Locations

Box Packaging

Global Certification

Possess UL industrial certification, RoHS environmental certificate and global regional electrical approvals, supporting bulk export of heavy-duty AA8000 XHHW/XHHW-2 cable for global industrial parks.

6 AWG Low Friction AA8000 Aluminum XHHW-2 Cable

UL

2 AWG 1000V AA-8000 Aluminum XHHW-2 Cable

SAA

2 AWG 600V AA-8000 Aluminum XHHW-2 Cable

TUV

2 AWG 600V AA8000 Aluminum XHHW-2 Cable

ISO

What are people saying about us

Global industrial procurement and EPC teams recognize our 3/0AWG RW90 AA8000 cable for reliable ultra-heavy load capacity, CSA UL dual certification, easy-glide installation and complete engineering document support.

4 AWG Low Friction AA8000 Aluminum XHHW-2 Cable

Luis Fernando Pérez - Venezuela - Office Building Project

The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.

4 AWG RW90 AA8000 Aluminum XHHW-2 Wire

Thomas Baker - USA - Factory construction

GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.

4 AWG 1000V AA-8000 Aluminum XHHW-2 Cable

Ricardo José Herrera - Dominican - Hotel Project

Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.
