250 kcmil UL44 Aluminum XHHW/XHHW-2 Industrial Power Cable
Conductor：
Aluminum Conductor
Insulation：
Cross-Linked Polyethylene (XLPE)
Rated Voltage：
600v/1000v/2000v
Standard：
UL 44
Dry Locations Temperature Rating：
90°C
Wet Locations Temperature Rating：
75°C
Description
Download
Aluminum Conductor
Solid or Stranded Aluminum Conductors
Insulation
XLPE Insulation
No. of Conductor
Single Core
Temperature Rating
-40 °C to 90°C

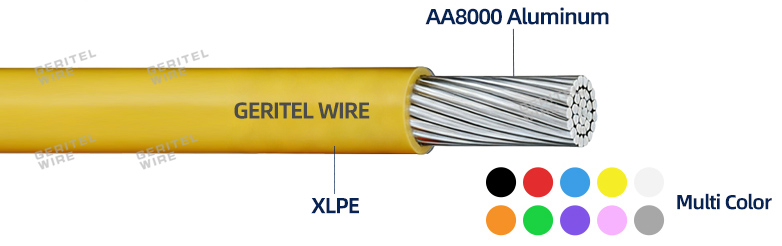

250 kcmil UL44 Aluminum XHHW/XHHW-2 Industrial Power Cable
Engineered for high-amperage, long-distance power distribution, our 250 kcmil Aluminum XHHW/XHHW-2 Cable is built with a premium AA8000 aluminum alloy conductor and cross-linked polyethylene insulation, certified to UL 44 standards. Available in 600V, 1000V and 2000V voltage classes, this heavy-duty cable delivers stable, code-compliant performance for industrial main feeders, large commercial building distribution, and outdoor long-run circuits — delivering meaningful cost and labor savings versus equivalent copper power cables without sacrificing long-term reliability.
XHHW wire
XHHW / XHHW-2 wire is primarily used for installation in conduits, cable trays, or other approved raceway systems, and is suitable for power service entrances, feeders, and branch circuit wiring, meeting the installation requirements of relevant electrical codes.
Aluminum Conductors
Rated Voltage Uo/U (Um) 0.6/2kV
XLPE Insulated
UL 44 Standards
Sunlight Resistant
Temperature range -40 °C to 90°C
Advantages
Available in 600V, 1000V and 2000V classes under a single UL 44 listed XHHW-2 platform, this 250 kcmil cable allows distributors and EPC contractors to consolidate SKUs, reduce stock holding costs, and streamline specification across mixed-voltage industrial and commercial campuses. All voltage grades share consistent AA8000 conductor performance and 90°C wet/dry insulation ratings for uniform reliability.
|
Size (AWG/ kcmil) |
Strands No./OD. (mm)a |
XLPE Insulation Average Thickness (mm) |
Approx. O.D. (mm) |
Max.DC Resistance (20°C,Ω/km) |
Approx. Weight (kg/km) |
| 8 | 7/1.28 | 1.14 | 5.79 | 3.52 | 39.07 |
| 6 | 7/1.62 | 1.14 | 6.69 | 2.21 | 55.60 |
| 4 | 7/2.02 | 1.14 | 7.79 | 1.39 | 80.87 |
| 2 | 7/2.58 | 1.14 | 9.19 | 0.875 | 119.36 |
| 1 | 18/1.82 | 1.40 | 10.49 | 0.693 | 154.03 |
| 1/0 | 18/2.02 | 1.40 | 11.54 | 0.550 | 188.61 |
| 2/0 | 18/2.32 | 1.40 | 12.49 | 0.436 | 230.30 |
| 3/0 | 18/2.58 | 1.40 | 13.64 | 0.346 | 282.87 |
| 4/0 | 18/2.83 | 1.40 | 15.04 | 0.276 | 348.40 |
| 250 | 36/2.22 | 1.65 | 16.67 | 0.232 | 419.95 |
| 300 | 36/2.42 | 1.65 | 17.92 | 0.194 | 493.90 |
| 350 | 36/2.58 | 1.65 | 19.07 | 0.166 | 567.33 |
| 500 | 36/3.10 | 1.65 | 22.07 | 0.116 | 788.01 |
| 600 | 58/2.65 | 2.03 | 24.56 | 0.0967 | 963.32 |
| 750 | 58/2.98 | 2.03 | 27.16 | 0.0774 | 1185.04 |
Certification
This 250 kcmil aluminum XHHW/XHHW-2 cable holds full UL 44 listing, with certification covering 600V, 1000V and 2000V voltage classes under a unified product qualification framework. Classified as Type XHHW-2 with a 90°C continuous rating for both wet and dry locations, it meets NEC Article 310 installation requirements for raceway, conduit and cable tray deployments across low-to-medium-voltage industrial and commercial power systems.
Heat Resistance
Abrasion Resistant
Oil and Gasoline Resistant
UL Certified
APPLICATIONS
XHHW wire is primarily used for service entrance, feeder, and branch circuit wiring in building electrical systems, and is widely used in commercial buildings, industrial facilities, and large residential projects.
Underground Conduit Installation
XHHW/XHHW-2 wire is widely used in underground conduit runs, delivering dependable power for service entrances, site feeders and outdoor distribution systems. Its moisture-resistant XLPE insulation withstands soil humidity and pulling abrasion, suitable for buried wet-location raceways per NEC standards.
Cable Tray & Raceway Systems
For cable tray and raceway installations, XHHW/XHHW-2 wire offers exceptional performance with its durable XLPE insulation that resists mechanical stress and environmental exposure. The wire's versatility allows for neat, organized routing in open tray systems, making it a preferred choice for industrial and commercial power distribution projects.
Conduit Wiring
XHHW/XHHW-2 wire is ideally suited for conduit wiring applications, pulling smoothly through EMT, rigid metal, and PVC conduits. Its abrasion-resistant insulation and stranded conductor options ensure reliable performance and long service life in both new construction and retrofit installations.
Feeder Circuit Wiring
For feeder circuits, XHHW/XHHW-2 wire delivers dependable power transmission from service equipment to distribution panels and sub-panels. Its high temperature rating and moisture resistance make it an excellent choice for handling substantial continuous loads in commercial buildings and industrial facilities.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire manufacturer. we consistently use international standards as the core basis for our technology and quality. We have strict requirements for materials and manufacturing processes. Through systematic production control and continuous quality audits, every cable we produce meets the high standards of compliance and safety demanded by the market.
Packaging Information
XHHW/XHHW-2 wire is typically supplied in three packaging forms: Roll, Small Wooden Reel, and Large Wooden Reel, to meet the needs of different project scales.

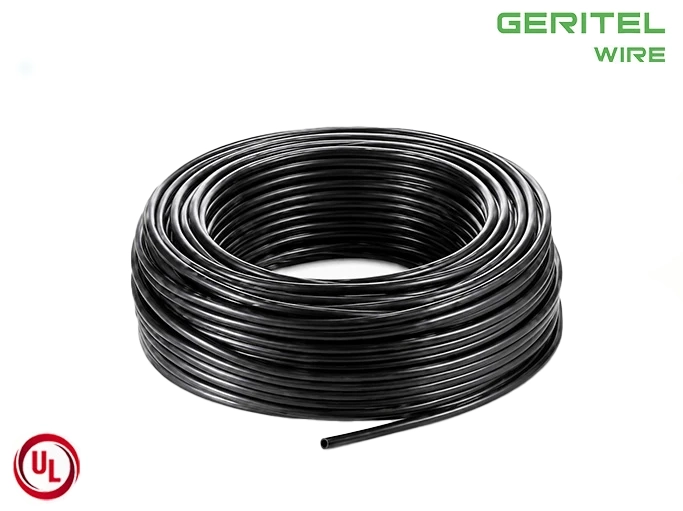

Roll
Small Wooden Reel
Large Wooden Reel
