1000KCMIL UL44 Copper XHHW-2 Wire for Machine Tool Wiring
Conductor：
Copper Single Conductor
Insulation：
Cross-Linked Polyethylene (XLPE)
Rated Voltage：
600V/1000V/2000V
Standard：
UL 44
Dry Locations Temperature Rating：
90°C
Wet Locations Temperature Rating：
75°C
Description
Download

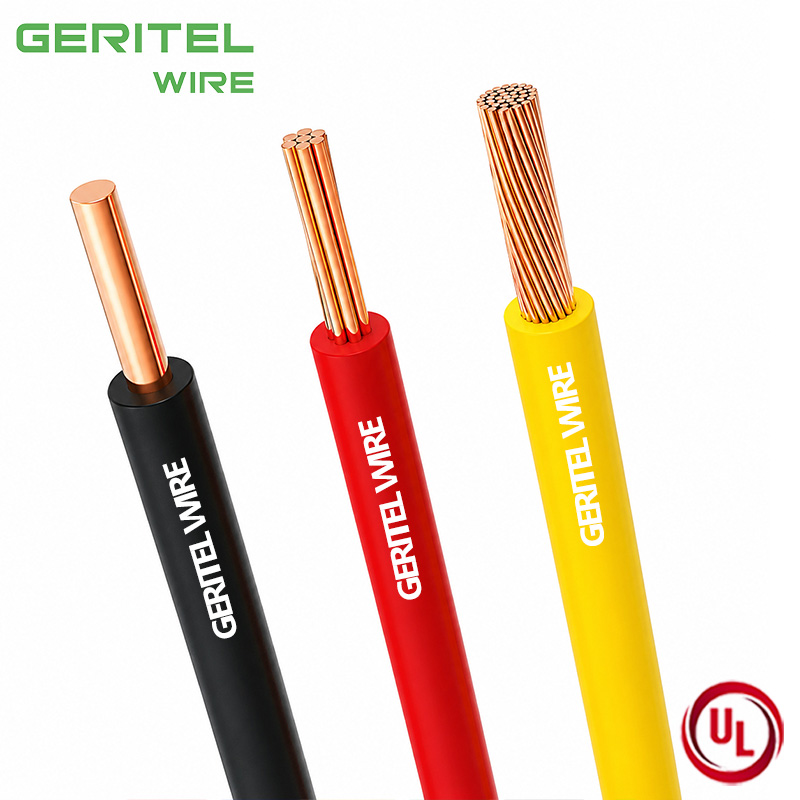

Copper Conductor
Solid or Stranded Copper Conductors
Insulation
XLPE Insulation
No. of Conductor
Single Core
Temperature Rating
-40 °C to 90°C

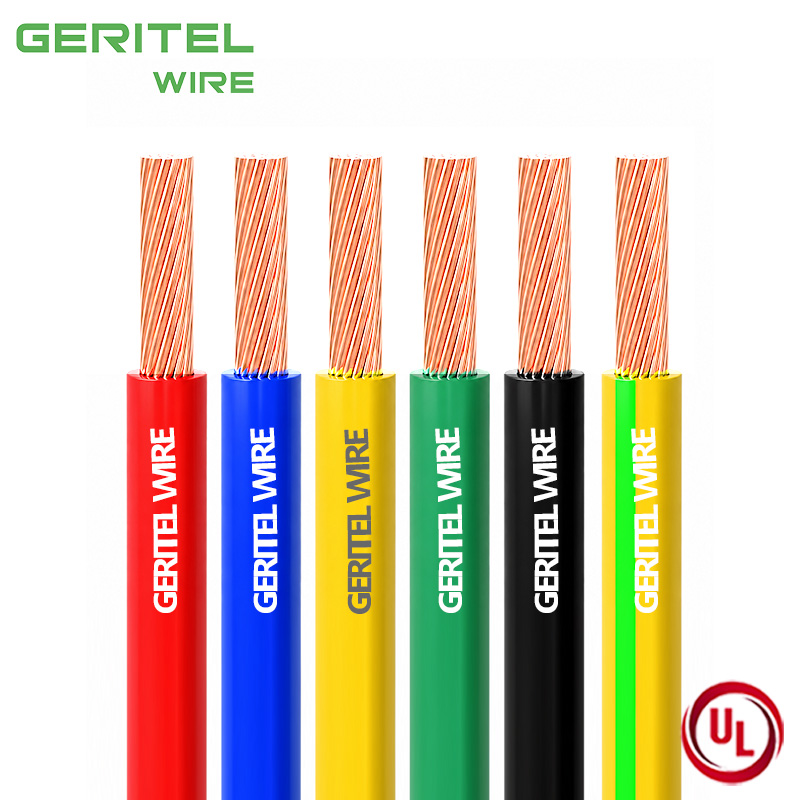

1000KCMIL UL44 Copper XHHW-2 Wire for Machine Tool Wiring
Our 1000KCMIL UL44 Copper XHHW / XHHW-2 Wire is a large-gauge UL-listed building wire built with high-purity solid copper conductor, manufactured strictly to UL44 standards with upgraded abrasion-resistant, high-flexibility XHHW-2 insulation rated for 90℃ dry and wet locations at 600V; tailored specifically for heavy-duty machine tool wiring and industrial automation equipment internal power circuits, this low-resistance copper cable delivers stable high-current transmission, resists aging from frequent bending inside machine cabinets, and fully meets North American industrial electrical specifications for factory machinery installation and equipment power distribution projects.
1000 kcmil UL44 Copper XHHW / XHHW-2 Wire
1000 kcmil UL44 Copper XHHW / XHHW-2 Wire is primarily used for installation in conduits, cable trays, or other approved raceway systems, and is suitable for power service entrances, feeders, and branch circuit wiring, meeting the installation requirements of relevant electrical codes.

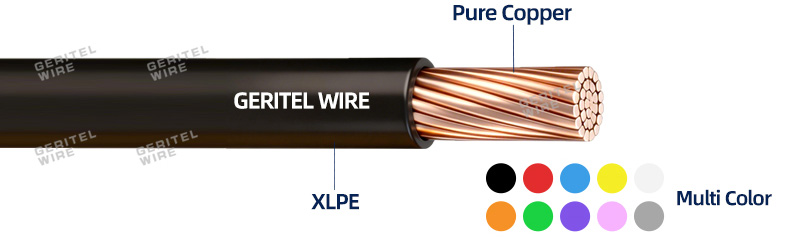

Copper Conductors
Rated Voltage Uo/U (Um) 0.6/1kV
XLPE Insulated
UL 44 Standards
Sunlight Resistant
Temperature range -40 °C to 90°C
Advantages of 1000 kcmil UL44 Copper XHHW / XHHW-2 XHHW cable
Equipped with cross-linked polyethylene (XLPE) insulation, this 1000 kcmil compressed stranded XHHW-2 wire boasts outstanding heat resistance and steady electrical performance for extended service life. Rated up to 90°C in dry and wet conditions, it handles heavy current loads and temperature swings stably, ensuring uninterrupted power supply for industrial, commercial and municipal distribution systems.
|
Size (AWG/ kcmil) |
Strands No./OD. (mm)a |
XLPE Insulation Average Thickness (mm) |
Approx. O.D.(mm) |
Max.DC Resistance (20°C,Ω/km) |
Max.DC Resistance (20°C,Ω/km) |
Approx. Weight |
| 250 | 37/2.09 | 1.65 | 18.09 | 0.142 | 0.147 | 1236.75 |
| 300 | 37/2.29 | 1.65 | 19.49 | 0.118 | 0.122 | 1475.07 |
| 350 | 37/2.47 | 1.65 | 20.75 | 0.101 | 0.105 | 1707.60 |
| 400 | 37/2.64 | 1.65 | 21.94 | 0.0885 | 0.0911 | 1942.91 |
| 500 | 37/2.95 | 1.65 | 24.11 | 0.0709 | 0.0729 | 2411.26 |
| 750 | 61/2.82 | 2.03 | 29.64 | 0.0472 | 0.0486 | 3633.46 |
| 1000 | 61/3.25 | 2.03 | 33.51 | 0.0354 | 0.0364 | 4793.24 |
Certification
Our 1000 kcmil UL44 copper XHHW / XHHW-2 wire holds official UL certification under file number UL-US-2561137-0. Fully manufactured to UL 44 building wire standards, it satisfies strict North American standards in raw material, structure, electrical performance and safety. The UL certification ensures full code compliance for industrial upgrades, factory expansion and commercial construction, enabling easy site inspection and project approval.
Heat Resistance
Abrasion Resistant
Oil and Gasoline Resistant
UL Certified
APPLICATIONS
This 1000 kcmil UL44 copper XHHW / XHHW-2 wire is primarily designed for service entrance conductors, main feeders and branch circuit wiring in building electrical systems. It is widely specified for commercial buildings, industrial plant facilities and large residential projects, providing reliable high-amperage power transmission for both new construction and electrical system retrofits.
Branch Circuit Wiring
This 1000 kcmil UL44 copper XHHW / XHHW-2 wire serves as a reliable feeder and branch circuit conductor, delivering power from transformers and main distribution boards to distribution cabinets for individual workshop production lines. Rated for 90°C in both wet and dry environments, it effectively withstands sustained heat buildup and heavy electrical loads from continuous industrial equipment operation, ensuring stable power distribution across the entire plant electrical system.
Conduit Wiring
This 1000 kcmil UL44 copper XHHW / XHHW-2 wire is compatible with PVC, galvanized steel and metallic conduits, supporting both indoor concealed runs and underground duct installations. Rated for 90°C in wet and dry locations, it retains stable insulation performance even in enclosed raceways with poor heat dissipation, and its 1000 kcmil stranded copper conductor provides ample ampacity for high-load feeder circuits routed through conduits in industrial plants and commercial buildings.
Cable Tray & Raceway Systems
This 1000 kcmil UL44 copper XHHW / XHHW-2 wire fits ladder, trough and enclosed cable trays as well as electrical raceways, for both indoor and outdoor above-ground runs. Its 90°C wet & dry rating maintains stable insulation in densely packed trays, while the 1000 kcmil copper conductor delivers ample ampacity for main feeder circuits in industrial and commercial facilities.

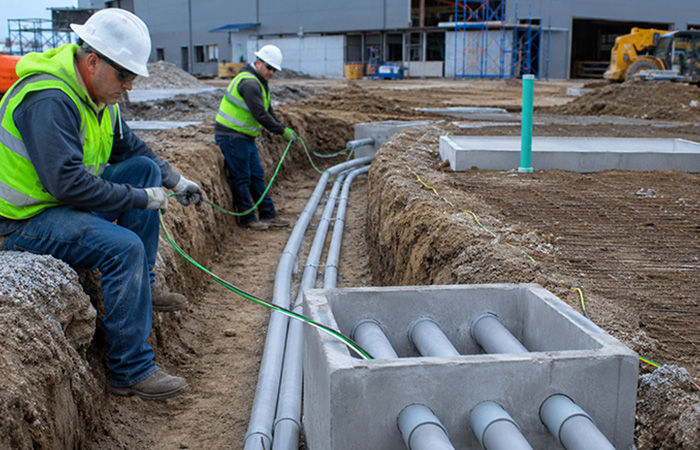

Underground Conduit Installation
This 1000 kcmil UL44 copper XHHW / XHHW-2 wire is suited for underground conduit installation, compatible with buried PVC and galvanized steel conduits. Rated 90°C for wet locations, it retains reliable insulation in damp underground environments, and its 1000 kcmil copper conductor supports high-amperage main feeders and service entrance circuits for industrial plants and commercial campuses.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional wire manufacturer. we consistently use international standards as the core basis for our technology and quality. We have strict requirements for materials and manufacturing processes. Through systematic production control and continuous quality audits, every cable we produce meets the high standards of compliance and safety demanded by the market.
Packaging Information
XHHW wire is typically supplied in three packaging forms: small wooden reels, large wooden reels, and boxes, to meet the needs of different project scales.
Small Wooden Reel
Large Wooden Reel
Box Packaging
