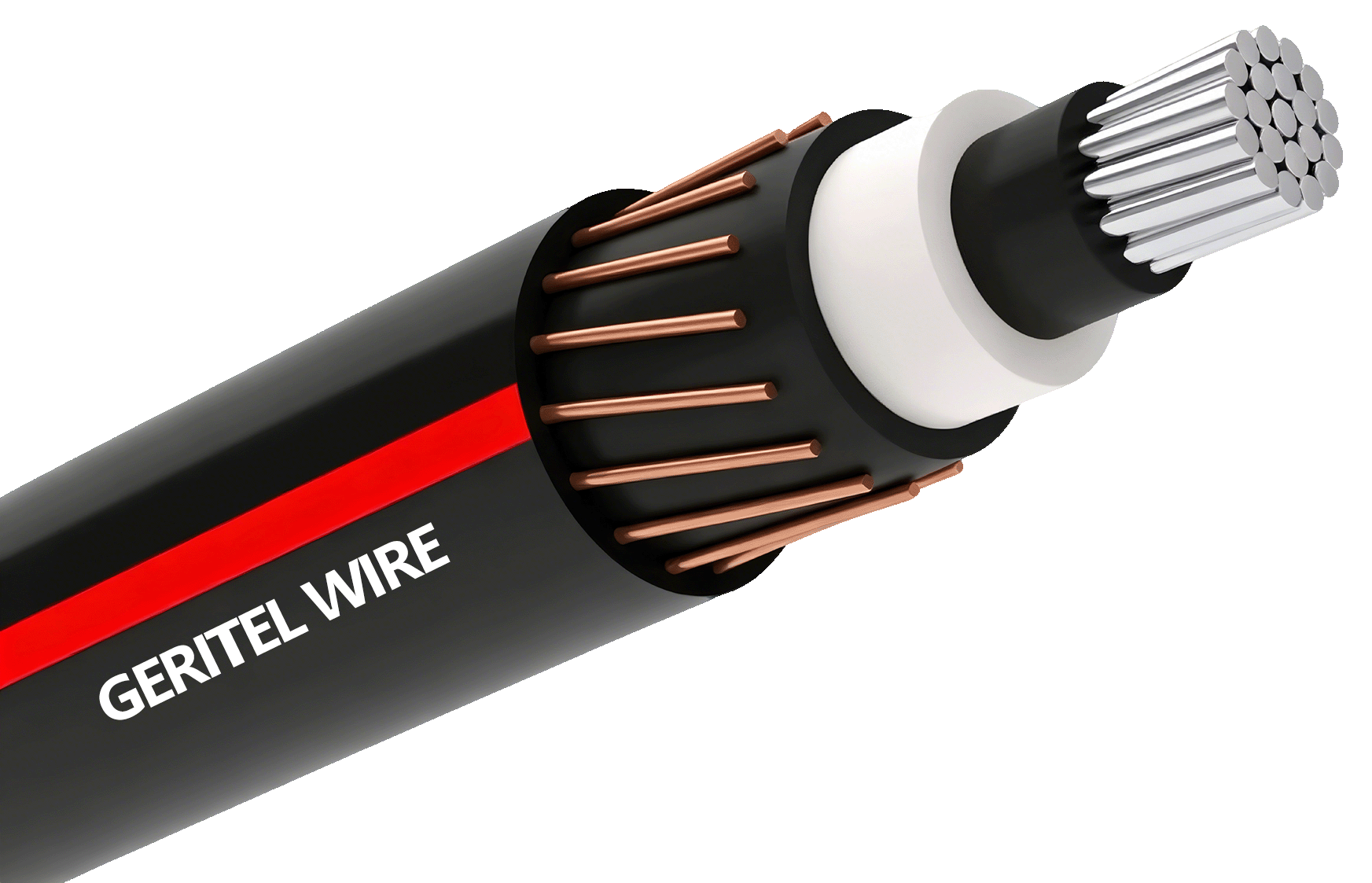

35kV Aluminum TR-XLPE/CN/LLDPE MV-90 Cable 100% I.L. 345 mils
Conductor：
Aluminum Conductor
Insulation：
TR-XLPE Insulation
Jacket：
LLDPE Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
15kV-35kV
Temperature range：
90℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Aluminum Stranded Conductor(filled or unfilled)
Insulation and Sheath
TR-XLPE& LLDPE Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C

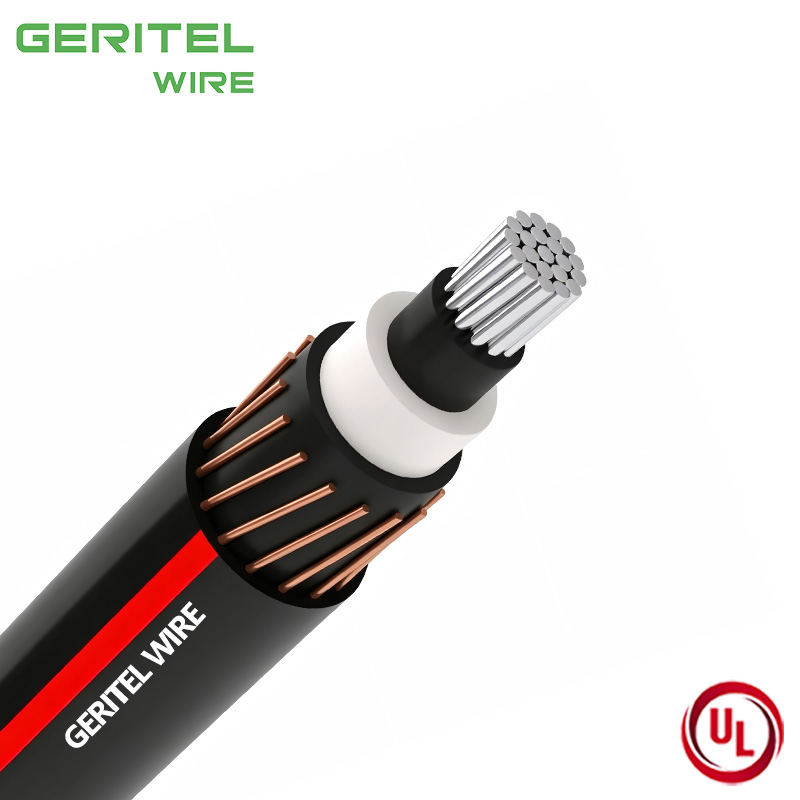

35kV 100% I.L. Aluminum TR-XLPE MV-90 Cable – High Voltage Reliability with Tree-Retardant Insulation
This 35kV primary underground distribution cable delivers standard dielectric protection with 345 mils of TR-XLPE insulation at 100% insulation level. Featuring a stranded aluminum conductor, TR-XLPE insulation, extruded semi-conducting shields, a concentric neutral of helically applied copper wires, and a rugged LLDPE jacket with three red stripes, this cable is designed for reliable high voltage power transmission in industrial and utility applications. UL1072 certified and MV-90 rated for continuous 90°C operation, it is suitable for underground duct and direct burial installations requiring standard insulation protection. The TR-XLPE insulation provides superior resistance to water treeing, ensuring long-term reliability in wet underground environments where moisture exposure is a constant concern.
Single Core MV90 Cable
These single-core MV-90 primary underground distribution cables feature stranded aluminum conductors with TR-XLPE insulation, extruded semi-conducting conductor and insulation shields, a concentric neutral of helically applied copper wires, and a rugged LLDPE jacket with three red stripes. UL1072 certified and MV-90 rated for continuous 90°C operation, they are designed for 25kV and 35kV systems with 100% and 133% insulation levels. The TR-XLPE insulation provides excellent resistance to water treeing, ensuring long-term reliability in wet underground conditions. These cables deliver dependable medium voltage power transmission for industrial plant feeders, utility substations, and power generation facilities.
Conductors：Stranded Aluminum
Rated Voltage : 15KV-35KV
Insulated：TR-XLPE
Jacket： LLDPE
Standards ： UL1072
Temperature range ：90℃
Advantages of 35kV Aluminum MV-90 100% I.L. 345mils cable
The TR-XLPE insulation offers exceptional resistance to water treeing, significantly extending cable service life in wet underground installations. The stranded aluminum conductor provides excellent conductivity with substantial weight savings compared to copper, making long-distance installation more practical and cost-effective. The 345 mils insulation thickness provides reliable dielectric strength for 35kV systems at 100% insulation level. The rugged LLDPE jacket delivers outstanding protection against moisture, abrasion, and environmental stress, ensuring decades of reliable service in demanding underground conditions.
Product Description
The Medium Voltage Underground Distribution (UD) cables consist of an Aluminum (filled or unfilled) conductor, covered with tree-retardant cross-linked polyethylene (TR-XLPE), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
90°C for normal operations
130°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Aluminum 1350 Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield | Extruded thermoset semi-conducting polymer over the conductor Super-Smooth is available upon request |
| Insulation | Tree-Retardant Cross-linked Polyethylene (TR-XLPE) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
| Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
| Jacket Marking | 00000 FT GREATER WIRE XXAWG (KCMIL) (FS) AL 1/C XXXV XXX% INSUL LEVEL XXXMILS TRXLPE AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances | ASTM B3 ASTM B230 ASTM B231 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Aluminum Unfilled/Filled 35kV 100% I.L. 345mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Underground Duct |
Direct Buried |
|||||||
| 1/6 Neutral | ||||||||
| 750 | 0.968(24.6) | 1.75(44.5) | 19×14 | 0.075(1.9) | 2.18(55.4) | 2,105(3,132) | 480 | 550 |
| 1000 | 1.117(28.4) | 1.91(48.5) | 25×14 | 0.075(1.9) | 2.33(59.2) | 2,525(3,757) | 550 | 615 |
| 1250 | 1.250(31.8) | 2.05(52.1) | 31×14 | 0.075(1.9) | 2.48(63.0) | 2,945(4,382) | 325 | 680 |
| 1/3 Reduced Neutral | ||||||||
| 1/0 | 0.362(9.2) | 1.12(28.4) | 6×14 | 0.050(1.3) | 1.46(37.1) | 795(1,183) | 160 | 195 |
| 2/0 | 0.405(10.3) | 1.16(29.5) | 7×14 | 0.050(1.3) | 1.51(38.4) | 860(1,280) | 185 | 220 |
| 3/0 | 0.456(11.6) | 1.21(30.7) | 9×14 | 0.050(1.3) | 1.56(39.6) | 950(1,414) | 210 | 250 |
| 4/0 | 0.512(13.0) | 1.27(32.3) | 11×14 |
0.050(1.3) | 1.62(41.1) | 1,055(1,570) | 235 | 285 |
| 250 | 0.558(14.2) | 1.32(33.5) | 13×14 |
0.050(1.3) | 1.67(42.4) | 1,155(1,719) | 260 | 300 |
| 350 | 0.661(16.8) | 1.43(36.3) | 18×14 |
0.075(1.9) | 1.83(46.5) | 1,435(2,135) | 315 | 370 |
| 500 | 0.789(20.0) | 1.56(39.6) | 25×14 |
0.075(1.9) | 1.96(49.8) | 1,755(2,611) | 380 | 445 |
| 750 | 0.968(24.6) | 1.75(44.5) | 24×12 |
0.075(1.9) | 2.22(56.4) | 2,380(3,541) | 470 | 530 |
| 1000 | 1.117(28.4) | 1.91(48.5) | 31×12 | 0.075(1.9) | 2.37(60.2) | 2,860(4,256) | 530 | 585 |
| Full Neutral | ||||||||
| 1/0 | 0.362(9.2) | 1.12(28.4) | 16×14 | 0.050(1.3) | 1.46(37.1) | 910(1,354) | 160 | 195 |
| 2/0 | 0.405(10.3) | 1.16(29.5) | 20×14 | 0.050(1.3) | 1.51(38.4) | 1,015(1,510) | 185 | 220 |
| 3/0 | 0.456(11.6) | 1.21(30.7) | 25×14 | 0.050(1.3) | 1.56(39.6) | 1,140(1,696) | 210 | 250 |
| 4/0 | 0.512(13.0) | 1.27(32.3) | 32×14 | 0.050(1.3) | 1.62(41.1) | 1,305(1,942) | 240 | 285 |
Certification
MV cable is UL certified. MV-90 cable complies with medium-voltage cable standards such as UL 1072 and ICEA S-96-659 (NEMA WC71) and has passed the UL 1685 vertical tray flame retardancy test, ensuring the cable's safety in fire conditions.
Heat-Resistant
Wear Resistance
Mechanical Strength
UL Certificated
APPLICATIONS
MV-90 single-core medium voltage cables are available in both shielded and unshielded constructions to meet diverse installation requirements. Unshielded designs simplify installation and allow flexible laying in both dry and humid environments, while shielded constructions provide enhanced protection against electrical stress and electromagnetic interference for more demanding applications. These cables are suitable for power transmission in feeders, motor power supplies, transformer connections, and distribution equipment. They provide a reliable medium-voltage power distribution solution for industrial and commercial facilities across a wide range of applications.
Industrial Power
MV medium-voltage cables are widely used in main power feeders in factories and manufacturing facilities, providing stable power transmission under high load conditions to meet the continuous operation and high reliability requirements of industrial power.
Commercial Buildings
In shopping malls, office buildings, and large commercial complexes, medium-voltage cables are used to connect transformers and distribution equipment, ensuring the safe and efficient operation of the power system and compliance with relevant electrical codes.
Substations
Medium-voltage cables are commonly used for internal equipment connections and power distribution in substations, possessing excellent voltage withstand and insulation properties to ensure long-term stable operation of the power system.
Electric Machines
MV cables are suitable for powering large motors, pump stations, and compressors, capable of withstanding frequent starts and high current surges, ensuring reliable equipment operation.
Customer Photos
Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.
plant equipment
Geritel Wire is a professional UL wire manufacturer. We are a wire and cable manufacturing factory with over 30 years of manufacturing experience, focusing on the research, development, production, and optimization of wires and cables.
Packaging Information
Our single core aluminum conductor MV-90 cable is commonly packaged on sturdy wooden reels to ensure safe transportation and easy handling, with standard options including small reels for shorter lengths and large reels for bulk orders, depending on quantity and cable size. Each reel is carefully wound and secured to prevent damage during transit, and clearly labeled with product specifications, length, and weight for easy identification. Custom packaging is also available upon request to meet specific project requirements or shipping conditions; please let us know if you have any special needs.
Small Wooden Reel
Large Wooden Reel
