35kV Aluminum EPR Concentric Neutral Direct Burial Power Cable with LLDPE Jacket 133% I.L. 420 Mils
Conductor：
Aluminum Conductor
Insulation：
EPR-Based Insulation
Jacket：
LLDPE Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
15kV-35kV
Temperature range：
90℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Aluminum Stranded Conductor(filled or unfilled)
Insulation and Sheath
EPR Insulation & LLDPE Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C
35kV 133% I.L. Aluminum MV-90 UD Cable – Ultimate Insulation Protection for Critical 35kV Infrastructure
Critical power infrastructure at 35kV demands the highest level of insulation protection, and this primary underground cable delivers with 420 mils of EPR insulation at 133% insulation level. The stranded aluminum conductor efficiently transmits heavy loads over long distances with excellent weight savings, while the concentric neutral ensures proper grounding and fault current management for maximum system safety. UL1072 certified and MV-90 rated for continuous 90°C operation, this cable is designed for underground duct and direct burial installations in the most demanding power infrastructure applications. The rugged LLDPE jacket with three red stripes provides superior resistance to moisture, chemicals, and mechanical stress, ensuring decades of reliable service in mission-critical 35kV power distribution
Single Core MV90 Cable
These single-core MV-90 primary underground distribution cables feature stranded aluminum conductors, EPR insulation, extruded semi-conducting shields, a concentric neutral of helically applied copper wires, and a rugged LLDPE jacket with three red stripes. UL1072 certified with 100% and 133% insulation levels across 15kV, 25kV, and 35kV voltage classes, they are rated for continuous 90°C operation with 105°C emergency overload capability. The LLDPE jacket provides excellent resistance to moisture, abrasion, and environmental stress. These cables deliver reliable medium voltage power transmission in underground duct and direct burial installations for industrial plant feeders, utility substations, and power generation facilities.
Conductors：Stranded Aluminum
Rated Voltage : 15KV-35KV
Insulated：EPR
Jacket： LLDPE
Standards ： UL1072
Temperature range ：90℃
Advantages of 35kV Aluminum MV-90 133% I.L. 420mils cable
The 133% insulation level with 420 mils thickness provides maximum dielectric strength against voltage surges, lightning strikes, and switching transients in 35kV systems. The stranded aluminum conductor delivers reliable conductivity with substantial weight reduction compared to copper, making installation more efficient for large-scale projects. The rugged LLDPE jacket offers outstanding protection against moisture ingress, chemical exposure, and mechanical stress in the harshest underground conditions. This cable is the ultimate choice for mission-critical 35kV power distribution systems where maximum insulation protection and operational reliability are non-negotiable.
Product Description

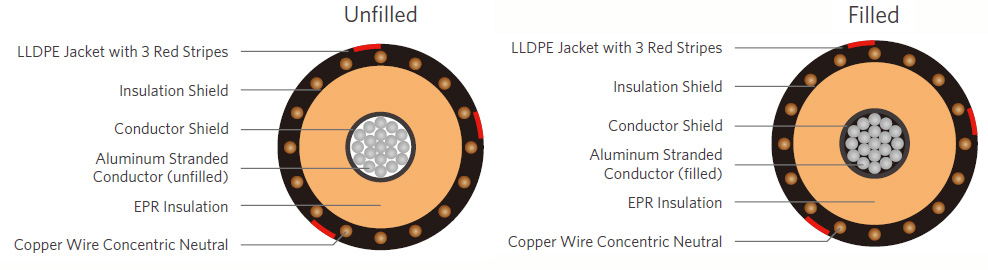

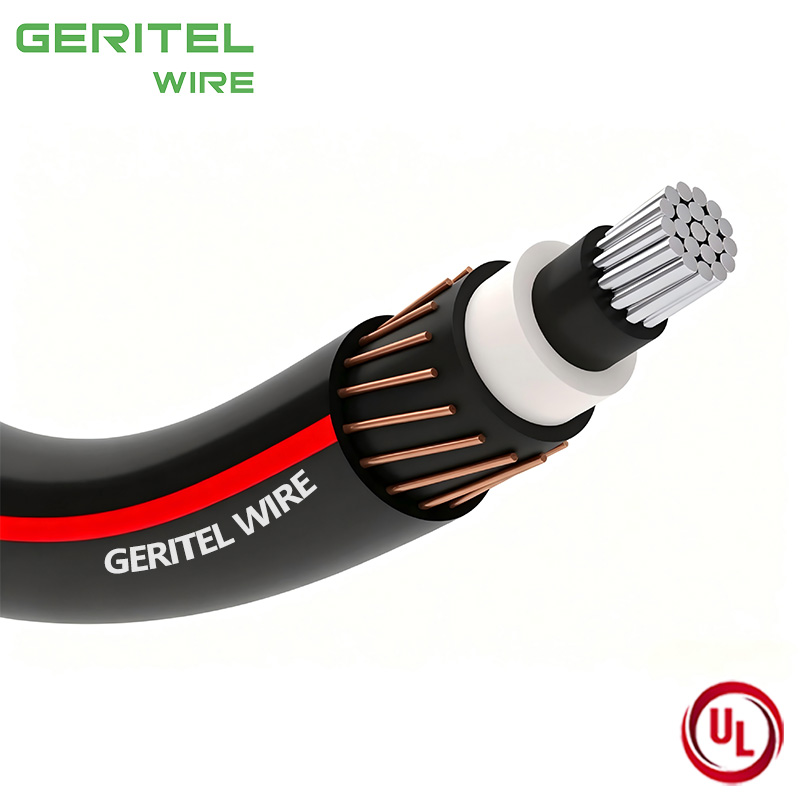

The Medium Voltage Underground Distribution (UD) cables consist of an Aluminum (filled or unfilled) conductor, covered with ethylene propylene rubber (EPR), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
105°C for normal operations
140°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Aluminum 1350 Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield | Extruded thermoset semi-conducting polymer over the conductor |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the conductor |
| Neutral | Helically applied, annealed, solid bare copper wires |
| Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
| Jacket Marking | 00000 FT GREATER WIRE XXAWG (KCML) AL (FS) 1/C XXXV XXX% INSUL LEVEL XXXMILS EPR AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances | ASTM B3 ASTM B230 ASTM B231 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Aluminum Unfilled/Filled 35kV 133% I.L. 420mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Underground Duct |
Direct Buried |
|||||||
| 1/3 Reduced Neutral | ||||||||
| 1/0 | 0.362(9.2) | 1.27(32.3) | 6×14 | 0.050(1.3) | 1.62(41.1) | 1,045(1,555) | 160 | 195 |
| 2/0 | 0.405(10.3) | 1.31(33.3) | 7×14 | 0.050(1.3) | 1.66(42.2) | 1,120(1,667) | 185 | 220 |
| 3/0 | 0.456(11.6) | 1.37(34.8) | 9×14 | 0.050(1.3) | 1.71(434) | 1,225(1,823) | 210 | 250 |
| 4/0 | 0.512(13.0) | 1.42(36.1) | 11×14 |
0.075(1.9) | 1.82(46.2) | 1,395(2,076) | 235 | 285 |
| 250 | 0.558(14.2) | 1.48(37.6) | 13×14 |
0.075(1.9) | 1.88(47.8) | 1,510(2,247) | 260 | 300 |
| 350 | 0.661(16.8) | 1.58(40.1) | 18×14 |
0.075(1.9) | 1.98(50.3) | 1,760(2,619) | 315 | 370 |
| 500 | 0.789(20.0) | 1.71(43.4) | 25×14 |
0.075(1.9) | 2.14(54.4) | 2,155(3,207) | 380 | 445 |
| 750 | 0.968(24.6) | 1.91(48.5) | 24×12 |
0.075(1.9) | 2.37(60.2) | 2,785(4,144) | 470 | 530 |
| 1000 | 1.117(28.4) | 2.06(52.3) | 31×12 | 0.075(1.9) | 2.52(64.0) | 3,300(4,910) | 530 | 585 |
| Full Neutral | ||||||||
| 1/0 | 0.362(9.2) | 1.27(32.3) | 16×14 | 0.050(1.3) | 1.62(41.1) | 1,165(1,733) | 160 | 195 |
| 2/0 | 0.405(10.3) | 1.31(33.3) | 20×14 | 0.050(1.3) | 1.66(42.2) | 1,275(1,897) | 185 | 220 |
| 3/0 | 0.456(11.6) | 1.37(34.8) | 25×14 | 0.050(1.3) | 1.71(434) | 1,415(2,105) | 210 | 250 |
| 4/0 | 0.512(13.0) | 1.42(36.1) | 32×14 | 0.075(1.9) | 1.82(46.2) | 1,645(2,448) | 240 | 280 |
Certification
MV cable is UL certified. MV-90 cable complies with medium-voltage cable standards such as UL 1072 and ICEA S-96-659 (NEMA WC71) and has passed the UL 1685 vertical tray flame retardancy test, ensuring the cable's safety in fire conditions.
