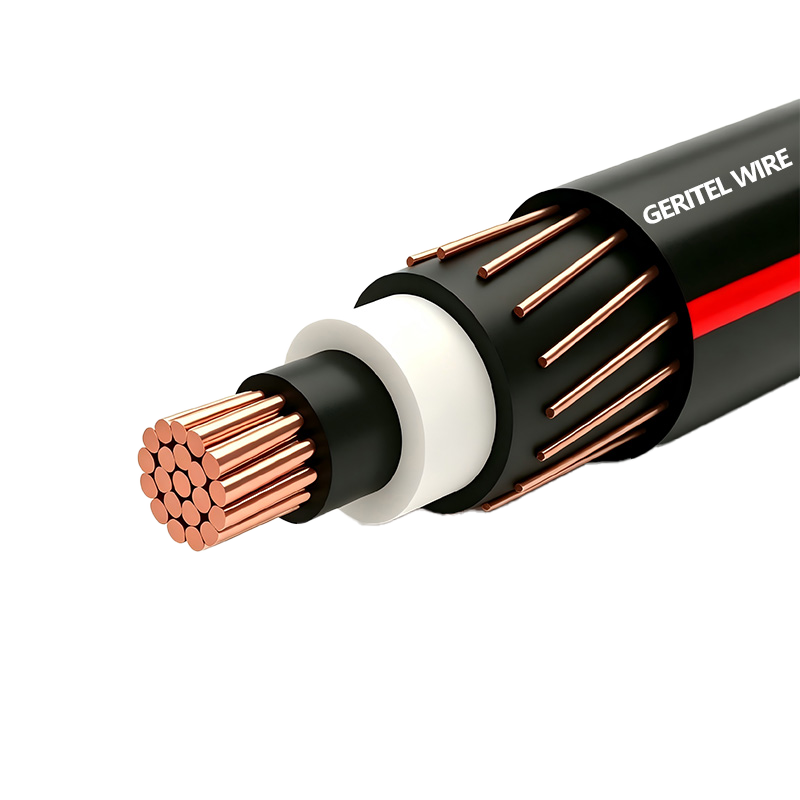

35kV Copper Underground Distribution Cable EPR/CN/LLDPE Type MV-90 133% I.L. 420 mils
Conductor：
Aluminum Solid Conductor
Insulation：
EPR-Based Insulation
Jacket：
LLDPE Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
15kV-35kV
Temperature range：
90℃
Size range：
2AWG-4/0AWG
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Class B Bare Copper Conductor
Insulation and Sheath
EPR Insulation & LLDPE Jacket
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C
35kV Copper Feeder Cable EPR/CN/LLDPE Type MV-90 133% I.L. 420 mils
This 35kV Copper Underground Distribution Cable with 420 mils 133% insulation level is a standard Copper MV Power Cable, also named Copper EPR LLDPE Cable and professional 35kV Copper CN LLDPE Cable. It adopts full annealed compressed copper conductor, EPR insulation, helical copper concentric neutral and UV-resistant LLDPE outer jacket, engineered for direct burial or conduit underground feeder power transmission for utility grid, solar farm and wind energy projects.

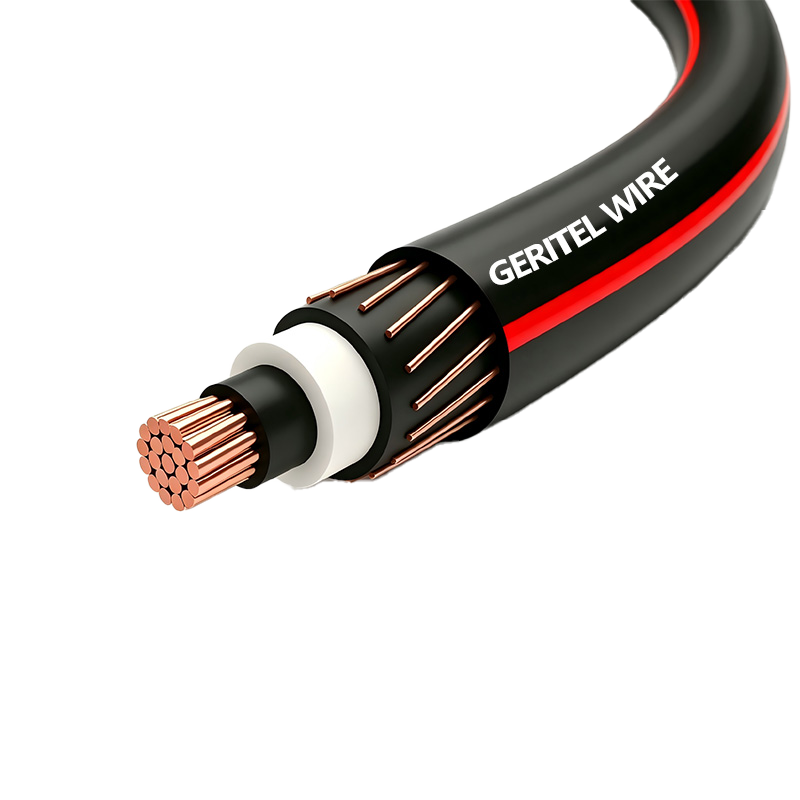

Single Core MV90 Cable
MV 90 single conductor power cable, for up to 35 kV applications. It is non-shielded for use in commercial and industrial power distribution systems.
Conductors：Copper
Rated Voltage Uo/U (Um) : 15 kV-35 kV
Insulated：EPR
Jacket：LLDPE
Standards：
UL1072
Temperature range：90℃
Advantages of MV Cable
As high-performance Copper EPR LLDPE Cable, this Copper Medium Voltage Feeder Cable (one reliable type of Copper MV Power Cable & 35kV Copper CN LLDPE Cable) owns outstanding dielectric strength, low moisture absorption and anti-treeing EPR insulation; its LLDPE outer jacket resists sunlight and supports stable 105°C continuous conductor temperature for long-term underground service.
Product Description

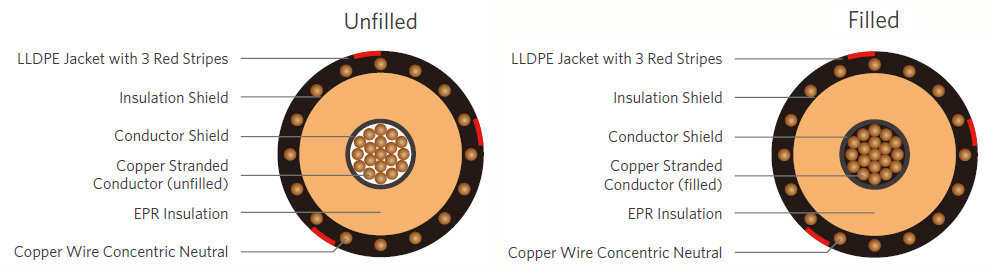

The Medium Voltage Underground Distribution (UD) cables consist of a Copper (filled or unfilled) conductor, covered with ethylene propylene rubber (EPR), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
105°C for normal operations
130°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Fully annealed bare copper Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield | Extruded thermoset semi-conducting polymer over the conductor |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
| Jacket |
Linear Low-Density Polyethylene (LLDPE) *Moisture blocked jacket is available upon on request |
| Jacket Marking | 00000 FT GREATER WIRE CABLE XXAWG (KCMIL) CU (FS) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR AA X #BB LLDPE JKT MV-90 (UL) MADE IN USA MMDDYYYY |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances |
ASTM B3 ASTM B8 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Copper Unfilled/Filled, 35kV 100% I.L., 420 mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) | Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) | Approx.Net Weight LBS/kft (kg/km) | Ampacity | |
| Underground Duct | Direct Buried | |||||||
| Reduced Neutral | ||||||||
| 1/0 | 0.362(9.2) | 1.27(32.3) | 9 x 14 | 0.050 (1.3) | 1.62(41.1) | 1,300 (1,934) | 210 | 250 |
| 2/0 | 0.405(10.3) | 1.31(33.3) | 11 x 14 | 0.050 (1.3) | 1.66(42.2) | 1,450 (2,158) | 235 | 280 |
| 3/0 | 0.456(11.6) | 1.37(34.8) | 14 x 14 | 0.050 (1.3) | 1.71(43.4) | 1,635 (2,433) | 265 | 320 |
| 4/0 | 0.512(13.0) | 1.42(36.1) | 18 x 14 | 0.075 (1.9) | 1.82(46.2) | 1920 (2,857) | 300 | 360 |
| 250 | 0.558(14.2) | 1.48(37.6) | 21 x 14 | 0.075 (1.9) | 1.88(47.8) | 2,130 (3,169) | 340 | 380 |
| 350 | 0.661(16.8) | 1.58(40.1) | 29 x 14 | 0.075 (1.9) | 1.98(50.3) | 2,625 (3,906) | 400 | 460 |
| 500 | 0.789(20.0) | 1.71(43.4) | 26 x 12 | 0.075 (1.9) | 2.18(55.4) | 3,440 (5,119) | 470 | 525 |
| 750 | 0.968(24.6) | 1.91(48.5) | 25 x 10 | 0.075 (1.9) | 2.41(61.2) | 4,710 (7,008) | 560 | 590 |
| Full Neutral | ||||||||
| 1/0 | 0.362(9.2) | 1.27(32.3) | 25 x 14 | 0.050 (1.3) | 1.62(41.1) | 1490 (2217) | 205 | 245 |
| 2/0 | 0.405(10.3) | 1.31(33.3) | 32 x 14 | 0.050 (1.3) | 1.66(42.2) | 1700 (2530) | 235 | 280 |
| 3/0 | 0.456(11.6) | 1.37(34.8) | 25 x 12 | 0.075 (1.9) | 1.80(45.7) | 2035 (3028) | 265 | 315 |
| 4/0 | 0.512(13.0) | 1.42(36.1) | 32 x 12 | 0.075 (1.9) | 1.85(47.0) | 2350 (3497) | 305 | 350 |
Certification
All specs of Copper Medium Voltage Feeder Cable, Copper EPR LLDPE Cable, Copper MV Power Cable and 35kV Copper CN LLDPE Cable pass strict electrical testing and gain full UL & industry certifications meeting North & Latin American underground feeder construction standards.
Heat-Resistant
Wear Resistance
Mechanical Strength
UL Certificated
APPLICATIONS
Our 35kV 420 mils MV-90 underground feeder cable, including Copper MV Power Cable and 35kV Copper CN LLDPE Cable, fits dry & wet underground primary power distribution, widely used in municipal grid, solar PV and wind power stations via direct burial or duct laying.
Industrial Power
MV medium-voltage cables are widely used in main power feeders in factories and manufacturing facilities, providing stable power transmission under high load conditions to meet the continuous operation and high reliability requirements of industrial power.
Commercial Buildings
In shopping malls, office buildings, and large commercial complexes, medium-voltage cables are used to connect transformers and distribution equipment, ensuring the safe and efficient operation of the power system and compliance with relevant electrical codes.
Substations
Medium-voltage cables are commonly used for internal equipment connections and power distribution in substations, possessing excellent voltage withstand and insulation properties to ensure long-term stable operation of the power system.
Electric Machines
MV cables are suitable for powering large motors, pump stations, and compressors, capable of withstanding frequent starts and high current surges, ensuring reliable equipment operation.
Customer Photos
Real shipment, construction and project site photos shared by global utility clients who purchase our Copper Medium Voltage Feeder Cable and Copper EPR LLDPE Cable for underground medium voltage feeder infrastructure.
plant equipment
Full-automatic extrusion, stranding and offline testing machines accurately manufacture every Copper MV Power Cable and 35kV Copper CN LLDPE Cable, ensuring stable copper conductor, 420mil EPR insulation and intact LLDPE jacket quality.
Packaging Information
Custom moisture-proof wooden steel reels for all Copper Medium Voltage Feeder Cable and Copper EPR LLDPE Cable orders; optimized reel dimensions to cut ocean freight for full-container bulk shipments.
Small Wooden Reel
Large Wooden Reel
Large Wooden Reel
Global Certification
The full range of Copper EPR LLDPE Cable, Copper Medium Voltage Feeder Cable, Copper MV Power Cable and 35kV Copper CN LLDPE Cable holds internationally recognized safety certifications for smooth customs clearance and project acceptance across Latin American markets like Peru.
VDE
UL
SAA
TUV
ISO
