25kV Solid Aluminum Primary UD Cable TR-XLPE/CN/LLDPE MV-90 100% I.L. 260 mils

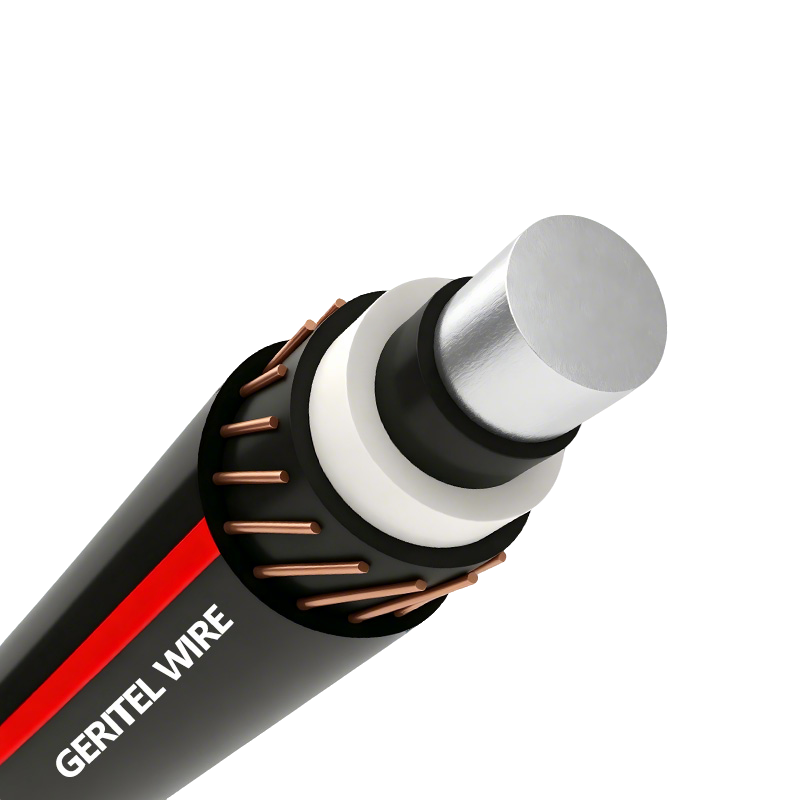

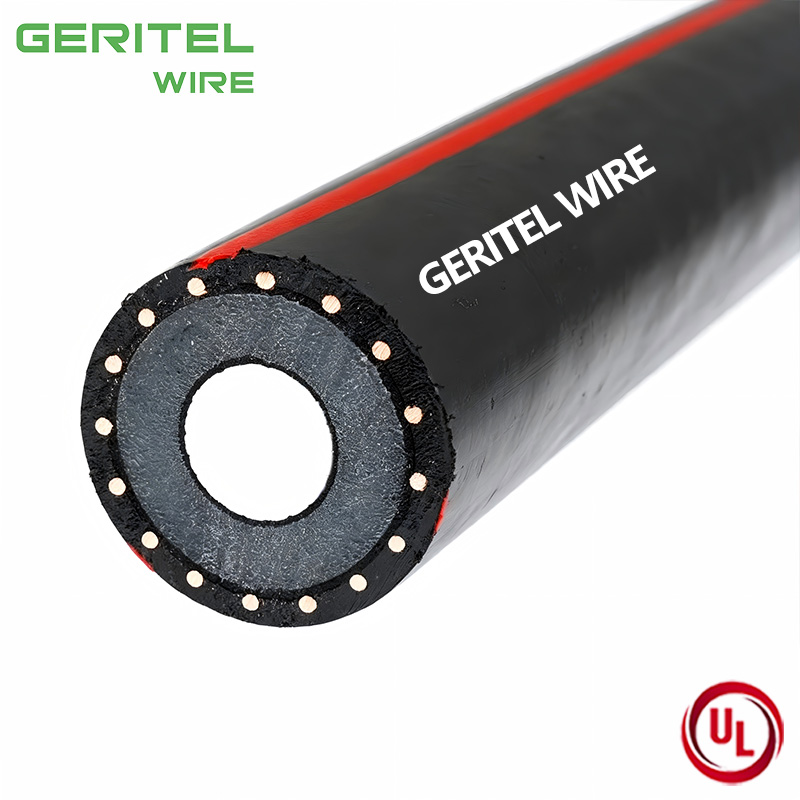

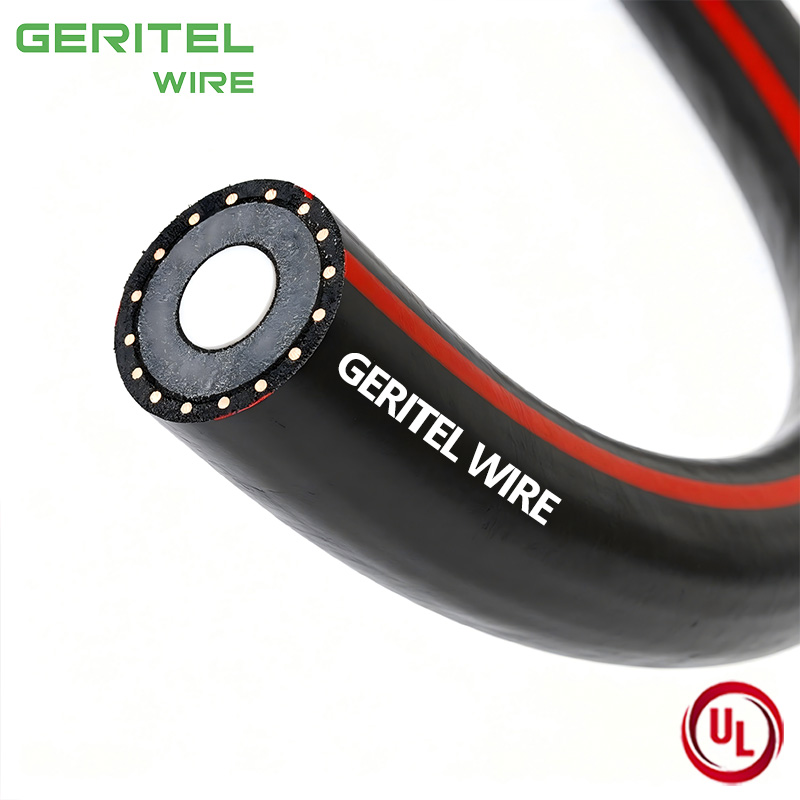

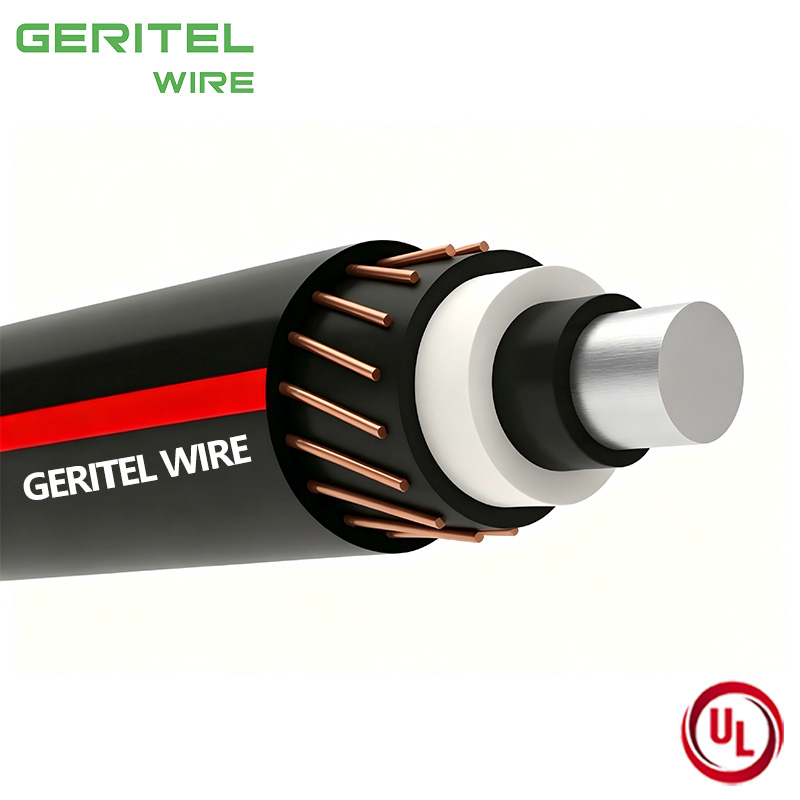

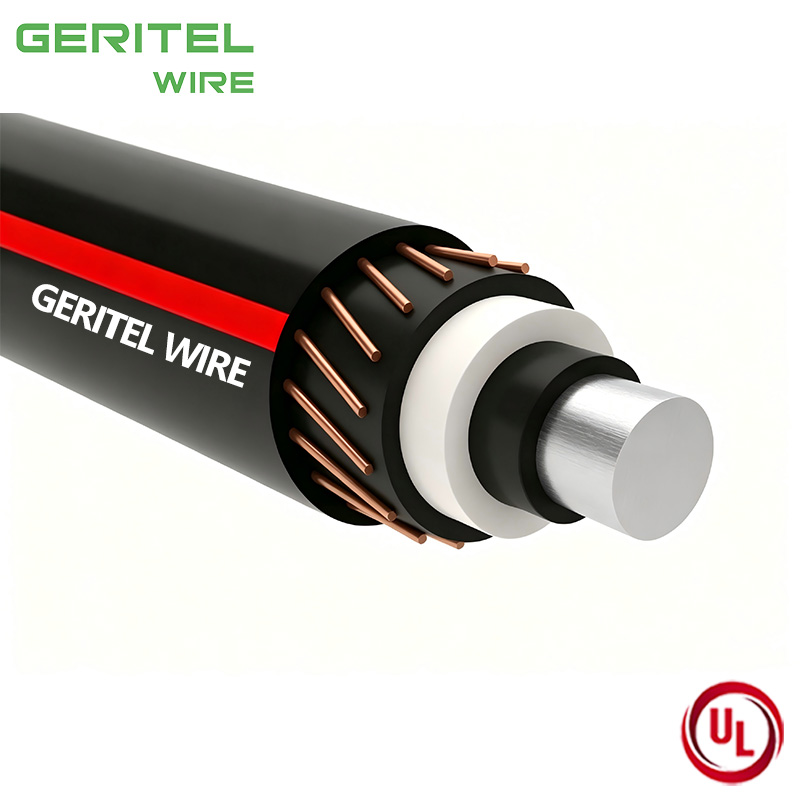

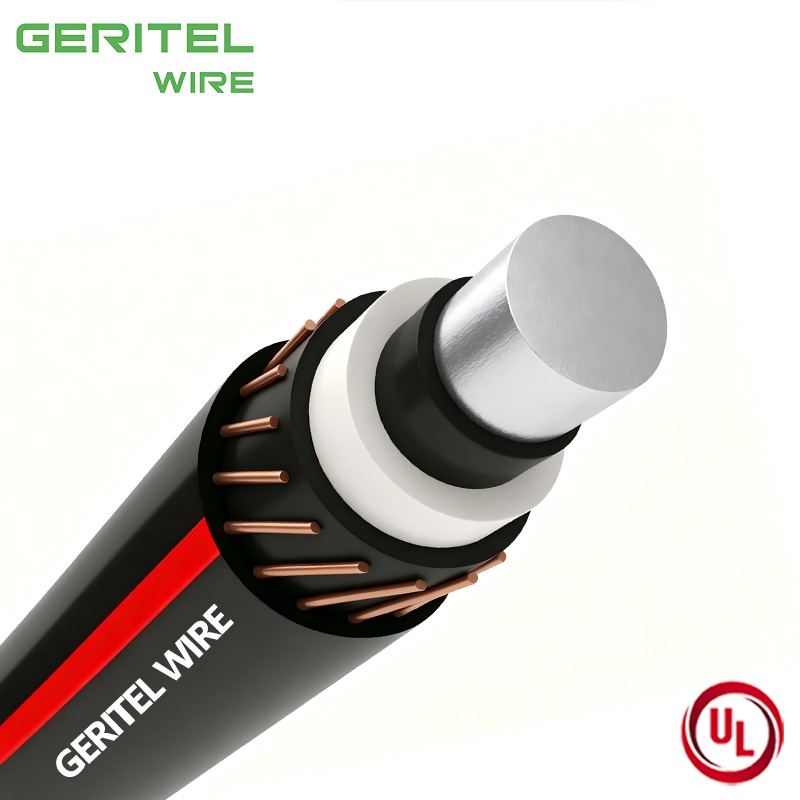

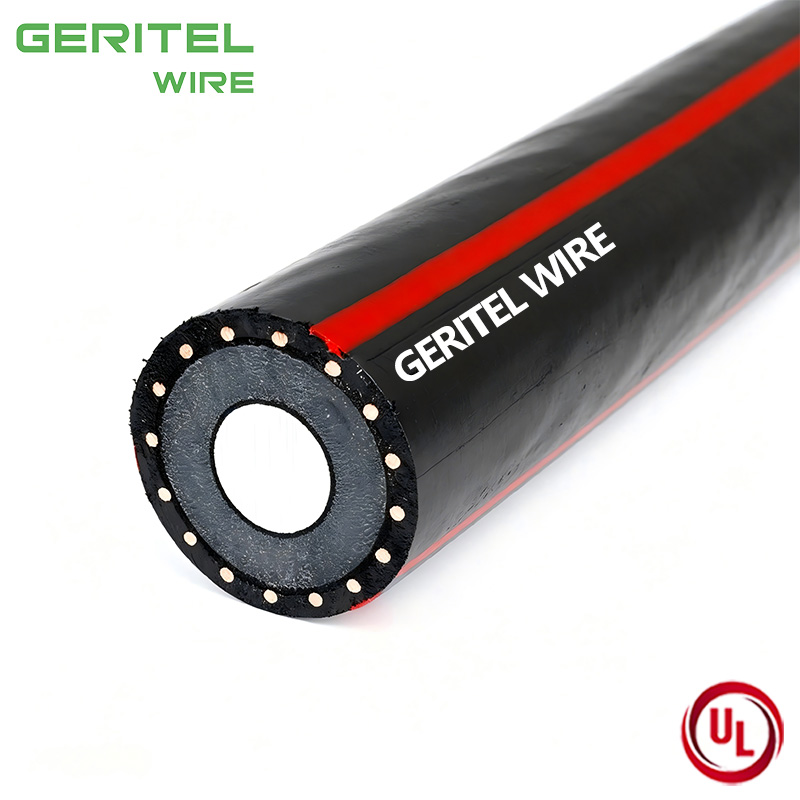

Stepping up to 25kV distribution requires cable designed for higher voltage stress, and this primary underground cable meets the challenge with 260 mils of TR-XLPE insulation at 100% insulation level. Featuring a solid aluminum conductor, TR-XLPE insulation, extruded semi-conducting shields, a concentric neutral of helically applied copper wires, and a rugged LLDPE jacket with three red stripes, this cable is designed for high voltage power transmission in industrial and utility applications. UL1072 certified and MV-90 rated for continuous 90°C operation, it is suitable for underground duct and direct burial installations where standard insulation protection meets operational requirements. The solid aluminum conductor provides efficient power transmission for heavy loads while offering significant weight advantages over copper. The TR-XLPE insulation provides superior resistance to water treeing, ensuring long-term reliability in wet underground environments where moisture exposure is a constant concern.

The 260 mils TR-XLPE insulation provides the dielectric strength required for 25kV systems at 100% insulation level, ensuring reliable power transmission for heavy industrial and utility applications. The solid aluminum conductor offers excellent conductivity with significant weight reduction, minimizing shipping costs and easing installation for large-scale projects. The TR-XLPE insulation delivers superior resistance to water treeing, significantly extending cable service life in wet underground installations. The rugged LLDPE jacket provides outstanding protection against moisture, chemicals, and mechanical stress, ensuring decades of reliable service in demanding underground conditions.

MV cable is UL certified. MV-90 cable complies with medium-voltage cable standards such as UL 1072 and ICEA S-96-659 (NEMA WC71) and has passed the UL 1685 vertical tray flame retardancy test, ensuring the cable's safety in fire conditions.

MV-90 single-core medium voltage cables are available in both shielded and unshielded constructions to meet diverse installation requirements. Unshielded designs simplify installation and allow flexible laying in both dry and humid environments, while shielded constructions provide enhanced protection against electrical stress and electromagnetic interference for more demanding applications. These cables are suitable for power transmission in feeders, motor power supplies, transformer connections, and distribution equipment. They provide a reliable medium-voltage power distribution solution for industrial and commercial facilities across a wide range of applications.

Exporting to 80+ countries and regions, we bring proven global export experience and trusted wires & cables to customers worldwide.

Geritel Wire is a professional UL wire manufacturer. We are a wire and cable manufacturing factory with over 30 years of manufacturing experience, focusing on the research, development, production, and optimization of wires and cables.

Our single core aluminum conductor MV-90 cable is commonly packaged on sturdy wooden reels to ensure safe transportation and easy handling, with standard options including small reels for shorter lengths and large reels for bulk orders, depending on quantity and cable size. Each reel is carefully wound and secured to prevent damage during transit, and clearly labeled with product specifications, length, and weight for easy identification. Custom packaging is also available upon request to meet specific project requirements or shipping conditions; please let us know if you have any special needs.

Geritel Wire Manufacturer holds 50+ international certifications, including UL, cUL, SAA, TUV, CE, VDE, ISO, and others. Our cables meet the highest global quality and safety standards.
