35kV Copper MV-90 Primary UD Power Cable 133% I.L. 420 Mils
Conductor：
Copper Stranded Conductor
Insulation：
TR-XLPE-Based Insulation
Jacket：
LLDPE Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
15kV-35kV
Temperature range：
90℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Copper Stranded Conductor(filled or unfilled)
Insulation and Sheath
TR-XLPE Insulation & LLDPE Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C
35kV Copper TR-XLPE/CN/LLDPE MV-90 Cable 100% I.L. 345 Mils FOR Industrial Distribution
Our 35kV Copper Underground Distribution Cable is a high-spec medium voltage medium voltage power cable designed with 100% insulation level and 345 mils premium insulation thickness. Built with compacted copper conductor, water tree retardant TR-XLPE insulation, concentric neutral layer and LLDPE outer jacket, it is a high-standard compact copper conductor MV cable and durable copper TR-XLPE power distribution cable. Featuring excellent water tree resistance, stable electrical performance and strong harsh environment adaptability, this professional copper water tree retardant XLPE cable is widely used for 35kV high-load medium voltage power transmission for grid and industrial projects.
Single Core MV90 Cable
This single-core 35kV MV UD cable features compacted solid copper conductor, integrated TR-XLPE insulation, concentric neutral layer and durable LLDPE outer sheath. Optimized for 35kV high medium voltage working conditions, it supports long-term buried installation, resisting underground humidity, soil pressure and conventional mechanical damage to ensure continuous and safe power operation.
Conductors：Bare Copper
Rated Voltage : 15KV-35KV
Insulated：TR-XLPE
Jacket： LLDPE
Standards ： UL1072
Temperature range ：90℃
Advantages of 35kV MV-90 100% I.L. 345 mils cable
Adopting water tree retardant formula, this copper water tree retardant XLPE cable effectively inhibits insulation aging and water tree growth in humid underground environments. The compact copper conductor MV cable features compact structural design, lower conductor resistance and higher power transmission efficiency with smaller outer diameter for convenient laying. The overall structure of copper TR-XLPE power distribution cable is matched with tough LLDPE sheath, realizing excellent abrasion resistance, corrosion resistance and pressure resistance, adapting to complex complex application environments.
Product Description

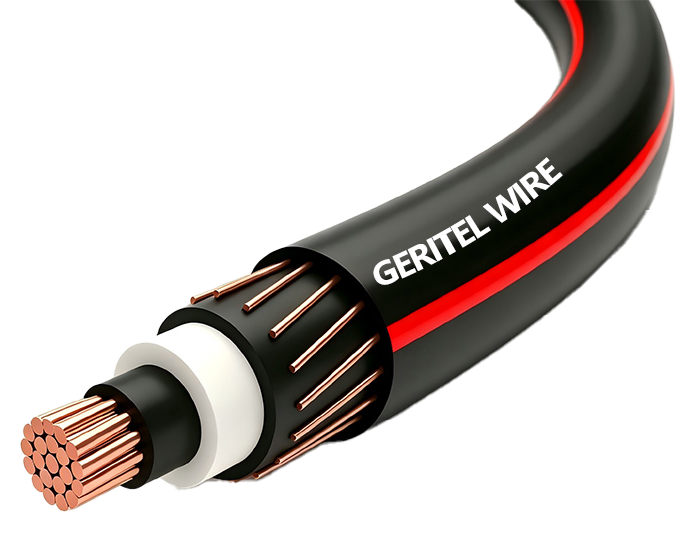

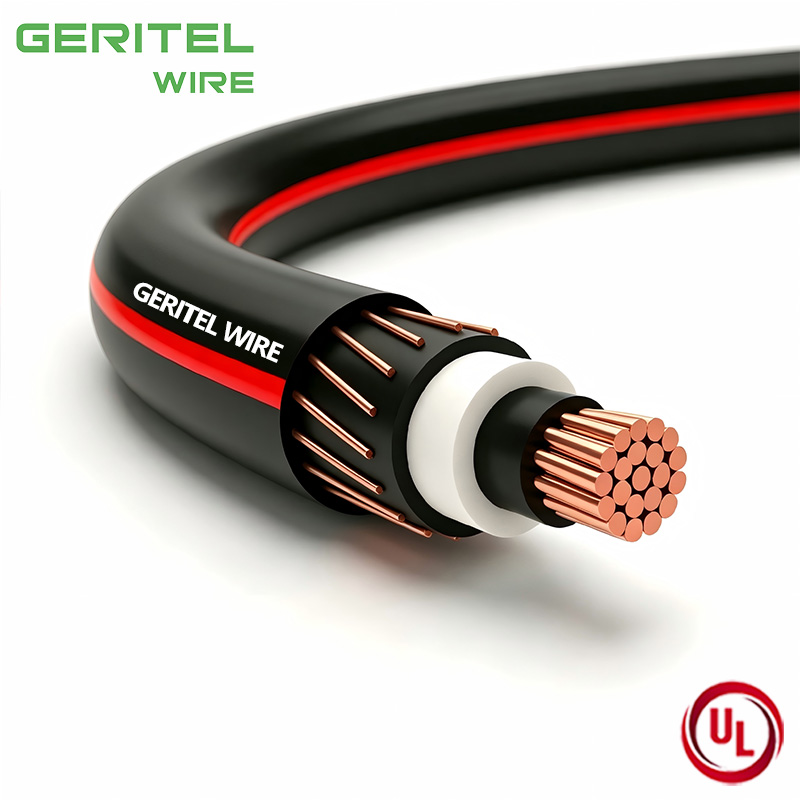

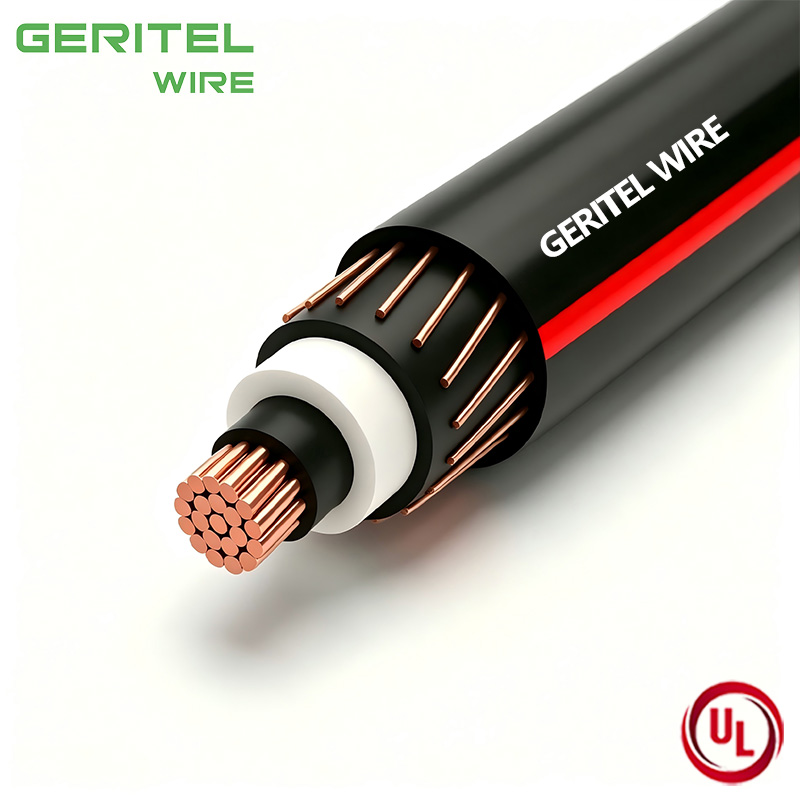

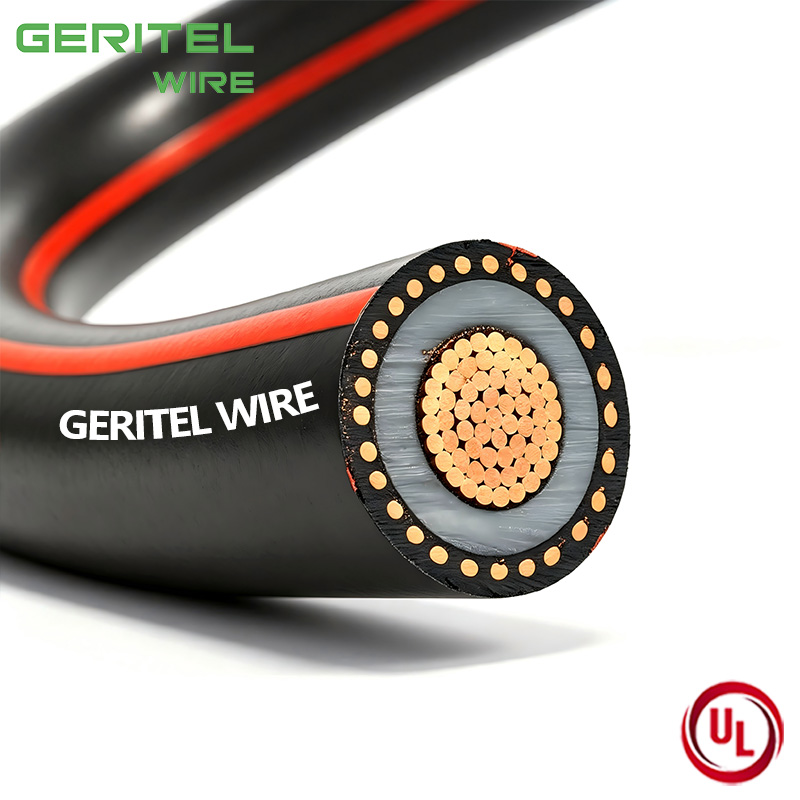

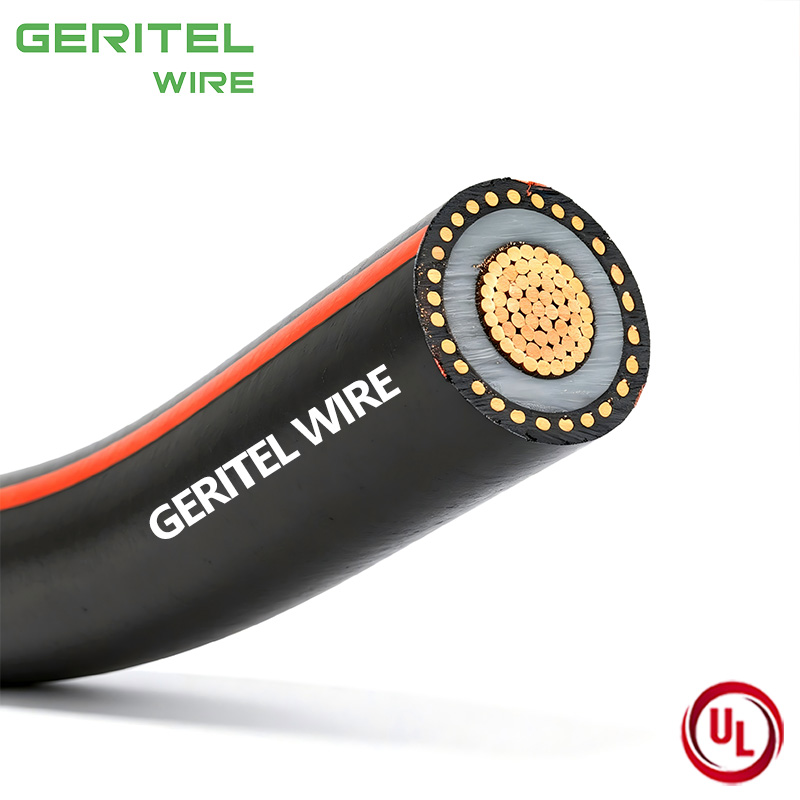

The Medium Voltage Underground Distribution (UD) cables consist of an Copper (filled or unfilled) conductor, covered with tree-retardant cross-linked polyethylene (TR-XLPE), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
90°C for normal operations
130°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Fully annealed bare copper Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor *Super-Smooth is available upon request |
| Insulation | Tree-Retardant Cross-linked Polyethylene (TR-XLPE) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
| Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
| Jacket Marking | 00000 FT GREATER WIRE CABLE XXAWG (KCMIL) CU (FS) 1/C XXKV XXX% INSUL LEVEL XXXMILS TRXLPE AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances | ASTM B3 ASTM B8 ASTM B609 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Copper Unfilled/Filled 35kV 100% I.L. 345mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Underground Duct |
Direct Buried |
|||||||
| 1/3 Reduced Neutral | ||||||||
| 1/0 | 0.362(9.2) | 1.12(28.4) | 9×14 | 0.050(1.3) | 1.46(37.1) | 1,050(1,562) | 200 | 275 |
| 2/0 | 0.405(10.3) | 1.16(29.5) | 11×14 | 0.050(1.3) | 1.51(38.4) | 1,185(1,763) | 230 | 310 |
| 3/0 | 0.456(11.6) | 1.21(30.7) | 14×14 | 0.050(1.3) | 1.56(39.6) | 1,365(2,031) | 260 | 355 |
| 4/0 | 0.512(13.0) | 1.27(32.3) | 18×14 |
0.050(1.3) | 1.62(41.1) | 1,580(2,351) | 295 | 405 |
| 250 | 0.558(14.2) | 1.32(33.5) | 21×14 |
0.050(1.3) | 1.67(42.4) | 1,775(2,641) | 325 | 440 |
| 350 | 0.661(16.8) | 1.43(36.3) | 29×14 |
0.075(1.9) | 1.83(46.5) | 2,300(3,422) | 390 | 535 |
| 500 | 0.789(20.0) | 1.56(39.6) | 26×12 |
0.075(1.9) | 1.99(50.5) | 3,035(4,516) | 465 | 650 |
| 750 | 0.968(24.6) | 1.75(44.5) | 25×10 |
0.075(1.9) | 2.26(57.4) | 4,300(6,398) | 565 | 805 |
| 1000 | 1.117(28.4) | 1.91(48.5) | 32×10 | 0.075(1.9) | 2.41(61.2) | 5,390(8,020) | 640 | 930 |
| Full Neutral | ||||||||
| 1/0 | 0.362(9.2) | 1.12(28.4) | 25×14 | 0.050(1.3) | 1.46(37.1) | 1,240(1,845) | 200 | 275 |
| 2/0 | 0.405(10.3) | 1.16(29.5) | 32×14 | 0.050(1.3) | 1.51(38.4) | 1,435(2,135) | 230 | 310 |
| 3/0 | 0.456(11.6) | 1.21(30.7) | 25×12 | 0.050(1.3) | 1.59(40.4) | 1,700(2,530) | 260 | 355 |
| 4/0 | 0.512(13.0) | 1.27(32.3) | 32×12 | 0.050(1.3) | 1.65(41.9) | 2,005(2,983) | 295 | 405 |
