25kV Copper TR-XLPE/CN/LLDPE Primary UD Cable 100% I.L. 260 Mils
Conductor：
Copper Stranded Conductor
Insulation：
TR-XLPE-Based Insulation
Jacket：
LLDPE Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
15kV-35kV
Temperature range：
90℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Copper Stranded Conductor(filled or unfilled)
Insulation and Sheath
TR-XLPE Insulation & LLDPE Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C
25kV Copper Primary Underground Distribution Cable 100% I.L. 260 mils
Our 25kV TR-XLPE concentric neutral UD cable with 100% insulation level and 260 mils insulation thickness is flagship 25kV Copper Primary Underground Distribution Cable 100% I.L. 260 mils. As standard 25kV Copper Medium Voltage Cable and durable Medium Voltage Underground Cable, it serves as reliable 25kV Direct Burial Copper Primary Cable, a qualified industrial-grade copper conductor medium voltage cable for underground main power transmission.
Single Core MV90 Cable
TThis single-core 25kV Copper Primary Underground Distribution Cable 100% I.L. 260 mil is anti-water tree copper conductor medium voltage cable, ideal heavy-duty 25kV Direct Burial Copper Primary Cable.
Conductors：Bare Copper
Rated Voltage : 15KV-35KV
Insulated：TR-XLPE
Jacket： LLDPE
Standards ： UL1072
Temperature range ：90℃
Advantages of 25kV MV-90 100% I.L. 260 mils cable
This 25kV Copper Primary Underground Distribution Cable 100% I.L. 260 mil features outstanding anti-water tree performance and low dielectric loss, making it a high-reliability copper conductor medium voltage cable.
Product Description

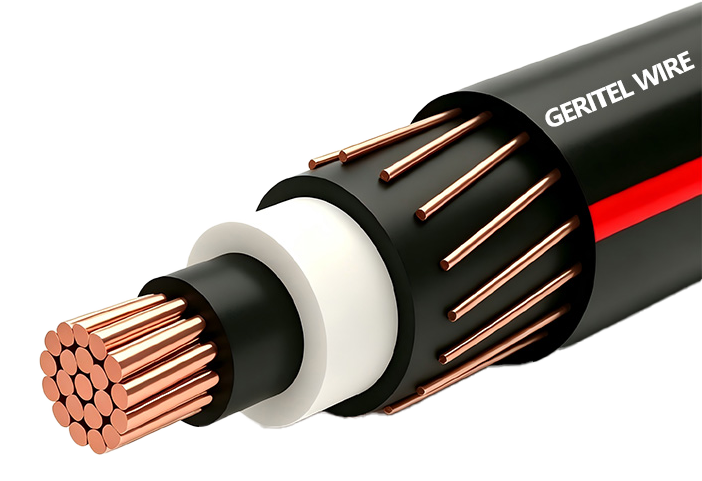

The Medium Voltage Underground Distribution (UD) cables consist of an Copper (filled or unfilled) conductor, covered with tree-retardant cross-linked polyethylene (TR-XLPE), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
90°C for normal operations
130°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Fully annealed bare copper Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor *Super-Smooth is available upon request |
| Insulation | Tree-Retardant Cross-linked Polyethylene (TR-XLPE) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
| Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
| Jacket Marking | 00000 FT GREATER WIRE CABLE XXAWG (KCMIL) CU (FS) 1/C XXKV XXX% INSUL LEVEL XXXMILS TRXLPE AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances | ASTM B3 ASTM B8 ASTM B609 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Copper Unfilled/Filled 25kV 100% I.L. 260mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Underground Duct |
Direct Buried |
|||||||
| 1/3 Reduced Neutral | ||||||||
| 1 | 0.322(8.2) | 0.90(22.9) | 7×14 | 0.050(1.3) | 1.23(31.2) | 710(1,146) | 180 | 220 |
| 1/0 | 0.362(9.2) | 0.94(23.9) | 9×14 | 0.050(1.3) | 1.27(32.3) | 885(1,317) | 200 | 250 |
| 2/0 | 0.405(10.3) | 0.99(25.1) | 11×14 | 0.050(1.3) | 1.31(33.3) | 1,015(1,510) | 230 | 285 |
| 3/0 | 0.456(11.6) | 1.04(26.4) | 14×14 | 0.050(1.3) | 1.36(34.5) | 1,185(1,763) | 260 | 320 |
| 4/0 | 0.512(13.0) | 1.09(27.7) | 18×14 |
0.050(1.3) | 1.44(36.6) | 1,420(2,113) | 300 | 360 |
| 250 | 0.558(14.2) | 1.15(29.2) | 21×14 |
0.050(1.3) | 1.50(38.1) | 1,605(2,388) | 330 | 385 |
| 350 | 0.661(16.8) | 1.26(32.0) | 29×14 |
0.050(1.3) | 1.60(40.6) | 2,065(3,073) | 390 | 460 |
| 500 | 0.789(20.0) | 1.39(35.3) | 26×12 |
0.075(1.9) | 1.82(46.2) | 2,835(4,218) | 455 | 525 |
| 750 | 0.968(24.6) | 1.58(40.1) | 25×10 |
0.075(1.9) | 2.05(52.1) | 4,025(5,989) | 545 | 580 |
| 1000 | 1.117(28.4) | 1.73(43.9) | 32×10 | 0.075(1.9) | 2.24(56.9) | 5,140(7,648) | 605 | 650 |
| Full Neutral | ||||||||
| 1 | 0.322(8.2) | 0.90(22.9) | 20×14 | 0.050(1.3) | 1.23(31.2) | 925(1,376) | 175 | 220 |
| 1/0 | 0.362(9.2) | 0.94(23.9) | 25×14 | 0.050(1.3) | 1.27(32.3) | 1,075(1,600) | 200 | 250 |
| 2/0 | 0.405(10.3) | 0.99(25.1) | 32×14 | 0.050(1.3) | 1.31(33.3) | 1,265(1,882) | 225 | 280 |
| 3/0 | 0.456(11.6) | 1.04(26.4) | 25×12 | 0.050(1.3) | 1.40(35.6) | 1,520(2,262) | 260 | 315 |
| 4/0 | 0.512(13.0) | 1.09(27.7) | 32×12 | 0.050(1.3) | 1.48(37.6) | 1,840(2,738) | 295 | 355 |
