25kV Aluminum TR-XLPE/CN/LLDPE MV-90 Cable 133% I.L. 320 Mils
Conductor：
Aluminum Stranded Conductor
Insulation：
TR-XLPE-Based Insulation
Jacket：
LLDPE Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
15kV-35kV
Temperature range：
90℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Aluminum Stranded Conductor(filled or unfilled)
Insulation and Sheath
TR-XLPE Insulation & LLDPE Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C
25kV Aluminum TR-XLPE/CN/LLDPE MV-90 Cable 133% I.L. 320 Mils for Power Distribution
Designed for 25kV medium voltage power distribution scenarios, this 25kV Aluminum MV-90 cable adheres strictly to industry MV cable specifications. Featuring 133% enhanced insulation safety level and 320 mils thick TR-XLPE insulation, this 15kV-35kV Primary UD Cable covers a full range of medium voltage power supply demands. The lightweight aluminum conductor design effectively reduces overall engineering cost, while the optimized TR-XLPE insulation and LLDPE sheath endow the Aluminum Medium Voltage Underground Cable with great aging resistance and pressure resistance. This standard Primary UD Cable and qualified AL TR-XLPE CN LLDPE MV-90 Primary UD is an ideal choice for municipal power grids, industrial parks and commercial power supporting projects.
Single Core MV90 Cable
This single-core 35kV MV UD cable features compacted solid copper conductor, integrated TR-XLPE insulation, concentric neutral layer and durable LLDPE outer sheath. Optimized for 35kV high medium voltage working conditions, it supports long-term buried installation, resisting underground humidity, soil pressure and conventional mechanical damage to ensure continuous and safe power operation.
Conductors：Aluminum
Rated Voltage : 15KV-35KV
Insulated：TR-XLPE
Jacket： LLDPE
Standards ： UL1072
Temperature range ：90℃
Advantages of 25kV MV-90 133% I.L. 320 mils cable
The lightweight design of this Aluminum Medium Voltage Underground Cable greatly reduces cable weight and construction difficulty, effectively lowering project investment costs. As a versatile 15kV-35kV Primary UD Cable, it supports wide-range medium voltage power transmission with strong scenario adaptability. The premium TR-XLPE insulation of the AL TR-XLPE CN LLDPE MV-90 Primary UD provides excellent water tree resistance and electrical aging resistance, while the LLDPE outer sheath offers great abrasion and corrosion resistance. This standard Primary UD Cable features stable electrical performance, long service life and high cost performance, suitable for large-scale popularization and application in medium voltage power grid projects.
Product Description

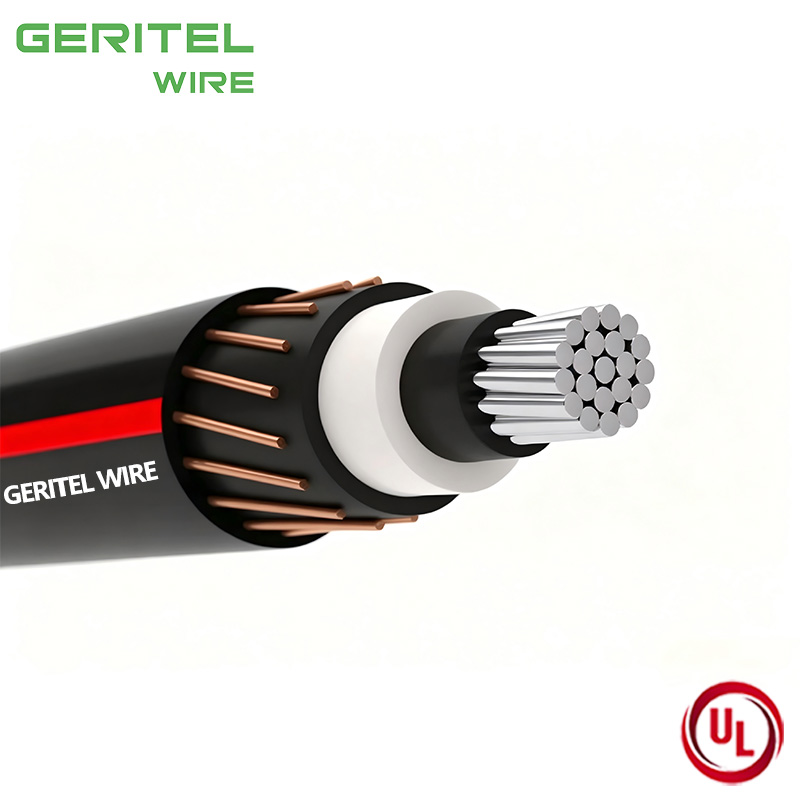

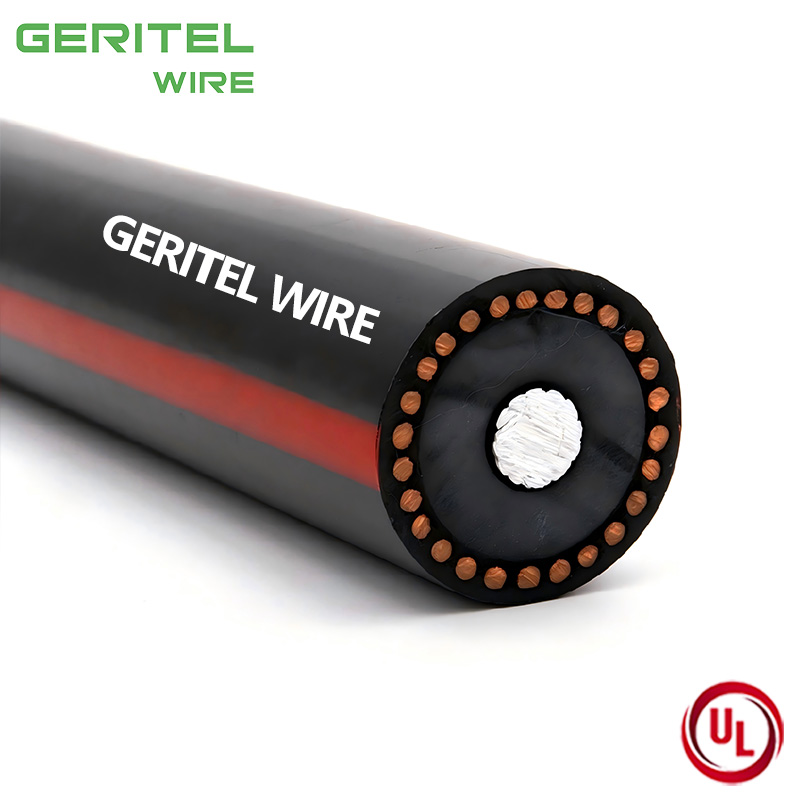

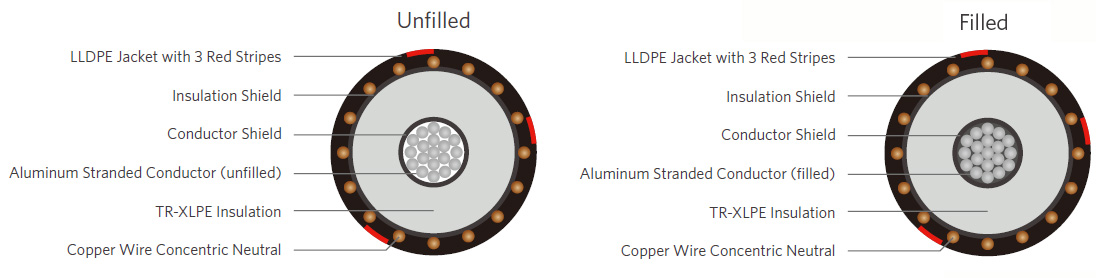

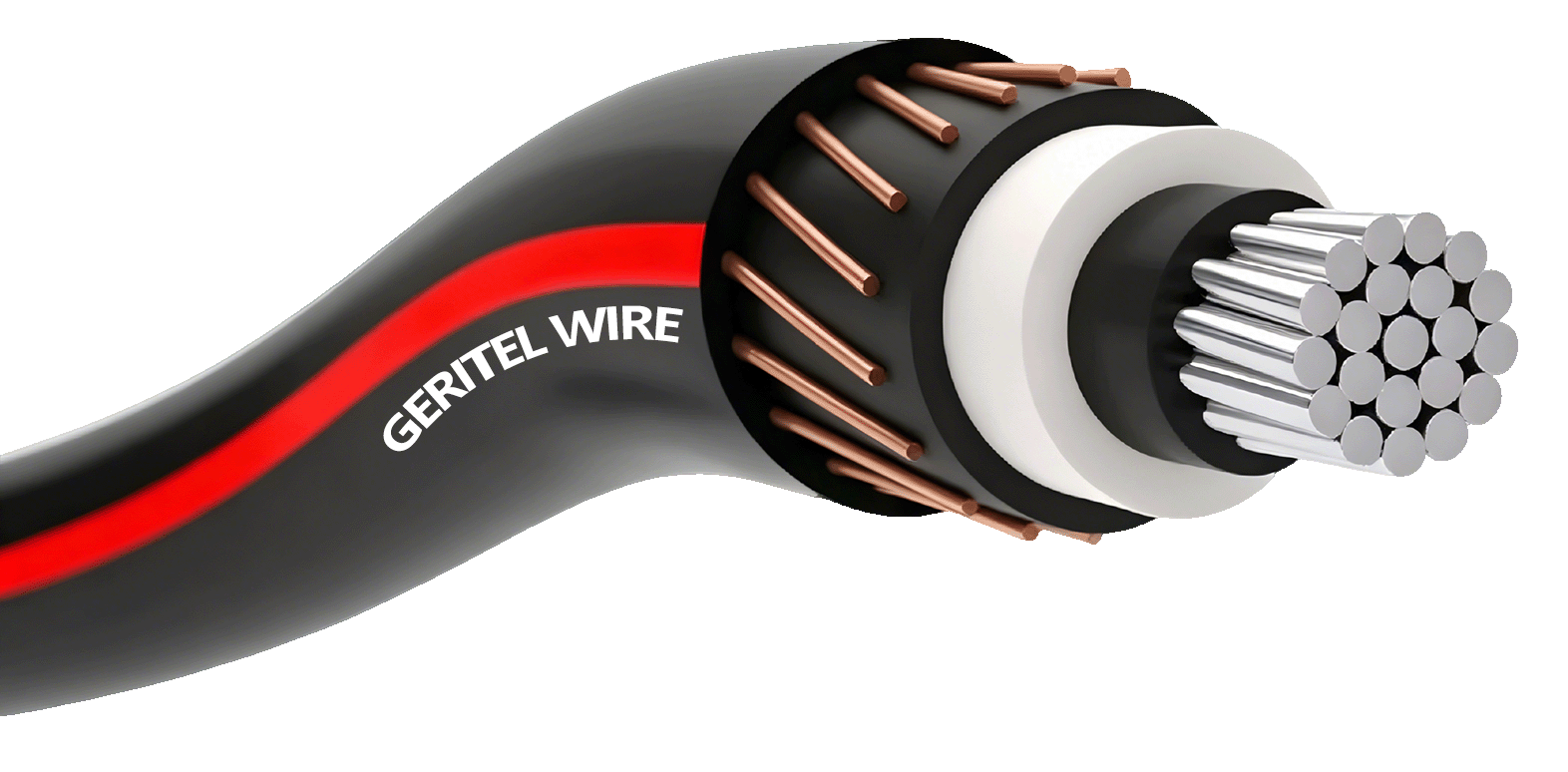

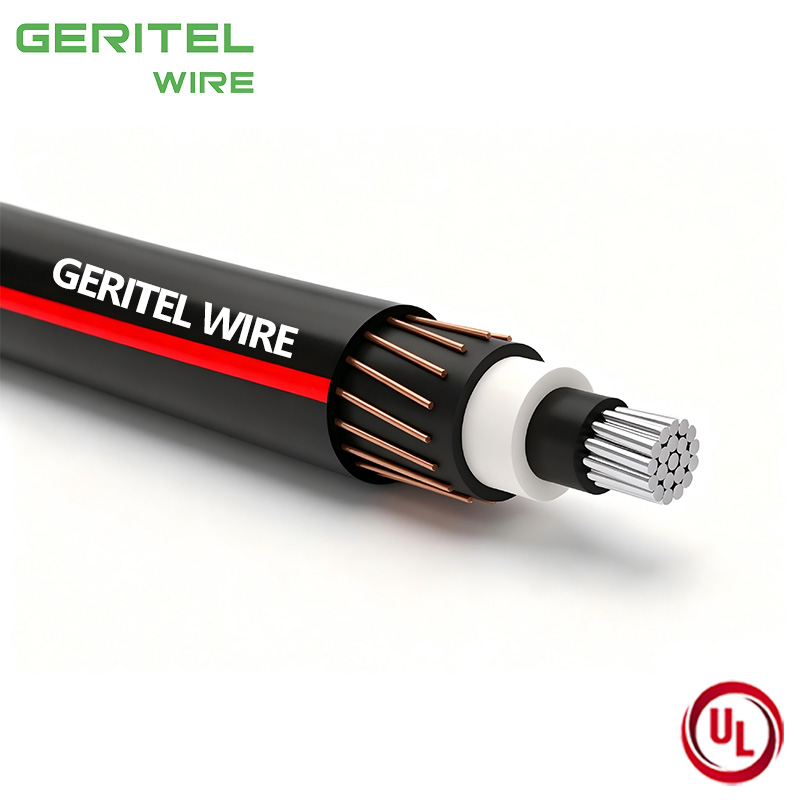

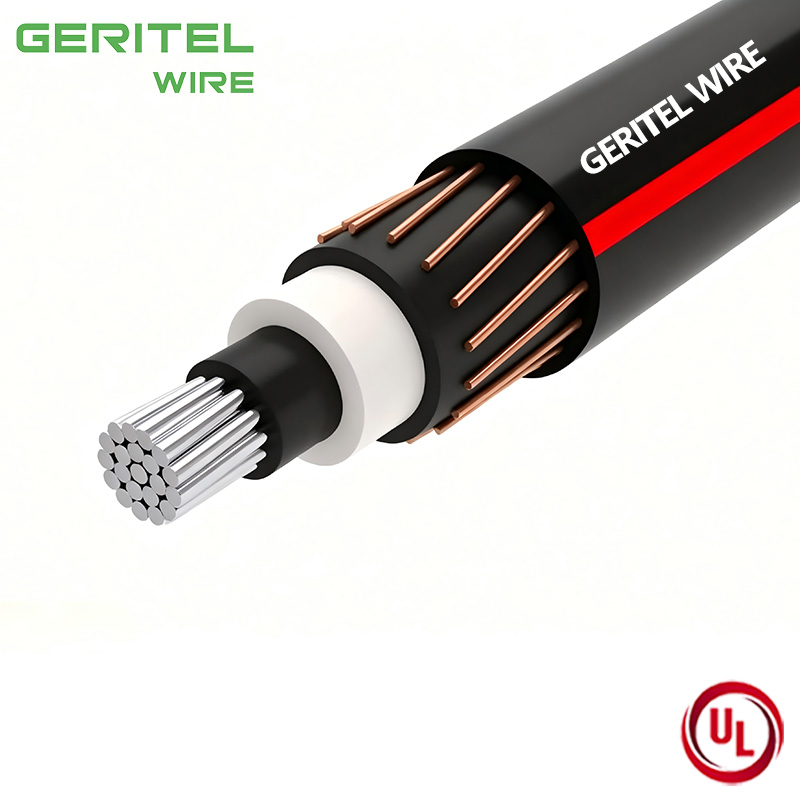

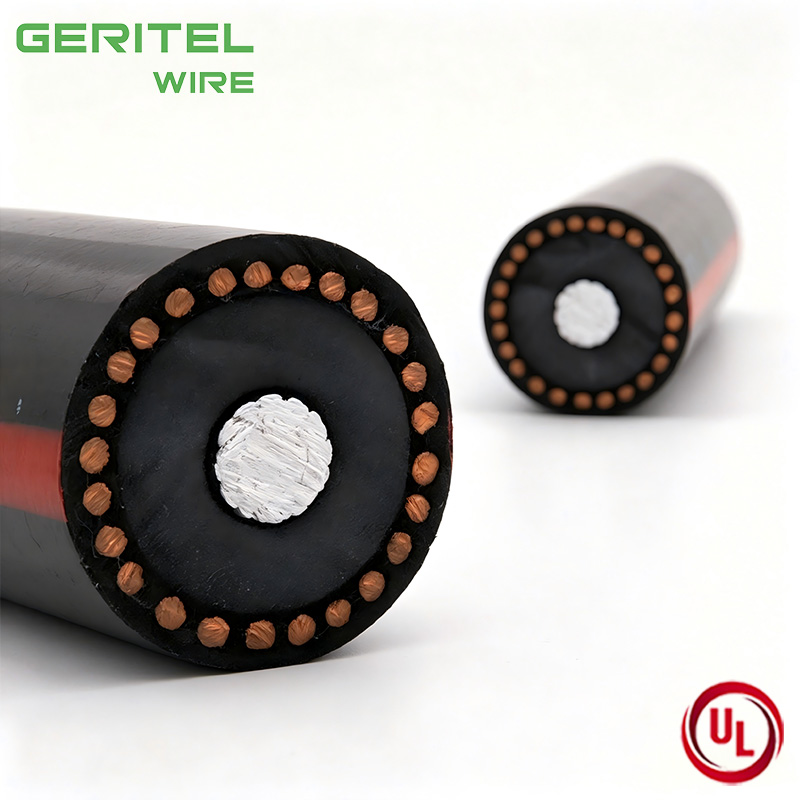

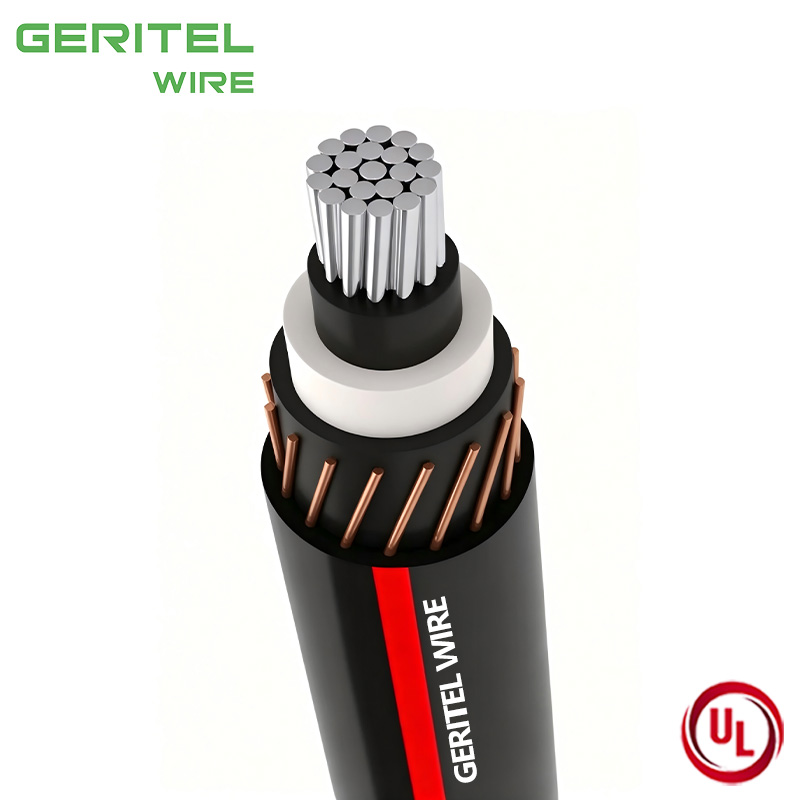

The Medium Voltage Underground Distribution (UD) cables consist of an Aluminum (filled or unfilled) conductor, covered with tree-retardant cross-linked polyethylene (TR-XLPE), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
90°C for normal operations
130°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Aluminum 1350 Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor *Super-Smooth is available upon request |
| Insulation | Tree-Retardant Cross-linked Polyethylene (TR-XLPE) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
| Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
| Jacket Marking | 00000 FT GREATER WIRE CABLE XXAWG (KCMIL) (FS) AL 1/C XXXV XXX% INSUL LEVEL XXXMILS TRXLPE AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances | ASTM B3 ASTM B230 ASTM B231 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Aluminum Unfilled/Filled 25kV 133% I.L. 320mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Underground Duct |
Direct Buried |
|||||||
| 1/3 Reduced Neutral | ||||||||
| 1 | 0.322(8.2) | 1.02(25.9) | 6×14 | 0.050(1.3) | 1.35(34.3) | 680(1,012) | 140 | 175 |
| 1/0 | 0.362(9.2) | 1.06(26.9) | 6×14 | 0.050(1.3) | 1.39(35.3) | 725(1,079) | 155 | 195 |
| 2/0 | 0.405(10.3) | 1.11(28.2) | 7×14 | 0.050(1.3) | 1.45(36.8) | 815(1,213) | 180 | 220 |
| 3/0 | 0.456(11.6) | 1.16(29.5) | 9×14 | 0.050(1.3) | 1.51(38.4) | 905(1,347) | 200 | 250 |
| 4/0 | 0.512(13.0) | 1.22(31.0) | 11×14 |
0.050(1.3) | 1.56(39.6) | 1,005(1,495) | 235 | 285 |
| 250 | 0.558(14.2) | 1.27(32.3) | 13×14 |
0.050(1.3) | 1.62(41.1) | 1,105(1,644) | 260 | 300 |
| 350 | 0.661(16.8) | 1.38(35.1) | 18×14 |
0.075(1.9) | 1.78(45.2) | 1,380(2,053) | 310 | 370 |
| 500 | 0.789(20.0) | 1.51(38.4) | 25×14 |
0.075(1.9) | 1.91(48.5) | 1,695(2,522) | 370 | 445 |
| 750 | 0.968(24.6) | 1.70(43.2) | 24×12 |
0.075(1.9) | 2.16(54.9) | 2,310(3,437) | 460 | 525 |
| 1000 | 1.117(28.4) | 1.85(47.0) | 31×12 | 0.075(1.9) | 2.32(58.9) | 2,790(4,151) | 520 | 575 |
| Full Neutral | ||||||||
| 1 | 0.322(8.2) | 1.02(25.9) | 13×14 | 0.050(1.3) | 1.35(34.3) | 765(1,138) | 140 | 170 |
| 1/0 | 0.362(9.2) | 1.06(26.9) | 16×14 | 0.050(1.3) | 1.39(35.3) | 845(1,257) | 155 | 195 |
| 2/0 | 0.405(10.3) | 1.11(28.2) | 20×14 | 0.050(1.3) | 1.45(36.8) | 970(1,443) | 180 | 220 |
| 3/0 | 0.456(11.6) | 1.16(29.5) | 25×14 | 0.050(1.3) | 1.51(38.4) | 1,095(1,629) | 205 | 250 |
| 4/0 | 0.512(13.0) | 1.22(31.0) | 32×14 | 0.050(1.3) | 1.56(39.6) | 1,255(1,867) | 235 | 285 |
Certification
This series of AL TR-XLPE CN LLDPE MV-90 Primary UD strictly complies with international medium voltage cable industry standards and municipal power grid construction specifications. The qualified 15kV-35kV Primary UD Cable, reliable Primary UD Cable and standard Aluminum Medium Voltage Underground Cable have passed complete electrical performance, safety and durability tests, meeting the construction and operation standards of various medium voltage power engineering projects.
Heat-Resistant
Wear Resistance
Mechanical Strength
UL Certificated
APPLICATIONS
Suitable for full-range medium voltage power distribution projects from 15kV to 35kV, this high-stability 15kV-35kV Primary UD Cable, practical AL TR-XLPE CN LLDPE MV-90 Primary UD, cost-effective Aluminum Medium Voltage Underground Cable and standard Primary UD Cable covers multiple core application scenarios. It is widely used for industrial park power supply, urban commercial building power matching, distribution substation grid connection and conventional electromechanical equipment power transmission, adapting to diversified medium voltage power grid construction and renovation demands.
Industrial Power
This 25kV MV-90 aluminum cable is widely used for medium voltage power distribution in general industrial parks, light manufacturing bases and factory supporting facilities. It provides stable and cost-effective power supply for industrial production lines, factory distribution rooms and auxiliary mechanical equipment, supporting long-term continuous load operation and reducing overall industrial power grid construction costs.
Commercial Buildings
Tailored for urban commercial infrastructure construction, this medium voltage cable serves urban business districts, large shopping complexes, residential community supporting power systems and municipal public buildings. It acts as the main power transmission trunk line for commercial medium voltage distribution systems, stably supporting daily high-power power consumption and all-weather continuous power supply operation.
Substations
Ideal for urban and rural conventional distribution substation construction and grid renovation, this 25kV MV-90 cable is applied for substation incoming and outgoing wiring and regional grid interconnection. It undertakes medium voltage power collection, transmission and distribution tasks, effectively optimizing grid power supply layout, improving power transmission efficiency and ensuring stable operation of regional power distribution networks.
Electric Machines
Optimized for conventional industrial electromechanical equipment power supply, this aluminum medium voltage cable matches medium-power industrial motors, water treatment equipment and transmission machinery. It can cope with daily equipment startup impact and stable load operation, providing reliable medium voltage power guarantee for long-term operation of industrial electromechanical systems.
