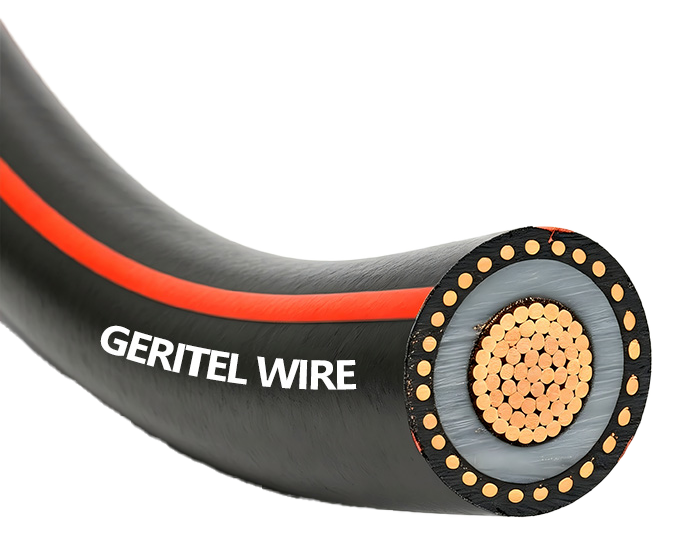

15kV Copper TR-XLPE CN LLDPE MV-90 Cable 100% I.L. 175 mils
Conductor：
Copper Stranded Conductor
Insulation：
TR-XLPE-Based Insulation
Jacket：
LLDPE Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
15kV-35kV
Temperature range：
90℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Copper Stranded Conductor(filled or unfilled)
Insulation and Sheath
TR-XLPE Insulation & LLDPE Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C

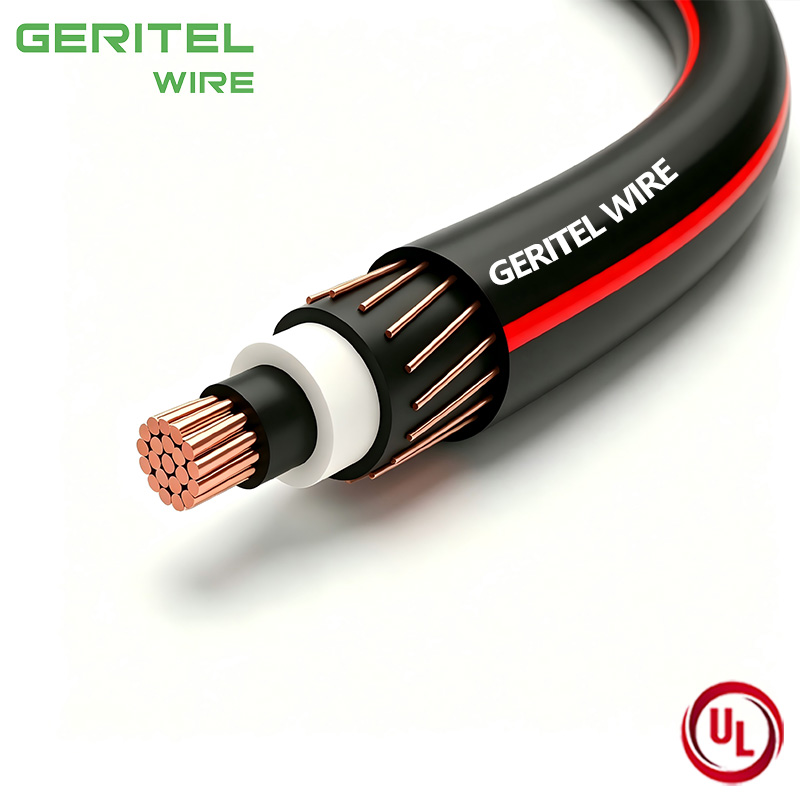

15kV Copper TR-XLPE CN LLDPE MV-90 Utility Underground Primary Cable 100% I.L. 175 Mils
This single-core MV-90 underground power wire is the standard CN LLDPE Primary UD Cable, built with copper conductor, 175mil 100% insulation level TR-XLPE insulation and helical copper concentric neutral structure, categorized as reliable Utility Underground Primary Cable and available as full range 15kV to 35kV Primary UD Cable, fully matching specs of the core model 15kV Copper TR-XLPE/CN/LLDPE MV-90 Cable 100% I.L. 175 mil.
Single Core MV90 Cable
This single-core MV-90 wire is classic TR-XLPE Concentric Neutral Cable, our flagship 15kV Copper TR-XLPE/CN/LLDPE MV-90 Cable 100% I.L. 175 mil belongs to full range 15kV to 35kV Primary UD Cable. As standard CN LLDPE Primary UD Cable & durable Utility Underground Primary Cable, it features TR-XLPE insulation, copper concentric neutral and triple red stripe LLDPE jacket, UL1072 certified for direct burial & duct underground power distribution.
Conductors：Bare Copper
Rated Voltage : 15KV-35KV
Insulated：TR-XLPE
Jacket： LLDPE
Standards ： UL1072
Temperature range ：90℃
Advantages of 15kV MV-90 100% I.L. 175 mils cable
Our TR-XLPE Concentric Neutral Cable owns outstanding anti-water tree performance and low dielectric loss; as standard CN LLDPE Primary UD Cable, it has stable concentric neutral grounding and UV-resistant outer jacket, making it durable Utility Underground Primary Cable among all series 15kV to 35kV Primary UD Cable, especially the model 15kV Copper TR-XLPE/CN/LLDPE MV-90 Cable 100% I.L. 175 mil.
Product Description
The Medium Voltage Underground Distribution (UD) cables consist of an Copper (filled or unfilled) conductor, covered with tree-retardant cross-linked polyethylene (TR-XLPE), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
90°C for normal operations
130°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Fully annealed bare copper Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor *Super-Smooth is available upon request |
| Insulation | Tree-Retardant Cross-linked Polyethylene (TR-XLPE) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
| Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
| Jacket Marking | 00000 FT GREATER WIRE CABLE XXAWG (KCMIL) CU (FS) 1/C XXKV XXX% INSUL LEVEL XXXMILS TRXLPE AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances | ASTM B3 ASTM B8 ASTM B609 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Copper Unfilled/Filled 15kV 100% I.L. 175mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Underground Duct |
Direct Buried |
|||||||
| 1/3 Reduced Neutral | ||||||||
| 2 | 0.283(7.2) | 0.69(17.5) | 6×14 | 0.050(1.3) | 1.01(25.7) | 570(848) | 160 | 195 |
| 1 | 0.322(8.2) | 0.73(18.5) | 7×14 | 0.050(1.3) | 1.05(26.7) | 650(967) | 180 | 220 |
| 1/0 | 0.362(9.2) | 0.77(19.6) | 9×14 | 0.050(1.3) | 1.09(35.3) | 760(1,131) | 200 | 250 |
| 2/0 | 0.405(10.3) | 0.81(20.6) | 11×14 | 0.050(1.3) | 1.14(29.0) | 885(1,317) | 230 | 285 |
| 3/0 | 0.456(11.6) | 0.86(21.8) | 14×14 | 0.050(1.3) | 1.19(30.2) | 1,050(1,562) | 260 | 320 |
| 4/0 | 0.512(13.0) | 0.92(23.4) | 18×14 |
0.050(1.3) | 1.25(31.8) | 1,255(1,867) | 300 | 360 |
| 250 | 0.558(14.2) | 0.98(24.9) | 21×14 |
0.050(1.3) | 1.30(33.0) | 1,440(2,413) | 330 | 385 |
| 350 | 0.661(16.8) | 1.08(27.4) | 29×14 |
0.050(1.3) | 1.43(36.3) | 1,905(2,835) | 390 | 460 |
| 500 | 0.789(20.0) | 1.21(30.7) | 26×12 |
0.050(1.3) | 1.59(40.4) | 2,600(3,869) | 455 | 525 |
| 750 | 0.968(24.6) | 1.40(35.6) | 25×10 |
0.075(1.9) | 1.88(47.8) | 3,815(5,677) | 545 | 580 |
| 1000 | 1.117(28.4) | 1.56(39.6) | 32×10 | 0.075(1.9) | 2.03(51.6) | 4,870(7,246) | 605 | 650 |
| Full Neutral | ||||||||
| 2 | 0.283(7.2) | 0.69(17.5) | 16×14 | 0.050(1.3) | 1.01(25.7) | 690(1,027) | 155 | 195 |
| 1 | 0.322(8.2) | 0.73(18.5) | 20×14 | 0.050(1.3) | 1.05(26.7) | 805(1,198) | 175 | 220 |
| 1/0 | 0.362(9.2) | 0.77(19.6) | 25×14 | 0.050(1.3) | 1.09(27.7) | 950(1,414) | 200 | 250 |
| 2/0 | 0.405(10.3) | 0.81(20.6) | 32×14 | 0.050(1.3) | 1.14(29.0) | 1,135(1,689) | 225 | 280 |
| 3/0 | 0.456(11.6) | 0.86(21.8) | 25×12 | 0.050(1.3) | 1.22(31.0) | 1,385(2,061) | 260 | 315 |
| 4/0 | 0.512(13.0) | 0.92(23.4) | 32×12 | 0.050(1.3) | 1.28(32.5) | 1,675(2,492) | 295 | 355 |
Certification
The core model 15kV Copper TR-XLPE/CN/LLDPE MV-90 Cable 100% I.L. 175 mil and full series 15kV to 35kV Primary UD Cable comply with ASTM, ICEA, AEIC standards and pass UL 1072 MV-90 certification, all qualified TR-XLPE Concentric Neutral Cable and CN LLDPE Primary UD Cable for North American Utility Underground Primary Cable projects.
