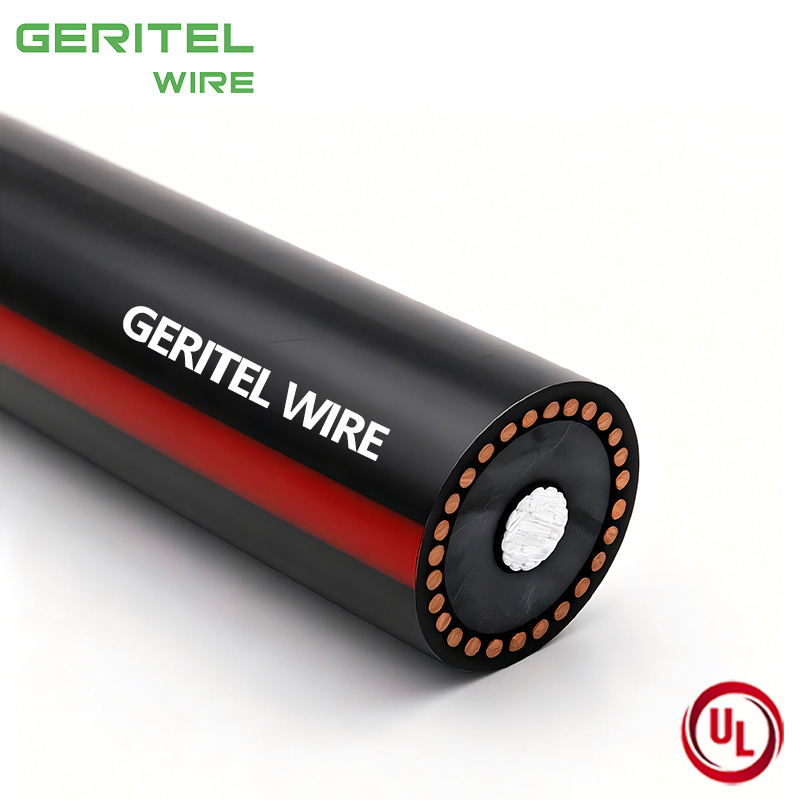

15kV Aluminum TR-XLPE/CN/LLDPE MV-90 Cable 133% I.L. 220 mils
Conductor：
Aluminum Stranded Conductor
Insulation：
TR-XLPE-Based Insulation
Jacket：
LLDPE Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
15kV-35kV
Temperature range：
90℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Aluminum Stranded Conductor(filled or unfilled)
Insulation and Sheath
TR-XLPE Insulation & LLDPE Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C
15kV Aluminum TR-XLPE/CN/LLDPE MV-90 Cable 133% I.L. 220 Mils for Urban Distribution
Specially configured for 15kV medium voltage power systems, this MV-90 aluminum cable features 133% insulation level and 220 mils heavy-duty TR-XLPE insulation, exceeding standard industry safety requirements. The solid single aluminum conductor primary cable reduces overall cable weight and construction costs while maintaining efficient power conduction. The high-performance dielectric layer of this high dielectric strength TR-XLPE cable provides superior voltage resistance and anti-aging properties, resisting water tree degradation and electrical erosion in long-term operation. With a professional 1/3 neutral primary UD cable structural design and durable LLDPE outer sheath, this TR-XLPE insulated medium voltage cable offers excellent mechanical protection and environmental adaptability, ideal for municipal grid renovation, urban power distribution and general industrial power supply projects.

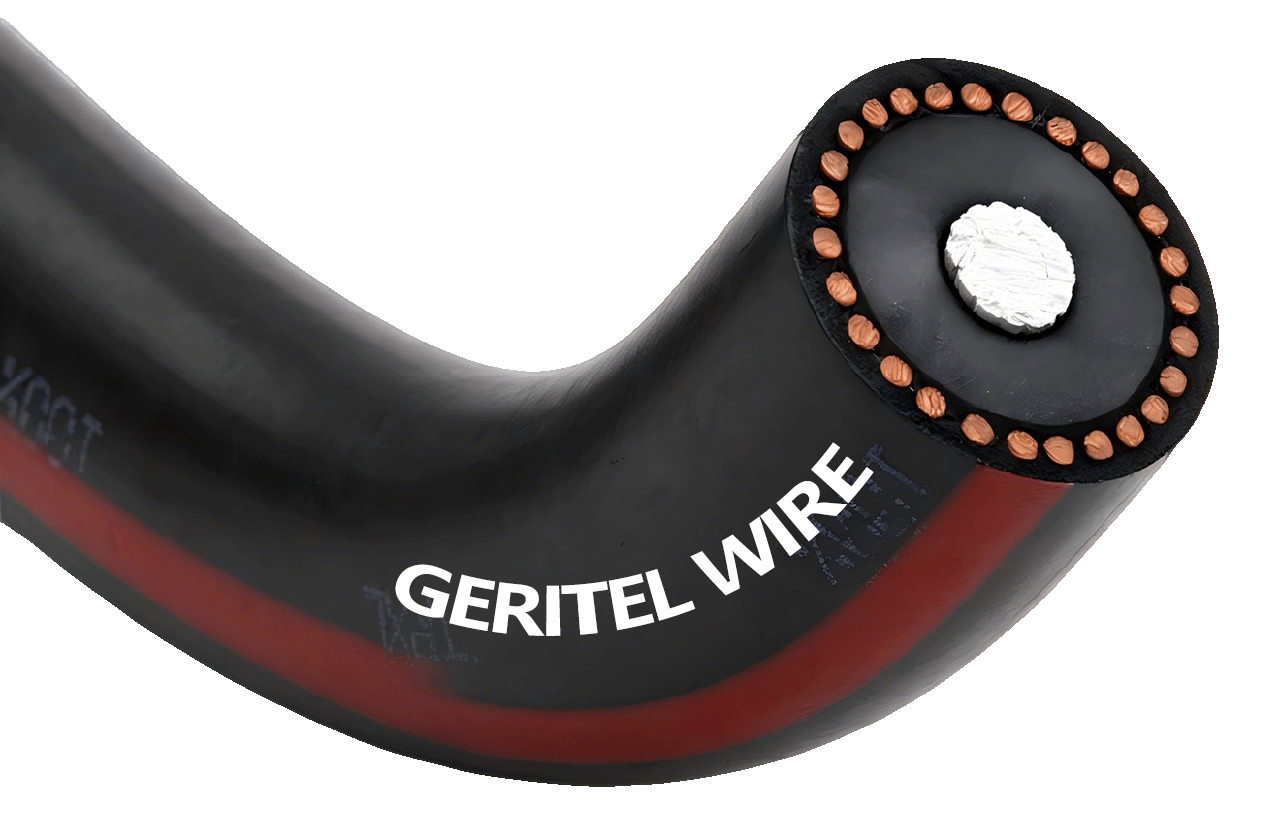

Single Core MV90 Cable
This single-core MV-90 primary cable adopts high-quality compacted aluminum conductor, serving as a high-efficiency single aluminum conductor primary cable. It is insulated with 220 mils high-strength TR-XLPE material, forming thehigh dielectric strength TR-XLPE cable core structure that guarantees outstanding electrical stability. Equipped with precise 1/3 concentric neutral layer, this1/3 neutral primary UD cable achieves balanced current sharing and reliable shielding performance. The integrated LLDPE outer jacket further enhances abrasion, moisture and corrosion resistance, making thisTR-XLPE insulated medium voltage cable suitable for long-term fixed laying and continuous load operation in various outdoor and conventional engineering scenarios.
Conductors：Aluminum
Rated Voltage : 15KV-35KV
Insulated：TR-XLPE
Jacket： LLDPE
Standards ： UL1072
Temperature range ：90℃
Advantages of 15kV MV-90 133% I.L. 220 mils cable
The single aluminum conductor primary cable features lightweight structure and low conduction loss, greatly reducing transportation and laying difficulty while improving power transmission efficiency. The high dielectric strength TR-XLPE cable adopts high-purity insulation material, possessing excellent voltage resistance, water tree retardant performance and anti-aging ability to extend cable service life significantly. The scientific 1/3 neutral primary UD cable design balances electrical performance and economic cost, achieving high cost performance for large-scale engineering use. As a standard TR-XLPE insulated medium voltage cable, it is equipped with wear-resistant and corrosion-resistant LLDPE sheath, adapting to various complex laying environments and ensuring stable long-term operation.
Product Description
The Medium Voltage Underground Distribution (UD) cables consist of an Aluminum (filled or unfilled) conductor, covered with tree-retardant cross-linked polyethylene (TR-XLPE), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
90°C for normal operations
130°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Aluminum 1350 Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor *Super-Smooth is available upon request |
| Insulation | Tree-Retardant Cross-linked Polyethylene (TR-XLPE) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
| Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
| Jacket Marking | 00000 FT GREATER WIRE CABLE XXAWG (KCMIL) (FS) AL 1/C XXXV XXX% INSUL LEVEL XXXMILS TRXLPE AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances | ASTM B3 ASTM B230 ASTM B231 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Aluminum Unfilled/Filled 15kV 133% I.L. 220mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Underground Duct |
Direct Buried |
|||||||
| 1/3 Reduced Neutral | ||||||||
| 2 | 0.283(7.2) | 0.78(19.8) | 6×14 | 0.050(1.3) | 1.10(27.9) | 490(729) | 120 | 150 |
| 1 | 0.322(8.2) | 0.82(20.8) | 6×14 | 0.050(1.3) | 1.14(29.0) | 525(781) | 140 | 175 |
| 1/0 | 0.362(9.2) | 0.86(21.8) | 6×14 | 0.050(1.3) | 1.19(30.2) | 565(841) | 155 | 195 |
| 2/0 | 0.405(10.3) | 0.90(22.9) | 7×14 | 0.050(1.3) | 1.23(31.2) | 625(930) | 180 | 220 |
| 3/0 | 0.456(11.6) | 0.96(24.4) | 9×14 | 0.050(1.3) | 1.28(32.5) | 710(1,056) | 200 | 250 |
| 4/0 | 0.512(13.0) | 1.01(25.7) | 11×14 |
0.050(1.3) | 1.34(34.0) | 805(1,198) | 235 | 285 |
| 250 | 0.558(14.2) | 1.07(27.2) | 13×14 |
0.050(1.3) | 1.41(35.8) | 915(1,362) | 260 | 300 |
| 350 | 0.661(16.8) | 1.17(29.7) | 18×14 |
0.050(1.3) | 1.52(38.6) | 1,125(1,674) | 310 | 370 |
| 500 | 0.789(20.0) | 1.30(33.0) | 25×14 |
0.050(1.3) | 1.65(41.9) | 1,415(2,105) | 370 | 445 |
| 750 | 0.968(24.6) | 1.50(38.1) | 24×12 |
0.075(1.9) | 1.93(49.0) | 2,010(2,991) | 460 | 525 |
| 1000 | 1.117(28.4) | 1.65(41.9) | 31×12 | 0.075(1.9) | 2.11(53.6) | 2,515(3,742) | 520 | 575 |
| Full Neutral | ||||||||
| 2 | 0.283(7.2) | 0.78(19.8) | 10×14 | 0.050(1.3) | 1.10(27.9) | 535(796) | 120 | 150 |
| 1 | 0.322(8.2) | 0.82(20.8) | 13×14 | 0.050(1.3) | 1.14(29.0) | 610(908) | 140 | 170 |
| 1/0 | 0.362(9.2) | 0.86(21.8) | 16×14 | 0.050(1.3) | 1.19(30.2) | 685(1,019) | 155 | 195 |
| 2/0 | 0.405(10.3) | 0.90(22.9) | 20×14 | 0.050(1.3) | 1.23(31.2) | 780(1,161) | 180 | 220 |
| 3/0 | 0.456(11.6) | 0.96(24.4) | 25×14 | 0.050(1.3) | 1.28(32.5) | 900(1,339) | 205 | 250 |
| 4/0 | 0.512(13.0) | 1.01(25.7) | 32×14 | 0.050(1.3) | 1.34(34.0) | 1,055(1,570) | 235 | 285 |
Certification
This series of medium voltage cables complies with international MV cable industry standards and municipal power grid construction specifications. All finished TR-XLPE insulated medium voltage cable, 1/3 neutral primary UD cable, high dielectric strength TR-XLPE cable and single aluminum conductor primary cable have passed strict electrical performance, safety and durability tests, meeting the construction and operation requirements of global medium voltage power distribution projects.
Heat-Resistant
Wear Resistance
Mechanical Strength
UL Certificated
APPLICATIONS
Tailored for universal 15kV medium voltage power distribution projects, this high-performance TR-XLPE insulated medium voltage cable, stable 1/3 neutral primary UD cable, high-insulation high dielectric strength TR-XLPE cable and cost-effective single aluminum conductor primary cable covers diversified core application fields. It is widely deployed in urban municipal power grids, residential community power supply, light industrial park distribution, commercial building power supporting and conventional substation grid connection, fully meeting the safe and stable power transmission demands of civil and industrial medium voltage projects.
Industrial Power
This 15kV MV-90 aluminum cable is widely applied in light industrial parks, small and medium-sized manufacturing plants and industrial auxiliary facilities. It provides stable and efficient medium voltage power support for factory distribution systems, production line equipment and industrial auxiliary machinery, reliably sustaining long-term continuous load operation and reducing industrial power grid construction and maintenance costs.
Commercial Buildings
Optimized for modern urban commercial and civil infrastructure, this medium voltage cable serves high-rise commercial buildings, urban business complexes, residential communities and municipal public service buildings. It acts as the core power transmission trunk for building medium voltage distribution systems, supporting 24/7 stable power supply for high-power commercial and civilian electrical equipment.
Substations
Ideal for 15kV urban and rural distribution substation construction and grid upgrading, this MV-90 cable is used for substation incoming and outgoing feeder wiring and regional grid interconnection. It undertakes medium voltage power collection, transmission and distribution tasks, effectively optimizing regional power grid layout, improving power transmission efficiency and enhancing the overall stability of municipal power distribution networks.
Electric Machines
Matched with medium and small-scale industrial electromechanical equipment, municipal water treatment systems, ventilation units and general transmission machinery, this 15kV medium voltage cable copes with frequent equipment startup impacts and long-term variable load operation. It provides reliable and stable medium voltage power guarantee for the continuous and safe operation of various conventional electromechanical systems.
