15kV Aluminum TR-XLPE/CN/LLDPE MV-90 Cable 100% I.L. 175 mils
Conductor：
Aluminum Stranded Conductor
Insulation：
TR-XLPE-Based Insulation
Jacket：
LLDPE Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
15kV-35kV
Temperature range：
90℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Aluminum Stranded Conductor(filled or unfilled)
Insulation and Sheath
TR-XLPE Insulation & LLDPE Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C
15kV Aluminum MV-90 Primary UD Cable fOR Municipal & Residential Distribution
Specially engineered for 15kV conventional medium voltage power distribution systems, this aluminum MV-90 cable adopts standardized 100% insulation level and 175 mils premium TR-XLPE dielectric insulation. As a certified UL 1072 Medium Voltage Power Cable, it integrates tree retardant insulation technology to effectively prevent dielectric aging and water tree proliferation. The optimized structure of reduced neutral primary UD cable realizes reasonable cost control while ensuring stable power transmission. Matched with high-strength outer protection, this LLDPE jacket underground distribution cable delivers outstanding abrasion resistance and corrosion resistance, making the tree retardant dielectric primary cable an economical and reliable solution for municipal power grids, residential district power supply and industrial supporting power projects.
Single Core MV90 Cable
This single-core 15kV MV-90 primary cable adopts high-purity aluminum conductor, uniform tree retardant TR-XLPE dielectric layer, optimized reduced neutral shielding structure and premium LLDPE outer jacket. With standard 100% insulation level and 175 mils insulation thickness, it meets full compliance requirements for UL 1072 Medium Voltage Power Cable. The lightweight aluminum structure reduces laying difficulty and construction cost, while the integrated anti-aging and anti-pressure design maintains long-term stable operation in conventional outdoor and buried environments, fully adapting to daily medium voltage power transmission demands.
Conductors：Aluminum
Rated Voltage : 15KV-35KV
Insulated：TR-XLPE
Jacket： LLDPE
Standards ： UL1072
Temperature range ：90℃
Advantages of 15kV MV-90 100% I.L. 175 mils cable
The tree retardant dielectric primary cable adopts professional tree retardant TR-XLPE insulation technology, which effectively inhibits water tree growth and dielectric aging, greatly extending cable service life. The optimized structural design of reduced neutral primary UD cable reduces material cost while maintaining excellent electrical performance, with high cost performance. The premium outer sheath of LLDPE jacket underground distribution cable offers superior abrasion resistance, moisture resistance and soil corrosion resistance, adapting to various conventional laying environments. Compliant with UL 1072 Medium Voltage Power Cable standards, the whole cable features stable power transmission, high safety factor and wide application range, suitable for large-scale popularization in basic medium voltage power projects.
Product Description

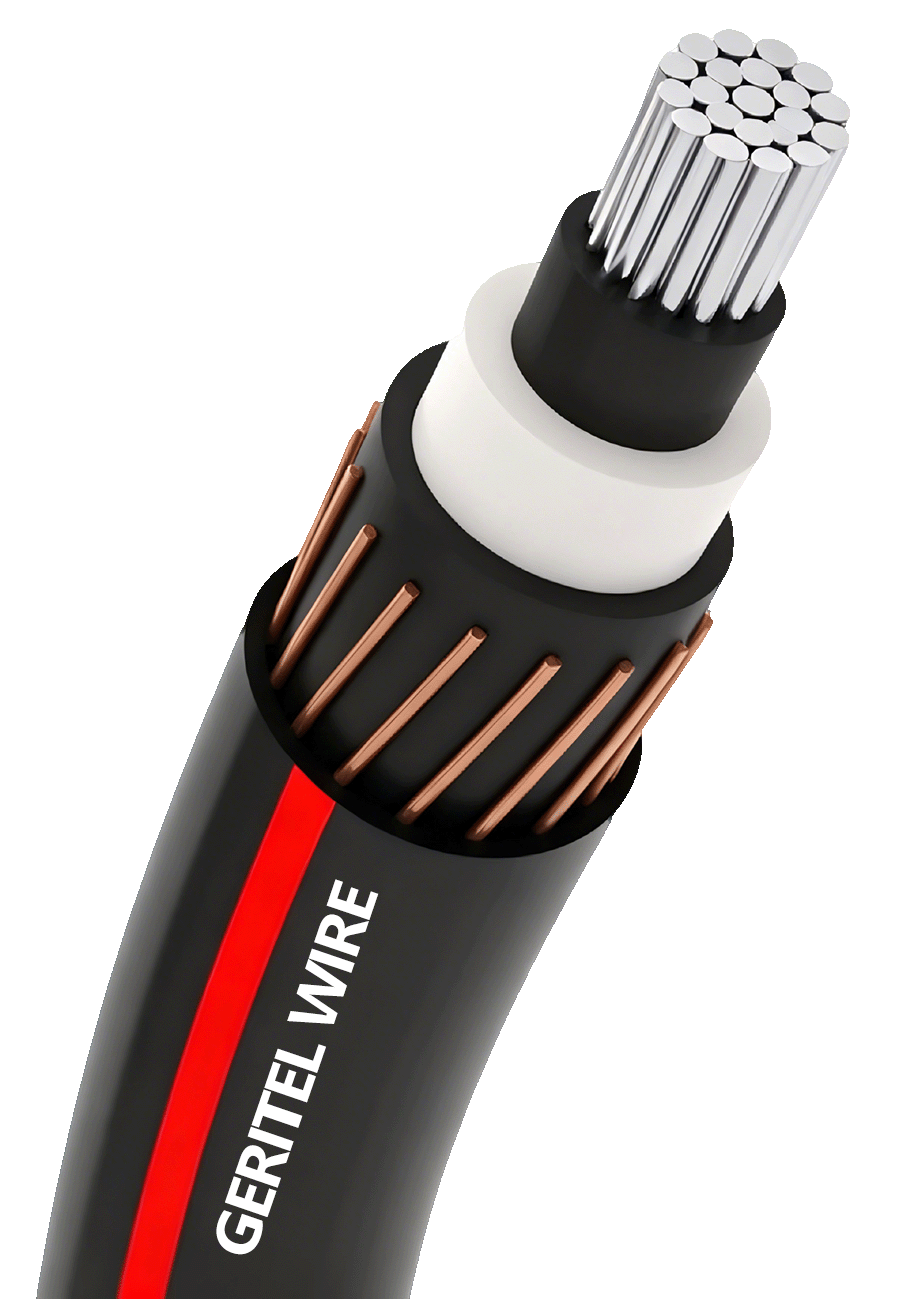

The Medium Voltage Underground Distribution (UD) cables consist of an Aluminum (filled or unfilled) conductor, covered with tree-retardant cross-linked polyethylene (TR-XLPE), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
90°C for normal operations
130°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Aluminum 1350 Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor *Super-Smooth is available upon request |
| Insulation | Tree-Retardant Cross-linked Polyethylene (TR-XLPE) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
| Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
| Jacket Marking | 00000 FT GREATER WIRE CABLE XXAWG (KCMIL) (FS) AL 1/C XXXV XXX% INSUL LEVEL XXXMILS TRXLPE AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances | ASTM B3 ASTM B230 ASTM B231 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Aluminum Unfilled/Filled 15kV 100% I.L. 175mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Underground Duct |
Direct Buried |
|||||||
| 1/3 Reduced Neutral | ||||||||
| 2 | 0.283(7.2) | 0.69(17.5) | 6×14 | 0.050(1.3) | 1.01(25.7) | 430(640) | ||
| 1 | 0.322(8.2) | 0.73(18.5) | 6×14 | 0.050(1.3) | 1.05(26.7) | 465(692) | 140 | 175 |
| 1/0 | 0.362(9.2) | 0.77(19.6) | 6×14 | 0.050(1.3) | 1.09(27.7) | 500(744) | 155 | 195 |
| 2/0 | 0.405(10.3) | 0.81(20.6) | 7×14 | 0.050(1.3) | 1.14(29.0) | 560(833) | 180 | 220 |
| 3/0 | 0.456(11.6) | 0.86(21.8) | 9×14 | 0.050(1.3) | 1.19(30.2) | 640(952) | 200 | 250 |
| 4/0 | 0.512(13.0) | 0.92(23.4) | 11×14 |
0.050(1.3) | 1.25(31.8) | 730(1,086) | 235 | 285 |
| 250 | 0.558(14.2) | 0.98(24.9) | 13×14 |
0.050(1.3) | 1.30(33.0) | 820(1,220) | 260 | 300 |
| 350 | 0.661(16.8) | 1.08(27.4) | 18×14 |
0.075(1.9) | 1.43(36.3) | 1,040(1,548) | 310 | 370 |
| 500 | 0.789(20.0) | 1.21(30.7) | 25×14 |
0.075(1.9) | 1.56(39.6) | 1,325(1,972) | 370 | 445 |
| 750 | 0.968(24.6) | 1.40(35.6) | 24×12 |
0.075(1.9) | 1.84(46.7) | 1,905(2,835) | 460 | 525 |
| 1000 | 1.117(28.4) | 1.56(39.6) | 31×12 | 0.075(1.9) | 1.99(50.5) | 2,355(3,504) | 520 | 575 |
| Full Neutral | ||||||||
| 2 | 0.283(7.2) | 0.69(17.5) | 10×14 | 0.050(1.3) | 1.01(25.7) | 475(707) | 120 | 150 |
| 1 | 0.322(8.2) | 0.73(18.5) | 13×14 | 0.050(1.3) | 1.05(26.7) | 545(811) | 140 | 170 |
| 1/0 | 0.362(9.2) | 0.77(19.6) | 16×14 | 0.050(1.3) | 1.09(27.7) | 620(923) | 155 | 195 |
| 2/0 | 0.405(10.3) | 0.81(20.6) | 20×14 | 0.050(1.3) | 1.14(29.0) | 715(1,064) | 180 | 220 |
| 3/0 | 0.456(11.6) | 0.86(21.8) | 25×14 | 0.050(1.3) | 1.19(30.2) | 830(1,235) | 205 | 250 |
| 4/0 | 0.512(13.0) | 0.92(23.4) | 32×14 | 0.050(1.3) | 1.25(31.8) | 980(1,458) | 235 | 285 |
