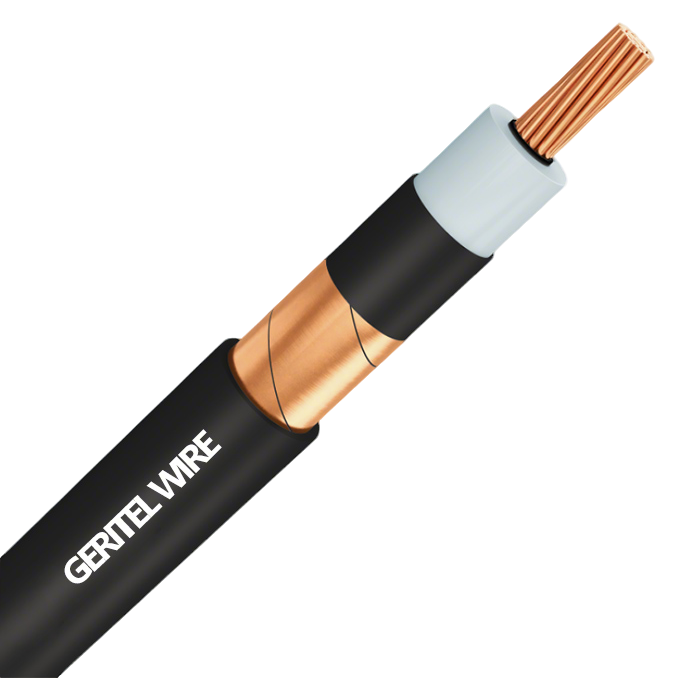

CU EPR/CTS/PVC Power Type MV-105 15kV 133% I.L. 220 mils Shielded
Conductor：
Copper Stranded Conductor
Insulation：
EPR-Based Insulation
Jacket：
PVC Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
5kV-35kV
Temperature range：
105℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Copper Stranded Conductor(filled or unfilled)
Insulation and Sheath
EPR Insulation & PVC Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
105°C
CU EPR/CTS/PVC Power Type MV-105 15kV 133% I.L. 220 mils Shielded FOR Critical Industrial Power Distribution Facilities
This 15kV 133% I.L. 220 mils single-conductor shielded medium voltage cable is a high-performance fully shielded medium voltage cable. As a professional helically applied copper tape shield cable, certified grounded shield medium voltage cable and reliable CU CTS power cable, it features solid copper conductor, upgraded 220 mils thick EPR insulation layer, standard copper tape shielding structure and wear-resistant PVC outer jacket, specially engineered for industrial high-voltage power station wiring and high-load indoor medium voltage power distribution projects.
Single Core MV105 Cable
Our single-core MV-105 cable is a high-temperature resistant medium voltage power cable rated for 105°C continuous operation. As a typical fully shielded medium voltage cable and high-quality CU CTS power cable, it adopts a unique helically applied copper tape shielding structure, making it a standard helically applied copper tape shield cable. The reliable grounded shielding design enables this grounded shield medium voltage cable to eliminate electric field interference effectively. With 220 mils thick EPR insulation and durable PVC jacket, its single-core structure ensures efficient heat dissipation and high load capacity, ideal for high-standard industrial high-voltage power station wiring and indoor medium voltage power transmission.
Conductors：Stranded Copper
Rated Voltage : 5KV-35KV
Insulated：EPR
Jacket： PVC
Standards ： UL1072
Temperature range ：105℃
Advantages of MV-105 15kV 133% 220 mils cable
This premium CU CTS power cable adopts 220 mils thick insulation with 133% insulation level, delivering ultra-high dielectric strength, excellent anti-aging and anti-treeing electrical properties. As a stable fully shielded medium voltage cable and professional helically applied copper tape shield cable, it comes with a grounded shielding design, making it a safe grounded shield medium voltage cable. It supports 105°C long-term continuous high-temperature operation, with a smooth PVC jacket that reduces conduit pulling friction, greatly improving construction efficiency and adapting to long-term high-load industrial power operation.
Product Description
The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket. These cables are used in industrial power circuits.
Applications
-
In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
-
In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
-
In wet or dry locations
-
Approved for Class I, Div. 2 industrial hazardous locations per NEC
-
Designed to operate continuously at a conductor temperature not exceeding
» 105°C for normal operations
» 140°C for emergency overload
» 250°C for short circuit
Features
-
Rated at 105°C wet or dry
-
Excellent corona resistance
-
High dielectric strength
-
Low moisture absorption
-
Low dielectric loss
-
Excellent sunlight resistance
-
For CT USE for 1/0 AWG and larger, per UL® 1072
-
Meets cold bend test at -35°C
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Fully annealed bare copper Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield | Extruded thermoset semi-conducting polymer over the conductor |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Shield | 5 mil annealed copper tape helically applied with approximately 25% overlap |
| Jacket | Polyvinyl Chloride (PVC) |
| Jacket Marking |
2 AWG – 1 AWG：00000 FT GREATER WIRE CABLE XXAWG 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG – 1000 kcmil：00000 FT GREATER WIRE CABLE XXAWG (or XXXKCMIL) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances |
ASTM B3 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC |
| Other Compliances |
EPA 40 CFR, Part 261 OSHA |
Copper Unfilled/Filled Cdr 15kV 133% I.L. 220mils, Shielded
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Underground Duct |
Direct Buried |
||||||
| 2 | 0.283(7.2) | 0.78(19.8) | 0.075(1.9) | 1.02(25.9) | 645(960) | 165 | 165 |
| 1 | 0.322(8.2) | 0.82(20.8) | 0.075(1.9) | 1.06(26.9) | 725(1,079) | 185 | 185 |
| 1/0 | 0.362(9.2) | 0.86(21.8) | 0.075(1.9) | 1.10(27.9) | 815(1,213) | 215 | 215 |
| 2/0 | 0.405(10.3) | 0.90(22.9) | 0.075(1.9) | 1.14(29.0) | 930(1,384) | 245 | 245 |
| 3/0 | 0.456(11.6) | 0.96(24.4) | 0.075(1.9) | 1.20(30.5) | 1,070(1,592) | 280 | 275 |
| 4/0 | 0.512(13.0) | 1.01(25.7) | 0.075(1.9) | 1.25(31.8) | 1,235(1,838) | 320 | 315 |
| 250 | 0.558(14.2) | 1.07(27.2) | 0.075(1.9) | 1.31(33.3) | 1,395(2,076) | 350 | 345 |
| 350 | 0.661(16.8) | 1.17(29.7) | 0.075(1.9) | 1.42(36.1) | 1,765(2,626) | 430 | 415 |
| 500 | 0.789(20.0) | 1.30(33.0) | 0.075(1.9) | 1.55(39.4) | 2,305(3,430) | 525 | 500 |
| 750 | 0.968(24.6) | 1.50(38.1) | 0.075(1.9) | 1.74(44.2) | 3,190(4,747) | 635 | 610 |
| 1000 | 1.117(28.4) | 1.65(41.9) | 0.105(2.7) | 1.96(49.8) | 4,165(6,197) | 725 | 690 |
Certification
All structural and electrical parameters of fully shielded medium voltage cable, helically applied copper tape shield cable, grounded shield medium voltage cable and CU CTS power cable have passed strict professional electrical testing and quality inspection. All products comply with standard medium voltage industry specifications and mainstream electrical codes for high-standard industrial and commercial power projects in North and Latin America.
