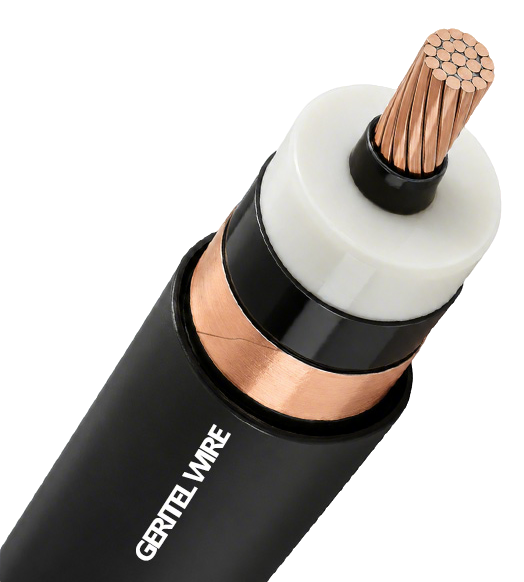

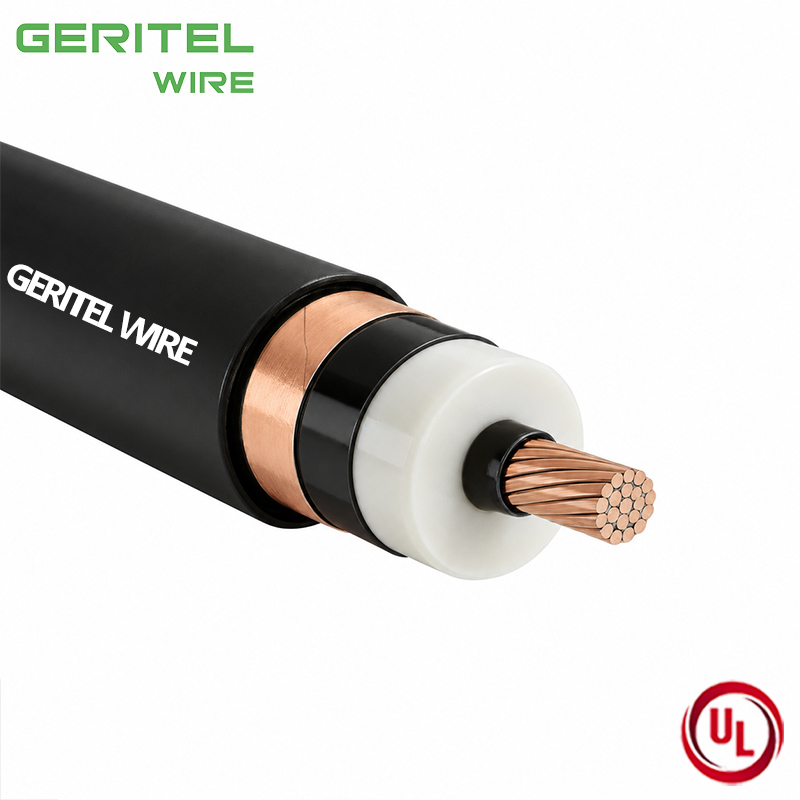

CU EPR/CTS/PVC Power Type MV-105 25kV 100% I.L. 260 mils Shielded
Conductor：
Copper Stranded Conductor
Insulation：
EPR-Based Insulation
Jacket：
PVC Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
5kV-35kV
Temperature range：
105℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Copper Stranded Conductor(filled or unfilled)
Insulation and Sheath
EPR Insulation & PVC Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
105°C

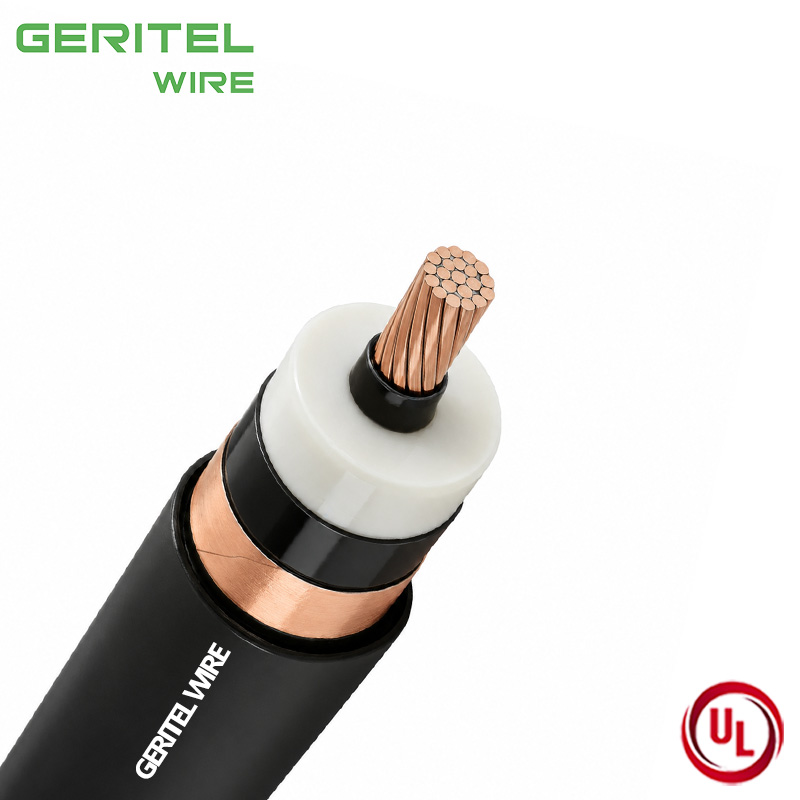

MV-105 25kV 100% I.L. 260 mils Shielded FOR Industrial High-Voltage Power Distribution Engineering
This 25kV 100% I.L. 260 mils single-conductor shielded medium voltage cable complies with strict EPR shielded power cable standards. Designed and manufactured as a professional AEIC CS8 EPR cable and certified UL 1072 shielded power cable, it is a high-performance medium voltage cable with copper tape shield. Adopting solid copper conductor, upgraded 260 mils thick EPR insulation, standard copper tape shielding structure and wear-resistant PVC outer jacket, this cable is perfectly tailored for industrial high-voltage power distribution engineering and high-load indoor medium voltage power transmission scenarios.

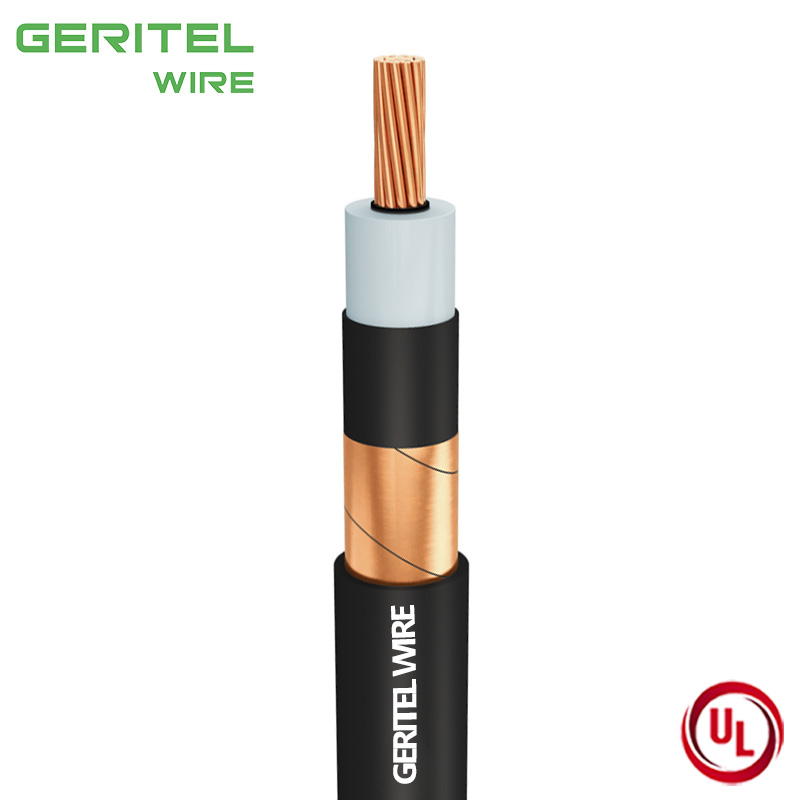

Single Core MV105 Cable
This single-core MV-105 high-temperature resistant cable is professionally developed for 25kV high-voltage engineering scenarios, strictly manufactured per unified EPR shielded power cable standards. Certified as a standardAEIC CS8 EPR cable and compliant UL 1072 shielded power cable, it adopts 260 mils super-thick EPR insulation and precision copper tape shielding structure. As a premium medium voltage cable with copper tape shield, it features strong electric field isolation, excellent heat dissipation and ultra-high load capacity, serving professional high-voltage industrial power distribution and grid engineering projects.
Conductors：Stranded Copper
Rated Voltage : 5KV-35KV
Insulated：EPR
Jacket： PVC
Standards ： UL1072
Temperature range ：105℃
Advantages of MV-105 25kV 100% 260 mils cable
This premium cable fully conforms to mainstream EPR shielded power cable standards, featuring 260 mils thick high-density EPR insulation and 100% insulation level. As a reliable AEIC CS8 EPR cable and standard UL 1072 shielded power cable, it is equipped with a precise copper tape shielding system, making it a stable medium voltage cable with copper tape shield. It supports 105°C long-term high-temperature continuous operation, with excellent anti-aging, anti-interference and dielectric breakdown resistance. The smooth PVC jacket facilitates easy conduit installation, adapting to long-term stable operation of 25kV high-load power systems.

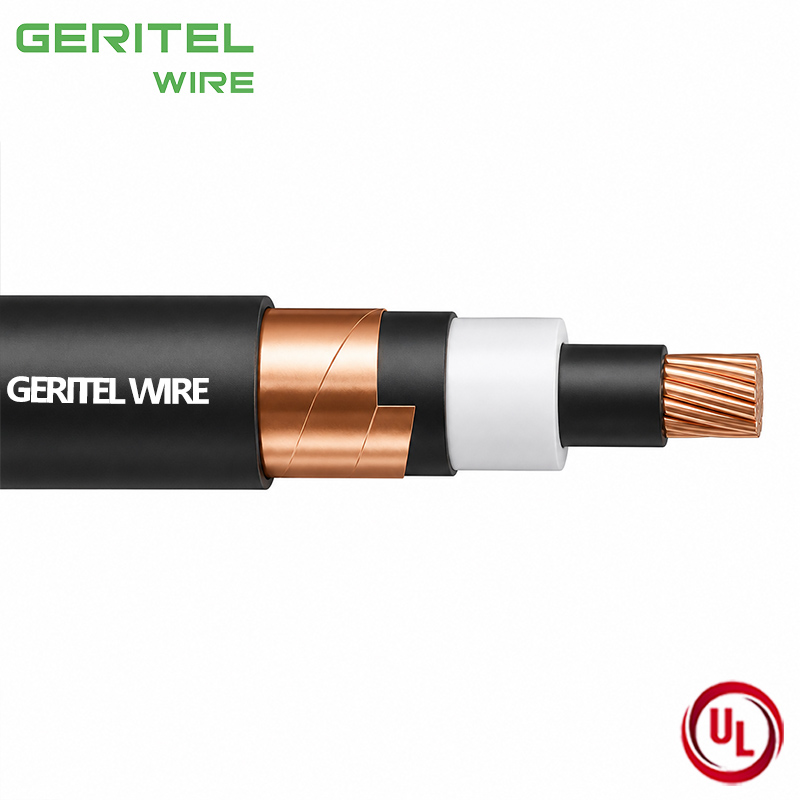

Product Description
The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket. These cables are used in industrial power circuits.
Applications
-
In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
-
In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
-
In wet or dry locations
-
Approved for Class I, Div. 2 industrial hazardous locations per NEC
-
Designed to operate continuously at a conductor temperature not exceeding
» 105°C for normal operations
» 140°C for emergency overload
» 250°C for short circuit
Features
-
Rated at 105°C wet or dry
-
Excellent corona resistance
-
High dielectric strength
-
Low moisture absorption
-
Low dielectric loss
-
Excellent sunlight resistance
-
For CT USE for 1/0 AWG and larger, per UL® 1072
-
Meets cold bend test at -35°C
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |

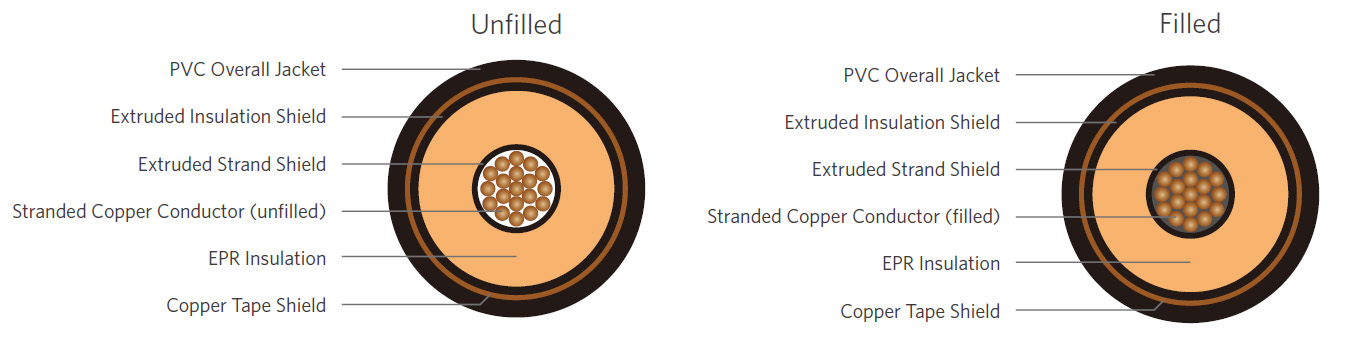

| Conductor | Fully annealed bare copper Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield | Extruded thermoset semi-conducting polymer over the conductor |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Shield | 5 mil annealed copper tape helically applied with approximately 25% overlap |
| Jacket | Polyvinyl Chloride (PVC) |
| Jacket Marking |
2 AWG – 1 AWG：00000 FT GREATER WIRE CABLE XXAWG 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG – 1000 kcmil：00000 FT GREATER WIRE CABLE XXAWG (or XXXKCMIL) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances |
ASTM B3 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC |
| Other Compliances |
EPA 40 CFR, Part 261 OSHA |
Copper Unfilled/Filled Cdr 25kV 100% I.L. 260mils, Shielded
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Conduit in Air |
Underground Duct |
||||||
| 1/0 | 0.362(9.2) | 0.94(23.9) | 0.075(1.9) | 1.18(30.0) | 895(1,332) | 215 | 215 |
| 2/0 | 0.405(10.3) | 0.99(25.1) | 0.075(1.9) | 1.23(31.2) | 1,010(1,503) | 245 | 245 |
| 3/0 | 0.456(11.6) | 1.04(26.4) | 0.075(1.9) | 1.28(32.5) | 1,150(1,711) | 280 | 275 |
| 4/0 | 0.512(13.0) | 1.09(27.7) | 0.075(1.9) | 1.34(34.0) | 1,325(1,972) | 320 | 315 |
| 250 | 0.558(14.2) | 1.15(29.2) | 0.075(1.9) | 1.39(35.3) | 1,485(2,210) | 350 | 345 |
| 350 | 0.661(16.8) | 1.26(32.0) | 0.075(1.9) | 1.50(38.1) | 1,860(2,768) | 430 | 415 |
| 500 | 0.789(20.0) | 1.39(35.3) | 0.075(1.9) | 1.63(41.4) | 2,410(3,586) | 525 | 500 |
| 750 | 0.968(24.6) | 1.58(40.1) | 0.105(2.7) | 1.89(48.0) | 3,420(5,089) | 635 | 610 |
| 1000 | 1.117(28.4) | 1.73(43.9) | 0.105(2.7) | 2.04(51.8) | 4,295(6,391) | 725 | 690 |
Certification
All electrical performance and structural indicators of this cable strictly follow authoritative EPR shielded power cable standards. Our AEIC CS8 EPR cable and UL 1072 shielded power cable series, classified as qualified medium voltage cable with copper tape shield, have passed comprehensive professional testing and certification. All products meet North American industrial electrical codes, fully adapting to high-standard 25kV medium voltage power engineering projects.
