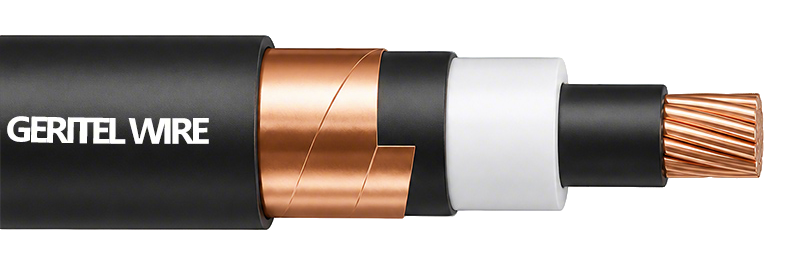

CU EPR/CTS/PVC Power Type MV-105 35kV 100% I.L. 345 mils Shielded
Conductor：
Copper Stranded Conductor
Insulation：
EPR-Based Insulation
Jacket：
PVC Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
5kV-35kV
Temperature range：
105℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Copper Stranded Conductor(filled or unfilled)
Insulation and Sheath
EPR Insulation & PVC Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
105°C
Type MV-105 35kV 100% I.L. 345 mils Shielded FOR Energy Station Wiring
This premium 35kV 100% I.L. 345 mils single-conductor shielded cable is a professional 35kV Type MV-105 EPR Cable 100% I.L., engineered for high-capacity energy station operation. As a heavy-duty copper PVC jacket copper power cable with ultra-thick EPR insulation, it is a standardized robust 35kV Copper EPR CTS PVC Cable. Adopting solid compressed copper conductor, 345 mils reinforced EPR insulation layer, copper tape shielding and durable PVC outer sheath, this cable is exclusively designed for industrial power plant main wiring, energy station power transmission and high-capacity medium voltage power supply projects.
Single Core MV105 Cable
This single-core MV-105 high-temperature resistant cable is specially developed for 35kV high-capacity energy power projects, supporting 105°C long-term continuous operation. As a standard 35kV Type MV-105 EPR Cable 100% I.L. and heavy-dutycopper PVC jacket copper power cable, it adopts 345 mils thick high-purity EPR insulation and precise copper tape shielding structure. This professional 35kV Copper EPR CTS PVC Cable features ultra-high voltage resistance, stable electric field balance and strong overload capacity, being the optimal wiring solution for industrial power plants and large energy station engineering.
Conductors：Stranded Copper
Rated Voltage : 5KV-35KV
Insulated：EPR
Jacket： PVC
Standards ： UL1072
Temperature range ：105℃
Advantages of MV-105 35kV 100% 345 mils cable
Featuring 100% standard insulation level and 345 mils thickened EPR insulation, this 35kV Type MV-105 EPR Cable 100% I.L. delivers exceptional high-voltage resistance and stable electrical performance. Optimized with upgraded EPR insulation formula, this sturdy copper PVC jacket copper power cable effectively resists partial discharge, electric aging and high-temperature breakdown. The complete copper tape shield and wear-resistant PVC sheath structure of this 35kV Copper EPR CTS PVC Cable ensures reliable shielding effect and long service life, supporting 105°C continuous full-load operation and adapting to long-term stable power output of power plants and energy stations.
Product Description
The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket. These cables are used in industrial power circuits.
Applications
-
In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
-
In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
-
In wet or dry locations
-
Approved for Class I, Div. 2 industrial hazardous locations per NEC
-
Designed to operate continuously at a conductor temperature not exceeding
» 105°C for normal operations
» 140°C for emergency overload
» 250°C for short circuit
Features
-
Rated at 105°C wet or dry
-
Excellent corona resistance
-
High dielectric strength
-
Low moisture absorption
-
Low dielectric loss
-
Excellent sunlight resistance
-
For CT USE for 1/0 AWG and larger, per UL® 1072
-
Meets cold bend test at -35°C
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Fully annealed bare copper Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield | Extruded thermoset semi-conducting polymer over the conductor |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Shield | 5 mil annealed copper tape helically applied with approximately 25% overlap |
| Jacket | Polyvinyl Chloride (PVC) |
| Jacket Marking |
2 AWG – 1 AWG：00000 FT GREATER WIRE CABLE XXAWG 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG – 1000 kcmil：00000 FT GREATER WIRE CABLE XXAWG (or XXXKCMIL) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances |
ASTM B3 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC |
| Other Compliances |
EPA 40 CFR, Part 261 OSHA |
Copper Unfilled/Filled Cdr 35kV 100% I.L. 345mils, Shielded
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Conduit in Air |
Underground Duct |
||||||
| 1/0 | 0.362(9.2) | 1.12(28.4) | 0.075(1.9) | 1.36(34.5) | 1,075(1,600) | 215 | 215 |
| 2/0 | 0.405(10.3) | 1.16(29.5) | 0.075(1.9) | 1.40(35.6) | 1,200(1,786) | 245 | 245 |
| 3/0 | 0.456(11.6) | 1.21(30.7) | 0.075(1.9) | 1.45(36.8) | 1,345(2,001) | 280 | 275 |
| 4/0 | 0.512(13.0) | 1.27(32.3) | 0.075(1.9) | 1.51(38.4) | 1,525(2,269) | 320 | 315 |
| 250 | 0.558(14.2) | 1.32(33.5) | 0.075(1.9) | 1.57(39.9) | 1,695(2,522) | 350 | 345 |
| 350 | 0.661(16.8) | 1.43(36.3) | 0.075(1.9) | 1.67(42.4) | 2,085(3,102) | 430 | 415 |
| 500 | 0.789(20.0) | 1.56(39.6) | 0.105(2.7) | 1.87(47.5) | 2,760(4,107) | 525 | 500 |
| 750 | 0.968(24.6) | 1.75(44.5) | 0.105(2.7) | 2.06(52.3) | 3,695(5,498) | 635 | 610 |
| 1000 | 1.117(28.4) | 1.91(48.5) | 0.105(2.7) | 2.22(56.4) | 4,595(6,837) | 725 | 690 |
Certification
All electrical performance, structural stability and high-voltage durability of our 35kV Type MV-105 EPR Cable 100% I.L., copper PVC jacket copper power cable and 35kV Copper EPR CTS PVC Cable have passed strict professional testing. The products fully comply with ICEA, NEMA and UL industry standards, meeting the high-standard acceptance requirements of large-scale power plants, energy station projects and industrial high-voltage power transmission engineering worldwide.
