CU EPR/CTS/PVC Power Type MV-105 35kV 133% I.L. 420 mils Shielded
Conductor：
Copper Stranded Conductor
Insulation：
EPR-Based Insulation
Jacket：
PVC Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
5kV-35kV
Temperature range：
105℃
Size range：
2AWG-1000kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Copper Stranded Conductor(filled or unfilled)
Insulation and Sheath
EPR Insulation & PVC Jacket with 3 Red Stripes
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
105°C
35kV 133% I.L. CU EPR/CTS/PVC MV-105 Cable – Maximum Dielectric Strength for 35kV Power Infrastructure
This single-conductor MV-105 medium voltage power cable delivers maximum dielectric protection with 420 mils of EPR insulation at 133% insulation level for 35kV systems. Constructed with a stranded pure copper conductor, EPR insulation, a copper tape shield, and a durable PVC overall jacket, this cable is engineered for the most demanding power infrastructure applications. UL1072 certified and Type MV-105 rated for continuous 105°C operation, it is suitable for conduit, duct, cable tray, and direct burial installations where system reliability is paramount. The EPR insulation provides exceptional resistance to heat, moisture, and electrical stress, while the copper tape shield ensures effective grounding and electromagnetic interference protection for sensitive equipment. The 133% insulation level with 420 mils thickness provides maximum dielectric strength against voltage surges, lightning strikes, and switching transients.

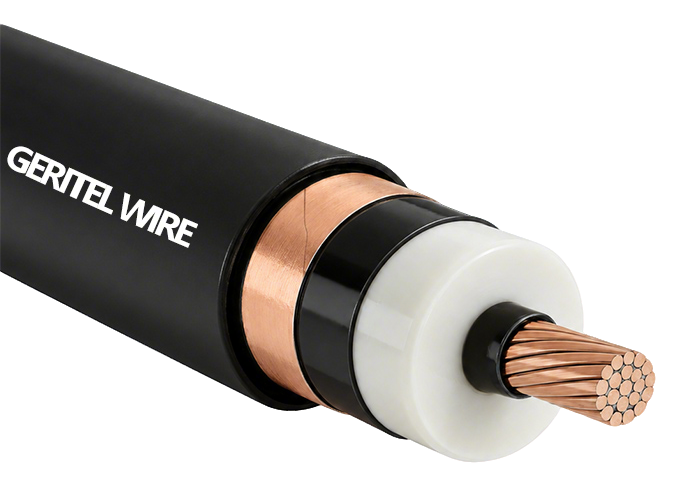

Single Core MV105 Cable
This Single Core MV-105 medium voltage power cable is designed for demanding 35kV power distribution in utility and industrial applications. Featuring a stranded pure copper conductor with EPR insulation, copper tape shield, and PVC jacket, it delivers superior electrical performance and mechanical protection in critical power infrastructure. Type MV-105 rated for continuous 105°C operation with 133% insulation level, this cable is ideal for power generation facilities, utility substations, and large industrial plants requiring maximum insulation protection and long-term reliability.
Conductors：Stranded Copper
Rated Voltage : 5KV-35KV
Insulated：EPR
Jacket： PVC
Standards ： UL1072
Temperature range ：105℃
Advantages of MV-105 35kV 133% 420 mils cable
The 133% insulation level with 420 mils thickness provides maximum dielectric strength against voltage surges, lightning strikes, and switching transients in 35kV systems. The copper tape shield delivers superior fault current capacity and low-impedance grounding, protecting sensitive equipment from electromagnetic interference. The EPR insulation offers exceptional resistance to heat, moisture, and electrical stress, ensuring decades of reliable service in demanding industrial environments. The rugged PVC jacket provides outstanding protection against moisture, chemicals, and mechanical stress in the most demanding installations.
Product Description
The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of fully annealed bare copper Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket. These cables are used in industrial power circuits.
Applications
-
In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
-
In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
-
In wet or dry locations
-
Approved for Class I, Div. 2 industrial hazardous locations per NEC
-
Designed to operate continuously at a conductor temperature not exceeding
» 105°C for normal operations
» 140°C for emergency overload
» 250°C for short circuit
Features
- Rated at 105°C wet or dry
- Excellent sunlight resistance
- Excellent corona resistance
- For CT USE for 1/0 AWG and larger, per UL® 1072
- High dielectric strength
- Low moisture absorption
- Meets cold bend test at -35°C
- Low dielectric loss
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Fully annealed bare copper Class B compressed strand (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield | Extruded thermoset semi-conducting polymer over the conductor |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Shield | 5 mil annealed copper tape helically applied with approximately 25% overlap |
| Jacket | Polyvinyl Chloride (PVC) |
| Jacket Marking |
2 AWG – 1 AWG：00000 FT GREATER WIRE CABLE XXAWG 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG – 1000 kcmil：00000 FT GREATER WIRE CABLE XXAWG (or XXXKCMIL) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances |
ASTM B3 UL 1072, UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC |
| Other Compliances |
EPA 40 CFR, Part 261 OSHA |
Copper Unfilled/Filled Cdr 35kV 133% I.L. 420mils, Shielded
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Conduit in Air |
Underground Duct |
||||||
| 1/0 | 0.362(9.2) | 1.27(32.3) | 0.075(1.9) | 1.51(38.4) | 1,255(1,867) | 215 | 215 |
| 2/0 | 0.405(10.3) | 1.31(33.3) | 0.075(1.9) | 1.55(39.4) | 1,380(2053) | 245 | 245 |
| 3/0 | 0.456(11.6) | 1.37(34.8) | 0.075(1.9) | 1.61(40.9) | 1,535(2,284) | 280 | 275 |
| 4/0 | 0.512(13.0) | 1.42(36.1) | 0.075(1.9) | 1.66(42.2) | 1,725(2,567) | 320 | 315 |
| 250 | 0.558(14.2) | 1.48(37.6) | 0.075(1.9) | 1.72(43.7) | 1,895(2,820) | 350 | 345 |
| 350 | 0.661(16.8) | 1.58(40.1) | 0.105(2.7) | 1.89(48.0) | 2,415(3,593) | 430 | 415 |
| 500 | 0.789(20.0) | 1.71(43.4) | 0.105(2.7) | 2.02(51.3) | 3,000(4,464) | 525 | 500 |
| 750 | 0.968(24.6) | 1.91(48.5) | 0.105(2.7) | 2.22(56.4) | 3,960(5,892) | 635 | 610 |
| 1000 | 1.117(28.4) | 2.06(52.3) | 0.105(2.7) | 2.40(61.0) | 4,935(7,343) | 725 | 690 |
Certification
Every batch of our insulation shield MV-105 cable, copper sunlight resistant PVC jacket MV cable and copper semiconducting insulation shield cable undergoes rigorous professional electrical and weather resistance tests. The product structure and performance fully comply with North American medium voltage cable industry standards, meeting the strict access requirements of outdoor substation and field wiring engineering, with complete certification qualifications for global project delivery.
