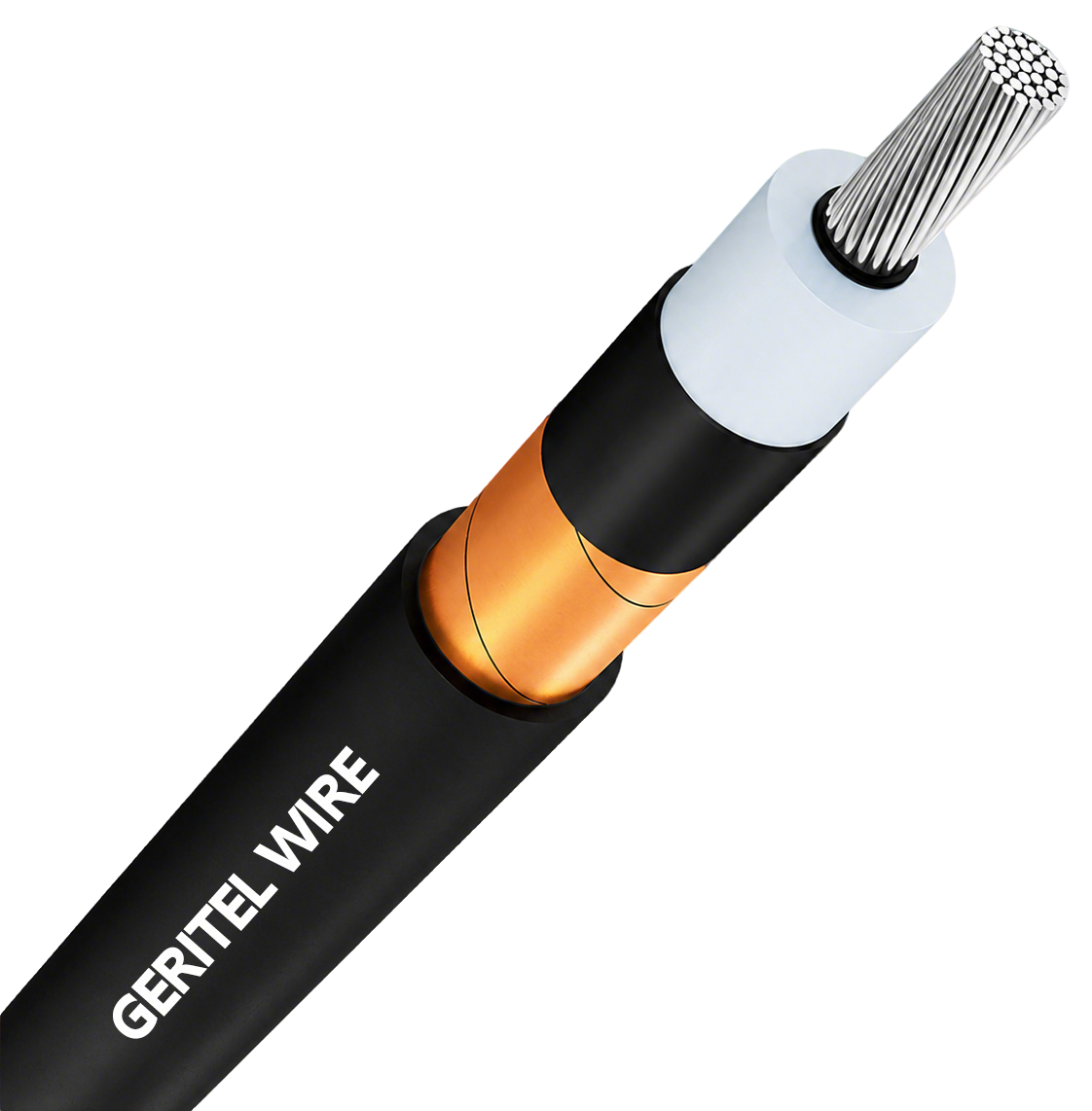

AL EPR/CTS/PVC Power Type MV-105 5kV 133%/8kV 100% I.L. 115 mils Shielded
Conductor：
Aluminum Stranded Conductor
Insulation：
EPR Insulation
Jacket：
PVC Overall Jacket
Shield：
Copper Tape Shield
Rated Voltage：
5kV-35kV
Temperature range：
105℃
Size range：
2 AWG -1000 kcmil
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
Aluminum Stranded Conductor (filled or unfilled)
Insulation and Jacket
EPR Insulation & PVC Overall Jacket
Shield
Copper Tape Shield
Temperature Rating
105°C
AL EPR/CTS/PVC Power Type MV-105 5kV 133%/8kV 100% I.L. 115 mils Shielded
This dual-rated AL EPR/CTS/PVC Type MV-105 shielded cable is tailored for low-medium voltage commercial and light industrial power systems, offering flexible dual specs: 5kV with 133% insulation level for ungrounded fluctuating grids, and standard 8kV 100% IL for stable grounded power networks. Equipped with optimized slim 115 mils lead-free EPR insulation, it cuts excess material cost while meeting core dielectric demands. Rated MV-105 for steady 105°C continuous operation, it maintains reliable ampacity under daily cyclic loads. The integrated copper tape shield stabilizes electric field distribution and dissipates fault current smoothly. Compact aluminum conductor slashes transport and installation loads, while flexible PVC outer jacket fits tray, conduit and indoor direct laying for small factories, retail substations and renewable auxiliary power circuits.
Single Core MV105 Cable
Single-core MV105 cable refers to medium voltage single-conductor power cable rated 105°C maximum operating temperature. It only contains one aluminum stranded conductor inside the cable structure, paired with independent insulation, shielding and outer jacket layers. Compared with multi-core medium voltage cables, single-core MV105 cable delivers more flexible laying performance inside industrial conduits, easier heat dissipation and stronger overload resistance. It is the mainstream cable choice for independent medium voltage branch circuits, factory power feeders and indoor substation wiring.
Conductors：Aluminum Stranded
Rated Voltage:
5KV-35KV
Insulated：EPR
Jacket： PVC
Standards：UL1072
Temperature range：105℃
Advantages of AL EPR/CTS/PVC Power Type MV-105 5kV 133%/8kV 100% I.L. 115 mils Shielded
Dual voltage rating design adapts to both unstable 5kV ungrounded grids and standard 8kV grounded systems. Optimized 115 mils EPR insulation balances cost and basic dielectric protection. 105°C thermal rating delivers stable current capacity for daily light-duty operation. Full CTS copper tape shielding suppresses partial discharge and ensures safe grounding. Light aluminum conductor reduces overall project weight and construction expense, flexible PVC jacket supports versatile indoor installation.
Product Description
The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of Aluminum Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket. These cables are used in industrial power circuits.
Applications
-
In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
-
In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
-
In wet or dry locations
-
Approved for Class I, Div. 2 industrial hazardous locations per NEC
-
Designed to operate continuously at a conductor temperature not exceeding
» 105°C for normal operations
» 140°C for emergency overload
» 250°C for short circuit
Features
-
Rated at 105°C wet or dry
-
Excellent corona resistance
-
High dielectric strength
-
Low moisture absorption
-
Low dielectric loss
-
Excellent sunlight resistance
-
For CT USE for 1/0 AWG and larger, per UL® 1072
-
Meets cold bend test at -35°C
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor |
Aluminum 1350 Class B compressed stranded (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield | Extruded thermoset semi-conducting polymer over the conductor |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Shield | 5 mil annealed copper tape helically applied with approximately 25% overlap |
| Jacket | Polyvinyl Chloride (PVC) |
| Jacket Marking |
2 AWG – 1 AWG：00000 FT GREATER WIRE CABLE XXAWG AL 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG – 1000 kcmil：00000 FT GREATER WIRE CABLE XXAWG AL (or XXXKCMIL) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances |
ASTM B230, ASTM B231 UL 1072 UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC |
| Other Compliances |
EPA 40 CFR, Part 261 OSHA |
Aluminum Unfilled/Filled Cdr 5kV 133%/8kV 100% I.L., 115 mils, Shielded
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Conduit in Air |
Underground Duct | ||||||
| 2 | 0.283(7.2) | 0.57 (14.5) | 0.060 (1.5) | 0.78(19.8) | 325(484) | 125 | 130 |
| 1 | 0.322 (8.2) | 0.61 (15.5) | 0.060 (1.5) | 0.82(20.8) | 360(536) | 145 | 145 |
| 1/0 | 0.362(9.2) | 0.65 (16.5) | 0.060 (1.5) | 0.87(22.1) | 400(595) | 170 | 165 |
| 2/0 | 0.405(10.3) | 0.70 (17.8) | 0.075(1.9) | 0.94(23.9) | 470(699) | 190 | 190 |
| 3/0 | 0.456(11.6) | 0.75 (19.1) | 0.075(1.9) | 0.99(25.1) | 530(789) | 220 | 215 |
| 4/0 | 0.512(13.0) | 0.81(20.6) | 0.075(1.9) | 1.05(26.7) | 600(893) | 255 | 245 |
| 250 | 0.558(14.2) | 0.86 (21.8) | 0.075(1.9) | 1.10(27.9) | 665(990) | 280 | 270 |
| 350 | 0.661(16.8) | 0.97 (24.6) | 0.075(1.9) | 1,21(30.7) | 810(1.205) | 340 | 330 |
| 500 | 0.789(20.0) | 1.10 (27.9) | 0.075(1.9) | 1.34(34.0) | 1.015(1.510) | 425 | 400 |
| 750 | 0.968(24.6) | 1.29 (32.8) | 0.075(1.9) | 1.53(38.9) | 1,350(2,009) | 520 | 490 |
| 1000 | 1.117(28.4) | 1.44 (36.6) | 0.075(1.9) | 1.69(42.9) | 1.660(2.470) | 615 | 565 |
