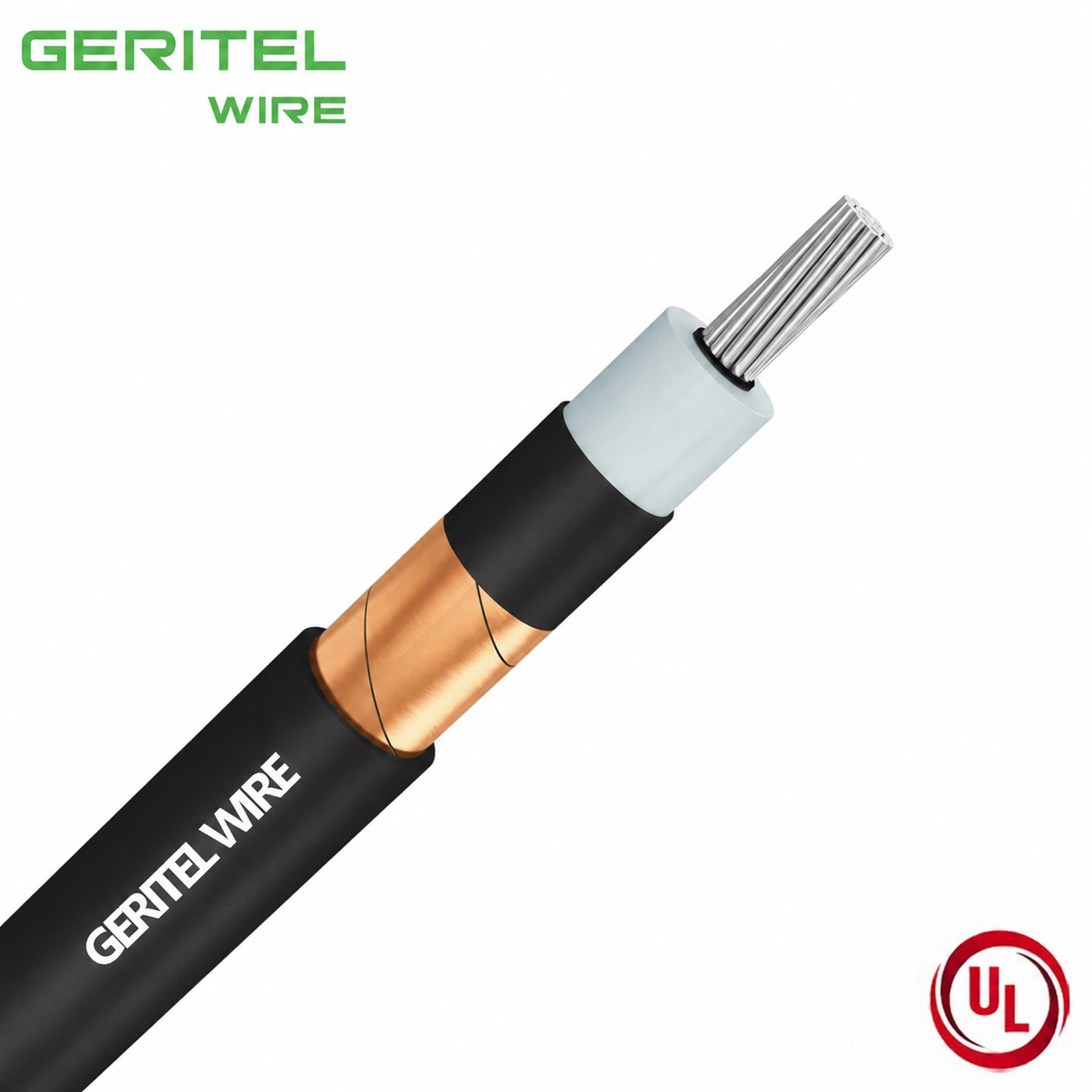

AL EPR/CTS/PVC Power Type MV-105 25kV 100% I.L. 260 mils Shielded
Conductor：
Aluminum Stranded Conductor
Insulation：
EPR Insulation
Jacket：
PVC Overall Jacket
Shield：
Copper Tape Shield
Rated Voltage：
5kV-35kV
Temperature range：
105℃
Size range：
2 AWG -1000 kcmil
Standard：
UL 1072
Color：
Black
Description
Download

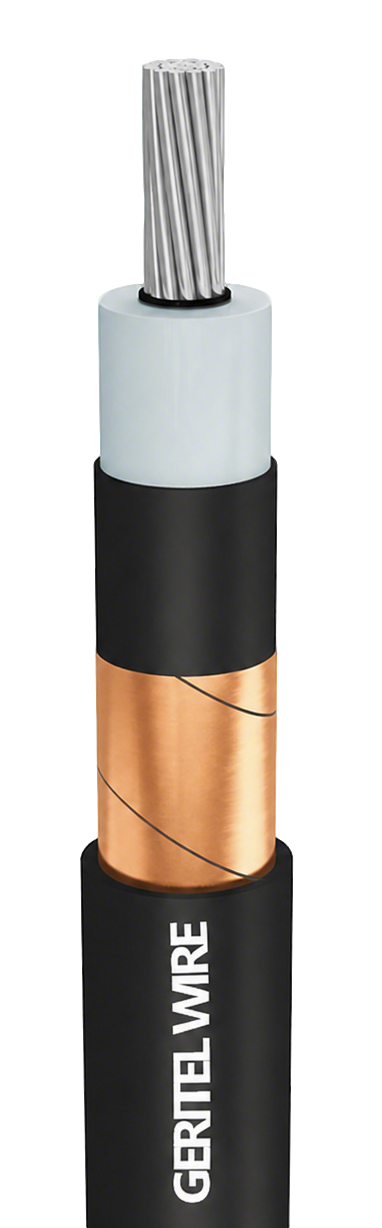

Conductor

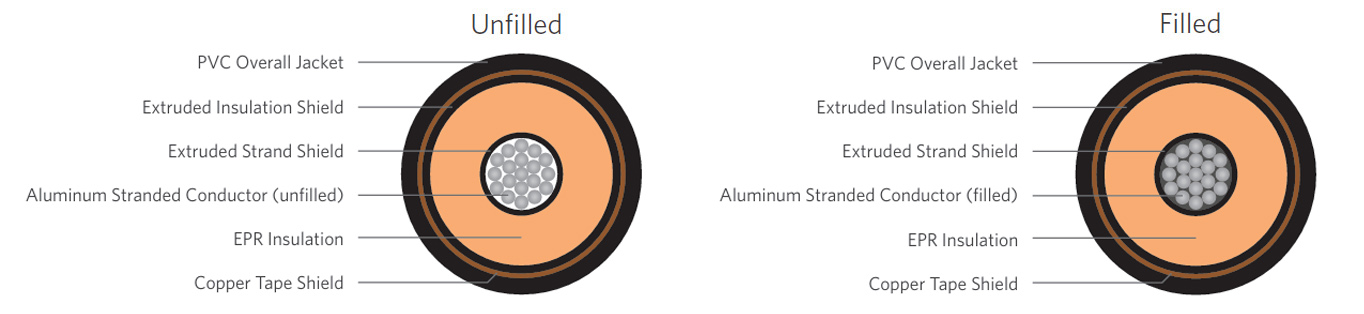

Aluminum Stranded Conductor (filled or unfilled)
Insulation and Jacket
EPR Insulation & PVC Overall Jacket
Shield
Copper Tape Shield
Temperature Rating
105°C

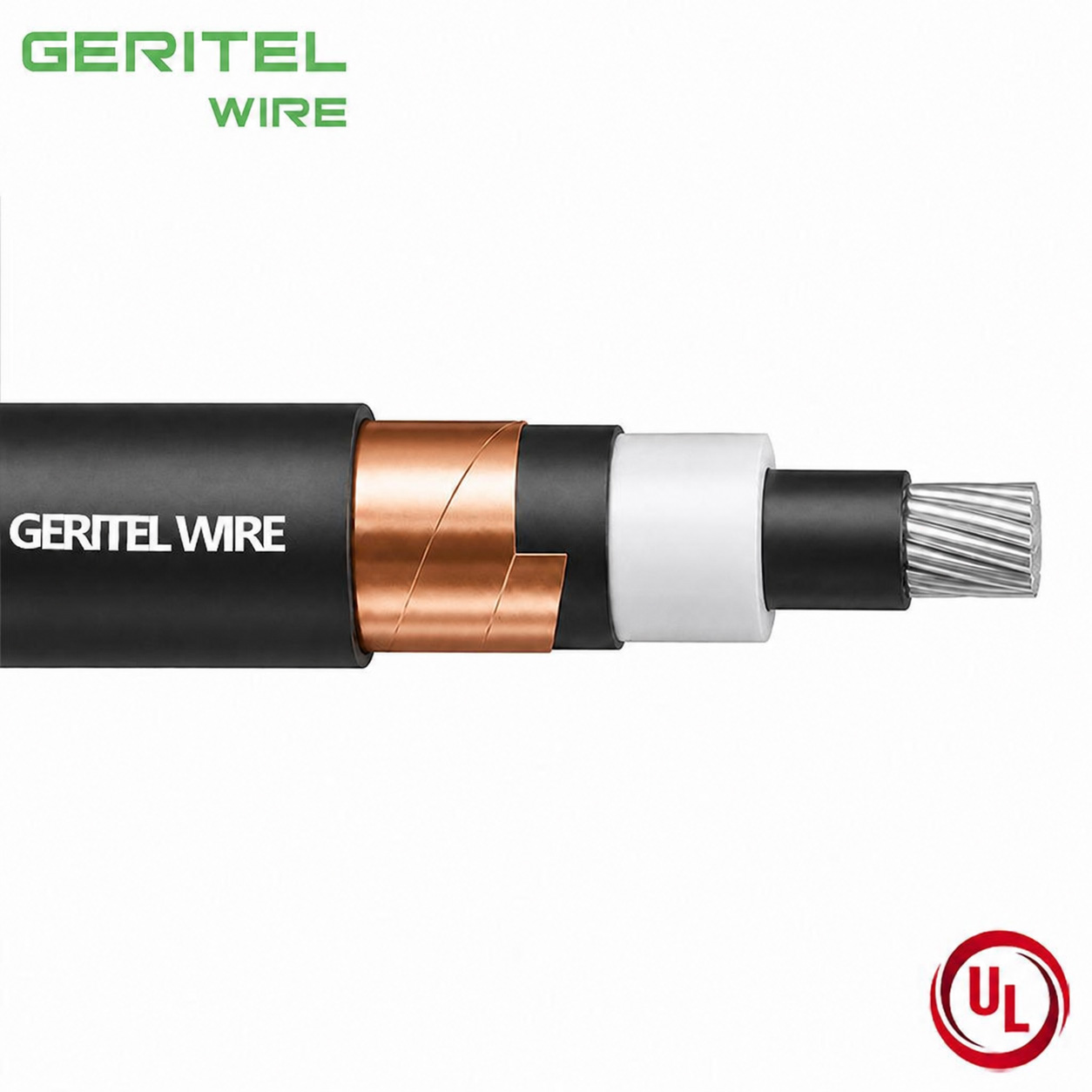

AL EPR/CTS/PVC Power Type MV-105 25kV 100% I.L. 260 mils Shielded
This 25kV AL EPR/CTS/PVC MV-105 shielded cable is a standard-specification medium voltage cable designed specifically for stable, fully grounded 25kV power distribution systems. It applies calibrated 260 mils EPR insulation with a standard 100% insulation level, delivering precise, reliable dielectric protection for conventional grid operating conditions without redundant insulation overhead. With a 105°C continuous temperature rating, the cable sustains stable ampacity and excellent thermal stability during long-term cyclic loads. Integrated CTS copper tape shielding ensures uniform electric field control and effective partial discharge suppression. Paired with a durable weatherproof PVC jacket and cost-effective aluminum conductor, it offers balanced performance and economy for general industrial, commercial and utility MV projects.

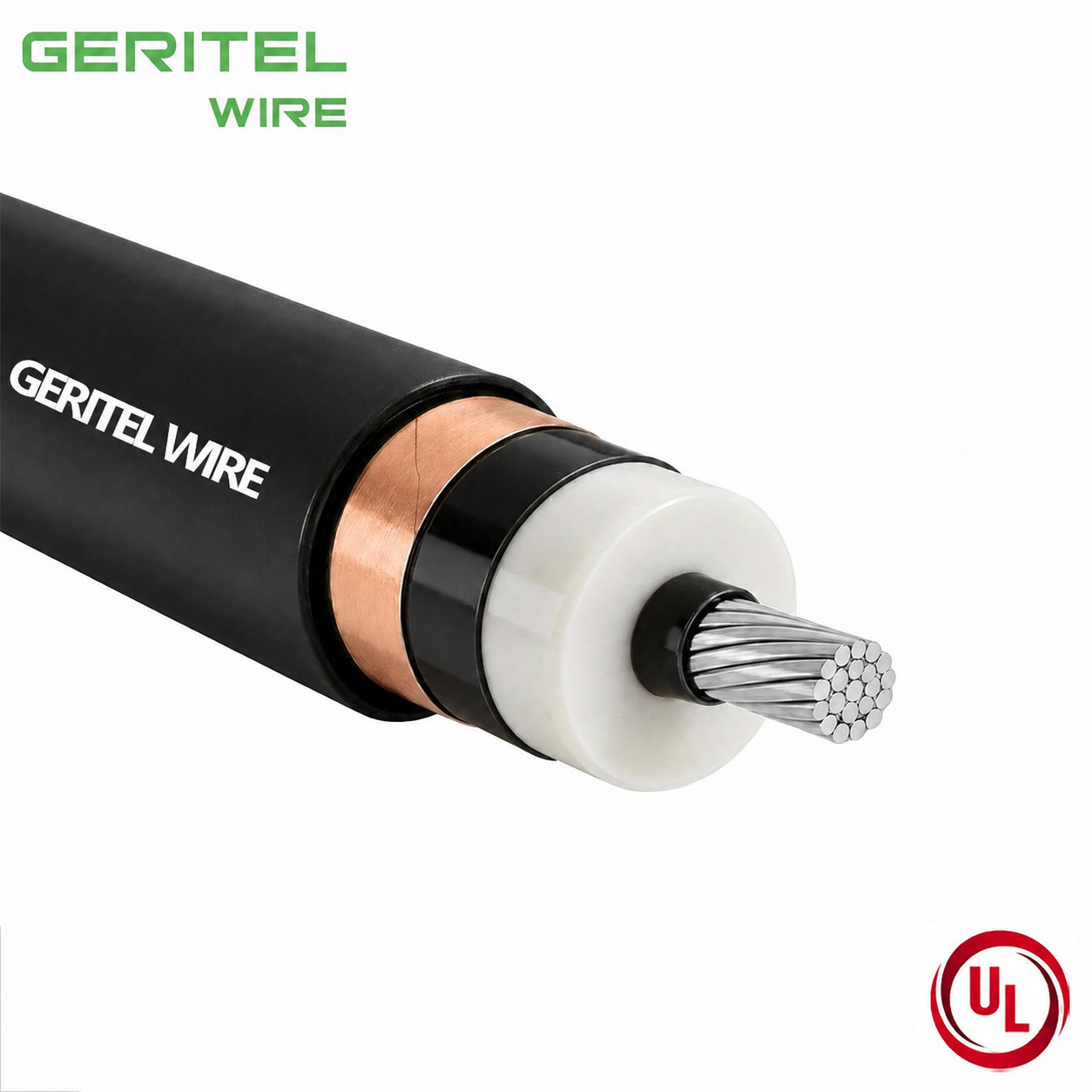

Single Core MV105 Cable
Single-core MV105 cable refers to medium voltage single-conductor power cable rated 105°C maximum operating temperature. It only contains one aluminum stranded conductor inside the cable structure, paired with independent insulation, shielding and outer jacket layers. Compared with multi-core medium voltage cables, single-core MV105 cable delivers more flexible laying performance inside industrial conduits, easier heat dissipation and stronger overload resistance. It is the mainstream cable choice for independent medium voltage branch circuits, factory power feeders and indoor substation wiring.
Conductors：Aluminum Stranded
Rated Voltage:
5KV-35KV
Insulated：EPR
Jacket： PVC
Standards：UL1072
Temperature range：105℃

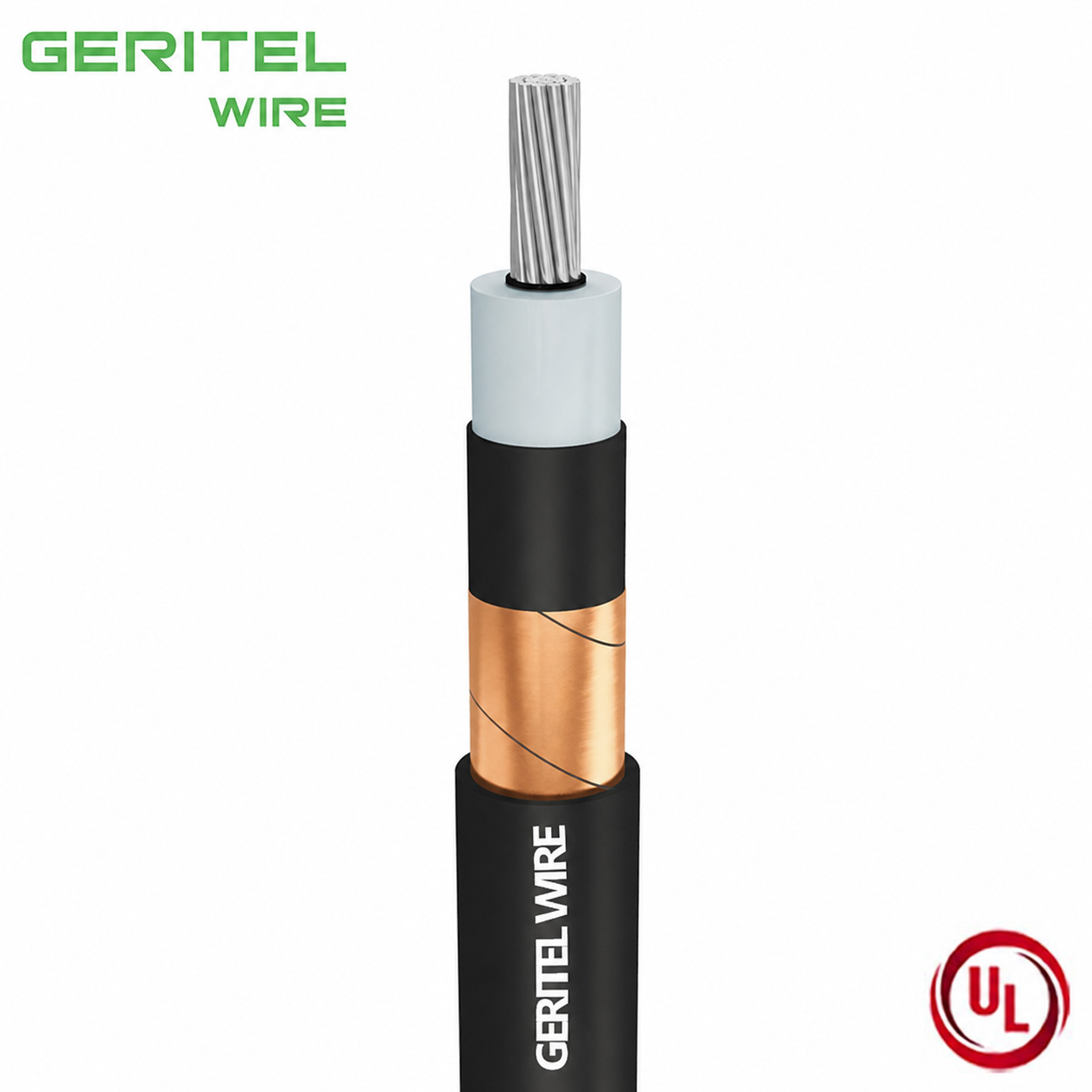

Advantages of AL EPR/CTS/PVC Power Type MV-105 25kV 100% I.L. 260 mils Shielded
Designed for standard grounded 25kV grids, this cable features optimized 260 mils EPR insulation that meets regular voltage protection requirements with higher cost performance. The 105°C high-temperature resistance ensures stable current transmission and strong load adaptability for daily operation. Precision CTS shielding maintains excellent electrical uniformity and safe fault current release. Lightweight aluminum construction reduces construction burden and overall project budget, while the sturdy PVC jacket provides reliable mechanical protection and wide environmental adaptability.

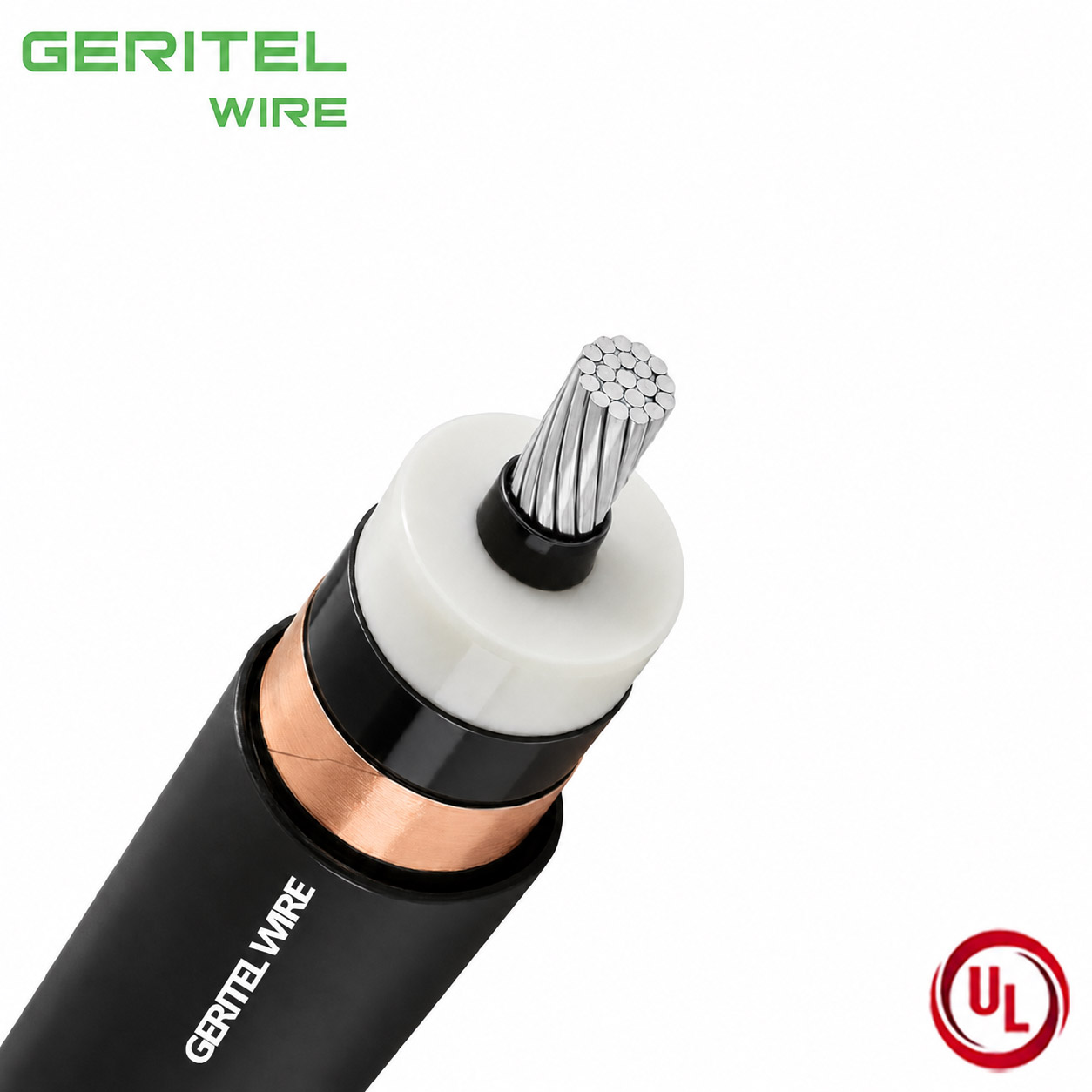

Product Description
The Medium Voltage, EPR/Cu Tape Shield/PVC, Type MV-105 Cable consist of Aluminum Class B stranded conductors, covered with ethylene propylene rubber (EPR), copper tape shield, and black PVC jacket. These cables are used in industrial power circuits.
Applications
-
In conduit, duct, free air, and raceways, primary installations include cable trays, and outdoor locations
-
In direct burial if installed in a system with a ground conductor that is in close proximity, and conforms with NEC 250.4 (A)(5)
-
In wet or dry locations
-
Approved for Class I, Div. 2 industrial hazardous locations per NEC
-
Designed to operate continuously at a conductor temperature not exceeding
» 105°C for normal operations
» 140°C for emergency overload
» 250°C for short circuit
Features
-
Rated at 105°C wet or dry
-
Excellent corona resistance
-
High dielectric strength
-
Low moisture absorption
-
Low dielectric loss
-
Excellent sunlight resistance
-
For CT USE for 1/0 AWG and larger, per UL® 1072
-
Meets cold bend test at -35°C
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor |
Aluminum 1350 Class B compressed stranded (filled or unfilled) |
| Gauge Sizes | Available in 2 AWG through 1000 kcmil |
| Conductor Strand Shield | Extruded thermoset semi-conducting polymer over the conductor |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Shield | 5 mil annealed copper tape helically applied with approximately 25% overlap |
| Jacket | Polyvinyl Chloride (PVC) |
| Jacket Marking |
2 AWG – 1 AWG：00000 FT GREATER WIRE CABLE XXAWG AL 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 SUN RES (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) 1/0 AWG – 1000 kcmil：00000 FT GREATER WIRE CABLE XXAWG AL (or XXXKCMIL) 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR/PVC JKT TYPE MV-105 FOR CT USE (UL) SUN RES MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances |
ASTM B230, ASTM B231 UL 1072 UL 1685 (flame exposure test) ANSI/NEMA WC 74/ICEA S-93-639 ANSI/ICEA S-97-682 AEIC CS8 NEC |
| Other Compliances |
EPA 40 CFR, Part 261 OSHA |
Aluminum Unfilled/Filled Cdr 25kV 100% I.L., 260 mils, Shielded
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity |
|
| Conduit in Air |
Underground Duct | ||||||
| 1/0 | 0.362(9.2) | 0.94(23.9) | 0.075(1.9) | 1.18(30.0) | 675(1,004) | 170 | 165 |
| 2/0 | 0.405(10.3) | 0.99 (25.1) | 0.075(1.9) | 1.23(31.2) | 730(1,086) | 190 | 190 |
| 3/0 | 0.456(11.6) | 1.04 (26.4) | 0.075(1.9) | 1.28(32.5) | 800(1,190) | 220 | 215 |
| 4/0 | 0.512(13.0) | 1.09 (27.7) | 0.075(1.9) | 1.34(34.0) | 880(1,309) | 255 | 245 |
| 250 | 0.558(14.2) | 1.15 (29.2) | 0.075(1.9) | 1.39(35.3) | 960(1,428) | 280 | 270 |
| 350 | 0.661(16.8) | 1.26 (32.0) | 0.075(1.9) | 1.50(38.1) | 1.130(1,681) | 340 | 330 |
| 500 | 0.789(20.0) | 1.39 (35.3) | 0.075(1.9) | 1.63(41.4) | 1,360(2,024) | 425 | 400 |
| 750 | 0.968(24.6) | 1.58 (40.1) | 0.105(2.7) | 1.89(48.0) | 1,850(2,753) | 520 | 490 |
| 1000 | 1.117(28.4) | 1.73(43.9) | 0.105(2.7) | 2.04(51.8) | 2,205(3,281) | 615 | 565 |
Certification
All specs of CTS MV-105 Power Cable, Type MV-105 Shielded Power Cable, 1/C Copper MV-105 Cable and Copper MV Cable with Copper Tape Shield pass strict electrical testing and obtain complete medium voltage certificates conforming to North and Latin American industrial electrical standards.
Heat-Resistant
Wear Resistance
Mechanical Strength
UL Certificated
APPLICATIONS
Suitable for standard grounded 25kV urban power grids, industrial plant main power lines, commercial zone distribution systems and conventional substation projects. Ideal for stable grid environments without frequent overvoltage surges, supporting direct burial, conduit and cable tray installation for general infrastructure and industrial power supply systems.
Industrial Power
Suitable for factory main power feeders, production line power supply and indoor industrial conduit wiring, providing stable and continuous medium voltage power transmission for all kinds of industrial production systems.
Commercial Buildings
Perfect for indoor medium voltage power distribution of office buildings, shopping malls and public commercial facilities, ensuring safe and stable power operation of indoor electrical systems.
Substations
Widely used for indoor substation wiring, control room power connection and medium voltage feeder circuits, supporting stable operation of substation auxiliary power systems.
Electric Machines
Ideal for power connection and power supply of large industrial motors and high-power electric machines, adapting to continuous and intermittent working load conditions.
Customer Photos
We provide authentic product photos and real project installation pictures for reference.
plant equipment
We own complete production and testing equipment to ensure stable and consistent cable quality.
Packaging Information

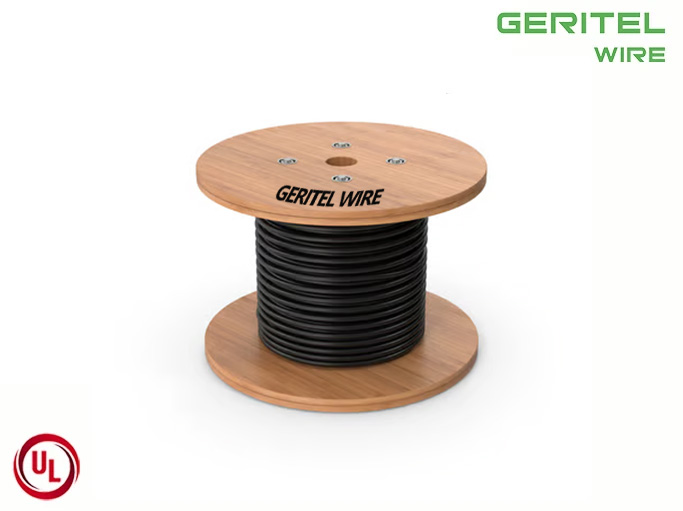

Standard moisture-proof wooden reel packaging is adopted for safe long-distance transportation.
