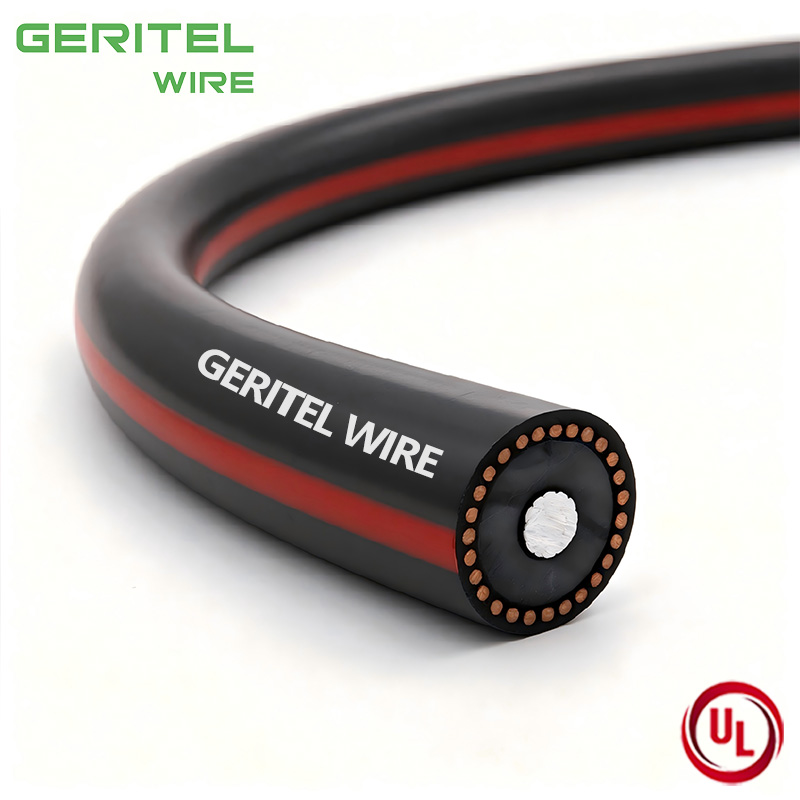

primary UD cable with cross linked red stripes

35kV Aluminum TR-XLPE/CN/XLPE MV-105 Primary UD Cable 100% I.L. 345 mils

Name: 35kV Aluminum TR-XLPE/CN/XLPE MV-105 Primary UD Cable 100% I.L. 345 mils
Brand: GERITEL

UL1072 certified MV-105 aluminum primary UD cable with TR-XLPE insulation, concentric neutral, and XLPE jacket. 35kV 100% I.L., 345 mils. For high voltage underground utility and industrial distribution.

Conductor：

Aluminum Stranded Conductor

Insulation：

TR-XLPE

Jacket：

XLPE

Shield：

Copper Tape Shield

Rated Voltage：

5kV-35kV

Temperature range：

105℃

Size range：

1/0AWG -1500kcmil

Standard：

UL 1072

Color：

Black

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

35kV aluminum URD MV-105 cable

TSJ-N Cable

Conductor

Aluminum Stranded Conductor (filled or unfilled)

TSJ-N Cable

Insulation and Jacket

TR-XLPE Insulation & XLPE Jacket

TSJ-N Cable

Shield

Copper Tape Shield

TSJ-N Cable

Temperature Rating

105°C

35kV 100% I.L. Aluminum TR-XLPE/CN/XLPE MV-105 Primary UD Cable – High Voltage Underground Distribution with Tree-Retardant Insulation

This single-conductor MV-105 primary underground distribution cable delivers reliable dielectric protection with 345 mils of TR-XLPE insulation at 100% insulation level for 35kV systems. Featuring a stranded aluminum conductor, TR-XLPE insulation, extruded semi-conducting shields, a concentric neutral of helically applied copper wires, and a rugged XLPE jacket with three red stripes, this cable is designed for high voltage power transmission in underground duct and direct burial applications. UL1072 certified and Type MV-105 rated for continuous 105°C operation, it is suitable for the most demanding underground power infrastructure installations. The TR-XLPE insulation provides superior resistance to water treeing, ensuring long-term reliability in wet underground environments where moisture exposure is a constant concern. The XLPE jacket offers excellent resistance to moisture, abrasion, and environmental stress.

TRXLPE CN XLPE MV-105 Primary UD cable

Single Core MV105 Cable

Single core MV-105 primary underground distribution cable is engineered for reliable 35kV power transmission in utility and industrial underground infrastructure. Featuring a stranded aluminum conductor with TR-XLPE insulation, concentric neutral of copper wires, and rugged XLPE jacket with three red stripes, it delivers superior performance in underground duct and direct burial installations. Type MV-105 rated for continuous 105°C operation with 100% insulation level, this cable is ideal for utility substations, power generation facilities, and large industrial plants requiring high voltage underground distribution with tree-retardant insulation protection.

NM-B cable

Conductors：Aluminum Stranded

NM-B cable

Rated Voltage:

5KV-35KV

NM-B cable

Insulated：TR-XLPE

NM-B cable

Jacket：XLPE

NM-B CABLE

Standards：UL1072

NM-B WIRE

Temperature range：105℃

Advantages of AL MV-105 35kV 100% I.L. 345 mils Shielded

The TR-XLPE insulation provides exceptional resistance to water treeing, significantly extending cable service life in wet underground installations where moisture exposure is constant. The stranded aluminum conductor offers significant weight reduction compared to copper, lowering shipping costs and easing installation for large-scale underground projects. The 100% insulation level with 345 mils thickness provides reliable dielectric strength for 35kV underground distribution systems. The rugged XLPE jacket with three red stripes delivers outstanding protection against moisture, abrasion, and environmental stress, ensuring decades of reliable service in the most demanding underground conditions.

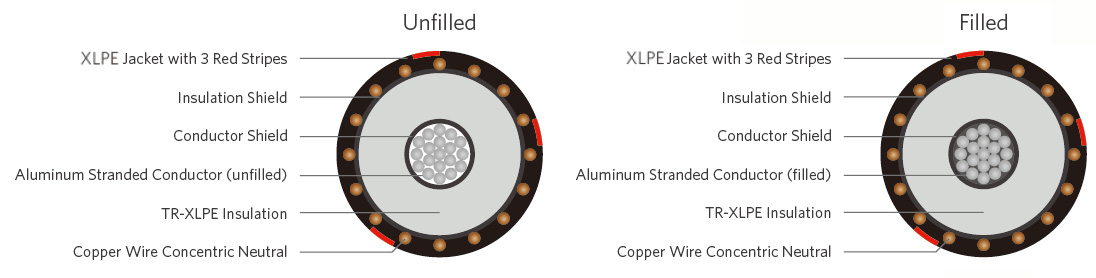

utility underground primary cable 35kV MV-105

Product Description

The Medium Voltage Underground Distribution (UD) cables consist of an Aluminum stranded conductor, (filled or unfilled) covered with tree-retardant cross-linked polyethylene (TR-XLPE), a concentric neutral of helically applied copper wires, and a cross-linked (filled or unfilled) polyethylene (XLPE) jacket with 3 extruded cross-linked red stripes.

Applications

Suitable for underground primary power applications
For wet or dry locations
For direct burial or in duct

Features

High dielectric strength
Low moisture absorption
Low dielectric loss
Excellent resistance to treeing
Jacket is sunlight-resistant

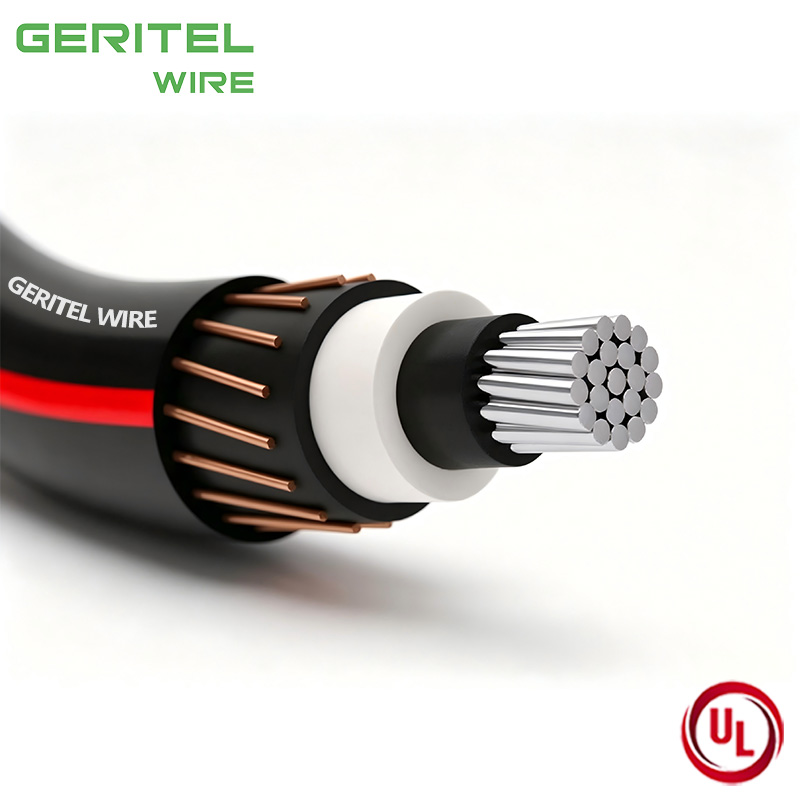

Designed to operate continuously at a conductor temperature not exceeding

105°C for normal operations

140°C for emergency overload

250°C for short circuit

SPECIFICATIONS
Conductor Count	1 conductor
Conductor	Aluminum 1350 Class B compressed stranded (filled or unfilled)
Gauge Sizes	Available in 1/0 AWG through 1500 kcmil
Conductor Strand Shield	Extruded thermoset semi-conducting polymer over the conductor
Insulation	Tree-Retardant Cross-linked Polyethylene (TR-XLPE)
Insulation Shield	Extruded thermoset semi-conducting polymer over the insulation
Neutral	Helically applied, annealed, solid bare copper wires
Jacket	Cross-Linked Polyethylene (XLPE) * Moisture blocked jacket is available upon on request
Jacket Marking	00000 FT LS CABLE XXAWG (KCML) AL (FS) 1/C XXXV XXX% INSUL LEVEL XXXMILS TRXLPE AAX #BB XLPE JKT TYPE MV-105 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT)
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3 ASTM B230 ASTM B231 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-105) RUS U1

Aluminum Unfilled/Filled 35kV 100% I.L. 345mils

Conductor Size AWG/kcmil	Nom. Conductor Diameter in (mm)	Insulation Diameter in (mm)	Concentric Neutral No.×AWG	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)	Ampacity
Conductor Size AWG/kcmil	Nom. Conductor Diameter in (mm)	Insulation Diameter in (mm)	Concentric Neutral No.×AWG	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)	Conduit in Air	Underground Duct
1/12 Reduced Neutral
1/0	0.362(9.2)	1.12(28.4)	6×14	0.050(1.3)	1.46(37.1)	795(1,183)	170	195
2/0	0.405(10.3)	1.16(29.5)	6×14	0.050(1.3)	1.51(38.4)	850(1,265)	195	225
3/0	0.456(11.6)	1.21(30.7)	6×14	0.050(1.3)	1.56(39.6)	915(1,362)	230	265
4/0	0.512(13.0)	1.27(32.3)	6×14	0.050(1.3)	1.62(41.1)	995(1,481)	260	295
250	0.558(14.2)	1.32(33.5)	6×14	0.050(1.3)	1.67(42.4)	1,070(1,592)	290	325
350	0.661(16.8)	1.43(36.3)	6×14	0.075(1.9)	1.83(46.5)	1,295(1,927)	350	390
500	0.789(20.0)	1.56(39.6)	6×14	0.075(1.9)	1.96(49.8)	1,525(2,269)	430	480
750	0.968(24.6)	1.75(44.5)	8×14	0.075(1.9)	2.18(55.4)	1,975(2,939)	525	585
1000	1.117(28.4)	1.91(48.5)	10×14	0.075(1.9)	2.33(59.2)	2,345(3,489)	615	685
1250	1.250(31.8)	2.05(52.1)	12×14	0.075(1.9)	2.48(63.0)	2,715(4,040)	715	765
1/6 Reduced Neutral
1/0	0.362(9.2)	1.12(28.4)	6×14	0.050(1.3)	1.46(37.1)	795(1,183)	170	195
2/0	0.405(10.3)	1.16(29.5)	6×14	0.050(1.3)	1.51(38.4)	850(1,265)	195	225
3/0	0.456(11.6)	1.21(30.7)	6×14	0.050(1.3)	1.56(39.6)	915(1,362)	230	265
4/0	0.512(13.0)	1.27(32.3)	6×14	0.050(1.3)	1.62(41.1)	995(1,481)	260	295
250	0.558(14.2)	1.32(33.5)	6×14	0.050(1.3)	1.67(42.4)	1,070(1,592)	285	325
350	0.661(16.8)	1.43(36.3)	7×14	0.075(1.9)	1.83(46.5)	1,305(1,942)	350	390
500	0.789(20.0)	1.56(39.6)	9×14	0.075(1.9)	1.96(49.8)	1,560(2,321)	430	480
750	0.968(24.6)	1.75(44.5)	14×14	0.075(1.9)	2.18(55.4)	2,045(3,043)	520	580
1000	1.117(28.4)	1.91(48.5)	18×14	0.075(1.9)	2.33(59.2)	2,440(3,631)	610	670
1250	1.250(31.8)	2.05(52.1)	23×14	0.075(1.9)	2.48(63.0)	2,850(4,241)	700	745
1/3 Reduced Neutral
1/0	0.362(9.2)	1.12(28.4)	6×14	0.050(1.3)	1.46(37.1)	795(1,183)	170	195
2/0	0.405(10.3)	1.16(29.5)	6×14	0.050(1.3)	1.51(38.4)	850(1,265)	195	225
3/0	0.456(11.6)	1.21(30.7)	7×14	0.050(1.3)	1.56(39.6)	930(1,384)	230	265
4/0	0.512(13.0)	1.27(32.3)	8×14	0.050(1.3)	1.62(41.1)	1,020(1,518)	260	295
250	0.558(14.2)	1.32(33.5)	10×14	0.050(1.3)	1.67(42.4)	1,120(1,667)	285	325
350	0.661(16.8)	1.43(36.3)	13×14	0.075(1.9)	1.83(46.5)	1,375(2,046)	350	390
500	0.789(20.0)	1.56(39.6)	18×14	0.075(1.9)	1.96(49.8)	1,670(2,485)	425	470
750	0.968(24.6)	1.75(44.5)	26×14	0.075(1.9)	2.18(55.4)	2,190(3,259)	515	565
1000	1.117(28.4)	1.91(48.5)	23×12	0.075(1.9)	2.37(60.2)	2,710(4,032)	595	645
1250	1.250(31.8)	2.05(52.1)	28×12	0.075(1.9)	2.51(63.8)	3,155(4,695)	680	710
Full Neutral
1/0	0.362(9.2)	1.12(28.4)	12×14	0.050(1.3)	1.46(37.1)	865(1,287)	170	195
2/0	0.405(10.3)	1.16(29.5)	14×14	0.050(1.3)	1.51(38.4)	945(1,406)	190	225
3/0	0.456(11.6)	1.21(30.7)	18×14	0.050(1.3)	1.56(39.6)	1,060(1,577)	230	260
4/0	0.512(13.0)	1.27(32.3)	22×14	0.050(1.3)	1.62(41.1)	1,185(1,736)	255	295
250	0.558(14.2)	1.32(33.5)	26×14	0.050(1.3)	1.67(42.4)	1,310(1,949)	280	320
350	0.661(16.8)	1.43(36.3)	23×12	0.075(1.9)	1.86(47.2)	1,695(2,522)	345	380
500	0.789(20.0)	1.56(39.6)	21×10	0.075(1.9)	2.04(51.8)	2,175(3,236)	415	455
750	0.968(24.6)	1.75(44.5)	31×10	0.075(1.9)	2.26(57.4)	2,910(4,330)	495	540

Certification
