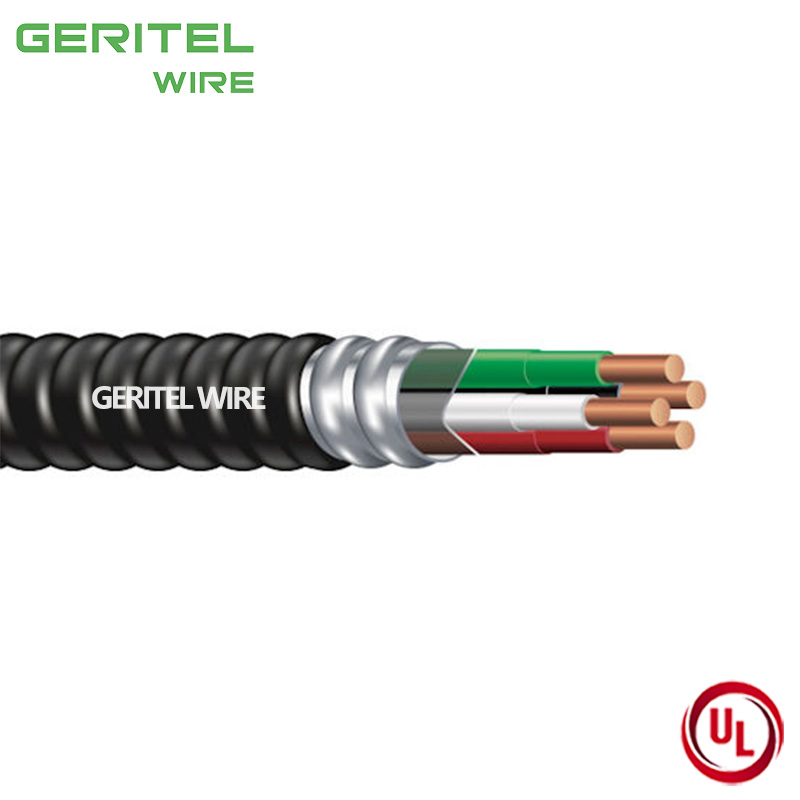

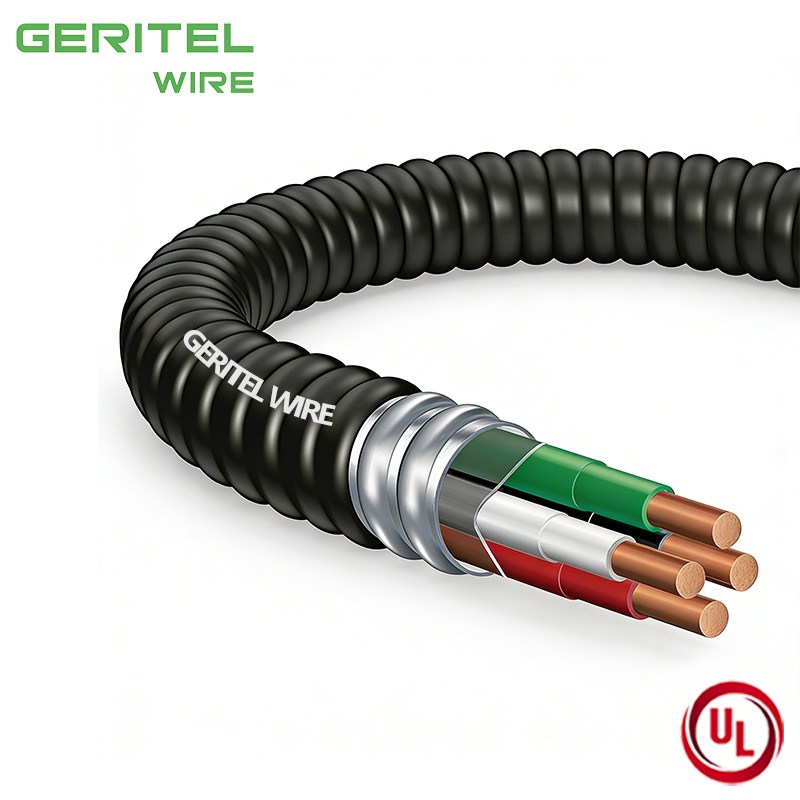

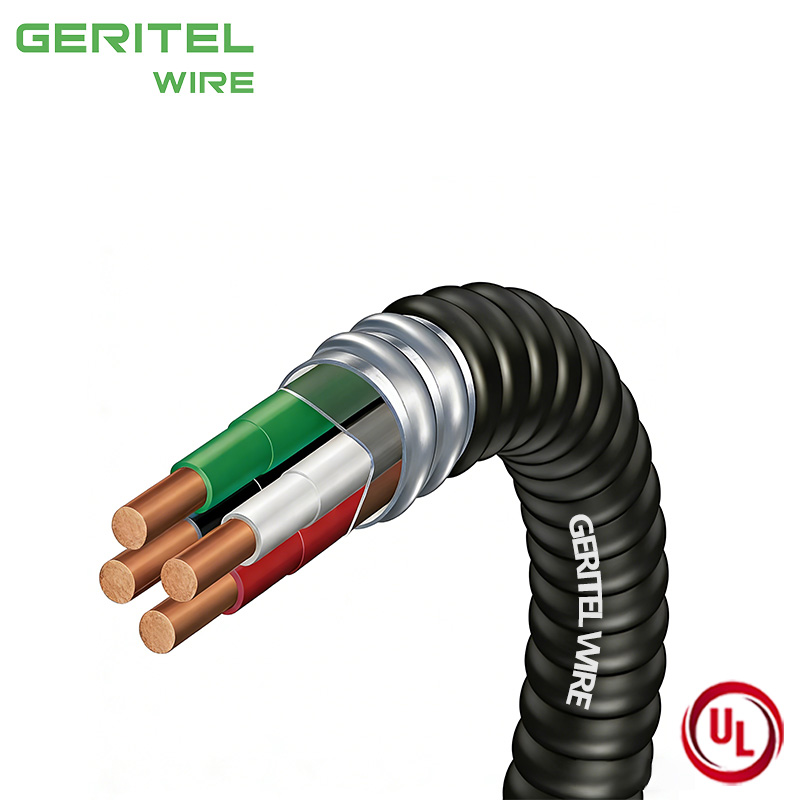

10 Gauge THHN/THWN-2 Outdoor MC Cable with PVC Jacket and Copper Conductor - UL Listed 600V Metal Clad Cable
Conductor ：
Pure Copper
Insulation：
PVC+Nylon
Jacket：
PVC
Armor：
Aluminum Interlock Armor
Rated Voltage：
600V
Standard：
UL83,UL1569,CUL
Description
Download
Conductor
Pure Copper
Insulation and Sheath
PVC & NYLON / PVC
No. of Conductor
2 cores /3 cores /4 cores
Temperature Rating
90°C(wet) & 90℃（dry）
10 AWG THHN/THWN-2 Outdoor MC Cable with PVC Jacket and Copper Conductor - UL Listed 600V Metal Clad Cable
Our UL-listed 10AWG THHN/THWN-2 outdoor MC cable features high-purity solid copper conductors for efficient power transmission with minimal loss. Protected by interlocked metal armor and a heavy-duty UV-resistant PVC jacket, it withstands direct sunlight, rain, and mechanical damage, making it perfect for outdoor lighting, industrial equipment, and commercial wiring projects up to 600V.
PVC jacketed metal clad cable
Its construction provides electrical reliability, mechanical protection, and enhanced resistance to moisture, oil, sunlight, and corrosion, making it suitable for demanding commercial and industrial installations.
Copper Conductors
Rated Voltage Uo/U (Um) : 600V
Insulated & Jacket：PVC &NYLON / PVC
Standards
UL83 & UL1569 & CUL
Armor : Aluminum Interlock Armor
Temperature range
90°C(wet)
90℃（dry）
Advantages of 10 AWG THHN/THWN-2 PVC JACKETED MC cable
This 10 AWG PVC jacketed THHN/THWN-2 MC cable adopts high-purity copper conductors with outstanding THHN/THWN-2 insulation against heat and humidity; matched with interlocked metal armor plus weatherproof PVC outer jacket, it resists crush, abrasion and outdoor UV erosion, meets relevant UL standards and features good flexibility for convenient commercial and outdoor wiring installation.
| Conductors |
Outside Diameter Over Armor (in) |
Outside Diameter Over Jacket (in) |
PVC Thickness (in) |
Approximate Net Weight （lbs/1000ft） |
Allowable Ampacity (Amps) |
Stand Packaging | ||||
| AWG/NO. | Type | Ground | 75℃ | 90℃ | Coils | Reels | ||||
| 10/2 | Solid | 10AWG Green Insulated | 0.527 | 0.627 | 0.050 | 273.94 | 35 | 40 | 250' | 1000' |
| 10/3 | Solid | 10AWG Green Insulated | 0.570 | 0.670 | 0.050 | 324.87 | 35 | 40 | 250' | 1000' |
| 10/4 | Solid | 10AWG Green Insulated | 0.608 | 0.708 | 0.050 | 373.80 | 35 | 40 | 250' | 1000' |
| 10/2 | Stranded | 10AWG Green Insulated | 0.550 | 0.650 | 0.050 | 284.59 | 35 | 40 | 250' | 1000' |
| 10/3 | Stranded | 10AWG Green Insulated | 0.591 | 0.691 | 0.050 | 335.79 | 35 | 40 | 250' | 1000' |
| 10/4 | Stranded | 10AWG Green Insulated | 0.636 | 0.736 | 0.050 | 388.07 | 35 | 40 | 250' | 1000' |
Certification
This 10AWG PVC jacketed THHN/THWN-2 MC cable is officially UL Listed in accordance with UL 1569 safety standards for Type MC metal clad cable, meanwhile its inner THHN/THWN-2 conductors satisfy corresponding UL electrical insulation specifications. All production strictly follows NEC electrical code requirements for construction wiring, passes rigorous factory performance and safety testing, and complies with common RoHS environmental regulations. With complete formal certification documents, the cable is legally approved for residential, commercial and industrial power wiring projects across North American markets.
Environmental Resistance
EMI Shielding Performance
Flame Retardant Performance
UL Certificated
APPLICATIONS
PVC Jacketed MC Cable is designed for power and branch circuit wiring in commercial, industrial, and infrastructure applications. This UL Listed MC Cable is commonly installed in chemical plants, wastewater treatment facilities, manufacturing plants, outdoor equipment connections, and parking garages where superior resistance to moisture, corrosion, sunlight, and mechanical impact is required.
Wastewater Treatment Plants
PVC coated MC cable is widely used in wastewater treatment plants where cables are frequently exposed to moisture, chemicals, and corrosive atmospheres. The combination of metal-clad armor and a durable PVC jacket provides reliable protection for power distribution circuits, pumps, motors, and control equipment, ensuring long-term performance in harsh wet-location environments.
Chemical Processing Facilities
Industrial MC cable with PVC jacket is an ideal wiring solution for chemical processing facilities. Its rugged construction helps protect conductors from corrosive substances, oil exposure, and mechanical damage while maintaining dependable power transmission for process equipment, control panels, and industrial automation systems.
Manufacturing Plants
For manufacturing plants and industrial production lines, UL listed PVC jacketed MC cable delivers both electrical reliability and mechanical protection. It is commonly installed in power distribution systems, machinery connections, and equipment circuits where resistance to impact, abrasion, and industrial contaminants is essential for continuous operation.
Outdoor HVAC and Equipment Installations
Sunlight resistant MC cable is well suited for outdoor HVAC systems, rooftop equipment, and exterior power distribution applications. The protective PVC jacket enhances resistance to UV exposure, moisture, and environmental wear, making it a dependable choice for fixed installations in demanding outdoor conditions.
