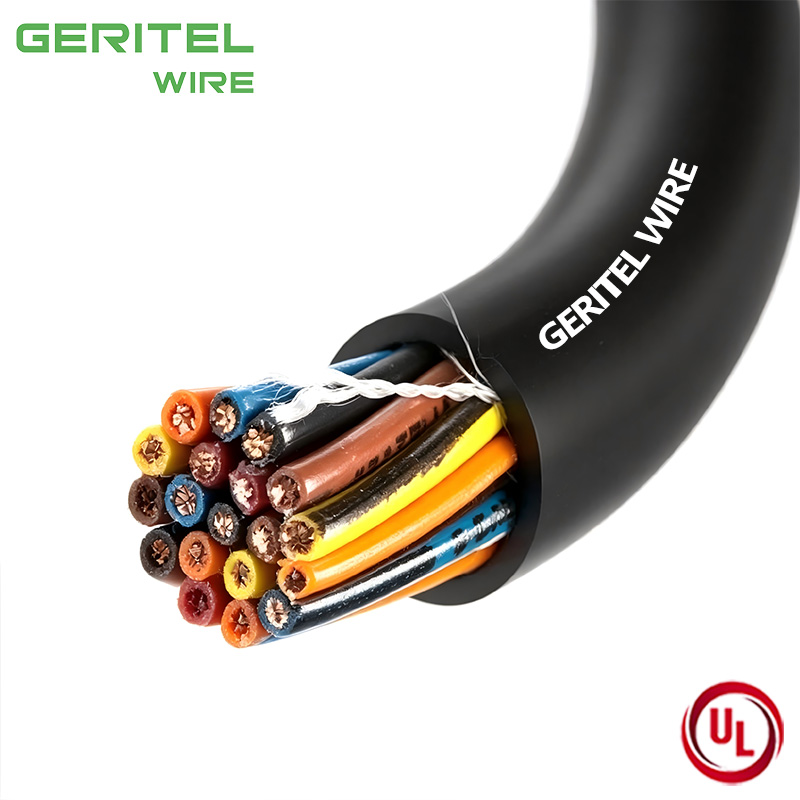

18 AWG PVC Nylon PVC TC-ER Control Cable 600V Unshielded

Name: 18 AWG PVC Nylon PVC TC-ER Control Cable 600V Unshielded
Brand: GERITEL

Durable 18 AWG 600V TC-ER unshielded control cable with premium PVC Nylon PVC construction, specially designed for HVAC equipment and mechanical system low-voltage wiring.

Conductor：

Copper Stranded Conductor

Insulation：

PVC

Jacket：

Nylon

Shield：

PVC

Rated Voltage：

600V

Temperature range：

90℃

Size range：

18AWG -10AWG

Standard：

UL 1277

Color：

Black

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

5 conductor tc-er cable factory

TSJ-N Cable

Conductor

Copper Stranded Conductor (filled or unfilled)

TSJ-N Cable

Insulation and Jacket

PVC Insulation & Nylon Jacket

TSJ-N Cable

Shield

PVC Shield

TSJ-N Cable

Temperature Rating

90°C

18 AWG PVC Nylon PVC TC-ER Control Cable 600V Unshielded FOR HVAC & Mechanical System Wiring

This 18 awg tc-er control cable is a standard unshielded low-voltage control cable featured with premium PVC Nylon PVC triple-layer structure. Rated at 600V, this industrial-grade cable complies with TC-ER tray cable specifications, professionally optimized for HVAC & mechanical system wiring scenarios. As a reliable product from professional type tc-er pvc nylon pvc cable supplier, it delivers excellent flexibility, abrasion resistance and oil corrosion resistance, perfectly adapting to the frequent bending, mechanical vibration and indoor equipment operation environments of HVAC and mechanical systems. We provide complete 18 awg tc-er control cable datasheet and technical documents to support customer project verification and selection.

building automation cable datasheet

TC-ER Control Cable

This unshielded 18 awg tc-er control cable is a classic 600V low-voltage tray control cable. Adopting optimized PVC Nylon PVC composite protective structure, it effectively improves tensile toughness and wear resistance compared with ordinary control cables. With lightweight and flexible features, the cable is easy to bend and lay in cable trays and narrow equipment gaps. Backed by professional supply capacity of our type tc-er pvc nylon pvc cable supplier, it is a stable and trustworthy wiring solution for industrial low-voltage control systems.

NM-B cable

Conductors：Copper Stranded

NM-B cable

Rated Voltage：600V

NM-B cable

Insulated：PVC

NM-B cable

Jacket：Nylon

NM-B CABLE

Standards：UL1277&UL83

NM-B WIRE

Temperature range：90℃

Advantages of CU TC-ER 600V 18 AWG UNShielded

This premium 18 awg tc-er control cable has prominent comprehensive advantages in industrial application. The upgraded triple-layer protective structure greatly enhances environmental adaptability, resisting industrial dust, oil pollution and frequent mechanical vibration. It features stable electrical performance, long service life and low failure rate. We support flexible 18 awg tc-er control cable wholesale services with customizable order quantities, providing cost-effective bulk supply solutions for global industrial wiring projects.

building automation cable price

Product Description

The PVC/Nylon/PVC (THHN/THWN-2), 600V Control, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Polyvinyl Chloride (PVC) and clear Nylon insulation, unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 through 10 AWG
Insulation	Polyvinyl Chloride (PVC) covered 14 AWG and larger are type THHN/THWN-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a circular cross section
Shield (optional)	Overall aluminum polyester (mylar) foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Conductor sizes 18 AWG – 16 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C PVC/NYLON PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY Conductor sizes 14 AWG – 10 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C THHN/THWN-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8, ASTM B33 UL 83 UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 ANSI/NEMA WC 57/ICEA S-73-532 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.1)	40(56)
3	18	0.020(0.51)	0.045(1.14)	0.29(7.5)	50(69)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.0)	60(84)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.7)	70(99)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	85(126)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	110(158)
12	18	0.020(0.51)	0.045(1.14)	0.47(12.0)	135(199)
19	18	0.020(0.51)	0.045(1.14)	0.55(14.0)	205(298)
25	18	0.020(0.51)	0.045(1.14)	0.67(17.1)	280(414)
37	18	0.020(0.51)	0.045(1.14)	0.76(19.4)	390(573)
2	16	0.020(0.51)	0.045(1.14)	0.30(7.7)	50(69)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.1)	60(88)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.8)	75(109)
5	16	0.020(0.51)	0.045(1.14)	0.37(9.5)	90(130)
7	16	0.020(0.51)	0.045(1.14)	0.40(10.3)	115(168)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	145(211)
12	16	0.020(0.51)	0.045(1.14)	0.52(13.3)	185(269)
16	16	0.020(0.51)	0.045(1.14)	0.61(15.6)	255(378)
19	16	0.020(0.51)	0.045(1.14)	0.64(18.9)	295(435)
25	16	0.020(0.51)	0.045(1.14)	0.75(18.9)	380(560)
30	16	0.020(0.51)	0.045(1.14)	0.79(20.0)	440(653)
37	16	0.020(0.51)	0.045(1.14)	0.85(21.5)	530(784)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	60(88)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.8)	80(115)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	100(143)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(172)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	155(226)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	195(285)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.5)	265(393)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.1)	400(591)
25	14	0.020(0.51)	0.060(1.52)	0.83(21.0)	515(763)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.2)	605(895)
37	14	0.020(0.51)	0.080(2.03)	0.98(25.0)	765(1,138)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	80(117)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(157)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	135(198)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.7)	165(240)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.7)	215(318)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.7)	290(431)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.4)	375(553)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.3)	565(840)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.8)	775(1,147)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.2)	905(1,344)
37	12	0.020(0.51)	0.080(2.03)	1.11(28.2)	1,090(1,622)
2	10	0.025(0.64)	0.045(1.14)	0.43(11.0)	115(169)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(231)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	200(295)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.8)	260(385)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.1)	345(511)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.9)	435(647)
12	10	0.025(0.64)	0.060(1.52)	0.83(21.0)	565(836)

Overall Shielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(62)
3	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55(76)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.1)	65(91)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.8)	75(106)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	90(133)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	115(165)
12	18	0.020(0.51)	0.045(1.14)	0.48(12.1)	140(207)
19	18	0.020(0.51)	0.045(1.14)	0.56(14.1)	210(306)
25	18	0.020(0.51)	0.060(1.52)	0.68(17.2)	285(423)
37	18	0.020(0.51)	0.060(1.52)	0.77(19.5)	395(583)
2	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55(76)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(95)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.9)	80(116)
5	16	0.020(0.51)	0.045(1.14)	0.38(9.6)	95(137)
7	16	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(175)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.1)	150(219)
12	16	0.020(0.51)	0.045(1.14)	0.53(13.4)	190(277)
16	16	0.020(0.51)	0.060(1.52)	0.62(15.7)	265(387)
19	16	0.020(0.51)	0.060(1.52)	0.65(16.4)	300(444)
25	16	0.020(0.51)	0.060(1.52)	0.75(19.0)	385(569)
30	16	0.020(0.51)	0.060(1.52)	0.79(20.1)	450(663)
37	16	0.020(0.51)	0.060(1.52)	0.85(21.6)	535(794)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	65(94)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.9)	85(121)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	105(150)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	125(179)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	160(232)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	200(292)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.4)	270(400)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.0)	405(597)
25	14	0.020(0.51)	0.060(1.52)	0.82(20.9)	520(770)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.0)	610(902)
37	14	0.020(0.51)	0.080(2.03)	0.98(24.8)	770(1,144)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	85(124)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(163)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	140(205)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.6)	170(246)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.6)	220(325)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.6)	295(438)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.3)	380(560)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.2)	570(846)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.6)	775(1,153)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.0)	910(1,350)
37	12	0.020(0.51)	0.080(2.03)	1.10(28.0)	1,095(1,627)
2	10	0.025(0.64)	0.045(1.14)	0.43(11.0)	120(176)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(238)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	205(302)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.7)	265(392)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.0)	350(517)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.8)	440(836)
12	10	0.025(0.64)	0.060(1.52)	0.82(20.9)	570(843)

Certification

This high-performance 18 awg tc-er control cable strictly complies with North American electrical codes, TC-ER and VNTC industrial standards. It passes rigorous tests on insulation stability, voltage resistance and bending durability, meeting international industrial wiring safety requirements. As a qualified industrial control wire, it supports standardized technical output, and customers can obtain the official unshielded pvc nylon pvc control cable datasheet for engineering design and project filing.

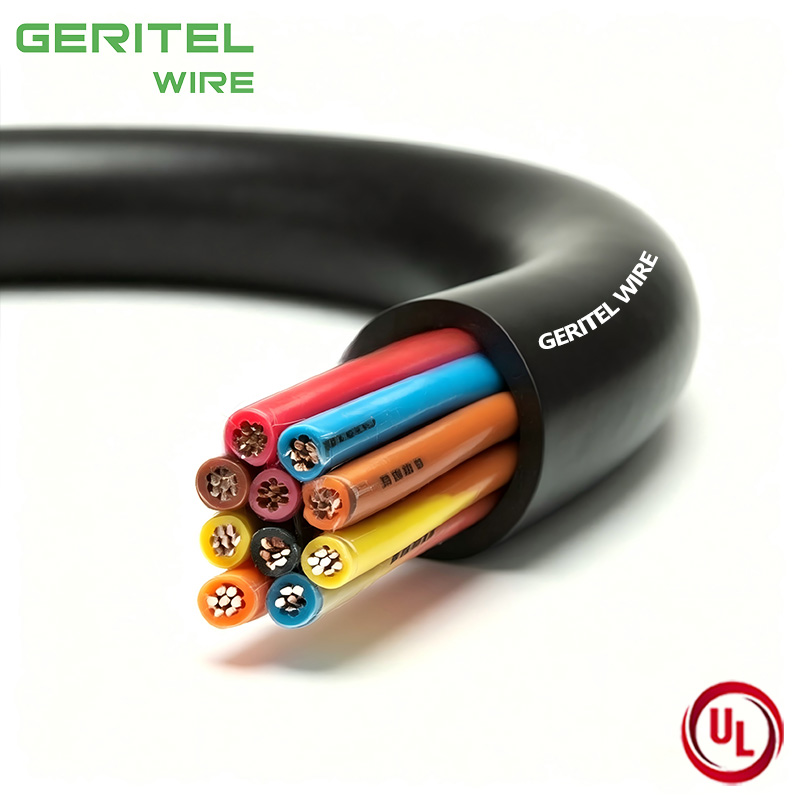

hvac control cable

Heat-Resistant

Wear Resistance

Mechanical Strength

UL Certificated

building automation cable quote

building automation cable bulk

APPLICATIONS

Featuring stable electrical performance, excellent flexibility and strong environmental resistance, this sturdy 18 awg tc-er control cable is widely applicable for various industrial low-voltage control and tray wiring projects. It adapts to harsh working conditions such as humidity, dust, vibration and oil pollution, ensuring continuous and stable operation of industrial control equipment.

600v pvc nylon pvc tray cable

Industrial Plant

Suitable for factory HVAC equipment linkage control, workshop ventilation system wiring and mechanical auxiliary equipment circuits. The flexible and wear-resistant structure adapts to frequent equipment operation and indoor mechanical vibration, ensuring stable operation of factory HVAC systems.

energy management cable specification

Mining Facility

Ideal for mine ventilation HVAC equipment, dust removal mechanical system control wiring and auxiliary environmental adjustment circuits. It features excellent anti-vibration and stable electrical performance, adapting to harsh mining environments and ensuring normal operation of mine environmental control equipment.

alarm system control cable

Power Plant

Applicable to power plant ventilation, cooling and air conditioning system control circuits, as well as mechanical auxiliary equipment linkage wiring. It provides safe and compliant low-voltage wiring guarantee for power plant HVAC and mechanical operation systems.

alarm system control cable specification

Water Treatment Plant

Perfect for water treatment plant ventilation and dehumidification HVAC systems, fluid delivery mechanical equipment control wiring and environmental adjustment circuits. With great moisture and corrosion resistance, it stably supports long-term operation of HVAC and mechanical systems in humid environments.

Customer Photos

We provide real shooting photos and on-site industrial wiring application cases of this TC-ER control cable. Intuitive real-scene materials clearly show the cable’s structural texture, flexible bending performance and actual laying effect, providing reliable reference for your project selection and construction design.

manufacturing equipment cable

plant equipment

Our production base is equipped with full-automatic cable stranding, precise extrusion molding and professional finished product testing equipment. We implement full-process quality supervision from raw material screening, semi-finished product processing to finished product inspection, ensuring stable and consistent quality of every batch of cables.

manufacturing equipment cable quote

tc-er cable manufacturer price

tc-er cable supplier datasheet

tc-er cable factory

tc-er cable factory datasheet

tc-er cable supplier for sale

Packaging Information

All cables adopt standard export-grade coiled packaging, matched with multi-layer waterproof, dustproof and shockproof protective materials. The customized packaging scheme effectively avoids extrusion deformation, moisture damage and friction wear during long-distance transportation, meeting international export packaging standards.

tc-er cable supplier manufacturer

Pallet Packaging

tc-er cable manufacturer datasheet

Large Wooden Reel

tc-er cable manufacturer specification

Large Wooden Reel

Global Certification

Our manufacturing facility holds comprehensive international electrical certifications and standardized production accreditations. Adopting rigorous full-cycle quality control systems and standardized operating procedures, we strictly comply with global industry manufacturing norms. Professional qualification strength and standardized production capabilities ensure stable, compliant, and reliable cable products for global HVAC and mechanical system engineering projects.

tc-er cable manufacturer bulk

VDE

tc-er cable supplier factory

UL

tc-er cable supplier bulk

SAA

tc-er cable factory supplier

TUV

tc-er cable factory quote

ISO

What are people saying about us

We have won wide praise and long-term trust from global customers focusing on HVAC, mechanical equipment and building engineering fields. Clients highly recognize our stable product quality, professional customization capability and efficient after-sales support. We keep stable and mutually beneficial cooperative partnerships with overseas buyers all over the world.

manufacturing equipment cable for sale

Luis Fernando Pérez - Venezuela - Office Building Project

The wires are of very good quality. The cables need to pass through long pipes and corners, and the cables are very flexible. We also ordered fire-resistant wires, which have been tested by a testing agency and found to be without problems.

manufacturing equipment cable specification

Thomas Baker - USA - Factory construction

GERITEL WIRE's engineering team was very professional. They offered suggestions based on our cable requirements, and we found more suitable cable models. Subsequent operation has been stable without any problems.

alarm system control cable price

Ricardo José Herrera - Dominican - Hotel Project

Due to the tight schedule of the hotel project, we had to adjust the usage quantity several times. GERITEL WIRE supplier was very flexible in terms of delivery and packaging, with fast delivery times. The wire reels were clearly labeled, making on-site counting and distribution very convenient.

frequently asked questions

If you have any questions, you can contact me at any time

Do you have a 24/7 emergency response team to deal with emergencies?

Yes, we have a professional pre-sales and after-sales team to respond 24/7. Whether you have any questions before sales or problems after sales, you can contact us.

In which regions of the world does your company conduct business?

1. Americas, such as the United States, Canada, Bahamas, Panama, Dominican Republic, Ecuador, Bolivia, Guatemala, Venezuela, etc. 2. Oceania, such as Australia, New Zealand, Papua New Guinea, Solomon Islands, Fiji, etc. 3. Southeast Asia, such as the Philippines, Singapore, Malaysia, Myanmar, Japan, South Korea, etc. 4. Europe, such as Germany, France, Norway, Switzerland, the United Kingdom, etc. 5. Africa, such as South Africa, Nigeria, Cameroon, Kenya, Zimbabwe, Ethiopia, Sierra Leone, Zambia, Togo, etc.

What after-sales services do you provide?

Our factory provides return and exchange services. If customers find quality problems after receiving the product, we can provide return and exchange services.

What is your quality assurance process?

We will select and inspect the raw material and conduct strict quality inspections on each batch of raw materials. During the production process, the factory usually uses automated equipment and online detection systems for real-time monitoring. For example, the diameter of the copper wire, the thickness of the insulation material, and the twisting process during the wire drawing process all need to be precisely controlled. At the same time, we regularly take a certain number of wire and cable samples for inspection. These inspections include, but are not limited to, tests such as size, insulation resistance, conductivity, and mechanical strength. Each batch of wires and cables produced will be fully tested before leaving the factory. If quality problems are found in the product testing, the factory will take "traceback" measures to find the root cause of the problem and correct possible deviations in the production process. After production is completed, all wire and cable products will undergo a final quality inspection. In the packaging stage, the wires and cables will be properly packaged according to the specifications to ensure that they are not damaged during transportation. In addition, we have a professional after-sales team to respond to customer feedback and complaints promptly to ensure that problems encountered by users during use are solved promptly. In addition, the factory will regularly visit customers to collect product usage feedback and further improve product quality.

How long is the life of your wires and cables?

The life of our wires and cables is no less than 30 years.

Please introduce the founding and development of the company?

Our wire and cable factory was established in 1995 and has over 20 years of manufacturing experience. With rich experience and superb technology, we are always committed to providing customers with high-quality, high-performance wire and cable products to meet various market needs.

What types of wires and cables does your company produce?

1. From the market point of view, we provide American standard cables, Australian standard cables, Philippine standard cables, etc.. 2. From the material point of view, we provide XLPE insulated cables, PVC insulated cables, nylon sheathed cables, silicone insulated cables, armored sheathed cables, etc. 3. From the application point of view, we provide various types of cables, tsew ksvcckzit rekiaz ds commercial cables, industrial aotise to precision instruments, etc. Welcome to consult for more information!

Where is your factory?

Our factory is located in Dongguan City, Guangdong Province, China. Welcome to visit us!

How long does it take to complete your order?

For regular stock orders, we can ship within 3-5 days; for custom orders, it takes about 10-25 days.

Do you provide customized wire and cable solutions?

Yes, we can provide customized wire and cable solutions. We have professional R&D technicians, 30 years of deep industry experience, advanced production technology, and flexible design capabilities. Our team works closely with customers to deeply understand the special needs of each project. Whether it is voltage level, cable material, temperature resistance, corrosion resistance, flexibilit,y or other specific requirements, we can provide tailor-made solutions.

What payment methods are accepted for purchasing wires and cables?

T/T, Visa, Mastercard, PAYPAL, PANPAY.

Are your cables certified by industry standards?

Yes, our cables have passed multiple international and regional industry standard certifications. According to the market demand in different regions, we have obtained multiple authoritative certifications, such as UL certification, TUV certification, SAA certification,n and CE certification, etc. to ensure the quality and safety of the products.

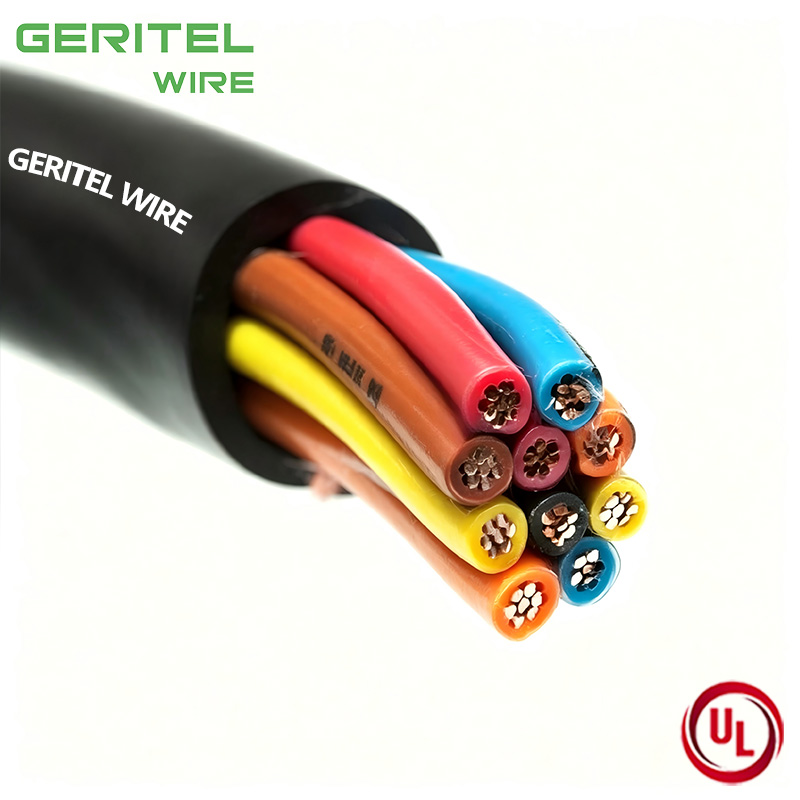

18 AWG PVC Nylon PVC TC-ER Control Cable 600V Unshielded

Conductor

Insulation and Jacket

Shield

Temperature Rating

Product Description

Applications

Features

Industrial Plant

Mining Facility

Power Plant

Water Treatment Plant

VDE

UL

SAA

TUV

ISO

Subscribe to our mailbox now
