16 AWG 600V TC-ER Unshielded Control Cable with PVC Nylon

Name: 16 AWG 600V TC-ER Unshielded Control Cable with PVC Nylon
Brand: GERITEL

High-quality 16 AWG 600V unshielded TC-ER control cable with PVC Nylon structure, durable and flexible, professional wiring solution for factory automation systems.

Conductor：

Copper Stranded Conductor

Insulation：

PVC

Jacket：

Nylon

Shield：

PVC

Rated Voltage：

600V

Temperature range：

90℃

Size range：

18AWG -10AWG

Standard：

UL 1277

Color：

Black

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

reach compliant cable supplier

TSJ-N Cable

Conductor

Copper Stranded Conductor (filled or unfilled)

TSJ-N Cable

Insulation and Jacket

PVC Insulation & Nylon Jacket

TSJ-N Cable

Shield

PVC Shield

TSJ-N Cable

Temperature Rating

90°C

16 AWG 600V TC-ER Unshielded Control Cable with PVC Nylon FOR Factory Automation Wiring

This 16 awg tc-er control cable is a heavy-duty unshielded control cable featuring premium PVC Nylon composite construction. Rated 600V, this 600 Volt TC-ER Cable and standard type tc-er pvc nylon pvc cable is designed specifically for factory automation wiring. As a professional unshielded pvc nylon pvc 600v control type tc-er cable factory supply product, this robust 600v pvc nylon pvc tray cable offers superior abrasion resistance, oil resistance and flexible routing performance, being a reliable factory automation cable for sale for long-term industrial automation operation.

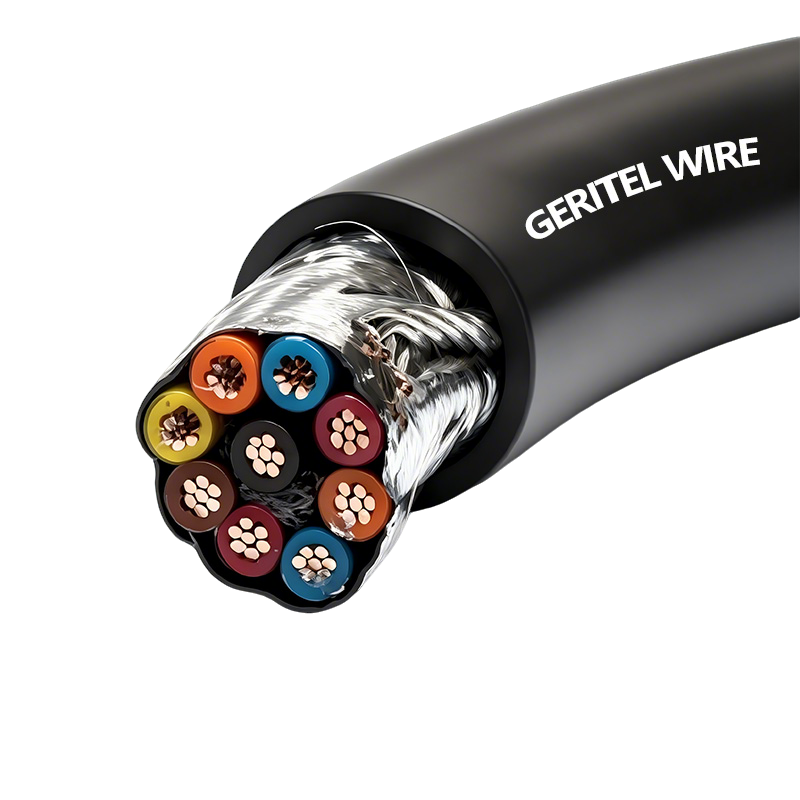

pvc nylon pvc 600v tc-er control cable wholesale

TC-ER Control Cable

As a classic type tc-er pvc nylon pvc cable, this unshielded 16 awg tc-er control cable is engineered for 600V low-voltage industrial wiring. The reinforced PVC and nylon layered structure greatly enhances tensile strength and wear resistance. This practical tray cable is easy to bend and install in cable trays and automation equipment interiors, serving as a cost-effective factory automation cable for sale for various factory automation control circuit layout.

NM-B cable

Conductors：Copper Stranded

NM-B cable

Rated Voltage：600V

NM-B cable

Insulated：PVC

NM-B cable

Jacket：Nylon

NM-B CABLE

Standards：UL1277&UL83

NM-B WIRE

Temperature range：90℃

Advantages of CU TC-ER 600V 16 AWG UNShielded

This high-performance 16 awg tc-er control cable delivers outstanding application advantages over ordinary control cables. The durable type tc-er pvc nylon pvc cable structure ensures excellent anti-corrosion and anti-wear ability in factory environments. Backed by the strength of our unshielded pvc nylon pvc 600v control type tc-er cable factory, we supply qualified ul 1277 tray cable for sale and reliable factory automation cable for sale, supporting flexible wholesale, bulk orders and accurate custom quotes for global customers.

unshielded pvc nylon pvc control cable specification

Product Description

The PVC/Nylon/PVC (THHN/THWN-2), 600V Control, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Polyvinyl Chloride (PVC) and clear Nylon insulation, unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 through 10 AWG
Insulation	Polyvinyl Chloride (PVC) covered 14 AWG and larger are type THHN/THWN-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a circular cross section
Shield (optional)	Overall aluminum polyester (mylar) foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Conductor sizes 18 AWG – 16 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C PVC/NYLON PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY Conductor sizes 14 AWG – 10 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C THHN/THWN-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8, ASTM B33 UL 83 UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 ANSI/NEMA WC 57/ICEA S-73-532 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.1)	40(56)
3	18	0.020(0.51)	0.045(1.14)	0.29(7.5)	50(69)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.0)	60(84)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.7)	70(99)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	85(126)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	110(158)
12	18	0.020(0.51)	0.045(1.14)	0.47(12.0)	135(199)
19	18	0.020(0.51)	0.045(1.14)	0.55(14.0)	205(298)
25	18	0.020(0.51)	0.045(1.14)	0.67(17.1)	280(414)
37	18	0.020(0.51)	0.045(1.14)	0.76(19.4)	390(573)
2	16	0.020(0.51)	0.045(1.14)	0.30(7.7)	50(69)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.1)	60(88)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.8)	75(109)
5	16	0.020(0.51)	0.045(1.14)	0.37(9.5)	90(130)
7	16	0.020(0.51)	0.045(1.14)	0.40(10.3)	115(168)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	145(211)
12	16	0.020(0.51)	0.045(1.14)	0.52(13.3)	185(269)
16	16	0.020(0.51)	0.045(1.14)	0.61(15.6)	255(378)
19	16	0.020(0.51)	0.045(1.14)	0.64(18.9)	295(435)
25	16	0.020(0.51)	0.045(1.14)	0.75(18.9)	380(560)
30	16	0.020(0.51)	0.045(1.14)	0.79(20.0)	440(653)
37	16	0.020(0.51)	0.045(1.14)	0.85(21.5)	530(784)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	60(88)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.8)	80(115)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	100(143)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(172)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	155(226)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	195(285)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.5)	265(393)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.1)	400(591)
25	14	0.020(0.51)	0.060(1.52)	0.83(21.0)	515(763)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.2)	605(895)
37	14	0.020(0.51)	0.080(2.03)	0.98(25.0)	765(1,138)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	80(117)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(157)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	135(198)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.7)	165(240)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.7)	215(318)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.7)	290(431)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.4)	375(553)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.3)	565(840)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.8)	775(1,147)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.2)	905(1,344)
37	12	0.020(0.51)	0.080(2.03)	1.11(28.2)	1,090(1,622)
2	10	0.025(0.64)	0.045(1.14)	0.43(11.0)	115(169)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(231)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	200(295)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.8)	260(385)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.1)	345(511)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.9)	435(647)
12	10	0.025(0.64)	0.060(1.52)	0.83(21.0)	565(836)

Overall Shielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(62)
3	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55(76)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.1)	65(91)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.8)	75(106)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	90(133)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	115(165)
12	18	0.020(0.51)	0.045(1.14)	0.48(12.1)	140(207)
19	18	0.020(0.51)	0.045(1.14)	0.56(14.1)	210(306)
25	18	0.020(0.51)	0.060(1.52)	0.68(17.2)	285(423)
37	18	0.020(0.51)	0.060(1.52)	0.77(19.5)	395(583)
2	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55(76)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(95)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.9)	80(116)
5	16	0.020(0.51)	0.045(1.14)	0.38(9.6)	95(137)
7	16	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(175)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.1)	150(219)
12	16	0.020(0.51)	0.045(1.14)	0.53(13.4)	190(277)
16	16	0.020(0.51)	0.060(1.52)	0.62(15.7)	265(387)
19	16	0.020(0.51)	0.060(1.52)	0.65(16.4)	300(444)
25	16	0.020(0.51)	0.060(1.52)	0.75(19.0)	385(569)
30	16	0.020(0.51)	0.060(1.52)	0.79(20.1)	450(663)
37	16	0.020(0.51)	0.060(1.52)	0.85(21.6)	535(794)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	65(94)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.9)	85(121)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	105(150)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	125(179)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	160(232)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	200(292)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.4)	270(400)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.0)	405(597)
25	14	0.020(0.51)	0.060(1.52)	0.82(20.9)	520(770)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.0)	610(902)
37	14	0.020(0.51)	0.080(2.03)	0.98(24.8)	770(1,144)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	85(124)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(163)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	140(205)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.6)	170(246)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.6)	220(325)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.6)	295(438)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.3)	380(560)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.2)	570(846)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.6)	775(1,153)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.0)	910(1,350)
37	12	0.020(0.51)	0.080(2.03)	1.10(28.0)	1,095(1,627)
2	10	0.025(0.64)	0.045(1.14)	0.43(11.0)	120(176)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(238)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	205(302)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.7)	265(392)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.0)	350(517)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.8)	440(836)
12	10	0.025(0.64)	0.060(1.52)	0.82(20.9)	570(843)

Certification

This certified 16 awg tc-er control cable complies with TC-ER tray cable standards and UL industrial specifications. Qualified as a standard ul 1277 tray cable for sale, this 600 Volt TC-ER Cable undergoes strict factory testing and comes with complete product datasheets and specifications. We provide standardized high-quality cables and full technical support for industrial project approval and installation.

unshielded pvc nylon pvc 600v control type tc-er cable specification

Heat-Resistant

Wear Resistance

Mechanical Strength

UL Certificated

unshielded pvc nylon pvc control cable supplier

600v pvc nylon pvc tray cable price

APPLICATIONS

This reliable 16 awg tc-er control cable is a professional wiring solution for factory automation and industrial control systems. Adopting standard type tc-er pvc nylon pvc cable structure and 600V high safety rating, it features excellent environmental adaptability, perfectly suitable for various factory automation wiring scenarios with dust, vibration and minor oil pollution.

600v pvc nylon pvc tray cable

Industrial Plant

Suitable for cable tray wiring, production line control circuits and automated equipment connection in manufacturing workshops. The wear-resistant triple-layer structure copes with long-term dust and oil pollution in factory environments, ensuring stable daily operation of production equipment.

rohs compliant control cable factory

Mining Facility

Ideal for auxiliary mining equipment control wiring and on-site signal transmission. With strong mechanical toughness and anti-vibration performance, it can adapt to complex and harsh mining working conditions to maintain safe and stable circuit operation.

reach compliant cable for sale

Power Plant

Applicable to low-voltage auxiliary control loops, internal cabinet wiring and signal collection systems of power plants, providing safe and reliable circuit guarantee for the daily operation and auxiliary power supply of power plant equipment.

industrial automation control cable supplier

Water Treatment Plant

Perfect for water pump control circuits, automatic dosing system wiring and sewage treatment equipment control loops. It has excellent moisture and corrosion resistance, adapting to the long-term humid working environment of water treatment workshops.
