14 AWG XLPE PVC Overall Shielded TC-ER Control Cable 600V

Name: 14 AWG XLPE PVC Overall Shielded TC-ER Control Cable 600V
Brand: GERITEL

14 AWG overall shielded TC-ER control cable rated 600V. Equipped with full overall shielding to resist electromagnetic interference. XLPE insulation provides great thermal performance, matched with wear-resistant PVC outer jacket. TC-ER standard allows direct tray laying, widely used for industrial control circuits and automation equipment.

Conductor：

Stranded Bare Copper Conductor

Insulation：

XLPE

Jacket：

PVC

Shield：

Aluminum Polyester Overall Shield

Rated Voltage：

600V

Temperature range：

90℃

Size range：

10AWG -14AWG

Standard：

UL1277 & UL44

Color：

Black

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

TC-ER Cable

TSJ-N Cable

Conductor

Stranded Bare Copper
Conductor

TSJ-N Cable

Insulation and Jacket

XLPE Insulation & PVC Overall Jacket

TSJ-N Cable

Shield

Aluminum Polyester Overall Shield

TSJ-N Cable

Temperature Rating

90°C

Overall Shielded TC-ER Control Cable 14 AWG 600V XLPE Insulation PVC Outer Sheath

This 14 AWG overall shielded TC-ER control cable is rated for 600V low voltage control applications, constructed with high-performance XLPE insulation and robust PVC outer sheath. The full overall shielding layer effectively suppresses EMI and RFI interference, preventing signal jitter and ensuring precise signal transmission for control instruments and automation systems. XLPE material features stable heat resistance and superior dielectric strength, while the PVC jacket offers reliable defense against abrasion, dampness and mild oil corrosion. Meeting TC-ER tray cable standards, it can be directly routed inside cable trays without extra conduits to simplify installation work. With balanced current-carrying capacity of 14 AWG conductors, it serves as a reliable wiring solution for industrial control panels, mechanical equipment and commercial automation projects.

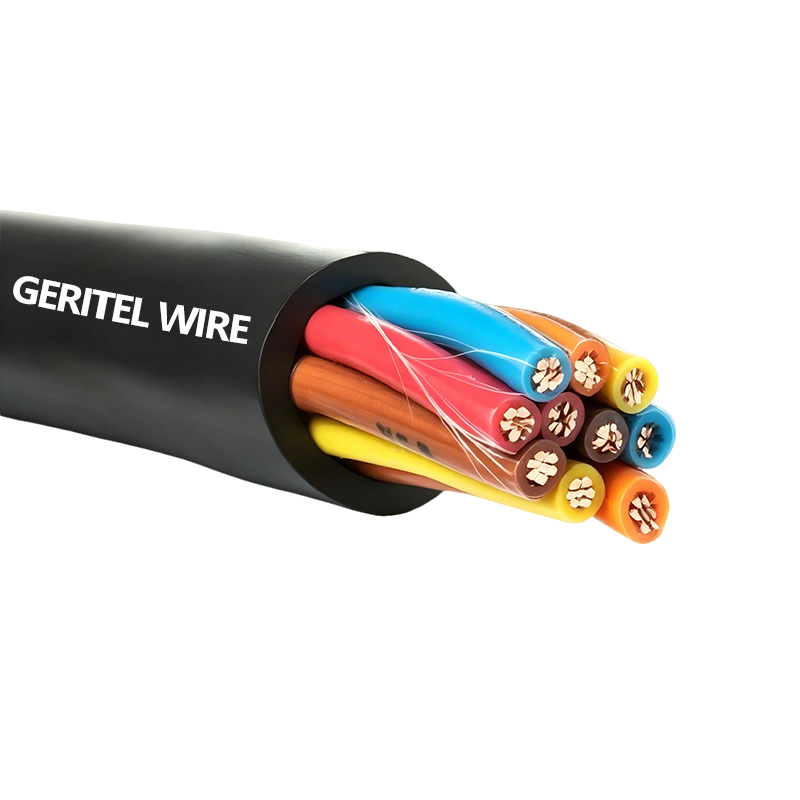

Type TC-ER Cable

TC-ER Cable

TC-ER cable is a power and control tray cable built for demanding industrial routing. The "TC" stands for Tray Cable, while the "-ER" or Exposed Run rating means it's approved not only for cable tray and conduit but also for certain approved exposed runs, giving installers real flexibility with a single cable type. Typically constructed with stranded copper conductors and rugged insulation, TC-ER cable carries power and control circuits in plants, motor control centers, machinery wiring, and general distribution, standing up to abrasion and daily industrial wear. Available in multiple builds such as 3/C or 4/C, with a bare ground or insulated green ground, it's a dependable, versatile choice wherever a tough, tray-rated cable is needed.

NM-B cable

Conductors：

Stranded Bare Copper
Conductor

NM-B cable

Rated Voltage:

600V

NM-B cable

Insulated：XLPE

NM-B cable

Jacket：PVC

NM-B CABLE

Standards：

UL1277 & UL44

NM-B WIRE

Temperature range：90℃

Advantages of 14 AWG XLPE PVC Overall Shielded TC-ER Control Cable 600V

This 14 AWG overall shielded TC-ER control cable features full shielding to block EMI and stabilize control signals. XLPE insulation offers excellent heat resistance, while the tough PVC jacket resists abrasion and moisture. TC-ER certification enables direct tray installation to cut installation costs. Rated 600V, its 14 AWG conductors fit industrial control panels and automation wiring perfectly.

600V TC-ER Cable

Product Description

The XLPE/PVC, 600V Control, Type TC-ER Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Cross-linked Polyethylene (XLPE), unshield or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations.
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 14 through 10 AWG
Insulation	· Cross-linked Polyethylene (XLPE) · 14 AWG and larger are type XHHW-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a round finish conductor
Shield (optional)	Overall aluminum polyester foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Type TC-ER (3 or more conductors) Conductor sizes 14 AWG - 10AWG: 00000 FT GREATER WIRE XXAWG XX/C XHHW-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY Type TC (2 conductors) Conductor sizes 14 AWG - 10AWG: 00000 FT GREATER WIRE XXAWG XX/C XHHW-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8, ASTM B33 UL 44, UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	14	0.030 (0.76)	0.045 (1.14)	0.37 (9.3)	65(95)
3	14	0.030 (0.76)	0.045 (1.14)	0.39 (9.9)	85(124)
4	14	0.030 (0.76)	0.045 (1.14)	0.42 (10.8)	105(154)
5	14	0.030 (0.76)	0.045 (1.14)	0.46 (11.7)	125 (185)
7	14	0.030 (0.76)	0.045 (1.14)	0.50 (12.7)	165(242)
9	14	0.030 (0.76)	0.060 (1.52)	0.62 (15.8)	225(333)
12	14	0.030 (0.76)	0.060 (1.52)	0.69 (17.5)	285(422)
19	14	0.030 (0.76)	0.060 (1.52)	0.80 (20.4)	425 (632)
25	14	0.030 (0.76)	0.080 (2.03)	0.98 (24.9)	590(874)
30	14	0.030 (0.76)	0.080 (2.03)	1.04 (26.3)	685(1,018)
37	14	0.030 (0.76)	0.080 (2.03)	1.11 (28.3)	820 (1,218)
2	12	0.030 (0.76)	0.045 (1.14)	0.40 (10.2)	85(125)
3	12	0.030 (0.76)	0.045 (1.14)	0.43 (10.8)	115 (166)
4	12	0.030 (0.76)	0.045 (1.14)	0.47 (11.8)	145 (209)
5	12	0.030 (0.76)	0.045 (1.14)	0.51 (12.9)	170 (253)
7	12	0.030 (0.76)	0.060 (1.52)	0.59 (14.9)	245 (361)
9	12	0.030 (0.76)	0.060 (1.52)	0.69 (17.4)	310 (455)
12	12	0.030 (0.76)	0.060 (1.52)	0.76 (19.4)	395(582)
19	12	0.030 (0.76)	0.080 (2.03)	0.93 (23.7)	630 (937)
25	12	0.030 (0.76)	0.080 (2.03)	1.09 (27.6)	815 (1,209)
30	12	0.030 (0.76)	0.080 (2.03)	1.15 (29.2)	955 (1,415)
37	12	0.030 (0.76)	0.080 (2.03)	1.24 (31.4)	1,150 (1,705)
2	10	0.030 (0.76)	0.045 (1.14)	0.45 (11.4)	115(170)
3	10	0.030 (0.76)	0.045 (1.14)	0.48 (12.1)	155(231)
4	10	0.030 (0.76)	0.045 (1.14)	0.52 (13.3)	200(294)
5	10	0.030 (0.76)	0.060 (1.52)	0.60 (15.4)	260 (385)
7	10	0.030 (0.76)	0.060 (1.52)	0.66 (16.7)	345(508)
9	10	0.030 (0.76)	0.060 (1.52)	0.77 (19.6)	435(644)
12	10	0.030 (0.76)	0.060 (1.52)	0.86 (21.8)	560(831)

Overall Shielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	14	0.030 (0.76)	0.045 (1.14)	0.37 (9.4)	70 (102)
3	14	0.030 (0.76)	0.045 (1.14)	0.39 (10.0)	90(131)
4	14	0.030 (0.76)	0.045 (1.14)	0.43 (10.8)	110(162)
5	14	0.030 (0.76)	0.045 (1.14)	0.46 (11.8)	130 (193)
7	14	0.030 (0.76)	0.045 (1.14)	0.50 (12.8)	170(250)
9	14	0.030 (0.76)	0.060 (1.52)	0.62 (15.9)	230(342)
12	14	0.030 (0.76)	0.060 (1.52)	0.69 (17.6)	290(431)
19	14	0.030 (0.76)	0.060 (1.52)	0.81 (20.5)	435 (642)
25	14	0.030 (0.76)	0.080 (2.03)	0.98 (25.0)	600(886)
30	14	0.030 (0.76)	0.080 (2.03)	1.04 (26.4)	695(1,029)
37	14	0.030 (0.76)	0.080 (2.03)	1.12 (28.4)	830 (1,231)
2	12	0.030 (0.76)	0.045 (1.14)	0.41 (10.3)	90(132)
3	12	0.030 (0.76)	0.045 (1.14)	0.43 (10.9)	120 (173)
4	12	0.030 (0.76)	0.045 (1.14)	0.47 (11.9)	150 (217)
5	12	0.030 (0.76)	0.045 (1.14)	0.51 (13.0)	180(261)
7	12	0.030 (0.76)	0.060 (1.52)	0.59 (15.0)	250 (369)
9	12	0.030 (0.76)	0.060 (1.52)	0.69 (17.5)	315(464)
12	12	0.030 (0.76)	0.060 (1.52)	0.76 (19.4)	400(592)
19	12	0.030 (0.76)	0.080 (2.03)	0.94 (23.8)	640 (948)
25	12	0.030 (0.76)	0.080 (2.03)	1.09 (27.7)	825 (1,221)
30	12	0.030 (0.76)	0.080 (2.03)	1.15 (29.2)	960 (1,428)
37	12	0.030 (0.76)	0.080 (2.03)	1.24 (31.5)	1,155 (1,718)
2	10	0.030 (0.76)	0.045 (1.14)	0.45 (11.5)	120 (177)
3	10	0.030 (0.76)	0.045 (1.14)	0.48 (12.2)	165(238)
4	10	0.030 (0.76)	0.045 (1.14)	0.53 (13.4)	205(302)
5	10	0.030 (0.76)	0.060 (1.52)	0.61 (15.4)	265(393)
7	10	0.030 (0.76)	0.060 (1.52)	0.66 (16.8)	350 (517)
9	10	0.030 (0.76)	0.060 (1.52)	0.78 (19.7)	440(653)
12	10	0.030 (0.76)	0.060 (1.52)	0.90 (23.0)	605(894)
