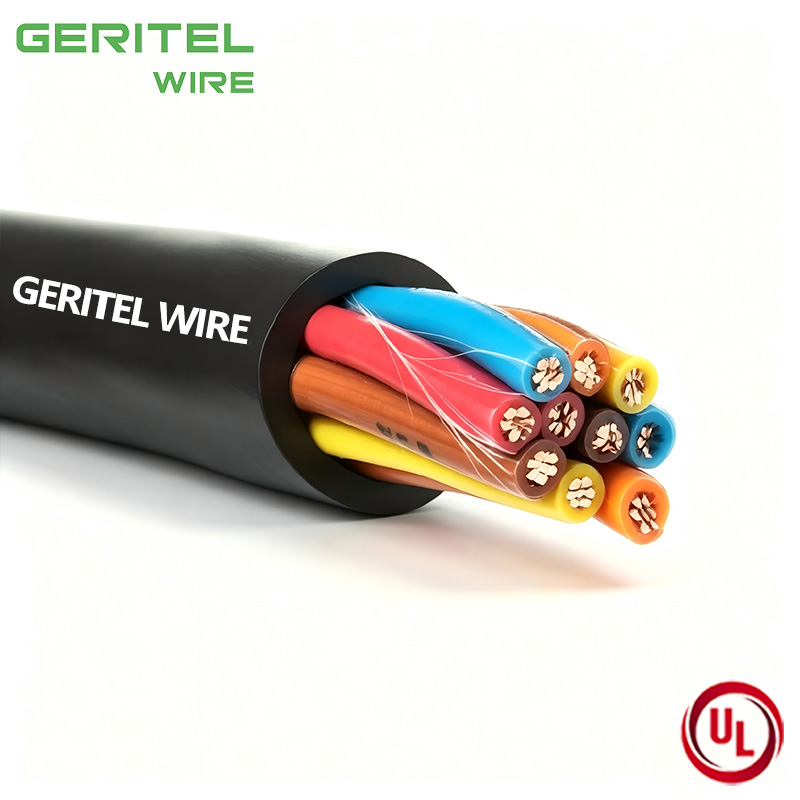

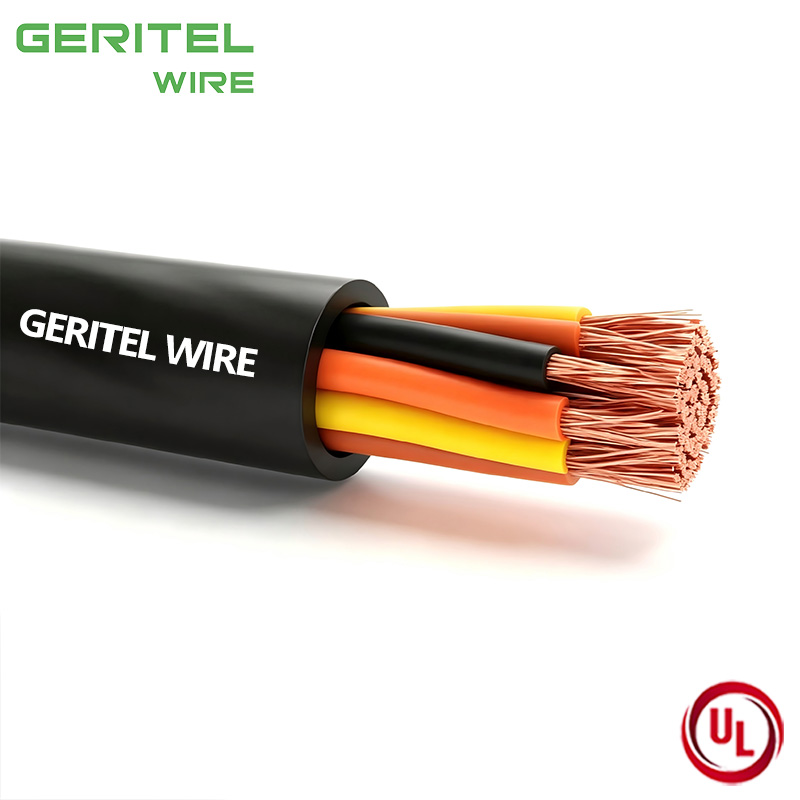

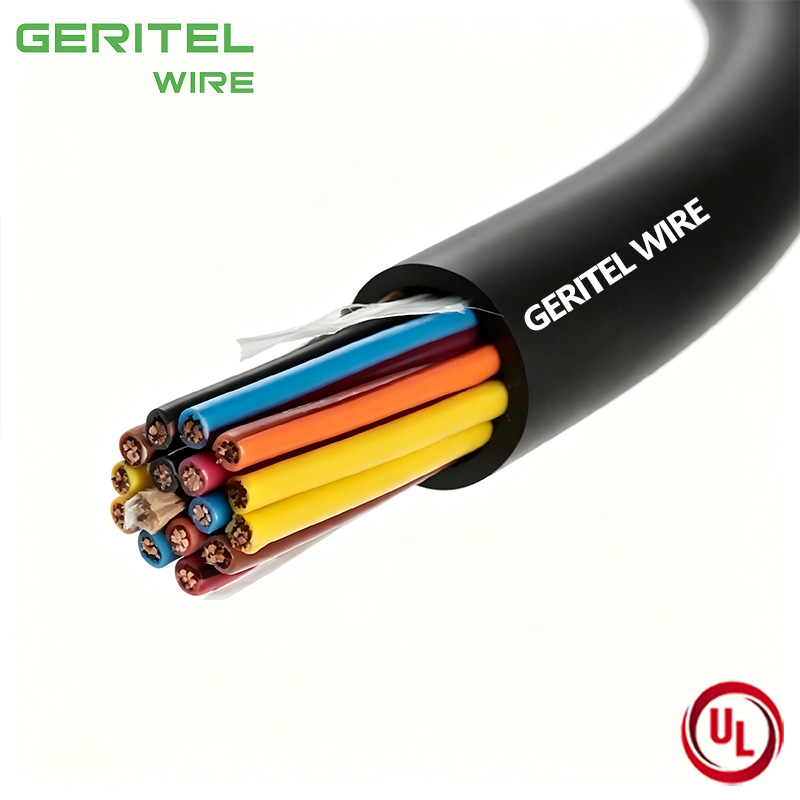

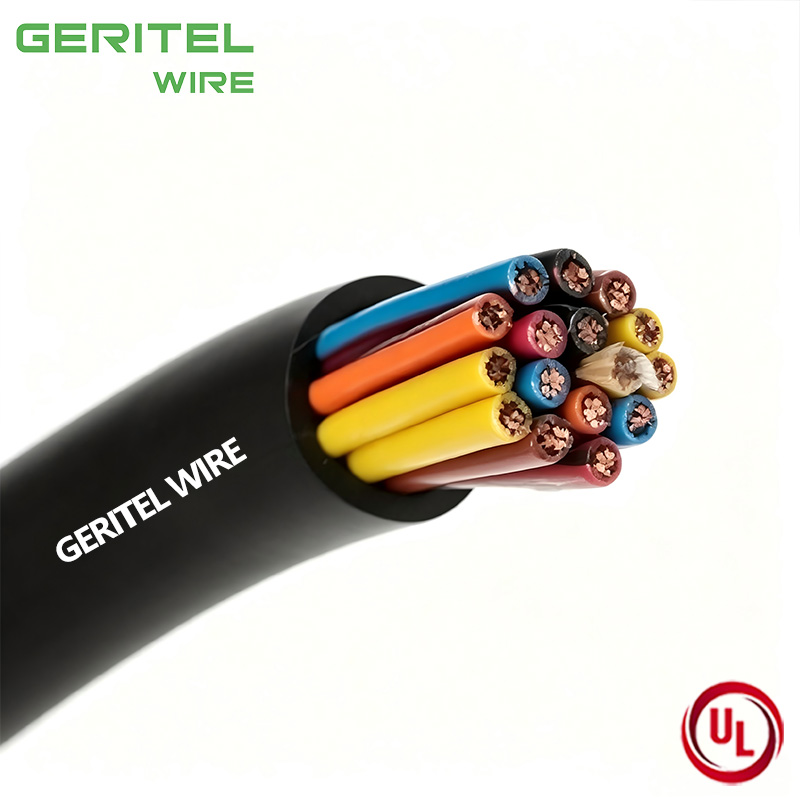

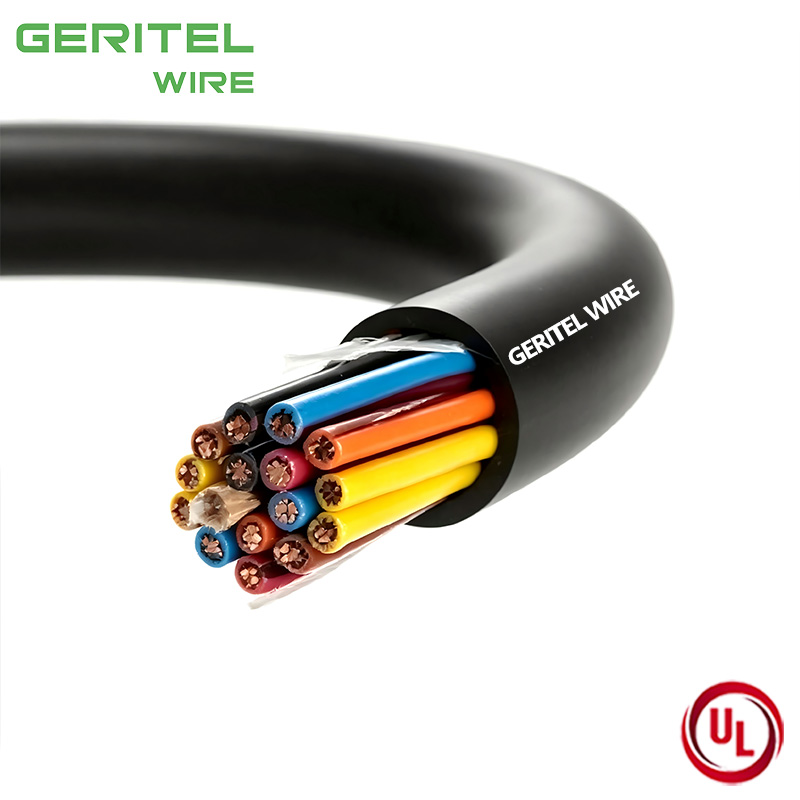

14 AWG XLPE PVC 600V Type TC-ER Unshielded Control Cable

Name: 14 AWG XLPE PVC 600V Type TC-ER Unshielded Control Cable
Brand: GERITEL

14 AWG 600V unshielded TC-ER control cable with XLPE insulation and durable PVC outer jacket, designed for multi-scene industrial power and control wiring.

Conductor：

Stranded Bare Copper Conductor

Insulation：

XLPE

Jacket：

PVC

Rated Voltage：

600V

Temperature range：

90℃

Size range：

10AWG -14AWG

Standard：

UL1277 & UL44

Color：

Black

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

TC-ER Cable

TSJ-N Cable

Conductor

Stranded Bare Copper
Conductor

TSJ-N Cable

Insulation and Jacket

XLPE Insulation & PVC Overall Jacket

TSJ-N Cable

Other

Ripcord (as needed)

TSJ-N Cable

Temperature Rating

90°C

14 AWG XLPE/PVC 600V Unshielded TC-ER Cable for Tray & Conduit

This 14 AWG 600V unshielded TC-ER control cable features heat and moisture resistant XLPE insulation matched with a sturdy anti-abrasion PVC outer jacket. Rated Type TC-ER, it supports installation inside cable trays, conduits and permitted exposed areas. The flexible stranded copper conductors simplify wiring and termination work, making it widely used for machinery control panels, small motor circuits and general industrial low-power distribution. Various multi-core configurations can be customized to match your construction demands.

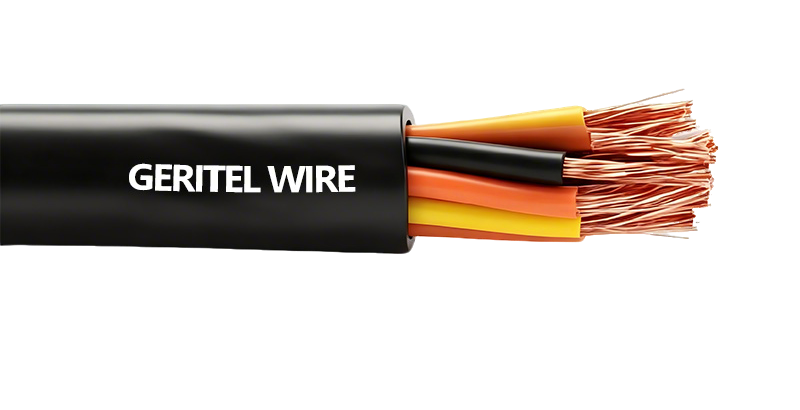

Type TC-ER Cable

TC-ER Cable

TC-ER cable is a power and control tray cable built for demanding industrial routing. The "TC" stands for Tray Cable, while the "-ER" or Exposed Run rating means it's approved not only for cable tray and conduit but also for certain approved exposed runs, giving installers real flexibility with a single cable type. Typically constructed with stranded copper conductors and rugged insulation, TC-ER cable carries power and control circuits in plants, motor control centers, machinery wiring, and general distribution, standing up to abrasion and daily industrial wear. Available in multiple builds such as 3/C or 4/C, with a bare ground or insulated green ground, it's a dependable, versatile choice wherever a tough, tray-rated cable is needed.

NM-B cable

Conductors：

Stranded Bare Copper
Conductor

NM-B cable

Rated Voltage:

600V

NM-B cable

Insulated：XLPE

NM-B cable

Jacket：PVC

NM-B CABLE

Standards：

UL1277 & UL44

NM-B WIRE

Temperature range：90℃

Advantages of 14 AWG XLPE PVC 600V Type TC-ER Unshielded Control Cable

This 600V unshielded cable uses moisture and heat resistant XLPE insulation paired with scratch-resistant PVC jacket to withstand regular industrial wear. It holds official TC-ER rating for tray, conduit and exposed installations, while flexible stranded copper cuts wiring labor and reduces voltage loss. The compact 14 AWG size fits light control circuits well, and multiple core options are offered to meet diverse factory wiring demands.

600V TC-ER Cable

Product Description

The XLPE/PVC, 600V Control, Type TC-ER Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Cross-linked Polyethylene (XLPE), unshield or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations.
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 14 through 10 AWG
Insulation	· Cross-linked Polyethylene (XLPE) · 14 AWG and larger are type XHHW-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a round finish conductor
Shield (optional)	Overall aluminum polyester foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Type TC-ER (3 or more conductors) Conductor sizes 14 AWG - 10AWG: 00000 FT GREATER WIRE XXAWG XX/C XHHW-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY Type TC (2 conductors) Conductor sizes 14 AWG - 10AWG: 00000 FT GREATER WIRE XXAWG XX/C XHHW-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8, ASTM B33 UL 44, UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	14	0.030 (0.76)	0.045 (1.14)	0.37 (9.3)	65(95)
3	14	0.030 (0.76)	0.045 (1.14)	0.39 (9.9)	85(124)
4	14	0.030 (0.76)	0.045 (1.14)	0.42 (10.8)	105(154)
5	14	0.030 (0.76)	0.045 (1.14)	0.46 (11.7)	125 (185)
7	14	0.030 (0.76)	0.045 (1.14)	0.50 (12.7)	165(242)
9	14	0.030 (0.76)	0.060 (1.52)	0.62 (15.8)	225(333)
12	14	0.030 (0.76)	0.060 (1.52)	0.69 (17.5)	285(422)
19	14	0.030 (0.76)	0.060 (1.52)	0.80 (20.4)	425 (632)
25	14	0.030 (0.76)	0.080 (2.03)	0.98 (24.9)	590(874)
30	14	0.030 (0.76)	0.080 (2.03)	1.04 (26.3)	685(1,018)
37	14	0.030 (0.76)	0.080 (2.03)	1.11 (28.3)	820 (1,218)
2	12	0.030 (0.76)	0.045 (1.14)	0.40 (10.2)	85(125)
3	12	0.030 (0.76)	0.045 (1.14)	0.43 (10.8)	115 (166)
4	12	0.030 (0.76)	0.045 (1.14)	0.47 (11.8)	145 (209)
5	12	0.030 (0.76)	0.045 (1.14)	0.51 (12.9)	170 (253)
7	12	0.030 (0.76)	0.060 (1.52)	0.59 (14.9)	245 (361)
9	12	0.030 (0.76)	0.060 (1.52)	0.69 (17.4)	310 (455)
12	12	0.030 (0.76)	0.060 (1.52)	0.76 (19.4)	395(582)
19	12	0.030 (0.76)	0.080 (2.03)	0.93 (23.7)	630 (937)
25	12	0.030 (0.76)	0.080 (2.03)	1.09 (27.6)	815 (1,209)
30	12	0.030 (0.76)	0.080 (2.03)	1.15 (29.2)	955 (1,415)
37	12	0.030 (0.76)	0.080 (2.03)	1.24 (31.4)	1,150 (1,705)
2	10	0.030 (0.76)	0.045 (1.14)	0.45 (11.4)	115(170)
3	10	0.030 (0.76)	0.045 (1.14)	0.48 (12.1)	155(231)
4	10	0.030 (0.76)	0.045 (1.14)	0.52 (13.3)	200(294)
5	10	0.030 (0.76)	0.060 (1.52)	0.60 (15.4)	260 (385)
7	10	0.030 (0.76)	0.060 (1.52)	0.66 (16.7)	345(508)
9	10	0.030 (0.76)	0.060 (1.52)	0.77 (19.6)	435(644)
12	10	0.030 (0.76)	0.060 (1.52)	0.86 (21.8)	560(831)

Overall Shielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	14	0.030 (0.76)	0.045 (1.14)	0.37 (9.4)	70 (102)
3	14	0.030 (0.76)	0.045 (1.14)	0.39 (10.0)	90(131)
4	14	0.030 (0.76)	0.045 (1.14)	0.43 (10.8)	110(162)
5	14	0.030 (0.76)	0.045 (1.14)	0.46 (11.8)	130 (193)
7	14	0.030 (0.76)	0.045 (1.14)	0.50 (12.8)	170(250)
9	14	0.030 (0.76)	0.060 (1.52)	0.62 (15.9)	230(342)
12	14	0.030 (0.76)	0.060 (1.52)	0.69 (17.6)	290(431)
19	14	0.030 (0.76)	0.060 (1.52)	0.81 (20.5)	435 (642)
25	14	0.030 (0.76)	0.080 (2.03)	0.98 (25.0)	600(886)
30	14	0.030 (0.76)	0.080 (2.03)	1.04 (26.4)	695(1,029)
37	14	0.030 (0.76)	0.080 (2.03)	1.12 (28.4)	830 (1,231)
2	12	0.030 (0.76)	0.045 (1.14)	0.41 (10.3)	90(132)
3	12	0.030 (0.76)	0.045 (1.14)	0.43 (10.9)	120 (173)
4	12	0.030 (0.76)	0.045 (1.14)	0.47 (11.9)	150 (217)
5	12	0.030 (0.76)	0.045 (1.14)	0.51 (13.0)	180(261)
7	12	0.030 (0.76)	0.060 (1.52)	0.59 (15.0)	250 (369)
9	12	0.030 (0.76)	0.060 (1.52)	0.69 (17.5)	315(464)
12	12	0.030 (0.76)	0.060 (1.52)	0.76 (19.4)	400(592)
19	12	0.030 (0.76)	0.080 (2.03)	0.94 (23.8)	640 (948)
25	12	0.030 (0.76)	0.080 (2.03)	1.09 (27.7)	825 (1,221)
30	12	0.030 (0.76)	0.080 (2.03)	1.15 (29.2)	960 (1,428)
37	12	0.030 (0.76)	0.080 (2.03)	1.24 (31.5)	1,155 (1,718)
2	10	0.030 (0.76)	0.045 (1.14)	0.45 (11.5)	120 (177)
3	10	0.030 (0.76)	0.045 (1.14)	0.48 (12.2)	165(238)
4	10	0.030 (0.76)	0.045 (1.14)	0.53 (13.4)	205(302)
5	10	0.030 (0.76)	0.060 (1.52)	0.61 (15.4)	265(393)
7	10	0.030 (0.76)	0.060 (1.52)	0.66 (16.8)	350 (517)
9	10	0.030 (0.76)	0.060 (1.52)	0.78 (19.7)	440(653)
12	10	0.030 (0.76)	0.060 (1.52)	0.90 (23.0)	605(894)

Certification

All specs of Type TC-ER Power and Control Tray Cable, Copper Conductor XHHW-2 Tray Cable and multi-conductor 3/C and 4/C tray cable with bare or insulated green ground pass strict electrical testing and are built to UL 1277 and UL 44, conforming to North American industrial electrical standards for tray, conduit, and approved exposed-run installations.

Control Cable TC-ER

Heat-Resistant

Wear Resistance

Mechanical Strength

UL Certificated

600V Control Cable

XLPE PVC Control Cable

APPLICATIONS

The 14 AWG XHHW-2 600V TC-ER Control Tray Cable carries power and control circuits in cable trays, conduit, and approved exposed runs — ideal for motor control centers, control panels, machinery wiring, and general 600V power distribution across industrial and commercial facilities.

Unshielded TC-ER Cable

Industrial Plant

Suitable for general manufacturing factory workshop control wiring, production line signal transmission and workshop auxiliary equipment circuit connection. It resists daily dust, oil pollution and mechanical friction to ensure stable factory operation.

Unshielded Control Cable

Mining Facility

Applicable for mining site auxiliary equipment control and short-distance signal wiring. The sturdy anti-abrasion sheath adapts to harsh mining environments with frequent vibration and complex on-site conditions for safe control circuit operation.

Tray Cable

Power Plant

Ideal for power plant low-voltage auxiliary control system wiring, equipment signal collection and cabinet internal control wiring. It provides stable and reliable circuit guarantee for daily power plant auxiliary operation.

Water Treatment Plant

Perfect for water treatment equipment control wiring, pump unit signal connection and sewage plant automatic control system circuits. It features moisture and corrosion resistance, adapting to humid water plant working environments.

Customer Photos

We provide authentic product photos and real project installation pictures for reference.

Electrical Control Cable

plant equipment

We own complete production and testing equipment to ensure stable and consistent cable quality.

UL 1277 Cable

UL Listed TC-ER Cable

XLPE Insulated Control Cable

PVC Jacket Control Cable

600 Volt Control Cable

TC ER Electrical Cable

Packaging Information

Standard moisture-proof wooden reel packaging is adopted for safe long-distance transportation.

Tray Rated Control Cable

Pallet Packaging

Exposed Run Control Cable

Large Wooden Reel

Direct Burial Control Cable

Large Wooden Reel

Global Certification

Our cables comply with mainstream international electrical standards to support global project acceptance.
