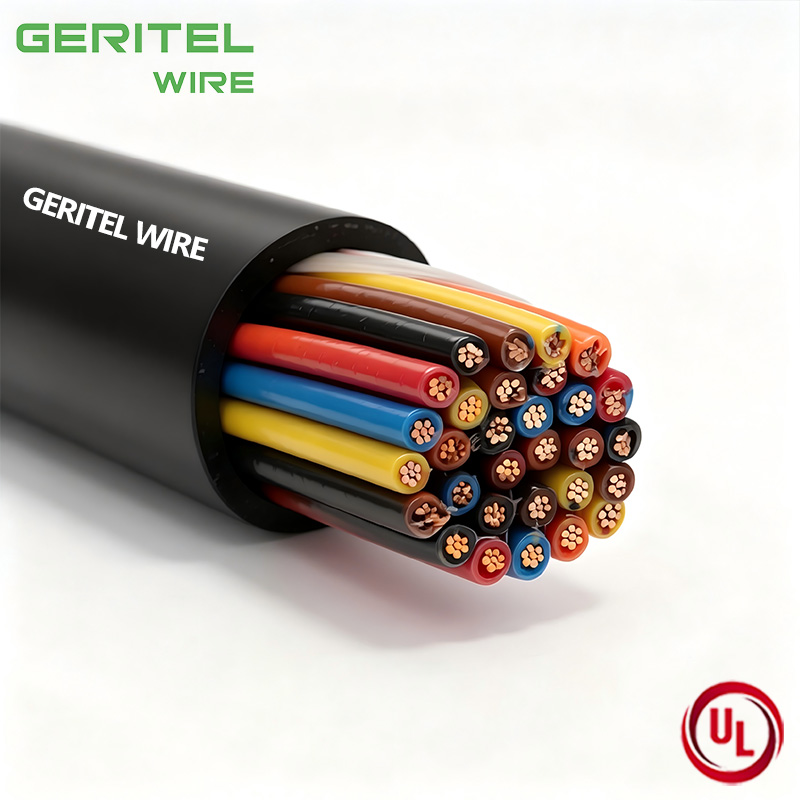

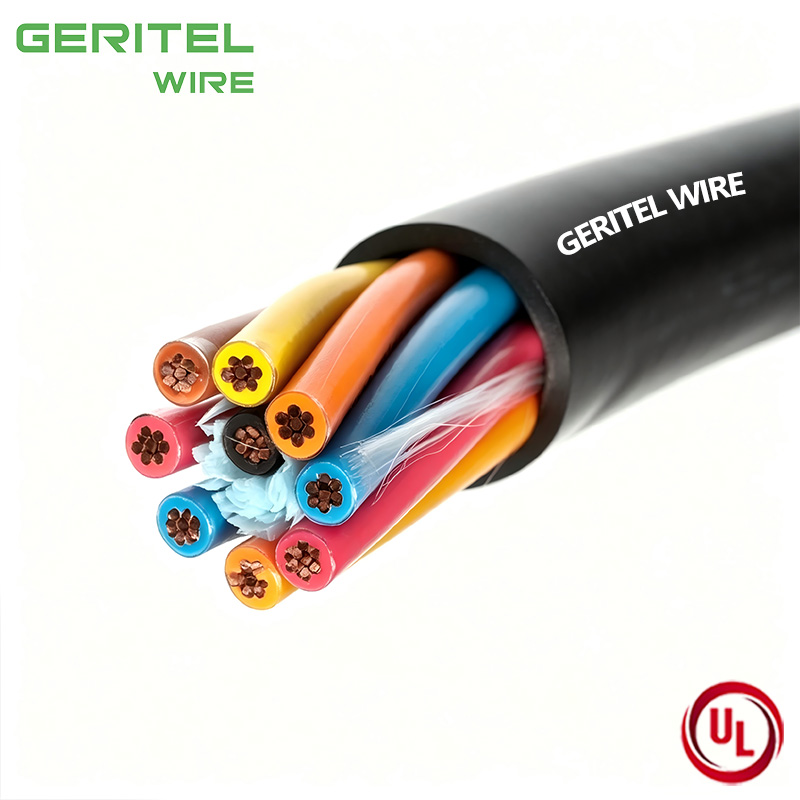

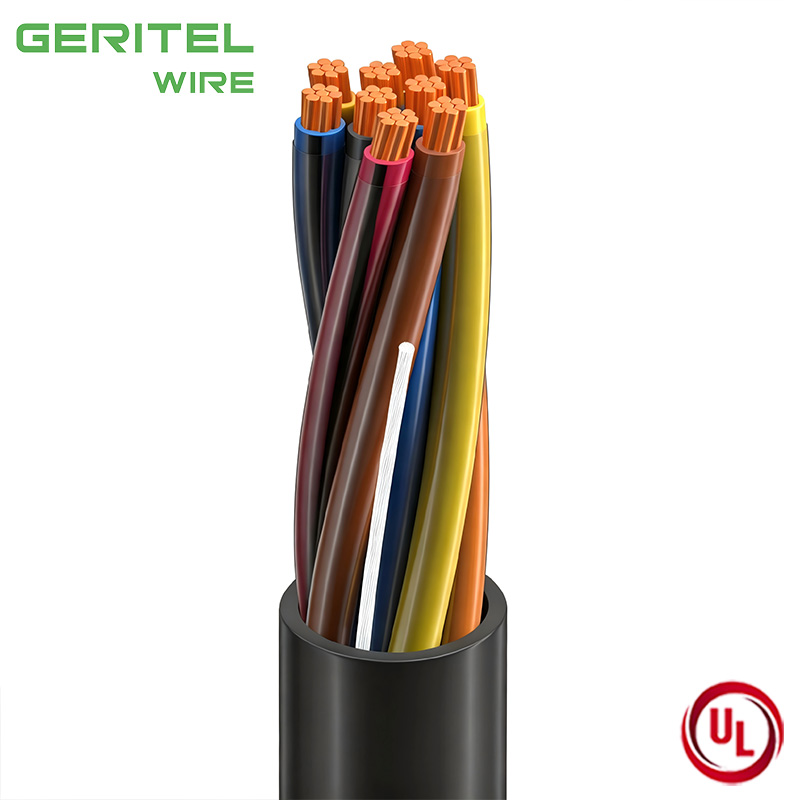

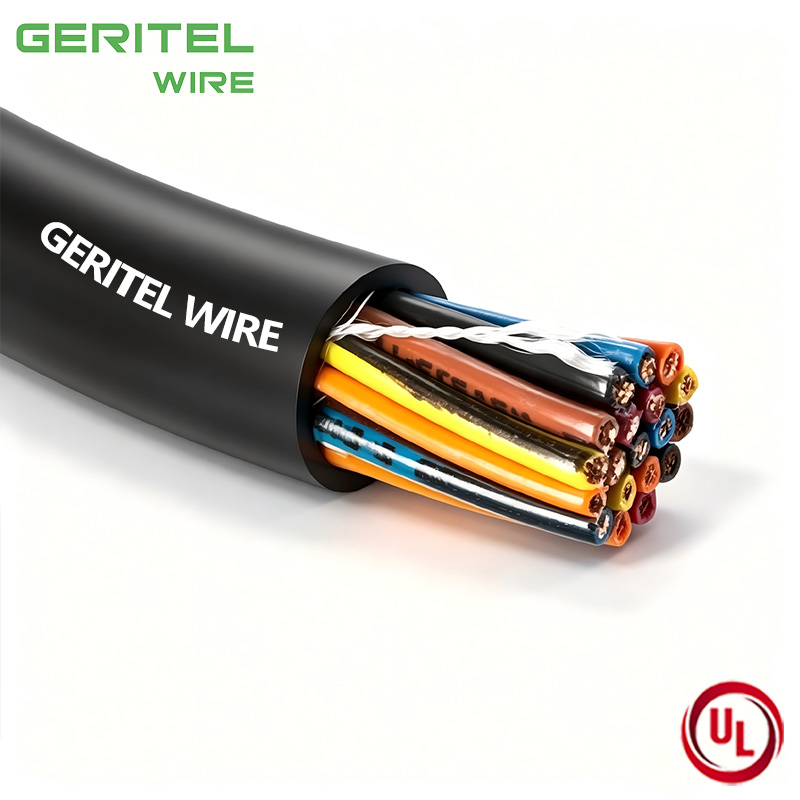

14 AWG VNTC Control Cable 600V PVC Nylon PVC Type TC-ER Unshielded

Name: 14 AWG VNTC Control Cable 600V PVC Nylon PVC Type TC-ER Unshielded
Brand: GERITEL

Premium 14 AWG unshielded TC-ER tray cable. 600V PVC Nylon PVC VNTC control cable with strong abrasion resistance, suitable for industrial machine control and various harsh industrial wiring scenarios.

Conductor：

Copper Stranded Conductor

Insulation：

PVC

Jacket：

Nylon

Shield：

PVC

Rated Voltage：

600V

Temperature range：

90℃

Size range：

18AWG -10AWG

Standard：

UL 1277

Color：

Black

Whatsapp: +86 13510784550

manager01@greaterwire.com

Add To Inquiry

Description

Download

unshielded pvc nylon pvc 600v control type tc-er cable for sale

TSJ-N Cable

Conductor

Copper Stranded Conductor (filled or unfilled)

TSJ-N Cable

Insulation and Jacket

PVC Insulation & Nylon Jacket

TSJ-N Cable

Shield

PVC Shield

TSJ-N Cable

Temperature Rating

90°C

14 AWG VNTC Control Cable 600V PVC Nylon PVC Type TC-ER Unshielded FOR Industrial Machine Control Wiring

This 14 AWG unshielded VNTC tray cable is a heavy-duty 14 awg tc-er control cable, professionally manufactured for industrial machine control wiring and low-voltage mechanical control circuits. Rated 600V, it is a standard 600 Volt TC-ER Cable and premium 600v pvc nylon pvc tray cable, adopting sturdy triple-layer composite structure. As a qualified type tc-er pvc nylon pvc cable offered by reliable 14 awg tc-er control cable manufacturer, it delivers outstanding tensile strength, abrasion resistance and oil resistance for long-term industrial low-voltage control operation.

ul 1277 tray cable specification

TC-ER Control Cable

Tailored for industrial machine control and tray wiring scenarios, this 14 awg tc-er control cable is a classic unshielded VNTC type TC-ER Cable. The 600V-rated 600v pvc nylon pvc tray cable adopts nylon sandwiched dual PVC protection, greatly improving tear and wear resistance. Featuring flexible unshielded design, this type tc-er pvc nylon pvc cable supports easy laying in compact equipment gaps and cable trays, perfectly adapting to harsh industrial vibration, humidity and oil pollution environments.

NM-B cable

Conductors：Copper Stranded

NM-B cable

Rated Voltage：600V

NM-B cable

Insulated：PVC

NM-B cable

Jacket：Nylon

NM-B CABLE

Standards：UL1277&UL83

NM-B WIRE

Temperature range：90℃

Advantages of CU TC-ER 600V 14 AWG UNShielded

This premium 14 awg tc-er control cable has obvious competitive advantages over ordinary control wires. It features ft4 rated tc-er cable flame retardant performance and stable electrical safety. As a professional 14 awg tc-er control cable factory, we provide flexible 14 awg tc-er control cable bulk services and accurate 14 awg tc-er control cable quote, supporting diverse industrial machine control system wiring demands.

ul listed control tray cable quote

Product Description

The PVC/Nylon/PVC (THHN/THWN-2), 600V Control, Type TC-ER and Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Polyvinyl Chloride (PVC) and clear Nylon insulation, unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 18 through 10 AWG
Insulation	Polyvinyl Chloride (PVC) covered 14 AWG and larger are type THHN/THWN-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a circular cross section
Shield (optional)	Overall aluminum polyester (mylar) foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Conductor sizes 18 AWG – 16 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C PVC/NYLON PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY Conductor sizes 14 AWG – 10 AWG: 00000 FT GREATER WIRE CABLE XXAWG XX/C THHN/THWN-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (or -ER) (UL) SUN RES DIR BUR FT4/IEEE1202 MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B8, ASTM B33 UL 83 UL 1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 ANSI/NEMA WC 57/ICEA S-73-532 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.1)	40(56)
3	18	0.020(0.51)	0.045(1.14)	0.29(7.5)	50(69)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.0)	60(84)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.7)	70(99)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	85(126)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	110(158)
12	18	0.020(0.51)	0.045(1.14)	0.47(12.0)	135(199)
19	18	0.020(0.51)	0.045(1.14)	0.55(14.0)	205(298)
25	18	0.020(0.51)	0.045(1.14)	0.67(17.1)	280(414)
37	18	0.020(0.51)	0.045(1.14)	0.76(19.4)	390(573)
2	16	0.020(0.51)	0.045(1.14)	0.30(7.7)	50(69)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.1)	60(88)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.8)	75(109)
5	16	0.020(0.51)	0.045(1.14)	0.37(9.5)	90(130)
7	16	0.020(0.51)	0.045(1.14)	0.40(10.3)	115(168)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.0)	145(211)
12	16	0.020(0.51)	0.045(1.14)	0.52(13.3)	185(269)
16	16	0.020(0.51)	0.045(1.14)	0.61(15.6)	255(378)
19	16	0.020(0.51)	0.045(1.14)	0.64(18.9)	295(435)
25	16	0.020(0.51)	0.045(1.14)	0.75(18.9)	380(560)
30	16	0.020(0.51)	0.045(1.14)	0.79(20.0)	440(653)
37	16	0.020(0.51)	0.045(1.14)	0.85(21.5)	530(784)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	60(88)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.8)	80(115)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	100(143)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(172)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	155(226)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	195(285)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.5)	265(393)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.1)	400(591)
25	14	0.020(0.51)	0.060(1.52)	0.83(21.0)	515(763)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.2)	605(895)
37	14	0.020(0.51)	0.080(2.03)	0.98(25.0)	765(1,138)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	80(117)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(157)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	135(198)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.7)	165(240)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.7)	215(318)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.7)	290(431)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.4)	375(553)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.3)	565(840)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.8)	775(1,147)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.2)	905(1,344)
37	12	0.020(0.51)	0.080(2.03)	1.11(28.2)	1,090(1,622)
2	10	0.025(0.64)	0.045(1.14)	0.43(11.0)	115(169)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(231)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	200(295)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.8)	260(385)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.1)	345(511)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.9)	435(647)
12	10	0.025(0.64)	0.060(1.52)	0.83(21.0)	565(836)

Overall Shielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	18	0.020(0.51)	0.045(1.14)	0.28(7.2)	45(62)
3	18	0.020(0.51)	0.045(1.14)	0.30(7.5)	55(76)
4	18	0.020(0.51)	0.045(1.14)	0.32(8.1)	65(91)
5	18	0.020(0.51)	0.045(1.14)	0.34(8.8)	75(106)
7	18	0.020(0.51)	0.045(1.14)	0.37(9.4)	90(133)
9	18	0.020(0.51)	0.045(1.14)	0.43(10.9)	115(165)
12	18	0.020(0.51)	0.045(1.14)	0.48(12.1)	140(207)
19	18	0.020(0.51)	0.045(1.14)	0.56(14.1)	210(306)
25	18	0.020(0.51)	0.060(1.52)	0.68(17.2)	285(423)
37	18	0.020(0.51)	0.060(1.52)	0.77(19.5)	395(583)
2	16	0.020(0.51)	0.045(1.14)	0.31(7.8)	55(76)
3	16	0.020(0.51)	0.045(1.14)	0.32(8.2)	65(95)
4	16	0.020(0.51)	0.045(1.14)	0.35(8.9)	80(116)
5	16	0.020(0.51)	0.045(1.14)	0.38(9.6)	95(137)
7	16	0.020(0.51)	0.045(1.14)	0.41(10.4)	120(175)
9	16	0.020(0.51)	0.045(1.14)	0.47(12.1)	150(219)
12	16	0.020(0.51)	0.045(1.14)	0.53(13.4)	190(277)
16	16	0.020(0.51)	0.060(1.52)	0.62(15.7)	265(387)
19	16	0.020(0.51)	0.060(1.52)	0.65(16.4)	300(444)
25	16	0.020(0.51)	0.060(1.52)	0.75(19.0)	385(569)
30	16	0.020(0.51)	0.060(1.52)	0.79(20.1)	450(663)
37	16	0.020(0.51)	0.060(1.52)	0.85(21.6)	535(794)
2	14	0.020(0.51)	0.045(1.14)	0.33(8.4)	65(94)
3	14	0.020(0.51)	0.045(1.14)	0.35(8.9)	85(121)
4	14	0.020(0.51)	0.045(1.14)	0.38(9.6)	105(150)
5	14	0.020(0.51)	0.045(1.14)	0.41(10.4)	125(179)
7	14	0.020(0.51)	0.045(1.14)	0.45(11.3)	160(232)
9	14	0.020(0.51)	0.045(1.14)	0.52(13.2)	200(292)
12	14	0.020(0.51)	0.060(1.52)	0.61(15.4)	270(400)
19	14	0.020(0.51)	0.060(1.52)	0.71(18.0)	405(597)
25	14	0.020(0.51)	0.060(1.52)	0.82(20.9)	520(770)
30	14	0.020(0.51)	0.060(1.52)	0.87(22.0)	610(902)
37	14	0.020(0.51)	0.080(2.03)	0.98(24.8)	770(1,144)
2	12	0.020(0.51)	0.045(1.14)	0.37(9.3)	85(124)
3	12	0.020(0.51)	0.045(1.14)	0.39(9.8)	110(163)
4	12	0.020(0.51)	0.045(1.14)	0.42(10.7)	140(205)
5	12	0.020(0.51)	0.045(1.14)	0.46(11.6)	170(246)
7	12	0.020(0.51)	0.045(1.14)	0.50(12.6)	220(325)
9	12	0.020(0.51)	0.060(1.52)	0.62(15.6)	295(438)
12	12	0.020(0.51)	0.060(1.52)	0.69(17.3)	380(560)
19	12	0.020(0.51)	0.060(1.52)	0.80(20.2)	570(846)
25	12	0.020(0.51)	0.080(2.03)	0.98(24.6)	775(1,153)
30	12	0.020(0.51)	0.080(2.03)	1.03(26.0)	910(1,350)
37	12	0.020(0.51)	0.080(2.03)	1.10(28.0)	1,095(1,627)
2	10	0.025(0.64)	0.045(1.14)	0.43(11.0)	120(176)
3	10	0.025(0.64)	0.045(1.14)	0.46(11.7)	160(238)
4	10	0.025(0.64)	0.045(1.14)	0.50(12.8)	205(302)
5	10	0.025(0.64)	0.060(1.52)	0.58(14.7)	265(392)
7	10	0.025(0.64)	0.060(1.52)	0.63(16.0)	350(517)
9	10	0.025(0.64)	0.060(1.52)	0.74(18.8)	440(836)
12	10	0.025(0.64)	0.060(1.52)	0.82(20.9)	570(843)
